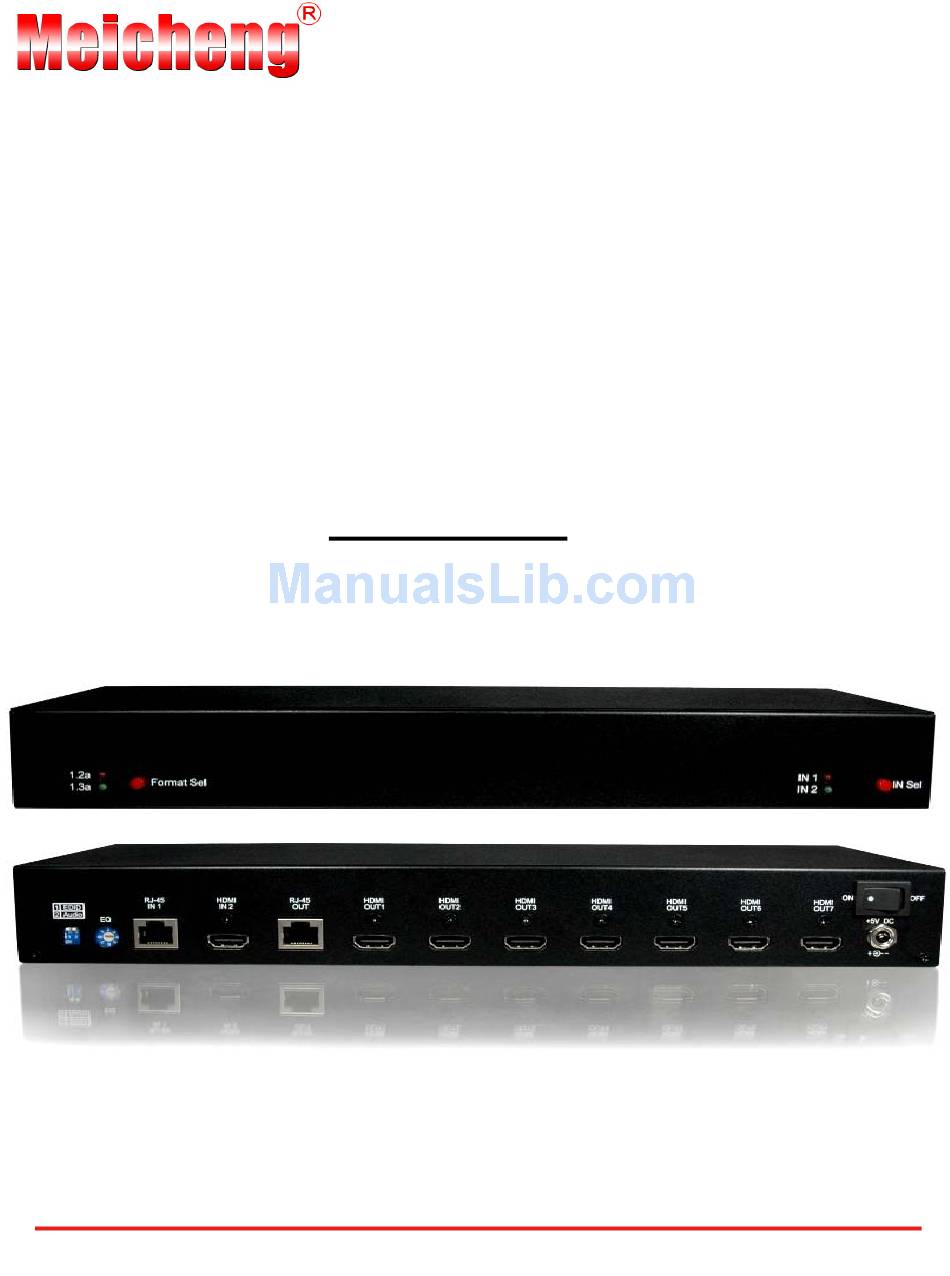

- Page 1 EX-G016 2x8 HDMI 1.3 over Single CAT5 Cascading Distribution Amplifier User Manual Page 1 of 9...
-
Page 2: Safety And Notice
However, like all electronic equipments, the EX-G016 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. - Page 3 HDCP compliant HDMI video distribution to up to 7 displays and one CAT5e Receiver or cascade to another EX-G016 Acts as a 2x1 HDMI switch plus a 1x8 HDMI over CAT5 splitter Minimizes the cable skew by adjustable 8-level equalization control...
-
Page 4: Specifications & Package Contents
Input DDC signal 5 Volts [peak-to-peak, TTL] ESD protection [1] Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] [EX-G016 / [2] Core chipset — ±8kV EX-G076A] PCB stack-up 4-layer board [impedance control — differential 100Ω; single 50Ω]... -
Page 5: Panel Descriptions
7. RJ-45 IN 1: for cascading from another EX-G016 or SP-5022 8. HDMI IN 2: for connecting to video source, SP-5012, SP-5018, or another EX-G016 9. RJ-45 OUT: for connecting to display through EX-G076A or EX-G076B; or for cascading to another SP-5022 or EX-G016 10. -
Page 6: Dip Switch
If the equipped display shows video but without audio, please try to set audio to 2 channel. Rotary Control In order to adapt the CAT5 cable, EX-G016 offers 8 level equalization control on the received HDMI signal. The strongest equalization is applied while the knob stops at number 0, while the weakest equalization happens at number 7. -
Page 7: Hardware Installation
3. Connect all HDMI outputs to the HDMI displays 4. Connect RJ-45 output to HDMI over CAT5 receiver through Cat-5e cable 5. Plug in 5V 4A DC power supply. 6. Power on the EX-G016 7. Power on the HDMI displays. 8. Power on the HDMI source(s). - Page 8 Notice 1. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve and provide DVI/HDMI EDID information. 2. All HDMI over CAT5 transmission distances are measured using Belden CAT5e 125MHz LAN cable and ASTRODESIGN Video Signal Generator VG-859C. 3.
-
Page 9: Limited Warranty
Limited Warranty The SELLER warrants the EX-G016 2x8 HDMI 1.3 over Single CAT5 Cascading Distribution Amplifier to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1...
