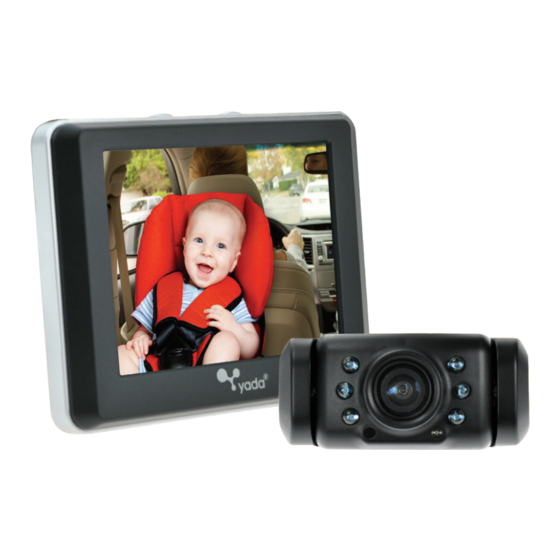

- Page 1 Tiny Traveler ™ Baby Monitor for Your Car BT50424F-1 USER MANUAL ML-50424F_V2...
- Page 2 Please register your product warranty at www.letsyada.com <http://www.letsyada.com> IF YOU ARE EXPERIENCING ANY ISSUES WITH THE PRODUCT DURING OPERATION, DO NOT RETURN THE PRODUCT TO THE STORE. CONTACT WINPLUS DIRECTLY FOR INSTRUCTIONS ON HOW TO RETURN/ EXCHANGE THE PRODUCT. PLEASE KEEP YOUR ORIGINAL RECEIPT AS PROOF OF PURCHASE MUST BE PROVIDED.
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Introduction ...................................2 2. Important Safety information ............................2 3. Package Contents ................................4 4. Product Specifications ................................5 5. Installation Guide .................................5 6. Maintenance & Warranty ..............................10 7. General Information ................................. 12... -
Page 4: Introduction
1. INTRODUCTION Thank you for purchasing the Yada Tiny Traveler™ Baby Monitor for your car. Yada is dedicated to safe driving practices and strives to limit distractions for drivers. The Yada Tiny Traveler™ is intended to aid in helping drivers traveling with a baby remain focused on driving safely and still have the security of being able to glance at the baby in the back seat. - Page 5 • DO NOT attach the Camera to the baby seat. DO NOT lay the camera loosely in the baby seat. • This system is powered by plugging the adapter into the 12/24v adapter in your vehicle. Do not attempt to use any other power source or cables to operate this system. • The Yada Tiny Traveler™ is not a toy. At no time should children be allowed to play with it. It should only be operated by adults who have read the safety and operating instructions listed in this manual. • This product contains small parts. Adult installation is required. Exercise care when unpacking and assembling the product.
-
Page 6: Package Contents
3. PACKAGE CONTENTS 1. Tiny Traveler™ Night Vision Camera with 16 Feet/5 Meters Connection Cable 2. Tiny Traveler™ 3.5” Color Monitor 3. Monitor Windshield Mount 4. Mounts for Camera: 4a. Suction Cup 4b. Headrest with Straps 5. 12/24V USB Power Adapter with Cable for Monitor 6. -
Page 7: Product Specifications
4. PRODUCT SPECIFICATIONS Tiny Traveler™ Monitor • 3.5” TFT color monitor • 5V Tiny Traveler™ Camera • CMOS Sensor • Night vision • VGA image quality • 45 degree view angle • 16 feet / 5 meter cable • Mini USB Plug • 5V 5. INSTALLATION GUIDE MONITOR PLACEMENT i. Take the Tiny Traveler™ Monitor from the packaging and attach the suction cup as shown. ii. Being able to safely glance at your baby should be comfortable and not require you to turn your head from facing forward. - Page 8 iii. When mounting, you will need to sit in the driver’s seat just as you would while driving, and angle the monitor until it is comfortable to glance at without turning your head away from watching the road. iv. Place the 12/24v Power Adapter in the port on the right side of the monitor.
- Page 9 v. Plug the other end of the Power Adapter into an available 12/24v socket in your vehicle. Please note that the cable should not wrap around the monitor, but should stay to the right of the Monitor and run down the interior on the passenger side of your car.
- Page 10 If your baby seat is front facing we suggest using the Headrest Mount and attaching the camera to the headrest of the front passenger headrest. CONNECTING THE CAMERA TO THE MONITOR i. The Yada Tiny Traveler™ is a plug and play system. No software or syncing is needed in order for the system to operate. ii. Next, you will need to run the Connection Cable to the monitor. This step is very important.
- Page 11 • Continue to run and tuck the Connection Cable to the front of the car and directly to the Monitor. • Plug the other end of the Connection Cable into the port on the Monitor. Please note that the cable should not wrap around the monitor, but should stay to the right of the Monitor and run down the interior on the passenger side of your car. At no time should the Tiny Traveler™ Power or Connection Cable be loose or dangling on the driver’s side of the vehicle.
-
Page 12: Maintenance & Warranty
6. MAINTENANCE & WARRANTY a. Maintenance • At no time is the Monitor or Camera to become wet or immersed in water. To clean, use a soft cloth to wipe the lens and enclosure. • Do not use alcohol, benzene or thinner to clean the Monitor or Camera. This will cause discoloration. To clean the camera, wipe with a clean cloth dampened with mild cleaner diluted with water and then wipe with a dry cloth. - Page 13 • This is a “repair or replace” warranty only, and does not cover the costs incurred for the installation, removal or reinstallation of the product, or damage to any other devices or vehicle. OWNER’S RESPONSIBILITIES: Winplus North America will make every effort to provide warranty service within a reasonable period of time.
-
Page 14: General Information
Traveler™ and its functioning. Winplus North America and/or its affiliates shall have no responsibility or liability for damage and/or injury resulting from accidents occurring with vehicles having the Tiny Traveler™ installed, and Winplus North America and/or its affiliates, the manufacturer, distributor and seller shall not be liable for any injury, loss or damage, incidental or consequential, arising out of the use or intended use of the product. - Page 15 communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver...
- Page 16 This device has been designed to operate with an antenna having a maximum gain of 0 dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. IMPORTANT NOTE: IC Radiation Exposure Statements: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance.
