- Page 2 Clear Voice Repeater Installation and Operation manual Congratulations on the purchase of your new Clear Voice Cell Repeater! Safety First For your safety and to prevent injury to the installer or the operator, it is essential to read this manual carefully before your new unit is installed and operated.
- Page 3 Look at the image on the next page to understand the setup of the Clear Voice Cellular Repeater kit. The repeater is made up of two main parts: the directional panel antenna and the Clear Voice amplifier unit. The directional panel antenna is aligned with the closest cell phone tower, and collects the cellular signal.
- Page 4 Clear Voice Repeater Installation and Operation manual Telecom Technologies (USA) LLC www.cellboosterstore.com...

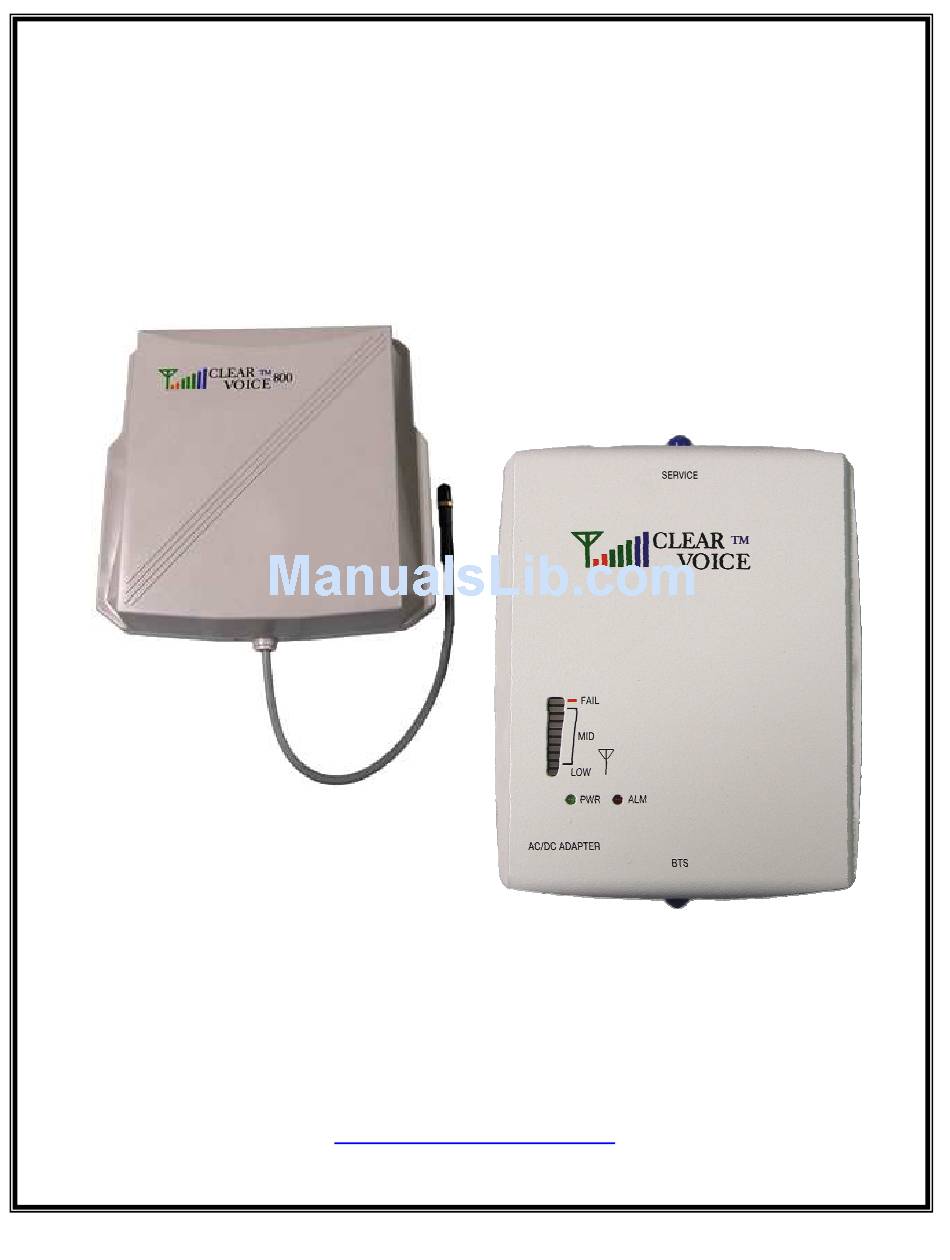

- Page 5 Clear Voice Repeater Installation and Operation manual Clear Voice Repeater Kit Contents 1. Clear Voice Amplifier unit (indoors) Output to Monopole Antenna labeled “SERVICE” Power and Alarm Lights Signal strength and fail indicator lights Input from Directional Panel Antenna labeled “BTS”...
- Page 6 Installing your Clear Voice Repeater Site Selection The first thing you need to do before installing your Clear Voice Repeater is to find out where you want to install the repeater. Look at the diagram below for an idea of how the Cellular Repeater works: 1.
- Page 7 (this is the length of the provided cable). Step 2 – Set up the Cellular Repeater Once you have established what part of your home has the best signal, you will need to set up the Clear Voice Repeater.
- Page 8 3. Finally, connect the monopole broadcast antenna to the connector on top of the Clear Voice repeater (marked “SERVICE”). 4. Move the Clear Voice amplifier unit inside to where you want the signal to be rebroadcast. Try to make sure that the directional panel antenna and Clear Voice amplifier unit are as far away from each other as possible, and separated by a wall if at all possible.
- Page 9 In order for the Clear Voice repeater to work properly, you will need to find at least a medium (5-6 lights on) signal – the “low” signal level is just background signal noise and will not improve your cellular signal.
- Page 10 Clear Voice Repeater Installation and Operation manual light is on, the unit is no longer operation – it will automatically reset after one minute or you can reset the unit manually by disconnecting and reconnecting the power cable. In order to prevent the alarm light from turning on, you need to insure the isolation of the directional antenna from the monopole broadcast antenna.
- Page 11 Clear Voice Repeater Installation and Operation manual STEP 4 - Finalizing the Cellular Repeater Installation Once you have found the direction with the best signal, you will need to fix the panel antenna in that direction. The panel antenna comes with fixtures that allow you to fix the antenna in any direction.
- Page 12 Clear Voice Repeater Installation and Operation manual Finalize the position of the Clear Voice amplifier unit by making sure that it is in an unobstructed place (to allow maximum cell phone signal about your home/office). You can also hang the Clear Voice repeater from a wall if you wish (a fixture is provided for this on the back of the unit).
- Page 13 (though some improvement will be seen on adjacent levels). For this reason, you should install the Clear Voice amplifier unit on the same level where you will be using your cell phone.
-
Page 14: Customer Support And Warranty Information
Customer Support and Warranty Information Customer Support If you have any questions, comments, on problems, with installation or with your Clear Voice Repeater Kit you can contact us at: Email: support@telecomtek.com Phone: +1 (949) 690-5056 14-Day Money-Back Guarantee In order to be eligible for our 14-day money-back guarantee, the equipment must be in original condition.
