Summary of Contents for Starbridge Networks LYNX L-510

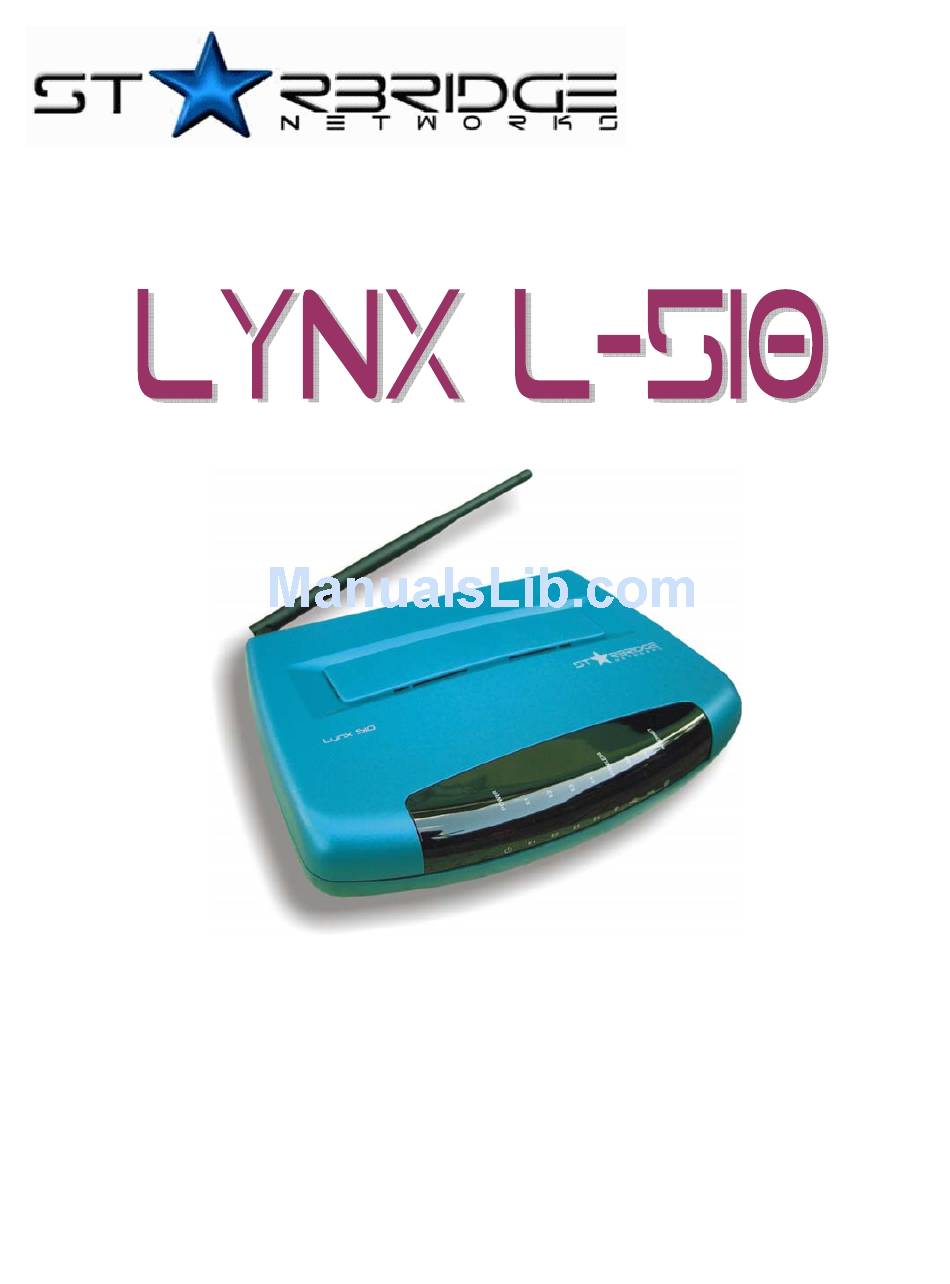

- Page 1 Web Interface User’s Guide ADSL2/2+ Access Point, Ethernet & USB Combo Router Version 1.1...
-
Page 2: Table Of Contents
Ports and Buttons ....................11 Lynx L-510 Overview..................12 Chapter 5 Installing The Lynx L- 510.............. 14 Chapter 6 Setting Up the Lynx L-510 ............. 15 Logging into your Lynx L-510 ................. 15 Basic........................16 LAN / DHCP Configuration .............. 17 6.2.1... - Page 3 Appendix A: Troubleshooting ................55 The Lynx L-510 is not functional..............55 I can’t connect to the Lynx L-510 ..............55 The DSL Link LED continues to blink but does not go solid ....56 The DSL Link LED is always off................. 56 APPENDIX B: Lynx L-510 terms ................
-
Page 4: Chapter 1 Declaration Of Conformity
Declaration Of Conformity Chapter 1 Marking by the above symbol indicates compliance with the Essential Requirements R&TTE Directive European Union (1999/5/EC). This equipment meets following conformance standards: EN300 328, EN301 489-17, EN60950 Countries of Operation and Conditions of Use in the European Community This device is intends to be operated in all countries of the European Community. - Page 5 Radio Frequency Interference Warnings & Instructions (FCC ID: I38-DSL600EWR) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 6 assistants). Use in other configurations may not ensure compliance with FCC RF exposure guidelines. This device and its antenna must not be co-located or operate in conjunction with another antenna or transmitter. Safety Summary Messages WARNING HIGH VOLTAGE If used in the equipment. Make sure equipment is properly grounded BEFORE opening.
-
Page 7: Chapter 2 About This Manual
Targeted Audience This manual is designed and developed for the operators and users who are required to operate and perform first-level maintenance of the Lynx L-510. It assumes the user of this manual has basic knowledge and experience in operating similar modem configuration and computer systems equipment. -
Page 8: Chapter 3 Adsl Ethernet Router Description
Just click on the game you are playing on line and the rest is done for you. The Lynx L-510 is fully compatible with all PCs; as long as the PC supports an Ethernet interface and is running a TCP/IP protocol stack, your PC can have high-speed WAN access. -
Page 9: Encapsulation Support
Encapsulation Support RFC2684 Bridge and Routed LLC and VC Mux support • RFC2364 PPPoA Client support • RFC2516 PPPoE Client support • RFC2225/RFC1577 Classical IP Support • Transparent Bridge Support • PAP/CHAP/MS-CHAP for Password Authentication support • Network Support Static IP, Dynamic RIP routing support •... -
Page 10: Lynx L-510 Overview
1 x DC Jack for Power Input • 1 x Factory Default Reset Button • 1 On/Off Power Switch (Population Option) • Lynx L-510 Overview Fig 1-1 shows the system configuration diagram of a typical Lynx L-510 connection. Figure 1-1: Lynx L-510 Configuration Diagram... -
Page 11: Chapter 4 Your Gateway At A Glance
510 via the web interface, or following a software upgrade. To reset the Lynx L- 510, simply press the reset button for about ~ 10 seconds. The Lynx L-510 will be reset to its factory defaults and after about 30 ~ 40 seconds the Lynx L-510 will become operational again. -
Page 12: Lynx L-510 Overview
Lynx L-510 Overview Front Indicators 1 POWER Lights up when power is supplied to the ADSL Router. 2 ETHERNET (E1 ~ E4) Lights up when the Ethernet cable is properly connected from your ADSL Router to the Ethernet Card. It flickers when the ADSL is transmitting/receiving data. -
Page 13: Back Panel
Back Panel 1 DSL Connect the telephone jack (RJ-11) to your Telephone Wall Socket (DSL line). 2 USB Connect the USB jack to your PC’s USB slot. 3 RESET To reset your ADSL Router to factory default settings (all customized settings that you have saved will be lost!). -
Page 14: Chapter 5 Installing The Lynx L- 510
Installing The Lynx L- 510 Chapter 5 Locate a suitable location for the Lynx L-510. For connections to the USB, Ethernet and DSL interfaces, please refer to the Quick Guide. Connect the AC Power Adapter. Depending upon the type of network, you may want to put the power supply on an uninterruptible supply (UPS). -
Page 15: Chapter 6 Setting Up The Lynx L-510
L-510 is shipped with a standard PPP configuration. Logging into your Lynx L-510 To configure your Lynx L-510, open your web browser. You may get an error message at this point; this is normal. Type the default IP address (192.168.1.1) or login.router on on the web address bar. -
Page 16: Basic
Upon entering the default IP address or the short-cut name (login.router), if the user is first time login, the user will be brought to the “Quick Start” page. See Fig 1.5. The Quick Start page is meant for basic users whom only require easy connectivity to the Internet without worrying about any other advance configuration setting. -
Page 17: Lan / Dhcp Configuration
6.2.1 LAN / DHCP Configuration On one side of your Lynx L-510, you have your own Local Area network (LAN) connections. This is where you plug in your local computers to the Lynx L-510. - Page 18 IP address, Subnet Mask and DNS settings of every computer on your network. Do not assign the same IP address to more than one computer and your Lynx L-510 must be on the same subnet as all the other computers.
-
Page 19: Diagnostic Test
6.2.2 Diagnostic Test Diagnostic Test is used for investigating whether the Lynx L-510 is properly connected to the WAN Network. See Fig 1-9. This test may take a few seconds to complete. To perform the test, select your connection from the list and press the Test button. -
Page 20: Ping Test
WAN and the LAN sides are complete and you have the proper protocols configured, you should be able to surf the Internet. By default when you select ping test, the Lynx L-510 will ping itself 3 times. The Lynx L-510 passed the Ping test; this basically means that the TCP/IP protocol is up and running. -
Page 21: Advanced
Figure 1-10: Modem Test Advanced This mode is catered for advance users, a brief explanation of the links are listed as shown below. Figure 1-11: Advanced Screen... -
Page 22: Wan Connection
6.3.1 WAN Connection On the other side of the Lynx L-510 is where your Wide Area Network (WAN) connection; also referred to as a broadband connection. This WAN connection is different for every WAN supplier. Most of the configuration you will perform will be in this area. -
Page 23: Quickstart
Figure 1-13: ADSL Modulation (Modem Setup) 6.3.4 Quickstart PPPoE is also known as RFC 2516. It is a method of encapsulating PPP packets over Ethernet. PPP or Point-to-Point protocol is a method of establishing a network connection/session between network hosts. It usually provides a mechanism of authenticating users. - Page 24 Password: The password for the PPPoE access; this is provided by your DSL service provider or your ISP. On-Demand: Enables on-demand mode. The connection will disconnect if no activity is detected after the specified idle timeout value. Idle Timeout: Specifies that PPPoE connection should disconnect if the link has no activity detected for n seconds.
-
Page 25: Lan Configuration (Vlan)
LAN Configuration (VLAN) 6.3.5 The Virtual LANs (VLANs) is a group of devices on different physical LAN segments, which can communicate with each other as if there are all in the same physical LAN segment. VLANs provide a number of benefits over the network. - Page 26 Figure 1-17 : Create New bridge PVC Figure 1-18 : Three bridge PVCs are created Upon creation, the bridge PVCs are attached to LAN Group 1. They can be moved to other LAN Groups by selecting the name, clicking Remove beside the LAN Group, select again from the Interfaces box and clicking Add beside the new LAN Group.
- Page 27 The Manage PVC is alone in LAN Group 3. Ports 1 and 3 will get traffic from Data and vice-versa. Ports 2 and 4 will not see traffic from Ports 1, 3 and Data nor the other way round. You can change the ADSL Router’s IP address by clicking on the Configure. Your ADSL Router’s...
-
Page 28: Lan Clients
6.3.6 LAN Clients To add a LAN client select LAN clients, under LAN. If DHCP is used, all DHCP clients are automatically assigned. If a fixed IP address server is on the LAN and you want this server to be visible via the WAN, you must add its IP address. -
Page 29: Application (Upnp)
Figure 1-21: Ethernet Switch Configuration 6.3.8 Application (UPnP) UPnP, NAT and Firewall Traversal allow traffic to pass-thru the Lynx L-510 for applications using the UPnP protocol. This feature requires one active DSL connection. In presence of multiple DSL connections, select the one over, which the incoming traffic will be present, for example the default Internet connection. -
Page 30: Sntp
6.3.9 SNTP SNTP (Simple Network Timing Protocol) is a protocol used to synchronize the system time to the public SNTP servers. It uses the UDP protocol on port 123 to communicate between clients and servers. When the SNTP feature is enabled, your DSL600EU will start querying for the time clock information from the primary SNTP server. -
Page 31: Snmp
Figure 1-23: SNTP 6.3.10 SNMP SNMP (Simple Network Management Protocol) is a troubleshooting and management protocol, which uses the UDP protocol on port 161 to communicate between clients and servers. SNMP uses a manager MIB (management information base) agent solution to fulfill the network management needs. -
Page 32: Ip Qos
Figure 1-24: SNMP Management 6.3.11 IP QoS When QoS is enabled in the AR7, the designated machine, application or person would have precedence over peers when competing for bandwidth. The IP QoS Setup page allows you to configure QoS for a connection, view previously configured QoS rules, add a new rule, or delete an existing rule. -
Page 33: Igmp Multicast
Figure 1-25: IP QoS 6.3.12 IGMP Multicast If the Lynx L-510 is connected to more than one network, you may need to set up a static route between them. A static route is a pre-defined pathway that network information must travel to reach a specific host or network. You can use static routing to allow different IP domain users to access the Internet through the Lynx L-510. -
Page 34: Dynamic Dns Client
Figure 1-26: IGMP Multicast 6.3.13 Dynamic DNS Client Dynamic DNS Client allows the user to register with a Dynamic DNS Provider as listed. The dynamic DNS will be linked with the WAN IP of the router even after the ISP update the WAN IP to another IP address. It can be useful in web hosting and FTP services. -
Page 35: Dns Proxy
6.3.14 DNS Proxy This feature allows the user to select the (Domain Name Server) DNS Server Priority as well as enter IP addresses for Primary DNS and Secondary DNS. See Fig 1-28. Figure 1-28: DNS Proxy 6.3.15 Easy Connect Configuration Easy Connect feature allow user to surf web with ease without the need to changes default configuration setting, ie TCP/IP, Proxy, DNS of user’s PC. -
Page 36: Port Forwarding
Using the Port Forwarding page, you can provide local services (for example web hosting) for people on the Internet or play Internet games. When users send this type of request to your network via the Internet, the Lynx L-510 will forward those requests to the appropriate PC. Port forwarding can be used with DHCP assigned addresses but remember that a DHCP address is dynamic (not static). - Page 37 IP address is not reassigned. Also remember that if an Internet user is trying to access an Internet application, they must use the WAN IP address. The port forwarding will translate the WAN IP address into a LAN IP address. To configure a service, game, or other application select the external connection (for example the Internet connection), from the Home screen, click Advanced and under Advanced, select Port Forwarding.
-
Page 38: Mac Filtering (Bridge Filters)
6.3.17 MAC Filtering (Bridge Filters) The bridge filtering mechanism provides a way for the users to define rules to allow/deny frames through the bridge based on source MAC address, destination MAC address and/or frame type. When bridge filtering is enabled, each frame is examined against the each defined filter rules sequentially. -
Page 39: Routing (Static Routing)
Figure 1-32: Access Control 6.3.19 Routing (Static Routing) If the Lynx L-510 is connected to more than one network, you may need to set up a static route between them. A static route is a pre-defined pathway that network information must travel to reach a specific host or network. You can use static routing to allow different IP domain users to access the Internet through the Lynx L-510. -
Page 40: Dynamic Routing
RIP routes will be updated. Selecting In means that the Lynx L-510 will only incorporate received RIP information. Selecting Out means that the Lynx L-510 will only send out RIP information. Selecting both means that the Lynx L-510 will incorporate received RIP information and send out updated RIP information. -
Page 41: System Password
You can also change the idle timeout; you will need to log back onto the Lynx L-510 once the timeout expires. If you forget your password, you can press and hold the reset to factory defaults button for 10 seconds (or more). -
Page 42: Firmware Upgrade
Figure 1-36: Firmware Upgrade 6.3.23 Restore to Default The restore to factory defaults feature will set the Lynx L-510 to its factory default configuration by resetting the Lynx L-510. You may need to place the Lynx L-510 into its factory defaults if the configuration is changed, you loose the ability to interface to the Lynx L-510 via the web interface, or following a software upgrade,. -
Page 43: Wireless
Figure 1-38: Restore to Default prompt Wireless 6.4.1 Wireless Setup The SSID default which is set as “yournetworkname” by default. It can be changed. SSID is wireless network name for the wireless router. Your wireless client will need this name for wireless connection. The wireless setup allows the user to enable or disable the AP (access point for the wireless feature). -
Page 44: Wireless Configuration
6.4.2 Wireless Configuration For users who want to explore the advanced features, you can click on the Advanced button. The options listed can be changed to cater for advance users. See Fig 1-40. Figure 1-40 : Wireless Configuration Page 6.4.3 Wireless Security It is important for user to enforce security in wireless LAN environment;... - Page 45 In order to implement security, proceed with the following steps. See Fig 1- 1. Select the WEP option. 2. Check on “Enable WEP Wireless Security” option. 3. Select the “Cipher”option, the available options are 64 bits, 128 bits and 256 bits. 4.
- Page 46 Figure 1-43 : Wireless Security WPA is the short term for WiFi Protected Access. WPA is an industry- supported, pre-standard version of 802.11i that utilizes the Temporal Key Integrity Protocol (TKIP), which fixes the problems of WEP, which includes using dynamic keys. Figure 1-44 : Wireless Security...
-
Page 47: Wireless Management
6.4.4 Wireless Management Wireless Management consists of Aceess List, Associated Stations and Multiple SSID. Access List 6.4.4.1 This feature permits you to “Allow” or “Ban” any wireless client from accessing the wireless router. You must add the MAC address of the client’s wireless LAN card. -
Page 48: Security
Security The security feature section allows users to configure the following: • IP Filters • LAN Isolation • URL Filters Figure 1-46: Security 6.5.1 IP Filters IP filter is identical to what Port blocking to Access Control. Fig 1-47 demonstrates that the router will block workstations with the IP in the defined range of 192.168.1.5 to 192.168.1.20 and port range from 2000 to 3000. -
Page 49: Lan Isolation
Figure 1-47: IP Filters 6.5.2 LAN Isolation Figure 1-48: LAN Isolation... -
Page 50: Status
LAN isolation allows you to disable the flow of packets between up to three- user-defined LAN groups (WLAN, USB and Ethernet). This allows you to secure information in private portions of the LAN from other, publicly accessible LAN segments. Status This status section allows users to view the following connections and interfaces: •... -
Page 51: System Log
Figure 1-50: Connection Status 6.6.2 System Log You can display the Lynx L-510’s log by going under the Status title, click on System log. From here you can view all logged information. Depending upon the severity level, this logged info will generate log reports to a remote host (if remote logging is enabled). -
Page 52: Remote Log Settings
6.6.3 Remote Log Settings This feature is for users to enable remote logging. Settings mentioned below are essential for this feature to work: • Log Level • Adding / Deleting IP address • Logging destination Figure 1-52: Remote Log Settings 6.6.4 Network Statistics Information regarding the Status and Statistics of your Ethernet, USB and DSL line will be displayed. -
Page 53: Dhcp Clients
6.6.5 DHCP Clients Shows the users connected. It also shows the MAC address, IP address, host name and lease time. Figure 1-54: DHCP Clients 6.6.6 Modem Status This screen will display the Modem status and DSL statistics. Figure 1-55: Modem Status... -
Page 54: Help
6.6.7 Product Information This screen will show a summary of all the product information and software version that comes bundled with the Lynx L-510. Figure 1-56: Product Information Help The Help screen takes you to the different Help Sections for Firewall, Bridge Filters, LAN Clients, LAN Group Configurations, PPP Connection, UPnP, IP QoS and RIP Help. -
Page 55: Appendix A: Troubleshooting
2. Make sure you are not connecting the USB and the Ethernet port at the same time. You must only use 1 interface at a time. 3. Make sure that your PC and the Lynx L-510 is on the same network segment. The Lynx L-510’s default IP address is 192.168.1.1. If you are running a Windows based PC, you can open a DOS window and type IPCONFIG;... -
Page 56: The Dsl Link Led Continues To Blink But Does Not Go Solid
2. Verify that the phone line is connected directly to the wall and to the line input on the Lynx L-510. If the phone line is connected to the phone side of the Lynx L-510 or you have a splitter installed on the phone line, the DSL light will not come on. -
Page 57: Appendix B: Lynx L-510 Terms
(gas pedal connection, etc), but if something happens to your engine, you are protected. The firewall in the Lynx L-510 is very similar. Only the desired connections that you allow are passed through the firewall. These connections are normally originating from the local network;... -
Page 58: What Is A Gateway
Your machine isn't really directly connected to the Internet, and it really has an internal local network address. When you provide the servers network address to others, you must provide the address of the Lynx L-510. The Lynx L-510 "fakes" the connection to your machine. - Page 59 © 2005 Starbridge Networks LLC. All rights reserved. www.starbridgenetworks.com Lynx: constellation introduced by J. Hevelius in 1687. The Lynx is a nocturnal wildcat with superb eyesight. The observers of this constellation would have to be “lynx-eyed” to see it.
