Summary of Contents for Brinno MAC 100
-

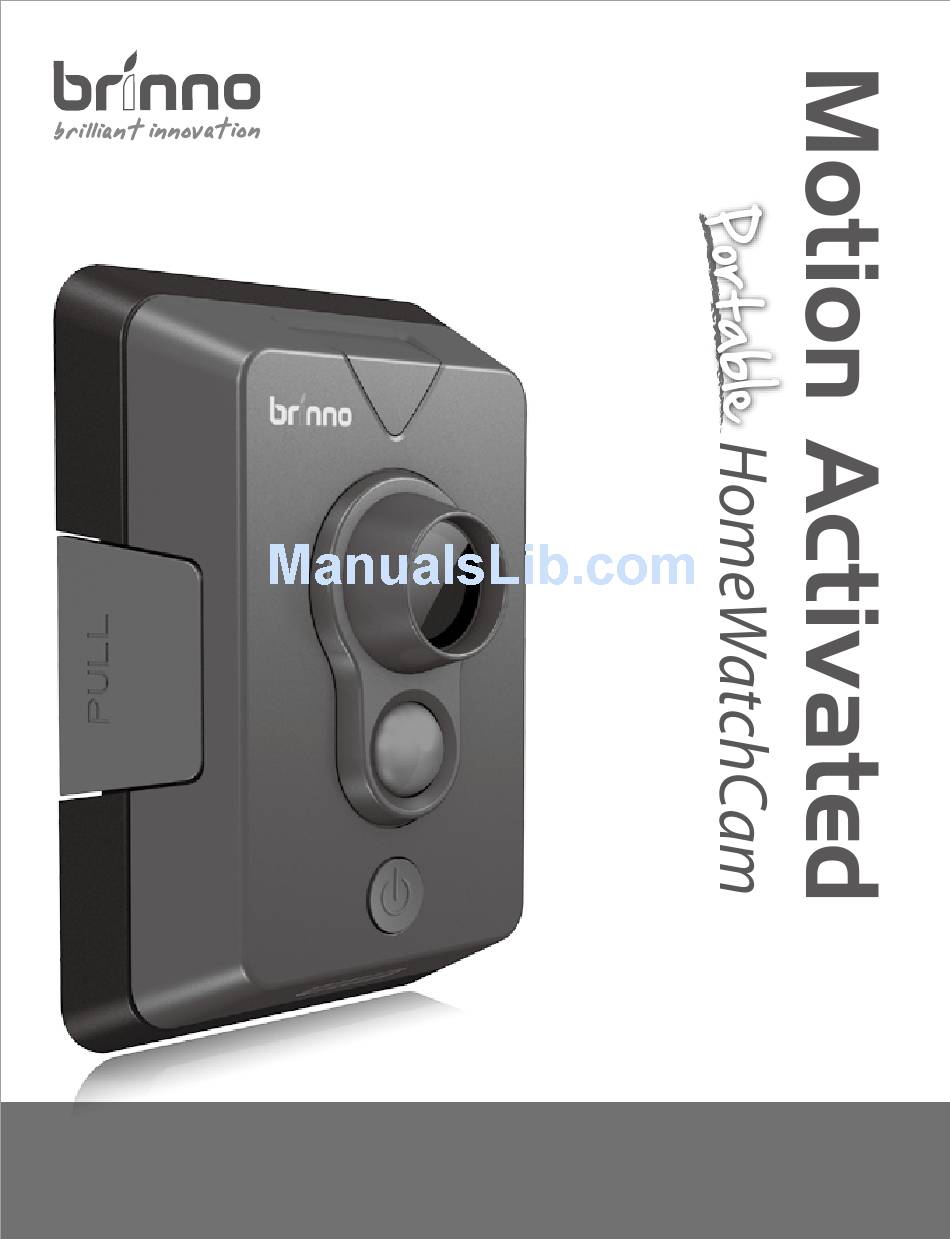

Page 1: User Manual
MAC 100 User Manual www.brinno.com... - Page 2 Brinno Motion Activated Camera MAC100...
-
Page 3: Homewatchcam
Thank you for purchasing Brinno HomeWatchCam! Brinno portable HomeWatchCam(MAC 100) using Motion Activated technology to capture any movement in the detecting area, and turn the thousands photos into short time-lapse video, it will save lots time to review those photos! You can use HomeWatchCam for home... -
Page 4: Table Of Contents
Mounting Holder SD card Rubber Suction Setup Software (included in SD card) Parts of the Camera Front Back Open Battery door latch LED indicator Lens Tripod screw hole Motion Sensor Battery Power button SD card slot Brinno Motion Activated Camera MAC100... - Page 5 Click " Thanks" to finish installation. There are two programs installed on your computer or notebook: HomeWatchCam Setup allows you to set the date and time for your HomeWatchCam. HomeWatchCam Player allows you to play the time lapse videos by HomeWatchCam. www.brinno.com...
- Page 6 Setup Insert SD card included into your computer or notebook. Run " HomeWatchCam Setup" program to set date and time. At Brinno HomeWatchCam Date and Time program: A. Set time B. Set date C. Select a drive letter assigned to your SD card drive.
-
Page 7: Power Button
The Green LED light will flash for several seconds. When the Green LED light stop flashing, you already finish the Initial Setup. Once you have set up your HomeWatchCam you are READY to use HomeWatchCam to capture any movement! www.brinno.com... -
Page 8: Motion Sensor
LED light stops that your HomeWatchCam is ready to work. When the Motion Sensor activated at first three times, the Green LED light will flash during capture period, so you can test if the HomeWatchCam works well. Ready to capture any movement! Brinno Motion Activated Camera MAC100... - Page 9 C. Blue LED will light on when the memory card is full and in looping mode. 9-4. When HomeWatchCam is powered on and in standby mode, hold the power button, Green LED will be activated in 3 second and flash Green LED 6 times, then power off. www.brinno.com...
-
Page 10: Rubber Suction
Installation Advanced Installation You can install Rubber Suctions onto Mounting Holder, to attach HomeWatchCam on windows or polish plane. You can install HomeWatchCam on any standard tripod. Brinno Motion Activated Camera MAC100... - Page 11 • The HomeWatchCam Player is NOT a general-purpose media player. It is a dedicated Player designed specifically to play AVI’s produced by the HomeWatchCam. AVI’s NOT generated by Brinno’s HomeWatchCam will not play properly with this player 1.1. Menu Functions...
-
Page 12: Speed Control
1.4.2. Reverse Play Control The reverse play control causes the player to play in reverse until either the beginning of the sequence is reached, or the stop or pause control is pressed. Brinno Motion Activated Camera MAC100... -
Page 13: Motion Search
HomeWatchCam player into Pause mode. where the scene has changed. Motion Search is only available when HomeWatchCam Player is in a paused or stopped state. Note that during motion search, the main display www.brinno.com... - Page 14 Note Brinno Motion Activated Camera MAC100...
-
Page 15: Specifications
..........1 ..........1 Thank you for purchasing Brinno HomeWatchCam! If you have any questions or problems setting up your Brinno HomeWatchCam please contact the sales staff where you purchased our product or email us at Brinno Incorporated directly customerservice@brinno.com Please Visit our website www.brinno.com... - Page 16 7F, No. 75, Zhou Zi St., Taipei City 11493, Taiwan Phone: +886-2-8751-0306 Fax: +886-2-8751-0549 301-0012-00 Email: customerservice@brinno.com EN-A2...
