Summary of Contents for Eyecar M1

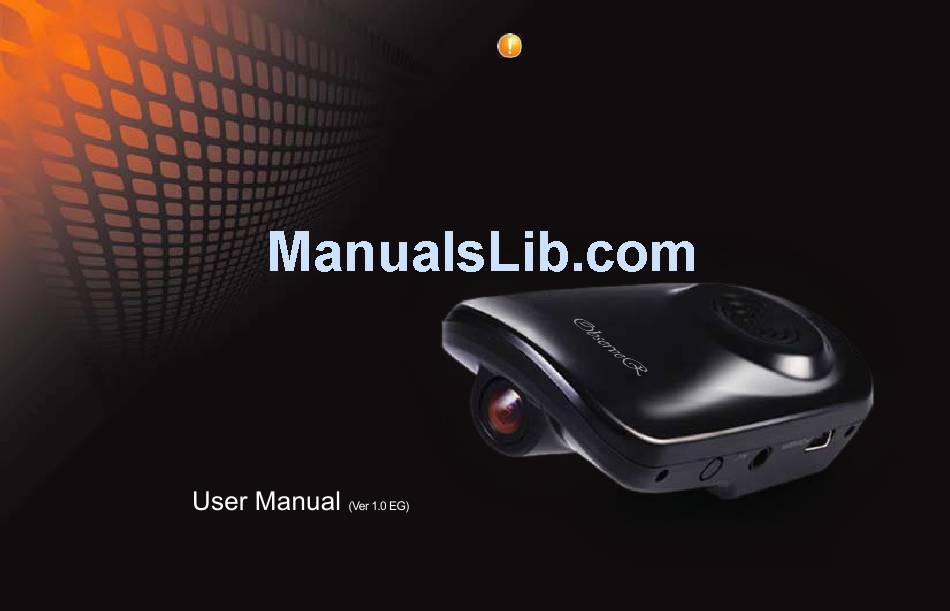

- Page 1 This manual should be read before the product is activated. For Safety purposes, users are advised to correctly operate the product according to this manual CAR Black Box System...
-
Page 2: Table Of Contents
Contents Product overview Explanation of player • Full screen of player Notice for safety • play data • Original Size image Package contents • Link with MAP Name of each Part • Analysis for G-SENSOR Data • Print and storing of screen, verification of Version Specification •... -
Page 3: Product Overview
Product overview This product is auxiliary system which helps to analyze the cause of vehicle accident with video and voice recording, GPS location information while driving. │Continuous Recording│ The product constantly stores video and audio data in driving on a SD CARD. When the amount of recorded data exceeds the capacity of the SD MEMORY, the oldest files get overwritten. -
Page 4: Notice For Safety
Notice for safety This chapter contains the information on preventing property damage and inconvenience. It should be read before product activation, and users should be correctly operate the product based on the instructions stated below. 1. Do not use water or volatile chemicals when cleaning the inside of the car or the product. This increases the risk of product damage, fire, and electric shock. - Page 5 Notice for safety 7. Do not manipulate or stare at the product while driving. This increases the risk of automobile accidents. 8. Secure clear vision for camera. Contact with foreign materials or covering of the lens may cause abnormal video recording. 9.
-
Page 6: Package Contents
Package contents Basic Components This manual should be read before the product is activated. For Safety purposes, users are advised to correctly operate the product according to this manual CAR Black Box System Body Cradle Power Cable Installing SD CARD Supplements │Optional Accessories (Sold separately)│... -
Page 7: Name Of Each Part
Name of each Part Front View Camera ObserveR SD Card Slot Video out port Inner speaker Power connector port 3 Colors LED Cradle socket Operating Buttons... -
Page 8: Specification
Specification Specification Saving Time │ │ │ │ ITEM SPECIFICATION Constant Recording Event Recording SD Card Capacity Camera 1.3M Pixel 90min. 30min. Resolution 640 x 480 180min. 60min. Driving Mode High Video 360min. 120min. Quality Parking Mode 16GB 720min. 240min. Video MAX 20fps 32GB... -
Page 9: Installing Instructions
Installing Instructions Install after turning the engine off. Locate the product where GPS signals are received well. Secure a clear vision for the front camera, where it is not covered by the hood. Adjust the angle of the body to secure horizontal and vertical positioning. │Install as instructed│... - Page 10 Installing Instructions After connecting the cable to Mounted on holder like Remove all foreign materials After in order for the holder’s the body’s right side with the a drawing to the body. direction does toward a down, on the window where the power cable, pull out the cable securely attach the product with product will be attached to.
-
Page 11: Function Of Each Part
Function of each part │Button, LED, Voice guide│ Front Camera Front view camera should be fixed horizontally. Periodically clean the lens for clear video image. Use a soft cloth to clean the lens in order to avoid lens damage SD CARD Disconnect the power cable or turn off the engine, before inserting or removing the SD CARD. -
Page 12: Operation Function
Function of each part │Operation Function│ STATUS BUTTON Voice Guide (One Tone Guide) POWER ON Violet LED Lighting Starting CAR DVR Before receiving GPS signal Blue LED Light Blinking(Recording Mode) After receiving GPS signal Blue LED Lighting (Recording Mode) GPS data is succefully transmitted POWER OFF Violet LED Lighting Stoping the CAR DVR... -
Page 13: Preparation Recording
Function of each part │Preparation Recording│ 1. If the power cable is connected, after inserting SD CARD in the body, the violet LED lights. 2. Video Recording starts with “Starting CAR DVR” voice guide after connecting the power cable. 3. GPS receiving starts after blue LED Lights ON with “GPS data is successfully transmitted” voice guide. │Video Recording and Playing│... -
Page 14: Using Sd Card
Function of each part │Using SD CARD│ Do not use the SD CARD supplied with the product for any other purpose. If the SD CARD is used for another purpose or other files are stored on it, fatal errors may be caused. SD CARDs compatible with the product can be allowed, but using different SD CARD may result in product malfunction. -
Page 15: Update Lnstruction
Function of each part │Update Instructions│ 1. Firmware Update - Store bsac.bin , mcode.bin (New version) at the top-level directory of SD CARD. After inserting SD CARD and turn on the product, RED LED will be light. And then, product will reboot after voice guiding “Update mode”and putting out LED light. 2. -
Page 16: Explanation Of Player
Explanation of Player │Full screen of player│ 1.Connect SD card with PC using memory card reader. 2.Select the removable disk that is recognized as SD memory. 3.Double click PLAYER.EXE, then the screen below will appear on the monitor screen. Camera Display GPS MAP Function Icon Volume, Play speed control... -
Page 17: Play Data
Explanation of Player │Play data│ 1. Select the folder by click [Select Dir] button of the middle of player. Data is stored on Movie folder of applicable SD CARD 2. Double click the file, Image will be played File Open : Open file which user want to check. Select Dir : Open folder which user want to check. -
Page 18: Link With Map
Explanation of Player │Link with MAP)│ Click button, MAP will be showed and User can check driving routes with GPS location information. It is possible to be linked with MAP in the time of being conntected internet. It is impossible to be linked with MAP for DATA which was recorded not getting GPS receiving. -
Page 19: Print And Storing Of Screen, Verification Of Version
Explanation of Player │Print and storing of screen, verification of Version│ 1. Click button in the middle of player, It is possible to print or store screen image. 2. Click buttion in the middle of player, It is possible to verify the version of player. Double │Conversion of Speedometer│... -
Page 20: Setting
Explanation of Player │Setting│ Pressing button in the middle of player, User can print or store data which is playing. - Page 21 Explanation of Player 1. SD Card Format - Periodically format the SD CARD in order to prevent errors and to use it for a long time. (Recommended : 1 time per 15days) 2. Time setting - Sets the time of user’s nation. (EX> KOREAN TIME : GMT+09:00) 3.
-
Page 22: Q&A
Q&A Q. Is it possible to install product on the any position? A. We recommend to install product head on where does not become the disruption in range of vision of driver. Q. Checking method whether the product works properly or not. A. - Page 23 Q&A Q. To delete recorded data A. It is possble to format data on P/C or product. Q. When vehicle battery is shut off by accident impacts, Is it possible to store data A. It is possible to store data for more 5~10 seconds, eventhough vehicle battery is shut off. Q.
-
Page 24: World Time Zone
World Time None... -
Page 25: Warranty Card
Warranty Card Thank you for your purchase of the product. In case of malfunction, Users will be compensated according to the company’s damage regulations. Contact an agency or dealer, when a malfunction has occured [Warranty] [Refund and Exchange policy] * The product is warranted to you for a period of one year from * Refund and exchange are available within 14 days the date of original purchase.
