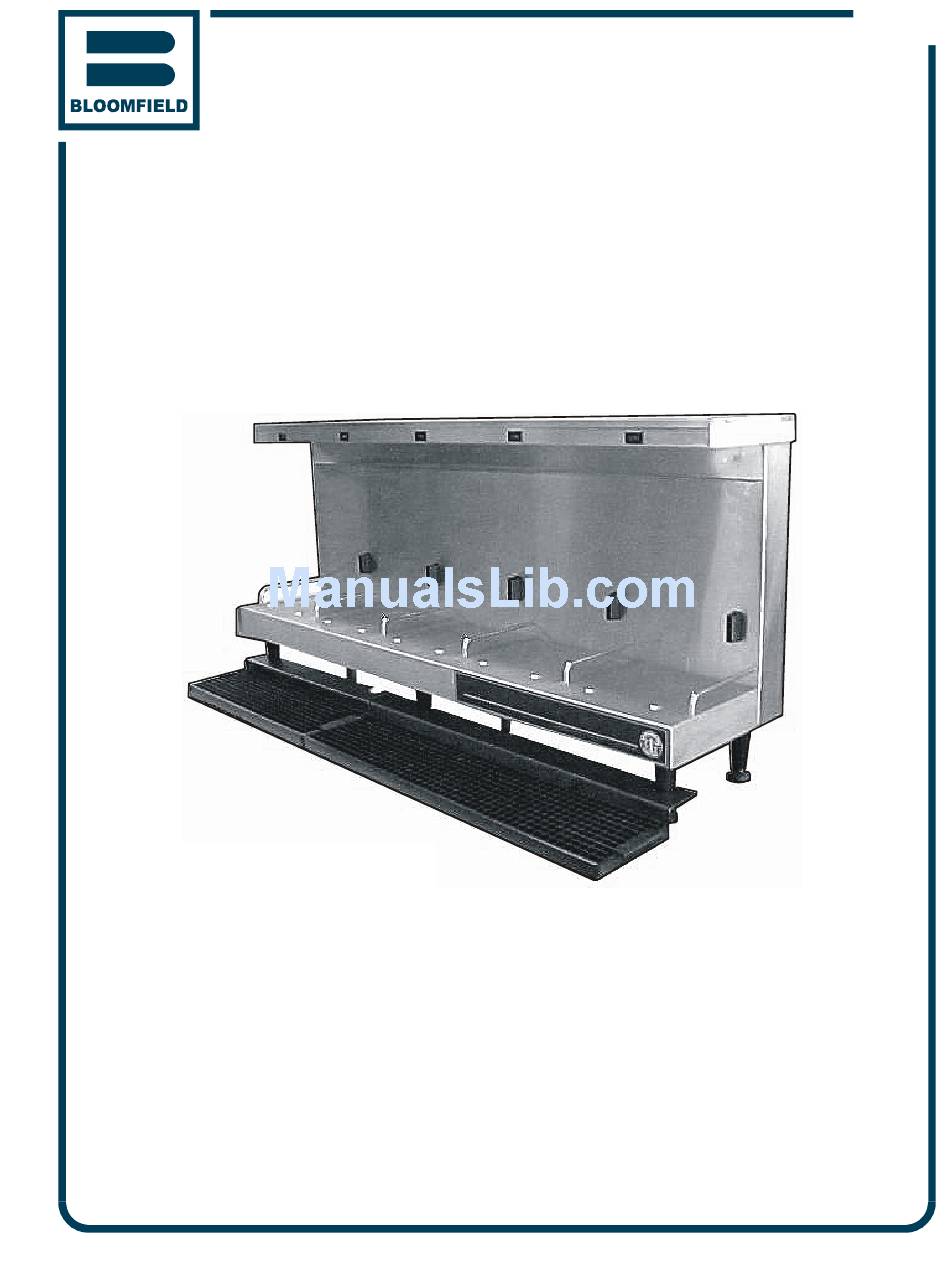

SDS-5SB Satellite Docking Station
Shown with optional drip tray
part no. 3905
p/n 75186 Rev. (-)
BLOOMFIELD INDUSTRIES
2 ERIK CIRCLE, P. O. Box 280
Verdi, NV 89439
Customer Service (775) 345-0444 Ext.502
fax: (775) 345-0569
www.wellsbloomfield.com
OWNERS MANUAL
Includes
OPERATING INSTRUCTIONS
EXPLODED VIEW & PARTS LIST
INSTALLATION INSTRUCTIONS
CLEANING INSTRUCTIONS
SPECIFICATIONS
AGENCY APPROVALS
®
805
Op 805 030701 cps
Advertisement
Table of Contents
Related Manuals for Bloomfield SDS-5SB
Summary of Contents for Bloomfield SDS-5SB
-
Page 1: Owners Manual
2 ERIK CIRCLE, P. O. Box 280 Verdi, NV 89439 Customer Service (775) 345-0444 Ext.502 fax: (775) 345-0569 www.wellsbloomfield.com ® SDS-5SB Satellite Docking Station Shown with optional drip tray part no. 3905 OWNERS MANUAL Includes OPERATING INSTRUCTIONS EXPLODED VIEW & PARTS LIST... -
Page 2: Warranty Statement
WARRANTY STATEMENT All electrical equipment manufactured by BLOOMFIELD The prices charged by Bloomfield Industries for its products INDUSTRIES is warranted against defects in material and are based upon the limitations in this warranty. Seller’s obli- workmanship for a period of one year from original purchase... -
Page 3: Table Of Contents
If you have any difficulties with the Docking Station, contact your nearest Bloomfield Authorized Distributor. They have the necessary expertise to provide advice and assistance. If the Bloomfield... -
Page 4: Features & Operating Controls
FEATURES AND OPERATING CONTROLS DOCKING STATION POWER CORD OPTIONAL SATELLITE (in place) INDICATOR LIGHT CONNECTOR ADJUSTABLE LEGS DRIP TRAY (optional) OPTIONAL SATELLITE HANDLES CONNECTOR Fig 1. Satellite Docking Station Features & Operating Controls... -
Page 5: Docking Station
Optional drip tray catches drips and spills from serving faucet. (Optional) Drip Tray Easily removed for cleaning. Model SDS-5SB Satellite Docking Station manufactured by Bloomfield Industries, Inc. is designed to hold coffee at a correct temperature for serving. Operates on 120 volts, 2.0 Amps, 225 Watt service. -
Page 6: General Information & Precautions
GENERAL INFORMATION AND PRECAUTIONS This appliance is intended for use in commercial establishments WARNING: only. Electric Shock hazard This appliance is intended to hold specific containers of hot beverage for human consumption, and to maintain said beverage at All servicing requiring serving temperature. -
Page 7: Specifications (General Layout Data)
SPECIFICATIONS GENERAL LAYOUT DATA BLOOMFIELD SATELLITE DOCKING STATION MODEL: SDS-5SB STD 4 E9253 E9253 LINE CORD 16 1/16 408 MM 17 9/16 446 MM OPTIONAL DRIP TRAYS 46 3/4 OPTIONAL 8 11/16 SATELLITES 1188 MM 221 MM 22 7/32 564 MM... - Page 8 INSTALLATION CAUTION: DO NOT connect or energize this appliance until all Installation Instructions are read and followed. Damage to the dispenser will occur if these instructions are not followed. WARNING: All installation procedures must be performed by a qualified technician with full knowledge of all applicable electrical and plumbing codes. Failure could result in property damage and personal injury.
-
Page 9: Installation Instructions
INSTALLATION (continued) CAUTION: ELECTRICAL INSTALLATION INSTRUCTIONS Electric Shock This unit requires a power source capable of supplying Hazard 120 Volts AC, 50/60 Hz, 3-Wire 15 Amp. The ground prong of the The unit is shipped from the factory with a power cord. electrical plug is part of a The power cord must be plugged into a properly grounded system designed to protect... -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS GETTING STARTED Check the docking station: Check that the brewer is clean and the drip tray (if used) is empty. Check that the docking station is plugged into an appropriate receptacle. DAILY START-UP IMPORTANT: Install satellites in any or all of the five positions of the docking station. -
Page 11: Cleaning Instructions
CLEANING INSTRUCTIONS CAUTION: PROCEDURE: Clean Satellite Docking Station Burn Hazard PRECAUTIONS: Unplug docking station Remove satellites Serving temperatures of coffee is extremely hot. FREQUENCY: Daily Hot coffee will cause serious skin burns. TOOLS: Mild Detergent, Clean Soft Cloth or Sponge 1. -
Page 12: Wiring Diagram
PILOT LIGHT BLACK BLACK CONNECTOR CONNECTOR WIRED ASSY WHITE GREEN PILOT LIGHT BLACK BLACK BLACK CONNECTOR CONNECTOR WIRED ASSY WHITE GREEN BLACK BLACK BLACK CONNECTOR CONNECTOR WIRED ASSY CORD ASSY GROUND WATTS: MODEL: VOLTS: 220 W (USE WITH [5] SATELLITES) SDS-5SB... -
Page 13: Exploded View & Parts List
CORD ASSY 35-210 STRAIN RELIEF SWITCH WITH SCREWS 83105 83107 FEET, RUBBER, BLACK LEG, 4" BLACK, W/FLANGED FOOT 83098 83077 HANDLE GUIDE "L" EXPLODED VIEW & PARTS LIST CONNECTOR ASSY 83046 (MODEL: SDS-5SB) 75185 LABEL, BASE 84784 ASSY LIGHT GREEN 250V... - Page 14 Bloomfield replacement parts this brewer. replacement parts other than those supplied Bloomfield voids warranty. Parts are available at your Authorized Bloomfield Service Agency. Locations and phone numbers listed Agency Listing provided with equipment. find parts required restore proper operation coffee...
- Page 15 PARTS AND SERVICE For best results, use only genuine Bloomfield paper filters in this brewer. IMPORTANT: Use only factory authorized service parts. For factory authorized service, or to order factory authorized replacement parts, contact your Authorized Bloomfield Distributor, or call: Bloomfield Industries Co.
- Page 16 Bloomfield Industries, Inc. PO. Box 280 Verdi, NV. 89439 Ph. 775/345-0444 Fax 888/492-2783 Service: 1-888/492-2783 website: www.wellsbloomfield.com Bloomfield Industries Canada Limited 5850 Keaton Cresent Mississauga, Ontario, Canada L5R 3K2 Ph. 905/507-1700 Fax 905/507-1777 Toll Free 1-877-507-1700 website: www.bloomcan.com e-mail: brewinfo@bloomcan.com...
