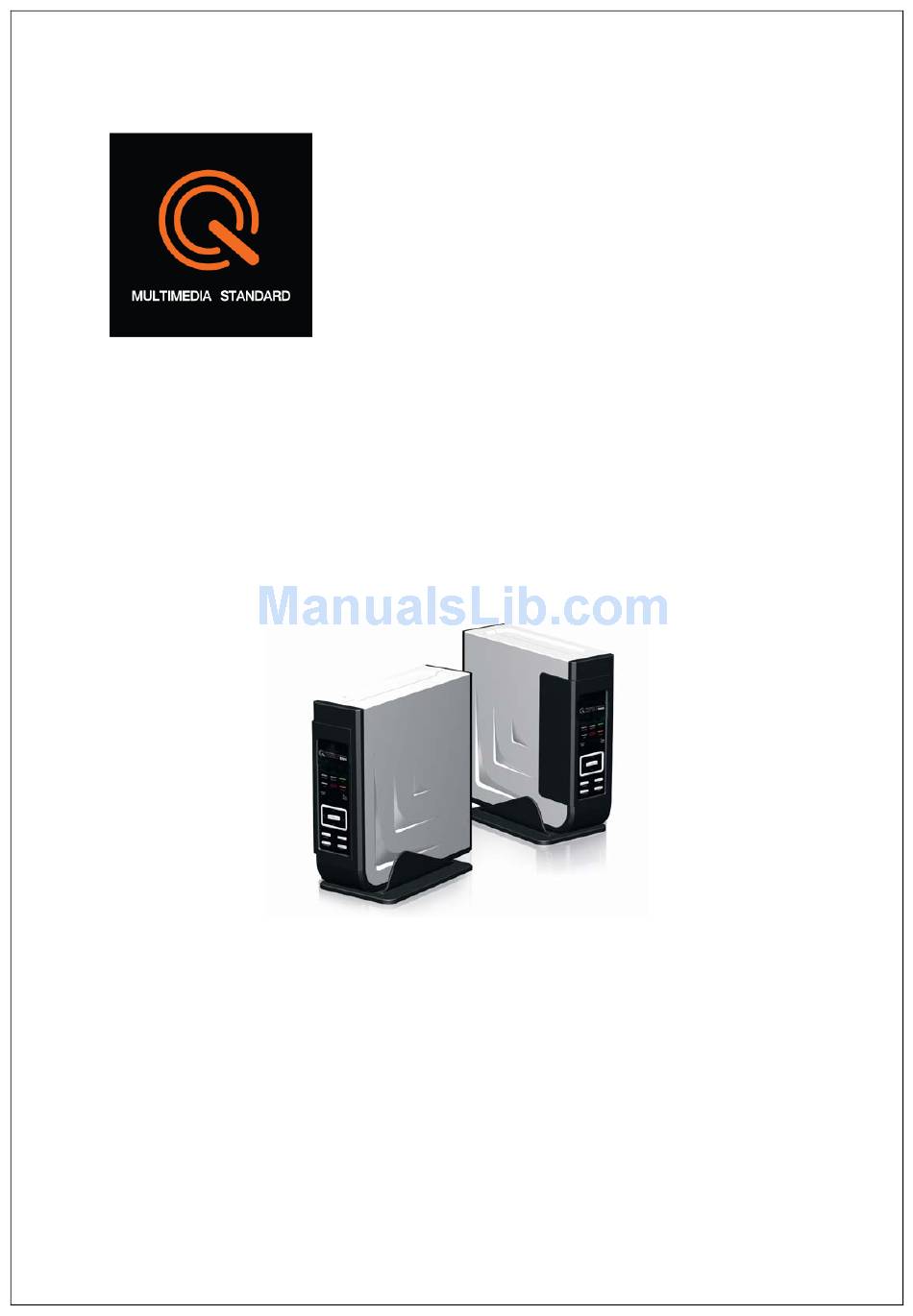

The Movie what you really wanted to watch
The Music which is your favorite
The Photos which has your happy memories
TV Drama which you would never miss
Relax yourself wherever and whenever so far
Ultimate Digital Multimedia Player "Movie Clip"
U
s
e
r
M
a
n
u
a
l
G
u
i
d
e
U
s
e
r
M
a
n
u
a
l
G
u
i
d
e
M
o
d
e
l
Q
R
-
1
3
0
M
o
d
e
l
Q
R
-
1
3
0
Advertisement
Table of Contents
Summary of Contents for Multimedia Standard QR-130
- Page 1 The Movie what you really wanted to watch The Music which is your favorite The Photos which has your happy memories TV Drama which you would never miss Relax yourself wherever and whenever so far Ultimate Digital Multimedia Player “Movie Clip”...
-
Page 2: Table Of Contents
6-3 Hard disk formatting and partition under Windows VISTA.......... 22 6-4 Use on Linux (Available on Linux 2.4 or later).............. 24 6-5 Use on Macintosh ......................25 7. Connecting QR-130 ....................... 26 7-1 TV Connection – A/V IN ....................26 7-2 TV Connection – A/V OUT ....................26 7-3 Connection with Y/Pb/Pr Component OUT .............. - Page 3 User Manual Guide Model: QR-130 10-6 Playlist ..........................51 11. Media Recording......................... 53 11-1 Recording from Video-In Mode .................. 53 11-2 Time Record Menu ....................... 53 12. File Copy Menu ........................56 13. Firmware Upgrade....................... 58 13-1 System information ....................... 58 13-2 Firmware Upgrade ......................
-
Page 4: Introduction
User Manual Guide Model: QR-130 Thank you very much for purchasing this brand-new Multimedia Player QR130 with stronger function support. In the digital era, this product is quite suitable to be a home entertainment partner. With her outstanding designed features, you can enjoy movies and music, view photos of precious moments, and record your favorite TV or movie programs to make up for your regret of not being able to enjoy them in time. -
Page 5: Product Specification
User Manual Guide Model: QR-130 GENERAL Dimensions 190.5(W) x 54(H) x 183.2(L)mm Power Supply AC 100~240V 50~60Hz Power Consumption Approx. 35 W Operating Temperature +5°C to +35°C (+36°F to +95°F) Operating Humidity 5% to 80% RH Hard Disk SATA HDD... - Page 6 User Manual Guide Model: QR-130 VIDEO OUTPUT SPECIFICATION Composite Output 1 Vpp 75 Ohm Y:1 Vpp 75 Ohm Components Output Cb:0.7 Vpp 75 Ohm Cr:0.7 Vpp 75 Ohm HDMI Output HDMI (Version 1.1) AUDIO PERFORMANCE DA Converter 24-bit / 192kHZ...
-
Page 7: Descriptions & Product Contents
User Manual Guide Model: QR-130 & & 3-1 Description Front Panel 1 POWER Indicator (red) turns on when the system turns on. 2 REC indicator When Recording starts, this LED would shining in Blue. 3 HDMI When HDMI interface was working, the HDMI Led would be shining in Blue 4 IR: Infrared receiver window Receiving IR signals from the remote control. -
Page 8: Product Contents
User Manual Guide Model: QR-130 Rear Panel 1. Air Flow 8. USB SLAVE port (MINI USB) 2. Audio OUT jack (Left Channel) 9. Y/Pb/Pr OUT jack (Components Video) 3. AUDIO OUT jack (Right Channel) 10. S/PDIF Optical jack 4. VIDEO OUT jack 11. - Page 9 User Manual Guide Model: QR-130...
- Page 10 User Manual Guide Model: QR-130 Power Press to enter standby mode or wake up Press to enter channel numbers or numeric input when Numeric botton changing settings. Press to jump to a specific point on a title. Specify the point GOTO using Title, Chapter and Time.
- Page 11 User Manual Guide Model: QR-130 SETUP Press to access the Setup Menu directly. MUTE Press to mute audio output, and press again to resume GUIDE Press to view the Guide menu, it is the player’s home page. INFO Popup video information during Video Play.
-
Page 12: Sata Hdd Installation
User Manual Guide Model: QR-130 Please install the player according to the following instructions. SATA HDD Installation 1、press the bottom cover. 2、open the bottom cover. 3、pull away hard disk bracket. 4、put hard disk in. 5、screw hard disk tightly 6、make sure all 6pcs screws well . - Page 13 User Manual Guide Model: QR-130...
-
Page 14: Partitioning And Formatting Hard Disk
User Manual Guide Model: QR-130 Non-formatted hard disks are not detected by PC. If the hard disk is not formatted, please take the following steps to format it. Newly purchased hard disks are not normally formatted 6-1 Setting and Formatting on Windows 98/ME... - Page 15 User Manual Guide Model: QR-130 Among fdisk options, select options 5[change current fixed disk drive]. Type the hard disk number fro partitioning in [Enter Fixed Disk Number] and press the [Enter] key Select [1.creat DOS partition or Logical DOS Drive] in fdisk options by typing “1” and then press the enter key Select [1.Creat Primary DOS Partition] in...
- Page 16 User Manual Guide Model: QR-130 Wait for integrity check to be complete as below 10. After integrity check, say yes to the message ‘Do you wish to use the maximum available Size for a primary DOS partition and make the Partition active( Y/N)? By typing “Y”...
- Page 17 User Manual Guide Model: QR-130 14. At hen C:\WINDOWS> prompt, type exit and then press[ENER] to return to window screen. 15. Disconnect QR130 from PC and then connect it again to PC. 16. Drive letter s created in [My Computer] of Windows Explorer.
-
Page 18: Setting And Formatting On Windows 2000 / Xp
User Manual Guide Model: QR-130 6-2 Setting and Formatting on Windows 2000 / XP Non-formatted hard disks are not detected by PC. If the hard disk is not formatted, please take the following steps to format it. Newly purchased hard disks are not normally formatted Connect QR130 to a PC using a USB cable Select [Start>... - Page 19 User Manual Guide Model: QR-130 Select [Primary Partition(P)] and Click [Next] to continue Enter the desired partition size in [Partition size in MB] and Click [Next] to continue. 10. When the [driver letter] is assigned, Click [Next] 11. In the format partition windows, select [format this partition with the following settings] and FAT32, and then check [Perform a quick format] box.
- Page 20 User Manual Guide Model: QR-130 13. A new NTFS partition was created. 14. Right-click an [Unallocated] drive in Drive Management and select [New Partition] from the menu that appears. 15. When the New partition wizard is shown Click [Next] to continue.
- Page 21 User Manual Guide Model: QR-130 19. In the format partition windows select [Format this partition with the following settings] and NTFS, and then check [Perform a quick format] box, Click [Next] to continue. 20. When [Completing the New Partition Wizard] appears, Click [Finish].
-
Page 22: Hard Disk Formatting And Partition Under Windows Vista
User Manual Guide Model: QR-130 6-3 Hard disk formatting and partition under Windows VISTA Under VISTA, you can create a partition and format the hard disk using the disk manager. 1. Right click the Window icon located on the right hand side of the task bar. - Page 23 User Manual Guide Model: QR-130 5. The wizard-“Welcome to the New Simple Volume Wizard” will be displayed (Partition), Click on “Next” 6. Specify here the maximum size of the desired partition 7. In this window, tick the box “Assign the following drive letter”...
-
Page 24: Use On Linux (Available On Linux 2.4 Or Later)
User Manual Guide Model: QR-130 9. In the right hand side window Click on “Finish” to close the window then start to format your hard disk. 10. “Healthy (Primary Partition)” will be displayed. When “Healthy (Primary Partition)” is displayed, this means that your QR130 hard disk is formatted and ready for use. -
Page 25: Use On Macintosh
User Manual Guide Model: QR-130 it is assumed that QR-130 is detected as sda in the example above .Drive name Note may subject to change depending on user environment .Please type the name of drive detected by USB Mass Storage. -
Page 26: Connecting Qr-130
User Manual Guide Model: QR-130 7-1 TV Connection – A/V IN (1) Follow the picture and plug in the 3 color connector to the player's A/V IN jack; (2) Follow the picture and plug in the 3 color connector to the A/V OUT jack of the TV/IP TV Set-Top Box (STB). -
Page 27: Connection With Y/Pb/Pr Component Out
User Manual Guide Model: QR-130 7-3 Connection with Y/Pb/Pr Component OUT (1) Follow the picture and plug in the 3 color connector to the player's Y/Pb/Pr jack; (2) Follow the picture and plug in the 3 color connector to the TV's Y/Pb/Pr jack. -
Page 28: Power Connection
User Manual Guide Model: QR-130 7-5 Power Connection (1) Follow the picture and connect the AC adaptor to the player's DC IN jack; (2) Follow the picture and plug in the AC adaptor to the power outlet. 7-6 Ethernet Connection To connect to a LAN (Local Area Network) you require a cat5, cat5e or cat6 network cable (not supplied). -
Page 29: Wlan Connection (By Option)
(2) Plug the Wireless LAN USB Adapter (i.e. Wi-Fi USB Dongle) to the USB HOST port of the player.(Please use the Wi-Fi Dongle we provided) 7-8 Connection with 2Ch of Normal Audio Connect red and white audio cables from QR-130 to same colored input jack of TV or audio device... -
Page 30: Connection With Optical Output
User Manual Guide Model: QR-130 7-9 Connection with Optical output "When you have a multi channel Decoder /amplifier with optical input, you can enjoy 5.1CH high quality sound through optical cable. The illustration on the top shows how to connect with optical cable"... -
Page 31: Getting Started
User Manual Guide Model: QR-130 Power on the system, and after a few seconds, the system will enter a guide menu. 8-1 Selecting Video In-Live TV, Recording and Time Shift Choose this option, you can pre-view the video to be recorded, or have time shift function (See TIME SHIFT button in Remote Control for more details). -
Page 32: Selecting Setup
User Manual Guide Model: QR-130 HDD/USB or Network, and playback them on TV. Press on the remote control or select Browser button on the guide menu page to browse movie, photo, and music files stored either on a HDD, USB device, or Network. -
Page 33: Setup Menu
User Manual Guide Model: QR-130 The Setup Menu allows you to configure language, audio, video, record, network and system settings. To enter the menu, select Setup from the Guide menu or press button on the remote control. 9-1 Changing System Settings Press on the remote control to select the System tab from the menu. - Page 34 User Manual Guide Model: QR-130 Time Select to set the system time. Press and enter Manual setup. Enter the system menu and press to select each field and the up and down navigation arrows to adjust each setting. Press to confirm.
-
Page 35: Changing Audio Settings
User Manual Guide Model: QR-130 9-2 Changing Audio Settings Press on the remote control to select the Audio tab from the menu bar. Night Mode Select to set night mode. Press to select from Off, On, and Comfort. Press confirm. -
Page 36: Changing Video Settings
User Manual Guide Model: QR-130 9-3 Changing Video Settings Press on the remote control to select the Video tab from the menu bar. Aspect Ratio Press to select from Pan Scan 4:3, Letter Box 4:3, or 16:9. Press to confirm. - Page 37 User Manual Guide Model: QR-130 Brightness Select to set brightness levels. Press to adjust brightness. The new setting is previewed onscreen. Press to confirm. Contrast Press to adjust contrast. The new setting is previewed onscreen. Press confirm. Video System Press to set the TV system, depending on your viewing preferences.
-
Page 38: Changing Record Settings
User Manual Guide Model: QR-130 9-4 Changing Record Settings Press on the remote control to select the Record tab from the menu bar. Quality Press to select the quality setting you require. The highest quality setting is HQ which requires the most storage space. The other settings reduce recording quality sequentially but also require less storage space. -
Page 39: Changing Network Settings
User Manual Guide Model: QR-130 Record Device Select to set device to restore the recorded files. Press to select from HDD and USB. Press to confirm. 9-5 Changing Network Settings Press on the remote control to select the Network tab from the menu bar. - Page 40 User Manual Guide Model: QR-130 Wired LAN Setup Press to select DHCP IP (AUTO) or FIX IP (MANUAL). Press to confirm. DHCP IP (AUTO): Set the IP address by auto. Press to confirm. FIX IP (MANUAL): Using Fixed IP, it is required to enter the followings: IP address, Subnet Mask, and Default Gateway.
- Page 41 User Manual Guide Model: QR-130 There appear two connection modes: Infrastructure (AP) mode and Peer to Peer (Ad Hoc) mode. If you Want to chang the setting, choose the Modify, if not , just Connect. Press to last step , and for next step.
- Page 42 User Manual Guide Model: QR-130 Select the access point you wish to access from the SSID list. In the Security list, WEP (Wired Equivalent Privacy) and WPA (Wi-Fi Protected Access) note means the network is encrypted, i.e. an encryption key is needed to access the network.
- Page 43 User Manual Guide Model: QR-130 5) Setting List The Setting List displays the network settings just now you configured. 6) Test Connection The test will take for a while, please be patient to wait. If the test is ok, the network information will be displayed.
- Page 44 User Manual Guide Model: QR-130 Both the player and your PC need to use the Ad Hoc mode, share a common SSID, and note be put into the same IP range. 2) Save and Startup Select OK to confirm the above settings.
-
Page 45: Browser Menu
User Manual Guide Model: QR-130 The Browser menu allows you to browse and play music, photo and movie files stored on a HDD, an external USB device, and Network. To enter the menu, select Browser from the Guide menu. Press to select the device on which the media is stored. -
Page 46: Browsing Music
User Manual Guide Model: QR-130 All directories and supported contents will be displayed. to select the directory or file you wish to browse, and press to confirm. 10-2 Browsing Music on the remote control to select the Music tab. All directories and supported audio files in current directory will be displayed. Press to select the file you want to play. -
Page 47: Browsing Movie
User Manual Guide Model: QR-130 While browsing a photo, you can press to rotate a photo in any angle. Besides rotating a photo, you can press to zoom in/out that photo.Five zoom levels are available. 10-4 Browsing Movie Use and on the remote control to select the Movies tab. - Page 48 User Manual Guide Model: QR-130 [1] Browsing through Workgroup ou can choose the workgroup which your PC belongs to from the workgroup list, find your PC name, and press to confirm. Then select the shared multimedia file that you want to browse.
-
Page 49: File Management
User Manual Guide Model: QR-130 -See above. - Select Specific File Server IP, and use Navigational and Numeric buttons to enter IP address. - You can also select Detail to set the Label, Domain, and Host Name of the shortcut. Then select OK to confirm. - Page 50 User Manual Guide Model: QR-130 3. Press on the remote control or the ENTER (Play)button on the front panel to play the file. 4. Press on the remote control stop playback and return to the Title List menu screen Deleting Titles To delete a title, do the following: 1.
-
Page 51: Playlist
User Manual Guide Model: QR-130 and lowercase letters. Press <- to delete a letter. Press -> to insert a space. Press to input each letter or number. 5. Once you have entered the new name, select OK and press to confirm all change, If you want to cancel the naming during the process, choose return. - Page 52 User Manual Guide Model: QR-130 And then press CONFIRM bottom on the remote control 3) you can find the file which was added in playlist...
-
Page 53: Media Recording
User Manual Guide Model: QR-130 11-1 Recording from Video-In Mode Select Video-in option from the Guide List, enter into this Video-in mode, and press ‘REC’ button to recording files. 11-2 Time Record Menu The Timer Record menu allows you to create, edit and delete recording schedules and view all schedule st atus and history. - Page 54 User Manual Guide Model: QR-130 Editing Schedule Press on the remote control to select the Edit tab from the menu bar. Select the schedule you want to edit from the list and press The schedule setting screen appears. Modify the schedule as described in 11-2 Creating a New Schedule.
- Page 55 User Manual Guide Model: QR-130 Viewing Schedule Status Press on the remote control to select the Status tab from the menu bar. The schedule list is displayed. Select a schedule and press Viewing Recording History Press on the remote control to select the History tab from the menu bar. Here you can view a complete history of all recordings that were set.
-
Page 56: File Copy Menu
User Manual Guide Model: QR-130 Press COPY bottom on the remote control to enter the File Copy menu, which allows you to copy files between HDD, USB devices and Network. Step 1: Select the source device and destination device. Press to select device. - Page 57 User Manual Guide Model: QR-130 Step 3: Select the destination folder to store the above files. Press to select folder. Press to cancel, and for next step. Step 4: Proceed to copy selected files. Press to select OK, press to confirm. And the copy will start.
-
Page 58: Firmware Upgrade
User Manual Guide Model: QR-130 13-1 System information In video-in Mode, please press ‘stop’ first, and ‘ pause’ button later, the player system information would appears as follows including firmware version no. 13-2 Firmware Upgrade If it is the first time that you are installing a SATA HDD (no matter it is a new one or an old one into the player, please make sure you have read the following steps in advance. - Page 59 User Manual Guide Model: QR-130 upgrade will start in about 30 seconds. If it is connected to a TV set, a yellow install page will appear on the TV screen. Please wait for about 3 minutes, the installation will be completed and player will be restarted automatically.
-
Page 60: Frequently Asked Questions
User Manual Guide Model: QR-130 Question1. My computer does not recognize my player. 1. Make sure the player is powered on. If it is off, the computer will not be able to find the player; 2. Make sure the player is connected to computer. - Page 61 User Manual Guide Model: QR-130 Question 5. My files have disappeared from the player. Make sure that you browse your files via the correct Browser mode which means correct filtered views such as Photos, Music, or Movies. Question 6. Why do some supported photo formats, cannot be shown in the photo function? In the JPEG format there are different modes.
- Page 62 User Manual Guide Model: QR-130 Question 8: Why when I switch to Y/Pb/Pr 480P, 576P, 720P, 1080I, does the TV screen display an unwatchable picture? Please check if your TV supports Y/Pb/Pr 480P, 576P, 720P, 1080I output, if your TV does not support, please use the A/V signal display instead, press the TV SYSYEM button on the remote control, NTSC or PAL.
- Page 63 User Manual Guide Model: QR-130 Question 13: I configured everything correctly, but still cannot get the wireless network connected. Are you using a firewall such as Norton Internet Security, McAfee Personal Firewall, Zone Alarm, etc. or even the built-hat Service Pack 2 for Windows XP automatically upgrades your firewall and turn it...
-
Page 64: Caution
User Manual Guide Model: QR-130 This player's design and manufacture has your safety in mind. In order to safely and effectively use this player, please read the following before usage. Usage cautions User should not modify this player. If commercial hard disk is being used, the environmental temperature should be within +5℃... - Page 65 User Manual Guide Model: QR-130 Hard disk cautions The player uses an internal hard disk for data storage, in normal case, format or repair is not required. You should carefully read the < Frequently Asked Questions > chapter, and check our website for latest information before formatting the hard disk.
- Page 66 User Manual Guide Model: QR-130 Warranty Warranty Regulations The ZIONCOM Technologies Co., Ltd. Provides the following limited warranty based on the consumer protection policy. Limited warranty period starts form the date of purchase. The purchase date must be stated when the product is purchased. When the purchase date is not stated, the limited warranty ends after one year and six months form the manufacturing date.
- Page 67 User Manual Guide Model: QR-130...
