Summary of Contents for Perma Audio Baby Monitor
-

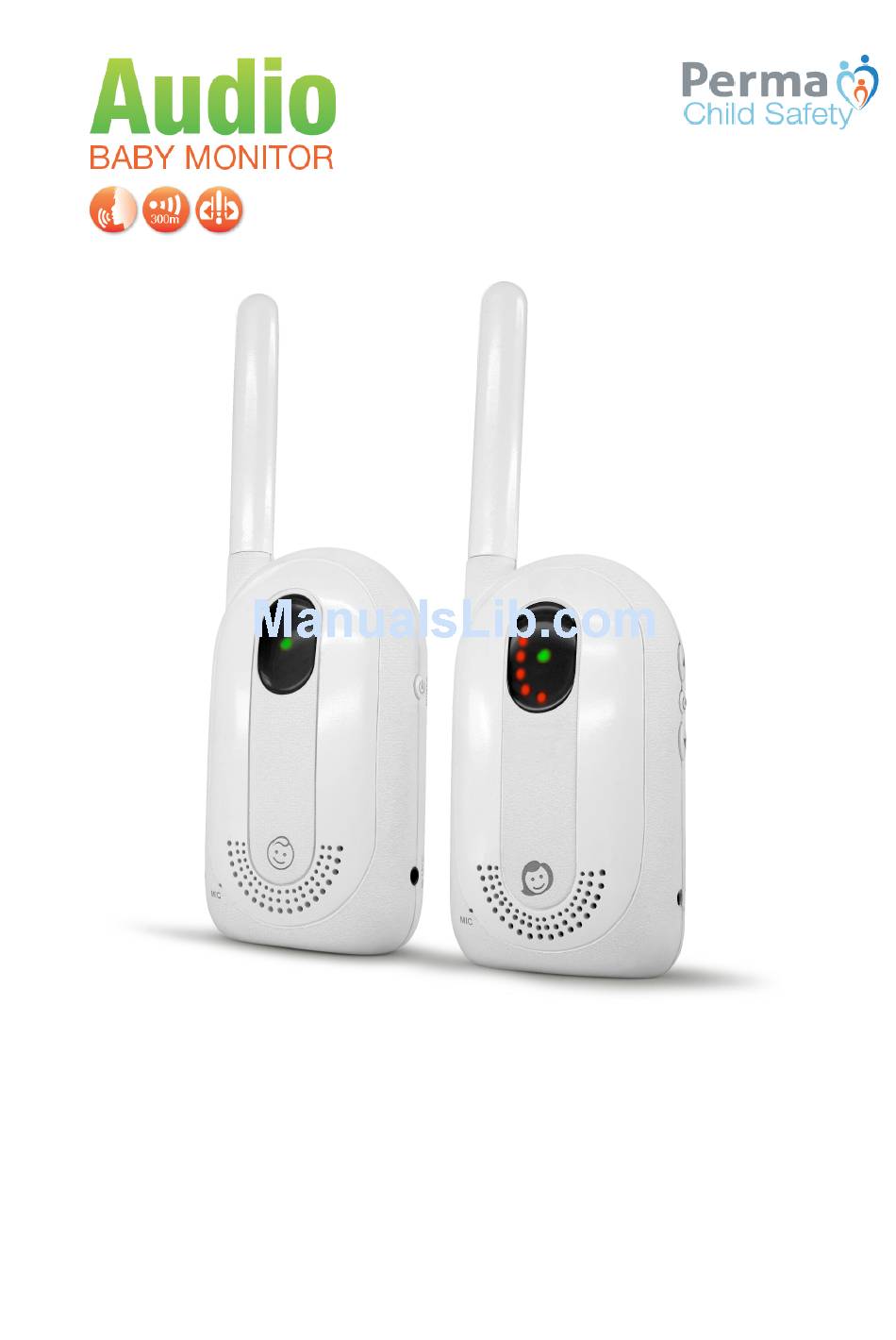

Page 1: User Manual
User Manual Please read the instruction manual thoroughly before using the audio monitor system. Keep for future reference. Code: 763... -
Page 2: Content And Features
Content and Features AC Adaptor AC Adaptor for Baby unit for Parent unit Parent Unit Baby Unit Rechargeable Batteries BABY UNIT 1. Soft Antenna 2. Channel Switch 7. AC/DC Power Supply Socket 3. Sensitivity Control 8. Battery Compartment 4. Mic 9. -
Page 3: Parent Unit
PARENT UNIT 1. Soft Antenna 8. AC/DC Power Supply Socket 2. Channel Switch 9. Belt Clip 3. Sound Lights 10. Wall Mount Hole 4. Power Indicator 11. Battery Compartment 5. Speaker 12. DIP-Switch 6. Volume Control 7. Power ON/OFF CAUTION The adaptors are designed for this product. -
Page 4: Color Index Of Power Indicator
Color Index of Power Indicator Color of Power Indicator Power Sources Green Orange Battery Operated (Low Battery Level) Battery Operated (High Battery Level) Battery / AC Adaptor Operated (Out of Range) AC Adaptor Operated (Unit is turned off.) AC Adaptor Operated Flashing alternately (Unit is turned on.) Battery Installation... -
Page 5: Battery Charging
Battery Charging Use only the AC adaptors that are included, plug into any standard household electrical outlet. Charging automatically begins as soon as you turn on the power outlet. It takes 8 hours to charge the re-chargeable batteries to full capacity the first time. Unplug the AC Adaptors from the electrical outlet or remove the unit from the charger after charging. -
Page 6: Function Setup
-‐ The Baby Unit will go to a stand-by mode for power saving when it doesn’t detect sound from the surrounding area. -‐ Unwrap and fully extend power cord for best transmission if adaptor is used. Function Setup Power On/Off Press and hold the Power key at the right side of both units for 2 seconds until the power indicator LED lights green. -
Page 7: Troubleshooting
Low Battery Alert When the unit is low on power, the red LED power indicator lights turns on and the unit will turn off automatically after 5 minutes. User needs to recharge the supplied rechargeable batteries or change for new AAA batteries. Out of Range Alert (Only for Parent Unit) When the connection between Parent Unit and Baby Unit is broken, e.g. -
Page 8: Technical Specifications
Technical Specifications Power Supply Voltage: Baby Unit: 4 x AAA batteries or adaptor: AC100-240V DC 7.5V Parent Unit: 4 x AAA batteries or adaptor: AC100-240V DC 7.5V Channel: 2 Channels Operation Frequency: 40.660 – 40.700MHz Operating Range: up to 300m in ideal conditions...
