Summary of Contents for Altec Vision NU-VIEW 1024

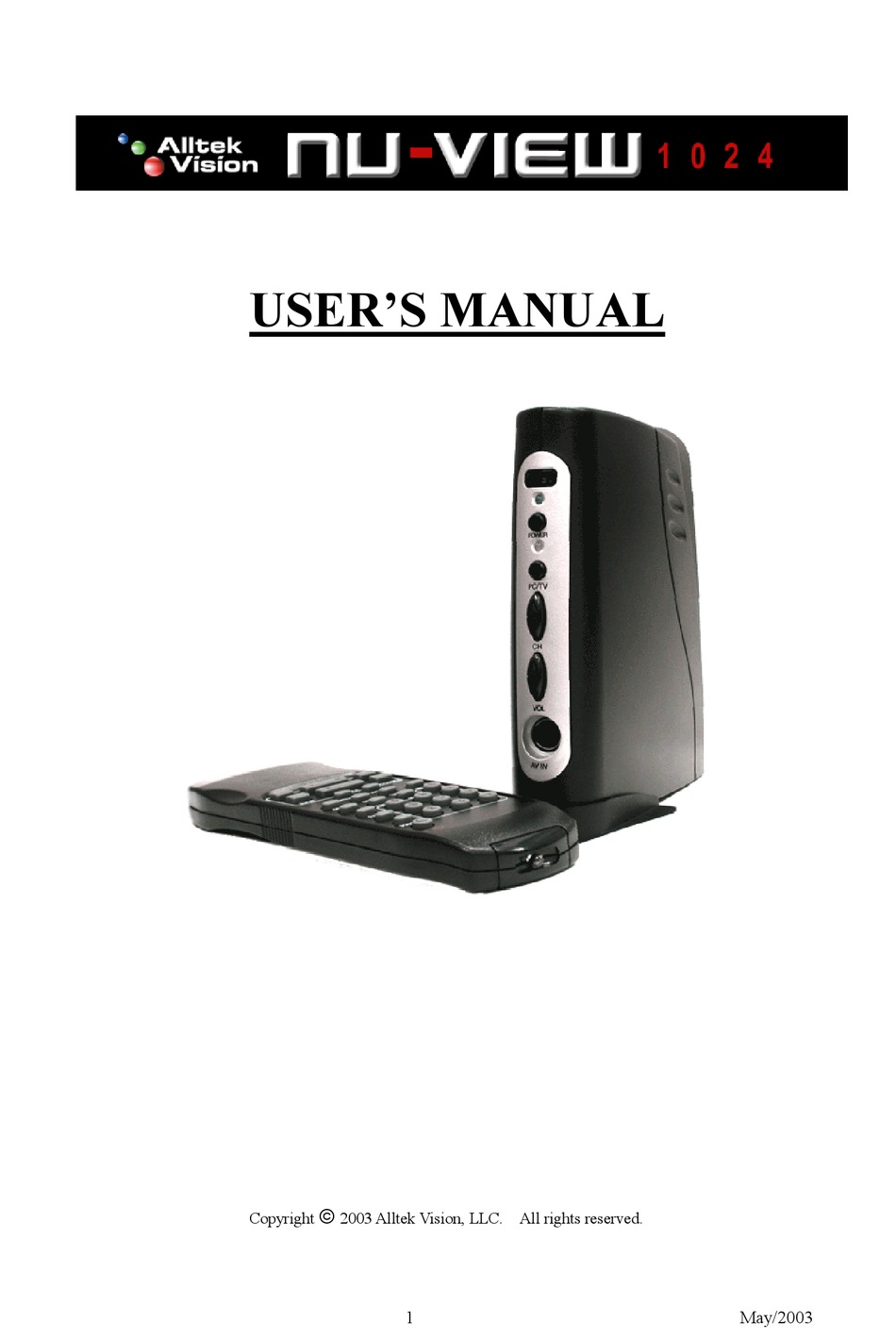

- Page 1 USER’S MANUAL Copyright 2003 Alltek Vision, LLC. All rights reserved. May/2003...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction 1-1. Features ………………………………………3 1-2. Package Contents …………………………….3 1-3. Location of Controls (Box Set) ………………4 1-4. Location of Controls (Remote) ………………4 2. Set Up 2-1. Installing Stand ………………………………..5 2-2. Installing Batteries ……………………………5 2-3. Connecting TV Antenna/Cable ………………6 2-4. -
Page 3: Introduction
1. Introduction Congratulations! You have purchased the Nu-View1024 TV Tuner Box to enhance your multimedia PC. We will guide you through all of the features, installation and operation. This manual will help you use the many exciting and useful features to make your TV viewing more enjoyable than ever before. 1-1. -
Page 4: Location Of Controls (Box Set)
1-3. Location of Controls (Box Set) Front view Rear view 1-4. Location of Controls(Remote) Power button Source change button Non function MTS button for NTSC only Channel Number buttons Channel Return button Non function Channel program button Status On Screen Display Add channel button Erase channel button TV/CATV button... -
Page 5: Set Up
2. Set Up 2-1.Installing Stand Nu-View box Place the stand until the lock Stand 2-2.Installing Batteries 1. Place the Remote Control with the face down. Press down on the ridged area of the battery cover and slide it off. 2. Place two “AAA” size batteries, matching the + and – sign on each battery to the + and –... -
Page 6: Connecting Tv Antenna/Cable
2-3. Connecting TV Antenna/Cable You can use either an indoor or outdoor antenna to VHF and/or UHF channels. You can receive Cable TV by connecting a cable supplied by your local cable company. 75 ohm coaxial cable 300 ohm twin-lead cable TV signal input VHF, UHF or Cable TV... -
Page 7: Connecting Video Input From Pc
2-5. Connecting Video Input From PC Video input Video input from PC cable(100cm) 8pin Male type Mini Din 15pin Male type connector D-SUB connector Rear view 2-6. Connecting Audio Line Out Audio out Speaker Stereo Audio cable(180cm) 3.5φ Audio connector Rear view May/2003... -
Page 8: Connecting Power Supply
2-7. Connecting Power Supply DC 12V Input Power source AC/DC Adaptor Output: 12V DC 500mA Rear view 2-8. Connecting Audio/Video Equipment V8/DV AV Source Input Source cable(10cm) or VCD/DVD, Game 8pin Male type Mini Din connector Front view 4pin Female type Mini Din connector for S-Video input RCA connector for Video input Audio input connector May/2003... -
Page 9: Operation
3. Operation 3-1. Selecting Input Source 1. Press Power button to turn on the Nu-View. 2. When you press Source button, the TV/CATV,AV,S-Video, and PC input source will be automatically changed by loop as Figure.3-1. Power TV Mode Source AV Mode S-Video Mode PC Mode Front view... -
Page 10: Programming Channel Memory
3-2. Programming Channel Memory Power Source CH Number Insert Scan System Delete CH▲▼ TV/CATV Front view TV/Cable TV function 1. Press Power button to turn on the Nu-View. If power has been turned on, press Source button to select TV mode. (Ref. 3-1. Selecting Input Source) 2. -
Page 11: Watching Tv Programs
3-3. Watching TV Programs Power Source CH Number Vol +/- CH▲▼ Front view 1. Press Power button to turn on the Nu-View. If power has been turned on, press Source button to select TV mode. 2. Select a channel in one of the following two ways. ! To scan the memorized channels in numerical sequence Press CH to select the next higher channel. -
Page 12: Convenient Remote Functions
3-4. Convenient Remote Functions CH Number Recall Mute CH▲▼ Front view To display on-screen information On AV mode: Press OSD button to display the AV on-screen . On S-Video mode: Press OSD button to display the S-Video on-screen . On TV mode: Press OSD button to display the Channel number, System, MTS, Volume on-screen information. -
Page 13: Selecting Stereo/Sap Broadcasts
3-5. Selecting Stereo/SAP Broadcasts The MTS(Multi-channel TV Sound) feature allows you to improve your TV viewing with high fidelity stereo sound. MTS also provides for an extra channel, SAP(Second Audio Program), used to transmit a second language or other audio information. To use MTS function When you press MTS button, the Stereo, SAP, Dual, Mono mode will be automatically changed by loop as Figure.3-5. -
Page 14: Adjusting The Picture
3-6. Adjusting the Picture You can adjust the picture quality(Brightness, Contrast, Color, V-Shift, H-Shift) to suit your taste. To adjust the picture quality 1. When you press Function button, Brightness, Contrast, Color, V-Shift, H-Shift mode will be automatically changed by loop as Figure.3-6. 2. - Page 15 17568 E. Rowland Street City of Industry, CA 91748 T: 1.888.229.NUTV(6888) T: 1.626.839.3788 F: 1.626.839.3787 www.alltekvision.com Copyright © Alltek Vision, LLC 2003. All rights reserved. May/2003...
