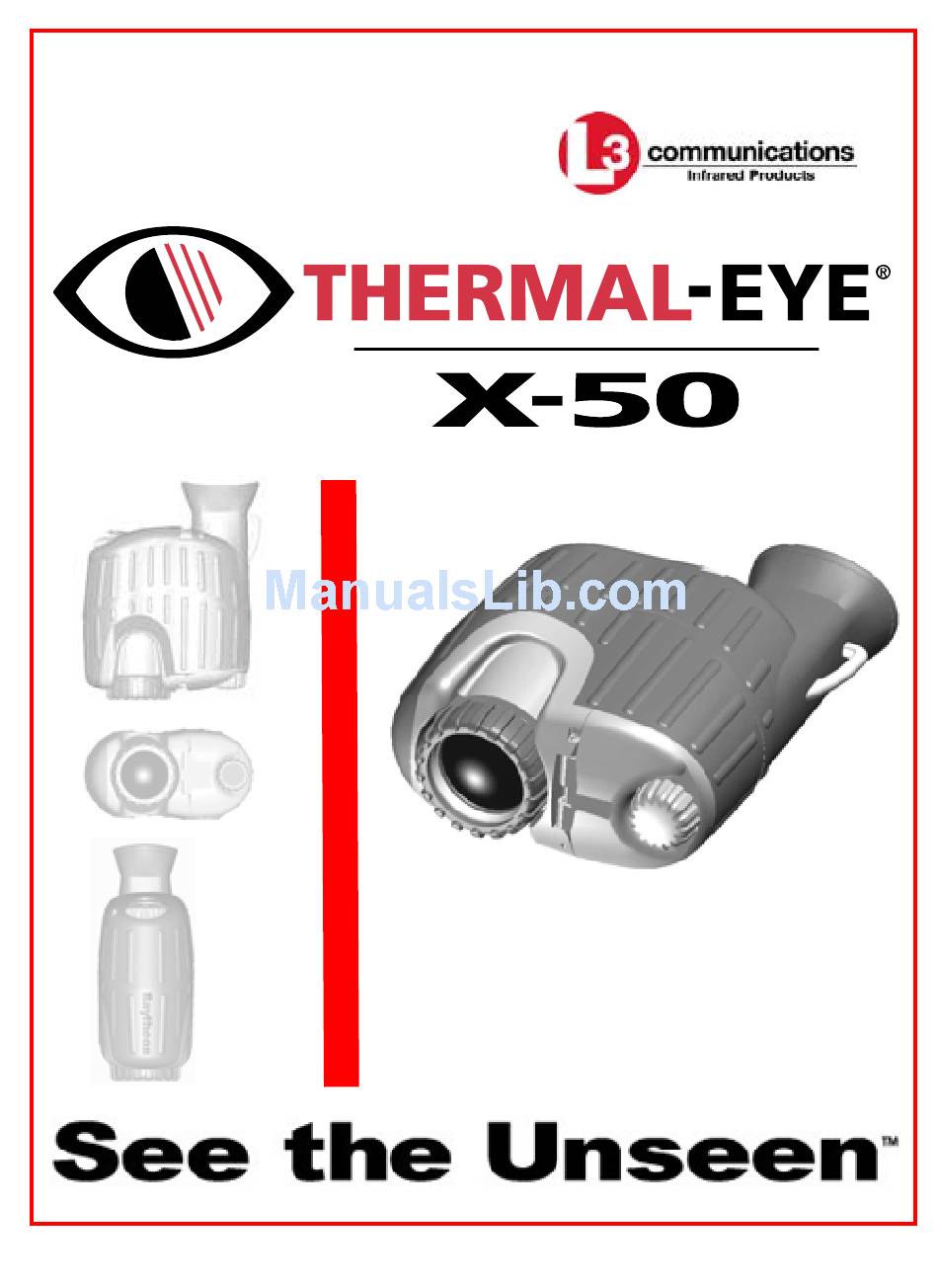

- Page 1 User Manual...
- Page 2 − Changes or modifications not expressly approved by L-3 Communications Infrared Products could void the user’s authority to operate this equipment. − For continued FCC Compliance, use only accessories approved by L-3 Communications Infrared Products Page 2 X-50 User Manual...
- Page 3 Foreign Person, either in the U.S. or abroad, without the proper authorization of the U.S. Department of Commerce. CE Manufacturers Declaration of Conformity Product Identification: Thermal Infrared Camera Model/Type: X-50 Camera / (X2) Version: 7070410 (7070415) Manufacturer: L-3 Communications Infrared Products 13532 North Central Expressway, MS 37 Dallas, TX.
-
Page 4: Table Of Contents
Table of Contents 1. Introduction...............6 Welcome to Infrared ...........6 Handling & Precautions ........9 Contacting L-3 Communications Infrared Products..10 2. Operation..............11 X-50 Features............11 Holding the Camera ..........13 Loading the Batteries ..........15 Opening the Battery Compartment Door ..15 Installing 2 AA Batteries........16 Closing the Battery Compartment Door....17... - Page 5 AC/DC Power Adapter ........26 Power Cable............27 Video Cable ............27 4. Specifications............28 5. Frequently Asked Questions ........31 6. Troubleshooting Guide...........32 7. Warranty ..............33 Warranty Registration Card ........34 How To Return Products For Warranty Repair..35 Page 5 X-50 User Manual...
-
Page 6: Introduction
1. Introduction Thank you for choosing the X-50 Thermal Imaging Camera. With its small size, rugged design, and simplicity, you can now focus on the job at hand, rather than the camera in your hand. Before using this camera, please read these instructions carefully, and retain them for future reference. - Page 7 The X-50 was designed to sense differing amounts of long wavelength infrared coming from the various areas of a scene and to convert them to corresponding intensities of visible light on a display.
- Page 8 , onto an infrared detector . The information from the infrared detector is passed to electronics image processing. The signal processing circuitry translates the infrared detector data into an image that can be viewed on the built-in video monitor. Page 8 X-50 User Manual...
-
Page 9: Handling & Precautions
Never point this camera directly into the sun, welding arcs, or any other extreme intensity objects that you would not view with your eyes. Doing so will damage the camera. Page 9 X-50 User Manual... -
Page 10: Contacting L-3 Communications Infrared Products
⇒ Camera part number ⇒ Camera serial number Part and serial numbers are located under the rear door/plug. L-3 Communications Infrared Products Customer Service Department: 800-990-3275 (US) or 972-528-1528 (Int’l) Page 10 X-50 User Manual... -
Page 11: Operation
2. Operation X-50 Features Rubber armored Submersible to construction 3 meters Standard AA batteries Floats in water Viewing range – 15ft to infinity. Rotate lens for close range (4ft -15ft). Page 11 X-50 User Manual... - Page 12 Connect external power or external video (requires optional cables) Single button operation Battery icon Indicates charge Tripod mount (1/4-20 thread) Model & serial number behind the external connections plug Page 12 X-50 User Manual...
-
Page 13: Holding The Camera
Holding the Camera The camera can be mounted to a tripod using the 1/4-20 insert. Tripod Mount The camera can be held either right-, or left-handed. Page 13 X-50 User Manual... - Page 14 Attach the strap to the camera by looping it through the attachment point as shown below. The camera can be held in any orientation and the image in the LCD display will remain upright. Page 14 X-50 User Manual...
-
Page 15: Loading The Batteries
Loading the Batteries Opening the Battery Compartment Door Unscrew battery compartment door knob counterclockwise. Open the door to install batteries. Page 15 X-50 User Manual... -
Page 16: Installing 2 Aa Batteries
Use these to install the batteries in complete darkness by feel without having to see the battery symbols. Raised Tab - Insert battery with positive end up. Sunken Tab - Insert battery with positive end down. Page 16 X-50 User Manual... -
Page 17: Closing The Battery Compartment Door
AA size: ⇒ Alkaline ⇒ Nickel-Metal-Hydride (NiMh) rechargeable ⇒ Lithium The camera does not have an internal battery charger. If using rechargeable batteries, they must be charged with a separate external charger. Page 17 X-50 User Manual... -
Page 18: Replacing Batteries
The display will correct itself after a 5-10 minute waiting period. This waiting period can be with the camera either on (operating) or off (stored). Page 18 X-50 User Manual... -
Page 19: Turning On The Power
After three seconds, the logo is replaced by the thermal image. Automatic Camera Shutter The X-50 uses an automatic shutter to optimize the amount of IR energy reaching the detector. While the shutter is adjusting (at 30 to 90 second intervals), the display freezes for approximately ½... -
Page 20: Automatic Contrast
Automatic Contrast The X-50 constantly adjusts video contrast based upon the informational content in the scene. When viewing people, automobiles, boats, and other warm objects at close range, the video gain is automatically decreased resulting in more detail on facial features and flat surfaces. -
Page 21: Determining Remaining Battery Power
5 hours of operation. FULL EMPTY The length of time the X-50 will operate on a set of batteries is based on setting the camera’s display to minimum brightness (night-time setting) for a camera operating at room temperature. Very low or high... -
Page 22: Adjusting The Display Brightness
Turn the on/off knob clockwise past the on/off detent to increase the LCD display brightness. Turn counterclockwise to decrease the brightness. Bright To maximize battery life, set the LCD display to the minimum practical brightness setting. Page 22 X-50 User Manual... -
Page 23: Focusing For Close-Up Operation
Focusing for Close-Up Operation The X-50 has overall viewing range from 4 feet to infinity. In the far focus position, objects from 15 feet to infinity are in focus. By rotating the lens, objects as close as 4 feet can be brought into focus. -
Page 24: Cleaning
⇒ Clean the body of the camera using a water- moistened cloth. ⇒ Clean the lens with a cleaner/cloth that has been specially formulated for cleaning camera lenses (one is provided). If additional cloths are needed, they may be purchased from any camera retailer. Page 24 X-50 User Manual... -
Page 25: Accessories
X-50 camera. DO NOT attempt to use other similar cables as they will not operate the X-50 camera, and may cause damage! Page 25 X-50 User Manual... -
Page 26: Operating With Video And Power Cables
Lift Tab to Open Video Power AC/DC Power Adapter Connect the AC/DC power adapter to the X-50 connector labeled Power, and the other side an AC power wall outlet. Connecting the AC/DC power adapter will disable the batteries, and the X-50 will receive its power from this outlet. -
Page 27: Power Cable
Connect the power cable to the X-50 connector labeled Power, and to any 12 volt DC power source. Operation of the X-50 will be the same as described in the section AC/DC Power Adapter. The power supply must be capable of supplying at least 500ma. -
Page 28: Specifications
Output jack on rear. NTSC or PAL Auxiliary Video Out (depending on Model) Power Power 2 AA Batteries 2 hrs (alkaline batteries) Operating Time 5 hrs (lithium batteries) Auxiliary Power In 12VDC (input jack on rear) Page 28 X-50 User Manual... - Page 29 Yes, 3 meter submersion with both Waterproof doors closed Buoyant Yes, floats in water Shockproof Yes, 2 meter drop FCC: part 15, class B EMC Compliance CE Mark: EN61000-6-1 & EN61000-6-3 Page 29 X-50 User Manual...
- Page 30 Tactile battery loading feature for night-time installations • Long eye-relief viewfinder for easy use w/glasses, face shields Standard Equipment: • 2AA alkaline batteries • Neck strap & wrist strap • Lens cleaning cloth Specifications are subject to change without notice. Page 30 X-50 User Manual...
-
Page 31: Frequently Asked Questions
Q3 Is the lens normally difficult to turn? A3 Yes, the camera is manufactured with tight seals to make it waterproof, causing the lens to be difficult to turn. This is normal. Page 31 X-50 User Manual... -
Page 32: Troubleshooting Guide
Batteries were Always turn off is flickering/ replaced before the camera flashing, has a first turning the before replacing ghost-image, or has camera off. batteries. horizontal lines. Wait 5-10 minutes and the display will clear itself. Page 32 X-50 User Manual... -
Page 33: Warranty
7. Warranty L-3 Communications Infrared Products Warranty Product(s) will conform to L-3 IP’s current drawings and specifications at the time of delivery and be free from defects in material and workmanship under normal use and service for twelve (12) months, beginning on the date the product is delivered to the customer, or beginning on the date product is placed into service;... -
Page 34: Warranty Registration Card
CONTRACT OR OTHERWISE, EVEN IF L-3 IP OR ITS LICENSORS HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Warranty Registration Card Complete warranty registration online at www.thermal- Support Thermal-Eye , select and select eye.com Product Warranty Card. Page 34 X-50 User Manual... -
Page 35: How To Return Products For Warranty Repair
Description of problem Return Authorization number Camera model and serial numbers are clearly marked on the camera. Refer to the section titled 50 Features on page 11 for the location. Proof of purchase may be required. Page 35 X-50 User Manual... - Page 36 L-3 Communications Infrared Products Customer Service Department 13532 North Central Expressway, MS 37 Dallas, Texas 75243 800-990-3275 (U.S.) 972-528-1528 (International) 1000385-1 Rev B...
