Summary of Contents for Parvus DuraVIS 3000 SERIES
-
Page 1: User Manual

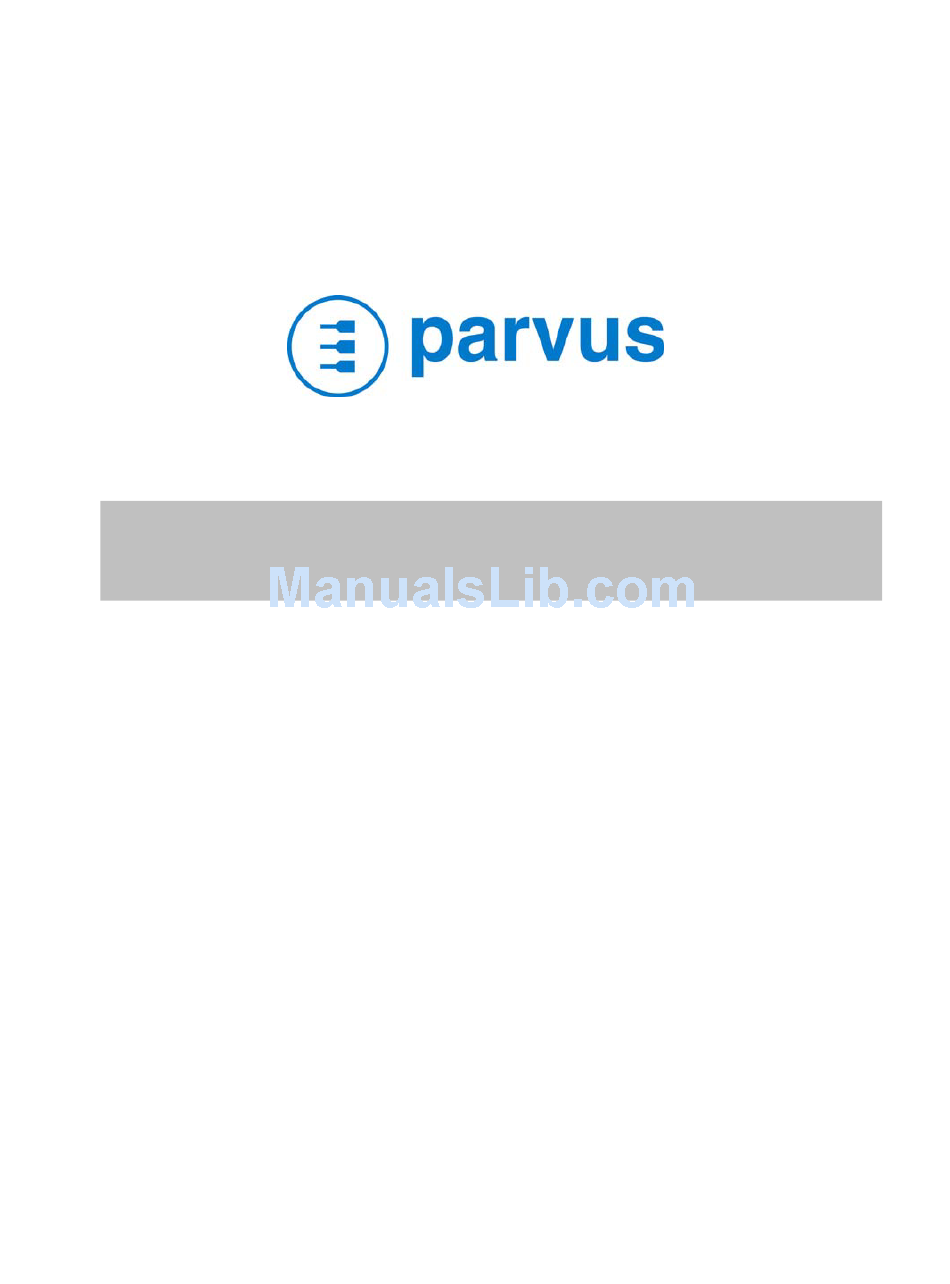

DURAVIS 3000 SERIES User Manual MNL-0551-01 revA2 REF. ECO-1390 Effective: 26-APR-07... -
Page 2: Disclaimer
Parvus reserves the right to change the contents and form of this document, as well as the features and specifications of its products at any time without notice. The information in this publication does not represent a commitment on the part of Parvus. -
Page 3: Important Information To The User
Parvus is not responsible for any radio or device, which may be affected by harmful interference. Appropriate shielding of susceptible devices is not the responsibility of Parvus. Further, Parvus is not responsible for unauthorized modifications of Parvus equipment including the substitution or attachment of cables and/or other unauthorized equipment. -
Page 4: Raee
RAEE The information below is issued in compliance with the regulations as set out by the 2002/96/CE directive, subsequently superseded by 2003/108/CE, and refers electrical and electronic equipment and the management of their waste (WEEE). When disposing of a device, including all of its components, subassemblies and materials that are an integral part of the product, you should take the WEEE directive into consideration. -
Page 5: Conventions
DuraVIS 3000 Conventions The following table lists the conventions that are used throughout this manual. Icon Notice Type Description Information note Important features or instructions Information to alert you to potential Warning damage to a program, system or device or potential personal injury The “Mode”... -
Page 6: Table Of Contents
Table of Contents Disclaimer ................................2 Trademarks ................................2 IMPORTANT INFORMATION TO THE USER .....................3 Safety Notices and warnings..........................3 RAEE................................4 Anti-static precautions............................4 Conventions ................................5 Table of Contents ..............................6 Chapter 1 Introduction ............................7 Overview.................................7 Chapter 2 Video Port Pin-outs...........................9 DVGA/VGA signals ............................9 EVGA signals .............................. 10 Chapter 3 Operational Mode Indicator ...................... -
Page 7: Chapter 1 Introduction
DuraVIS 3000 Chapter 1 Introduction Overview The DuraVIS 3000 is an LED backlit display that includes internal shock mitigation as well as digital intensity control. Signals from a 640x480 VGA source are used to drive the display. The following information is supplied as a description of the state of this product and some of the options that are available. - Page 8 MNL-0551-01 revA2...
-
Page 9: Video Port Pin-Outs
EVGA high density DB 15 connector. DVGA/VGA signals DVGA (Differential VGA) is a video format created by Parvus Corporation to drive VGA signals over long distances. DVGA requires all of the signals of a regular VGA cable plus pins 9 and 10. See Table 1. -
Page 10: Evga Signals
EVGA signals EVGA (Encoded VGA) is the new video standard that is used to drive VGA signals over long distances. No individual synchronization signals are necessary. EVGA requires only 6 input signals (see Table 2). The EVGA port of the unit can only handle 640x480 EVGA signals. Signal Name Input / Output Comments... -
Page 11: Operational Mode Indicator
DuraVIS 3000 Chapter 3 Operational Mode Indicator The LED in the upper right-hand corner of the display is the Operational Mode Indicator. The following table indicates the modes of operation based on the color displayed by the LED: Color of the LED Operational Mode No Video Green... -
Page 12: Chapter 4 User Controls
Chapter 4 User Controls Figure 2: Port and Pushbutton designations for the DuraVIS 3006-20 Figure 2: Port and Pushbutton designations for the DuraVIS 3006-00 MNL-0551-01 revA2... -
Page 13: Power-Up Control
DuraVIS 3000 Power-up Control The following settings are applied by powering up the display while holding the indicated buttons for the settings/operations listed. It should be noted that the behavior of the buttons is different during power-on than while running. When the display is positioned so that the buttons and LED are on the right side, it is in its standard mounting mode and the display is described as right-side up. -
Page 14: After Power-On
After power-on The following functions are done by using the buttons after the system has been powered up. It should be noted that the function of the buttons is different when depressed during power on than after power on. When in inverted video mode the Up and Down buttons swap;... -
Page 15: Chapter 5 Troubleshooting
If you have a sales-related question, please contact your local Sales Representative. Returning For Service Before returning any Parvus product, you must contact Parvus to obtain a Returned Material Authorization (RMA) number. Note. You must have the RMA number in order to return any product for any reason! Pack the module in an anti-static material and ship it in a sturdy cardboard box with enough packing material to adequately cushion it. -
Page 16: Appendix
Appendix Environmental Testing MIL-STD-461E Designed and Tested to the following standards: • Power Leads, 10 kHz to 10 MHz, basic curve. CE-102 Section 5.5; • Electric Field, 2 MHz to 18 GHz, two configurations, figure RE102-3 RE-102 Section 5.16; internal fixed wing < 25 meters. MIL-STD-810F Designed and Tested to the following standards: •... -
Page 17: Limited Warranty
Parvus. This Warranty is valid for a period of one (1) year from the date of purchase. Parvus reserves the right to repair or replace any Warranted products at its sole discretion. Any product returned to Parvus for repair or replacement under the provisions of this warranty must be accompanied by a valid Return Material Authorization (RMA) number issued by the Parvus Customer Service Department.
