Summary of Contents for gfm PVS7989
-

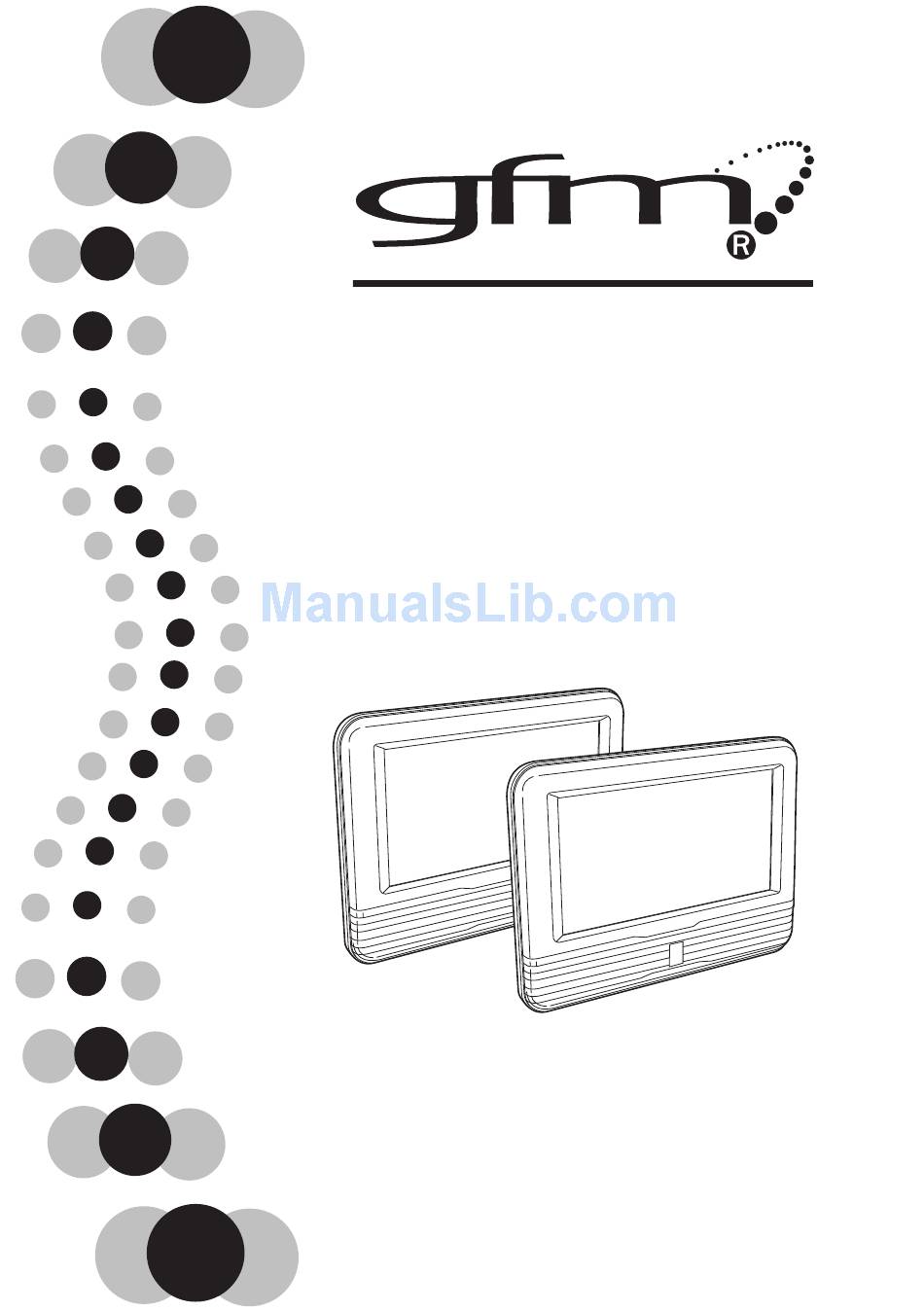

Page 1: User Manual
User Manual PVS7989 8 in. Dual Screen Mobile DVD Player... -
Page 2: Safety Precautions
Safety PrecautionS WarninG to reDuce tHe riSK of eLectric SHocK, Do not reMoVe coVer (or BacK). no uSer-SerViceaBLe PartS inSiDe. refer SerVicinG to QuaLifieD SerVice PerSonneL. to PreVent fire or SHocK HaZarD, Do not eXPoSe tHiS aPPLiance to rain or MoiSture. Do not PLace oBJectS fiLLeD WitH LiQuiDS on or near tHiS unit. -
Page 3: Important Safety Instructions
Safety PrecautionS – reorient or relocate the receiving antenna. – increase the separation between the equipment and receiver. – connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – consult the dealer or an experienced radio/tV technician for help. Warning: changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. -
Page 4: Table Of Contents
taBLe of contentS Safety PrecautionS........1 LocatinG a DeSireD Section ....17 Locating a Specific title ............17 iMPortant Safety Locating a Specific chapter ..........17 inStructionS ............ 2 Locating a Specific time ............17 DVD ProGraMMaBLe MeMory....18 taBLe of contentS ......... 3 rePeat PLayBacK ...........18 DiSc forMatS ............ -
Page 5: Disc Formats
DiSc forMatS this unit can playback discs bearing any of the following marks: DVDs [8cm(3")/12cm(5") disc] compatible audio cDs [8cm(3")12cm(5") disc] region Management information region Management information: this unit is designed and manufactured to respond to the region Management information that is encoded on DVDs. if the region number printed on the DVD does not correspond to the region number of this unit, this unit cannot play that disc. -
Page 6: Accessories
acceSSorieS Please check and identify the supplied accessories. remote control (with battery) ..............................x 1 ac Power adapter .................................... x 1 car Power adapter ..................................x 1 Dc-aV cable ......................................x 1 Straps ........................................x 2 reMote controL using the remote control take out the PVc sheet before operating the •... -
Page 7: Control Reference Guide
controL reference GuiDe remote control Video Mode button SUBTITLE button Adjusts Brightness, Contrast or Colour of the LCD Selects one of the subtitle languages programmed screen. on a DVD (if available). PREV button RETURN button Moves back through titles, chapters or tracks on a returns to normal operation after using the SetuP disc. -
Page 8: Dvd Unit / Monitor
controL reference GuiDe DVD unit Monitor Remote Sensor VOLUME Control receives the remote control signal. Adjusts the volume. Button Headphone Jack Press the button and hold the front panel to open AUDIO/VIDEO IN jacks the disc door. DC IN 9V-12V jack SEARCH Button LCD Screen COLOR Control... -
Page 9: Power Supply
PoWer SuPPLy a. using the ac Power adapter the supplied ac power adapter operates on ac between 100V and 240V. using the Main unit and the monitor together MONITOR - TO AC outlet left side right side UNIT - right side DC-AV cable (included) AC ADAPTER... -
Page 10: Using The Car Power Adapter
PoWer SuPPLy B. using the car Power adapter the 12V car power adapter allows the unit to be used with vehicles that have a 12V, negative ground electrical system. using the Main unit and the Monitor together MONITOR - UNIT - right side left side right side To the... -
Page 11: Connections
connectionS a. Watching a DVD on the Main unit and the Monitor you can watch the same DVD on the main unit and the monitor. MONITOR - UNIT - right side left side right side DC-AV cable (included) TO A/V OUT TO A/V IN &... -
Page 12: Listening A Stereo Receiver Or Amplifier On Main Unit
connectionS c. Listening a Stereo receiver or amplifier on Main unit the main unit can play two channels Dolby Digital. Listening on external audio equipment 1. Connect the main unit to the left/right Audio In jacks on the other equipment using a standard Audio cable (not included). -
Page 13: Using The Monitor With Other Equipment While Playing Dvd On The Main Unit
connectionS e. using the Monitor with other equipment while Playing DVD on the Main unit you can use a game console or other video equipment on the monitor while playing a DVD on the main unit. MONITOR - UNIT - right side left side right side AV cable... -
Page 14: Placement
PLaceMent a. Mounting in the Vehicle use the supplied mounting strap to install the main unit and monitor on the back of the vehicle's headrests. tightly wrap the mounting strap around the headrest. Mounting the Main unit Mounting the Monitor Safety WarninG! •... -
Page 15: Sound System
SounD SySteM Dolby Digital Dolby Digital is a technology developed by Dolby Laboratories. Soundtracks encoded in Dolby Digital can reproduce from one to 5.1 discrete channels of excellent quality audio. the unit automatically recognizes the Dolby Digital bitstream and provides a downmix suitable for two- channel listening. -
Page 16: Playing A Disc
PLayinG a DiSc Basic playback this owner’s manual explains the basic instructions specific DVD in question for more information about for operating this unit. Some DVDs are produced in the options available on that DVD. a manner that allows specific or limited operation during playback. -
Page 17: Subtitle Selection
PLayinG a DiSc Basic playback Subtitle Selection notes: • This function can only be used for discs on which 1. While a DVD is playing, press the SuBtitLe button to scenes shot from multiple angles have been display the current language setting, as shown in the recorded. -
Page 18: Locating A Desired Section
LocatinG a DeSireD Section Locating a Specific title if a DVD contains title numbers, you can locate a specific title by directly selecting its title number. 1. Press the Goto button. 2. Press the corresponding number button(s) for the title you want. 3. -
Page 19: Dvd Programmable Memory
DVD ProGraMMaBLe MeMory button. the DVD player starts memory playback. Playing titles/chapters in a favourite order 4. to resume normal playback from memory playback you can combine your favourite titles/chapters and 1). Press the MeMory button in stop mode. play them in the order you determine. 2). -
Page 20: Viewing Jpg Files
VieWinG JPG fiLeS this unit can play JPG files recorded on a cD-r or cD-roM disc (cD-rW is not recommendable). Viewing JPG files 1. open the disc door. 2. Hold a JPG file disc by its edge and gently push it onto the spindle with the label side facing up until you hear a “click”... -
Page 21: Customizing The Function Settings
cuStoMiZinG tHe function SettinGS Language oSD Language 1. Press the SetuP button in stop mode. 2. Press the button to select oSD Language. 3. Press the enter button, then the button to shift and change the Language. 4. Press the enter button. 5. -
Page 22: Video Setup
cuStoMiZinG tHe function SettinGS Video aspect ratio 1. Press the SetuP button in stop mode. 2. Press the button to select Video. 3. Press the button, then the button to select aspect ratio. 4. Press the enter button, then the button to shift and change the aspect ratio. -
Page 23: Maintenance
Maintenance heart shaped, octagonal, etc.). they may cause cleaning the Disc malfunctions. a defective or soiled disc inserted into the unit can cause sound to drop out during playback. cleaning the unit Handle the disc by holding its inner and outer edges. •... - Page 24 GfM Guarantee GfM Guarantee If you are not totally satisfied with this GFM product, you may return it to any Meijer store for a full refund within 6 months (180 days) of purchase when accompanied by a receipt. for customer support please call (866) 845-9436 or go to www.gfmproducts.com Dist.
