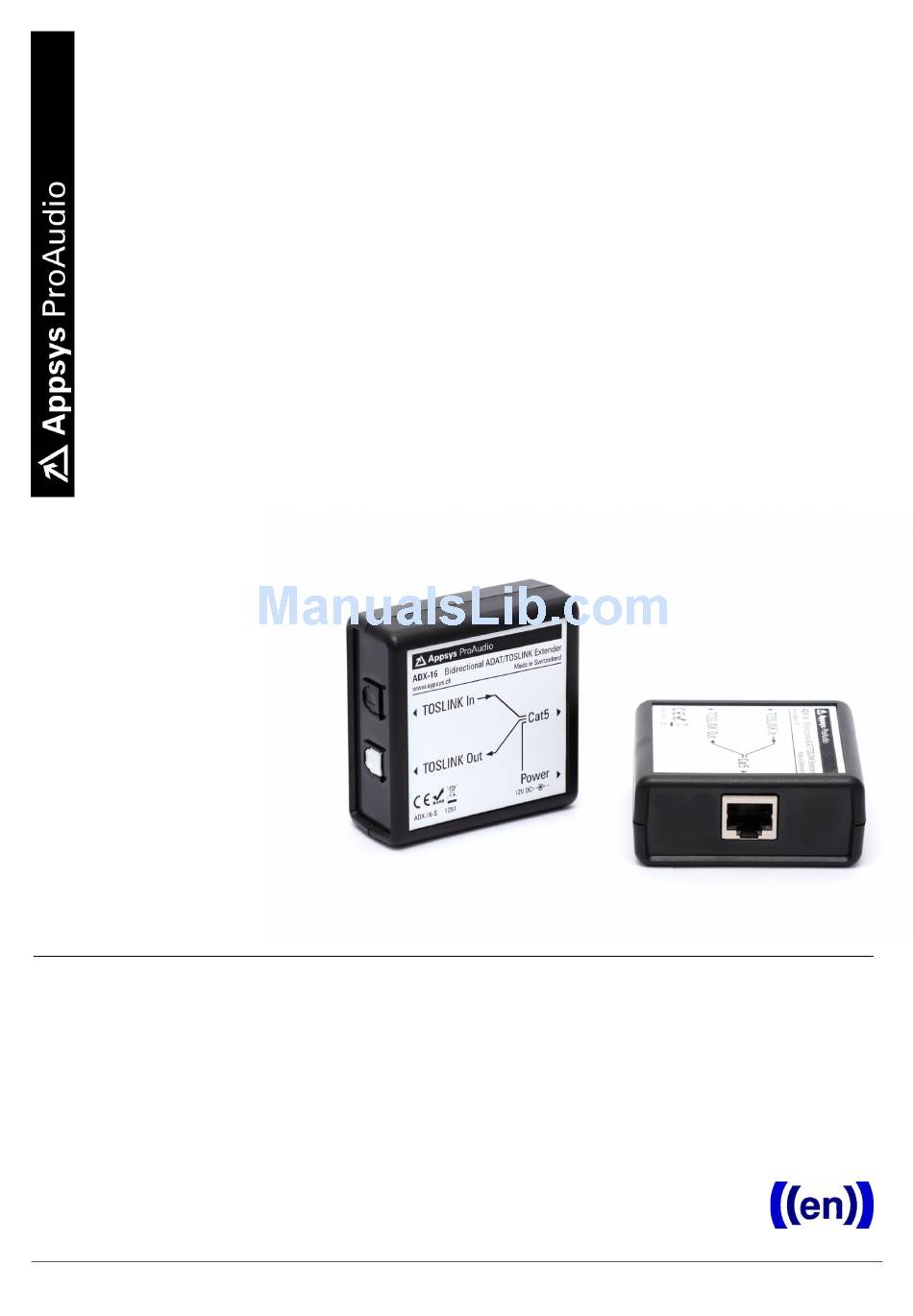

- Page 1 Bidirectional ADAT/ TOSLINK Extender Kit ADX-16 User's Manual...
- Page 2 The ADX-16 solves these problems by converting the optical signals to electrical ones, which can be losslessly transmitted over up to 100 meters using ubiquitous and cheap Cat5 cable. Moreover, the ADX-16 reduces cabling by transmitting a bidirectional signal (that is, one TOSLINK connection in either direction) together with power for the second unit over a single Cat5 cable.
-
Page 3: Specifications
Cat5 cable. Cat5 connection Use up to 100m (330 ft) Cat5(e), Cat6(e) or Cat7 cable to connect the first ADX-16 box to the second one. Note: For the ADX-16's signal transmission, the quality of the cable doesn't matter much (we use 100 meters of the cheapest cable we were able to get for testing). -
Page 4: About This Document
5.4. About this document All trademarks mentioned in this document are property of the respective owners. All information provided here is subject to change without prior notice. Document Revision: 1 · 2013-01-04 Copyright © 2013 Appsys ProAudio · Printed in Switzerland...
