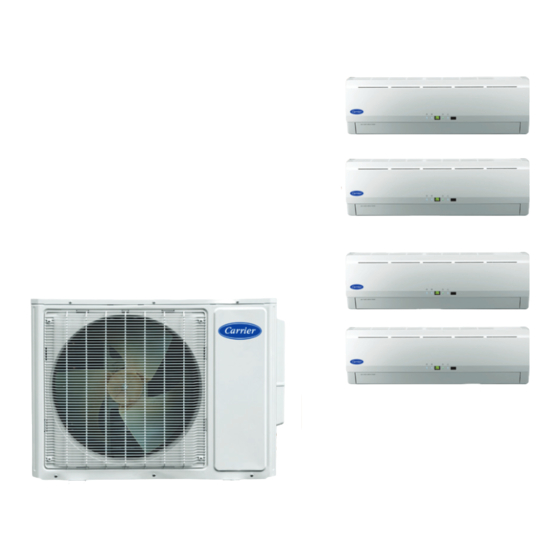

Multi-split high-wall ductless split system 38gvm sizes 018k, 24k, 30k, 36k, and 42k 40gvm sizes 9k, 12k, and 18k

Advertisement

40GVM / 38GVM
SAFETY PRECAUTIONS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GENERAL
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
INDOOR UNIT PART IDENTIFICATION
REMOTE CONTROL PART IDENTIFICATION
DISPLAY PANELS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REMOTE CONTROL
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
REMOTE CONTROL FUNCTIONS
CLEANING, MAINTENANCE AND TROUBLESHOOTING
Please read this Owner's Information Manual carefully before installing and using this appliance
and keep this manual for future reference.
For your convenience, please record the model and serial numbers of your new equipment in the
spaces provided. This information, along with the installation data and dealer contact information,
will be helpful should your system require maintenance or service.
UNIT INFORMATION
Model # ___________________________________
Serial # ___________________________________
INSTALLATION INFORMATION
Date Installed _____________________________
Owner's Manual
TABLE OF CONTENTS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
NOTE TO EQUIPMENT OWNER:
DEALERSHIP CONTACT INFORMATION
Company Name: _________________________________
Address:_________________________________________
________________________________________________
Phone Number:__________________________________
Technician Name:_________________________________
________________________________________________
Multi---Split High---Wall Ductless Split System
38GVM Sizes 018k, 24K, 30K, 36K, and 42K
40GVM Sizes 9k, 12k, and18k
PAGE
2
2
3
4
5
6
7- -10
11- -12

Advertisement

Table of Contents
loading

Summary of Contents for CAC / BDP 40GVM

  • Page 1 40GVM / 38GVM Multi---Split High---Wall Ductless Split System 38GVM Sizes 018k, 24K, 30K, 36K, and 42K 40GVM Sizes 9k, 12k, and18k Owner’s Manual TABLE OF CONTENTS PAGE SAFETY PRECAUTIONS ..................
  • Page 2: Safety Precautions

    SAFETY PRECAUTIONS GENERAL The high wall fan coil unit provides quiet, maximum comfort. In addition to cooling and/or heating, the high wall fan coil unit WARNING matched with an outdoor condensing unit will filter and dehumidify the air in the room to provide maximum comfort. PERSONAL INJURY, DEATH, OR PROPERTY IMPORTANT: The high wall fan coil unit should be installed by DAMAGE HAZARD...
  • Page 3 INDOOR UNIT PART IDENTIFICATION Front Panel Frame Display Panel (shown for 40GXM units)* Front Panel Air Filter Horizontal Airflow Louver Manual Adjustable Vertical Airflow Louver Remote Control Display Closeup Room Temperature Sensor Inter-Connecting Tubing Control and Power Wiring to Indoor Unit Service Valves Remote control holder Drain Hose...
  • Page 4 REMOTE CONTROL PART IDENTIFICATION 1. Remote Control Display 2. ON/OFF Button 3. MODE Button 4. Setpoint Clock, Timer Up (+) and Down (---) Buttons 5. Fan Speed 6. Horizontal Louver Swing Button 7. Clock Button 8. Timer ON Button 9. Dry Coil Button 10.
  • Page 5: Display Panels

    DISPLAY PANELS Unit Display NOTE: The display panel on the indoor unit can be turned on or off using the remote control. Press the Light button to turn the display on and off. Some of the functions will appear on the display panel, on the remote control, or both. A12434 NOTE: The temperature readout is either setpoint or room temperature and will be replaced by an error code if there is a malfunction.
  • Page 6: Remote Control

    REMOTE CONTROL 2. Push the “+” or “- -” button. Each time you press the button, the time moves forward or backward by one minute de- CAUTION pending on which button you press. If you push the “+” or “- -” button continuously, the time adjusts in increments of 10 minutes.
  • Page 7: Remote Control Functions

    SELECTING THE OPERATING MODE: Use the MODE button to select available modes. The selected AUTO/STOP mode will be displayed on the remote control and the appropriate light will illuminate on the unit’s display panel. Manual Switch A12433 The following occurs when the AUTO button is pushed: No temperature will be displayed on display panel.
  • Page 8 The fan speed is selected by pressing the FAN button. This button Remote is used to set the fan speed in the following sequence: Dry Coil OPER Icon º F º C HOUR ON/OFF Fan Speeds: Low Medium High A09637 NOTE: When the unit is on, the fan will run continuously in To deactivate this feature, push the “X- -FAN”...
  • Page 9 Sleep Mode following will be displayed on the remote control. - - Set Point This mode is used to conserve energy and can be used when the - - Time unit is in the COOL, HEAT or DRY mode only. For Cooling Mode: - - Clock indicator next to time indicates TIMER ON is set.
  • Page 10 Light Function Time Delay If the On/Off button is pressed too soon after a stop, the This function will allow the user to Turn ON or OFF the display compressor will not start for 3 minutes due to the inherent on the front panel.
  • Page 11 CLEANING, MAINTENANCE AND TROUBLESHOOTING CAUTION WARNING ELECTRICAL SHOCK HAZARD EQUIPMENT DAMAGE HAZARD Failure to follow this caution may result in personal injury or Failure to follow this caution may result in equipment death. damage. Always turn off power to the system before performing any When cleaning the front panel, do not use water hotter than cleaning or maintenance to the system.
  • Page 12  Call your service representative.  Error codes displayed Catalog No: OM38---40GVM---01 Copyright 2012 CAC / BDP S 7310 W. Morris St. S Indianapolis, IN 46231 Edition Date: 12/12 Replaces: New Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
