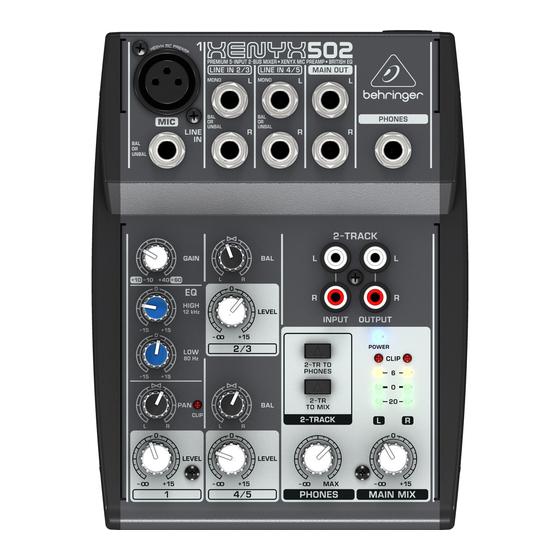

Premium 5/8/10/12-input 2-bus mixer with xenyx mic preamp and british eq
Hide thumbs Also See for 502:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Enlarged version

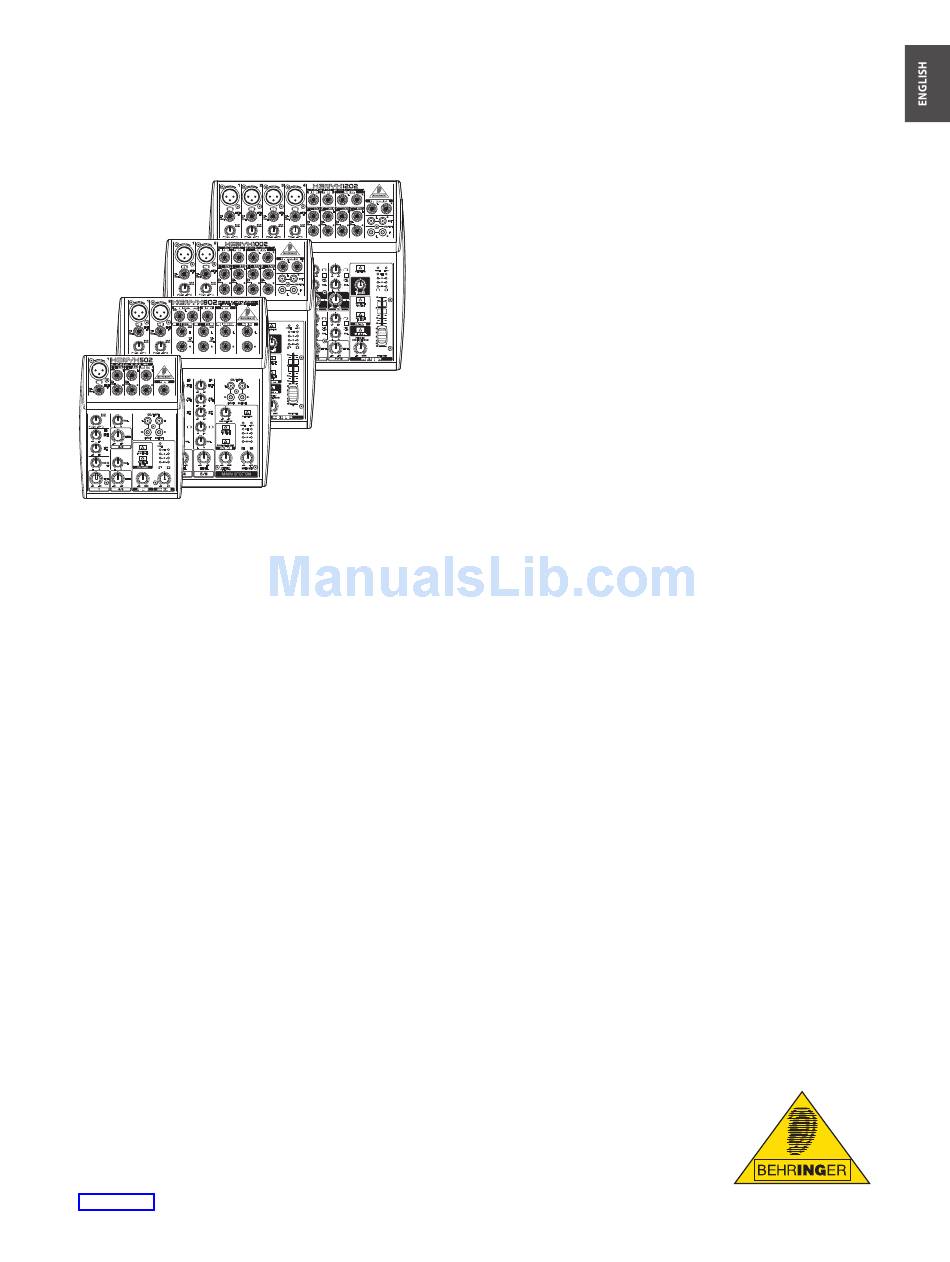

User Manual
Thank you
Congratulations! In purchasing our XENYX 502/802/1002/1202
you have acquired a mixing console whose small size belies its
incredible versatility and audio performance.
The XENYX Series represents a milestone in the development
of mixing console technology. With the new XENYX
microphone preamps including phantom power as an
option, balanced line inputs and a powerful effects section,
the mixing consoles in the XENYX Series are optimally
equipped for live and studio applications. Owing to state-
of-the-art circuitry your XENYX console produces a warm
analog sound that is unrivalled. With the addition of the latest
digital technology these best-in-class consoles combine the
advantages of both analog and digital technology.
This manual is available in English, German, French, Spanish, Italian, Russian,
Polish, Dutch, Finnish, Swedish, Danish, Portuguese, Greek, Japanese
and Chinese. There may also be more current versions of this document.
Download them by going to the appropriate product page at:
www.behringer.com
A50-00000-02627
XENYX
502/802/1002/1202
Premium 5/8/10/12-Input
2-Bus Mixer with XENYX Mic
Preamp and British EQ

Table of Contents

Thank you ..................................................................... 1
Important Safety Instructions ................................... 2
1. Introduction ............................................................ 3
Important notes concerning installation ...................................3
1.1 General mixing console functions ........................................3
1.2 The user's manual .........................................................................3
1.3 Before you get started ................................................................3
2. Control elements and connectors ........................ 4
2.1 Mono channels ..............................................................................4
2.2 Stereo channels .............................................................................5
2.3 Connector panel and main section ......................................6
3. Installation ............................................................... 8
3.1 Mains connection .........................................................................8
3.2 Audio connections .......................................................................8
4. Specifications .......................................................... 9
Legal Disclaimer ........................................................ 12
