Summary of Contents for My Pet's Life Pty My Pet Tracker
-

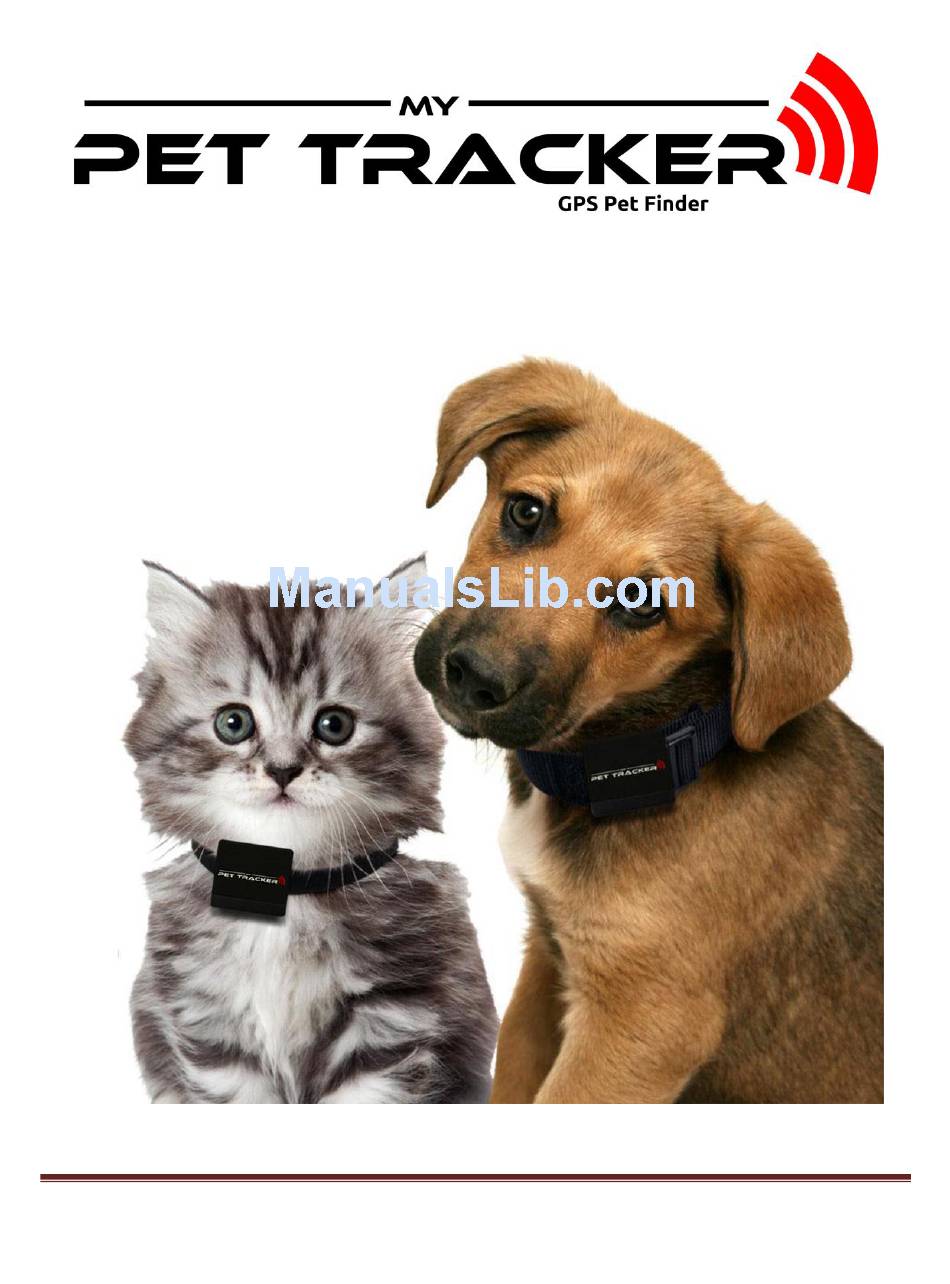

Page 1: User Manual
User Manual My Pet Tracker User Manual Page 1... -
Page 2: Table Of Contents
5.2 Battery and Charger .................... 11 5.3 Starting the Device ....................12 5.4 Initializing the Device ................... 12 5.5 Changing the Password ..................12 5.6 Authorization ......................13 5.7 Switch to Link/Text Format .................. 14 My Pet Tracker User Manual Page 2... - Page 3 5.19.1 Setting Up an IP Address and Port ............. 20 5.19.2 Set APN ...................... 20 5.19.3 Set APN's Username .................. 21 5.19.4 Set APN's Password ................... 21 5.19.5 GPRS Transport Protocols ................21 6 Cautions ........................22 7 Troubleshooting ......................23 My Pet Tracker User Manual Page 3...
- Page 4 SMS messages sent to the device. Copyright Notice: The contents of this manual are the sole property of My Pet's Life Pty Ltd, Perth, WA, Australia. The product has been approved with the A-Tick and is in compliance with the Australian Communications and Media Authority (ACMA).
-
Page 5: Summary
This product can locate and monitor targets via GSM/GPRS and GPS satellites using SMS or GPRS. 2 Applications My Pet Tracker is designed to allow you to monitor your pet or to locate your pet if it is lost. 3 Description of Hardware 3.1 Front Face... -
Page 6: Side View
SOS: Press this button for 3 seconds for an emergency Indicator Light: Indicates signal strength. MiniUSB Port: Used to charge battery and update software 3.4 Bottom Face Note the microphone hole in the figure above. My Pet Tracker User Manual Page 6... -
Page 7: Interior Of Device
3.5 Interior of Device The Interior of My Pet Tracker. The SIM card goes into the slot labeled. The above figure shows the interior of the device with correct battery installation. My Pet Tracker User Manual Page 7... -
Page 8: Technical Specifications
SIRF3 chip GSM/GPRS Simcom900 module -159dBm sensitivity GPS accuracy Cold status 45s Time To First Warm status 35s Hot status 1s 12—24V input Car charger 5V output Battery 3.7V 850mAh Li-ion Standby 48hours My Pet Tracker User Manual Page 8... - Page 9 Storage Temp. -40°C to +85°C Operation -20°C to +55°C Temp. Humidity 5%--95% non-condensing My Pet Tracker User Manual Page 9...
-
Page 10: Using The Device
PIN code is off. SMS messages must be sent in text format, not PDU format. Open the cover of the device. Push down and slide the metal SIM card slot and lift up. My Pet Tracker User Manual Page 10... -
Page 11: Battery And Charger
Li-ion batteries contain harmful chemicals and can burst. Do not expose the battery to fire or excessive heat. Do not puncture the battery. Avoid dropping or otherwise exposing the battery to shock. Remember to change the battery if it stops functioning normally. My Pet Tracker User Manual Page 11... -
Page 12: Starting The Device
Send an SMS to the device with the following text. Do not include the brackets and type in the new 6 digits, not the word ‘new password’. The tracker will reply: password ok! password123456 [new password] eg.password123456 987654 My Pet Tracker User Manual Page 12... -
Page 13: Authorization
0411228200 You have to add your country code ahead of your cell number if you're roaming. As example, to set 13322221111 as an authorized number, you would send the following SMS: admin123456 008613322221111 My Pet Tracker User Manual Page 13... -
Page 14: Switch To Link/Text Format
If you have set up an authorized number, the device will not reply to any numbers except those authorized. When you dial the unit with an authorized number, it will hang up and then report geo information to the authorized number. My Pet Tracker User Manual Page 14... -
Page 15: Auto Tracking
These settings must be 3 digits long. The maximum value allowed is 255. Intervals may not be shorter than 30 seconds. Turn Off: Send an SMS: notn[password] Eg. notn123456 This will turn autotracking off. 5.10 Audio Surveillance Send an SMS: monitor[password] Eg. monitor123456 My Pet Tracker User Manual Page 15... -
Page 16: Switching Between Tracker And Monitor
The signal also needs to be strong in that location. Setup: Get the coordinates by calling your MPT device and take those coordinates or from Google Maps. See the following table to setup: My Pet Tracker User Manual Page 16... - Page 17 Please note : you just need to remember after the "." it's 10KM. We suggest to set the geo-fence about 3KM . The following picture will show you how it works; the restricted area is defined by the two coordinates you set. My Pet Tracker User Manual Page 17...
-
Page 18: Movement Alert
To set up movement alert, the device must be immobile for 3-10 minutes. To activate the movement alert, send an SMS to the unit: move123456 To turn off the movement alert, send an SMS to the unit: nomove123456 My Pet Tracker User Manual Page 18... -
Page 19: Overspeed Alert
! [geo information] to the first authorized number only. It will send this message one time. 5.17 Low Battery Alert When the device battery drops below 3.7V, it will send the following message: low battery [geo info]. My Pet Tracker User Manual Page 19... -
Page 20: Hidden Number Tracking
To turn off the hidden number: nohide number 5.19 GPRS Function Contact My Pet Tracker if you would like to use this function as help will be given to set this up along with a link to an online mapping system to see reports on where your tracker has been. -
Page 21: Set Apn's Username
The GPRS supports both TCP and UDP protocols The SIM card must have the GPRS function The following SMS will set up GMT time in the SMS as the tracker time: zone[password] [Your GMT time] My Pet Tracker User Manual Page 21... -
Page 22: Cautions
9. Please use the battery and cable provided by the manufacturer. Others may damage the unit. 10. Do not dismount the antenna or use other antennas. This may increase radiation and interfere with the transmissions. My Pet Tracker User Manual Page 22... -
Page 23: Troubleshooting
Check to see if the authorized number is setup and that the unit is in signal coverage area Location report gives zeros Place the unit outdoors, particularly when starting up. Use only in areas with signal coverage My Pet Tracker User Manual Page 23...
