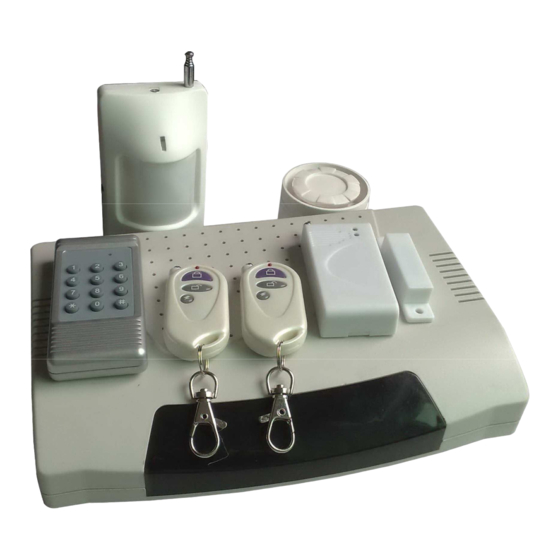

- Page 1 GSM ALARM SYSTEM Model: G11 USER MANUAL Ver.: SA0903003...
-
Page 2: Table Of Contents
G11 user manual Contents 1. Instruction 1.1 Packing List 1.2 Optional wired & wireless accessories 1.3 Optional sirens 1.4 Specification 2. Main panel description 2.1 Main panel LED description 2.2 Main panel connector and socket 3. Installation 3.2 Install accessories 3.2.1 Install the door/window magnetic contact... -
Page 3: Instruction
G11 user manual 1. Instruction The alarm system is based on GSM network. With a GSM SIM card, it can be used wherever you want and no need to connect any wire, which is convenient and easy to install and use. -
Page 4: Optional Sirens
G11 user manual Glass break sensor Remote control Panic button Speaker External high sensitivity MIC Infrared Beam detector Infrared Fence detector etc 1.3 Optional sirens Wired & wireless indoor siren & strobe siren Wired & wireless outdoor strobe siren Wireless solar powered siren etc. -
Page 5: Main Panel Connector And Socket
G11 user manual Z9: Relay output 2 Z10: Relay output 3 Z11: Wireless LED indicator. When wireless sensors send signal, this LED will be on 2.2 Main panel connector and socket ON OFF Power switch Power AC/DC Power supply connector... -
Page 6: Install Pir Motion Sensor
G11 user manual 3.2.2 Install PIR motion sensor PIR refers to passive Infra-red. A Passive Infra-red sensor is an electronic device that detects the motion or movement of some person or animal by sensing the heat emitted from the body. -
Page 7: Sim Card
G11 user manual This smoke detector detects smoke by a couple of infrared diodes, which is suitable for detecting the smoke in house, shop, hotel, restaurant, office building, school, bank, library and storehouse etc. b) Wired or wireless gas detector It is used for detecting leaking gas and suitable for the safety of residential house, villas, hotels, boarding house etc. -
Page 8: Operation Steps
G11 user manual network. Restart it once again. 6. Operation steps 6.1 Record alarm voice message Use something tip to press “REC” button, the system will make a beep sound, then it begins to 6 seconds record. There are two beep sounds after finishing the record. Users can hear pre-record voice if the speaker is connected after finishing record. -
Page 9: Delete Phone Numbers For Alarm Call
G11 user manual Input: Serial number + phone number + # Example: set 13966666666 as the first phone number for call alarm. Input 413966666666#, then you will hear 2 beep sounds for confirmation. Repeat the process to set the other two phone numbers. -
Page 10: Exit Setting Status Of The Host
G11 user manual want to change it, please follow us the step as below. Click the SET button then release, after a beep sound, the system is in setting status Input “8 #”on the keyboard, two beep sound for confirmation. System will alarm when the hardwire contact is Normally closed. -
Page 11: Inquire Arm/Disarm Status
G11 user manual Siren with sound when alarm GSM signal reminding activated Siren with sound deactivated GSM signal reminding deactivated Power failure alarm activated GSM network problem alarm activated Power failure alarm deactivated GSM network problem alarm deactivated Inquiry Arm/Disarm status... -
Page 12: Control Partial Alarm
G11 user manual Control Relay 1 Input SMS: 4 digits password + R1 (Relay closed), 4 digits password + R2 (Relay open) Send SMS with Relay 1 off or on to user mobile phone for confirmation Control Relay 2 Input SMS: 4 digits password + S1 (Relay closed), 4 digits password + S2 (Relay open) -
Page 13: Usage
G11 user manual The setting ways by phone are the same with wireless keyboard. 9. Usage 9.1 Arm/disarmed by remote controller a. Press the button “ ” on the remote controller, the main panel makes one beep sound and Z4 ARM LED is twinkling. -
Page 14: Wireless Detector And Remote Controller Encode
G11 user manual 10.7 Check the GSM alarm system termly, make sure it is good condition 11. Wireless detector and Remote controller encode Users can program more wireless sensors in each zone per requirements. For example, PIR motion sensor is already in zone1, you can also program wireless door magnetic sensor, wireless glass break sensor, wireless smoke detector, wireless gas detector, etc in Zone1. - Page 15 G11 user manual Table C TABLE C Wireless address code (A0 to A7) (13) (12) (11) (10) There is a label with wireless address code Main unit on the back of alarm, see below example Wireless Keypad Zone 01 Zone 02...
