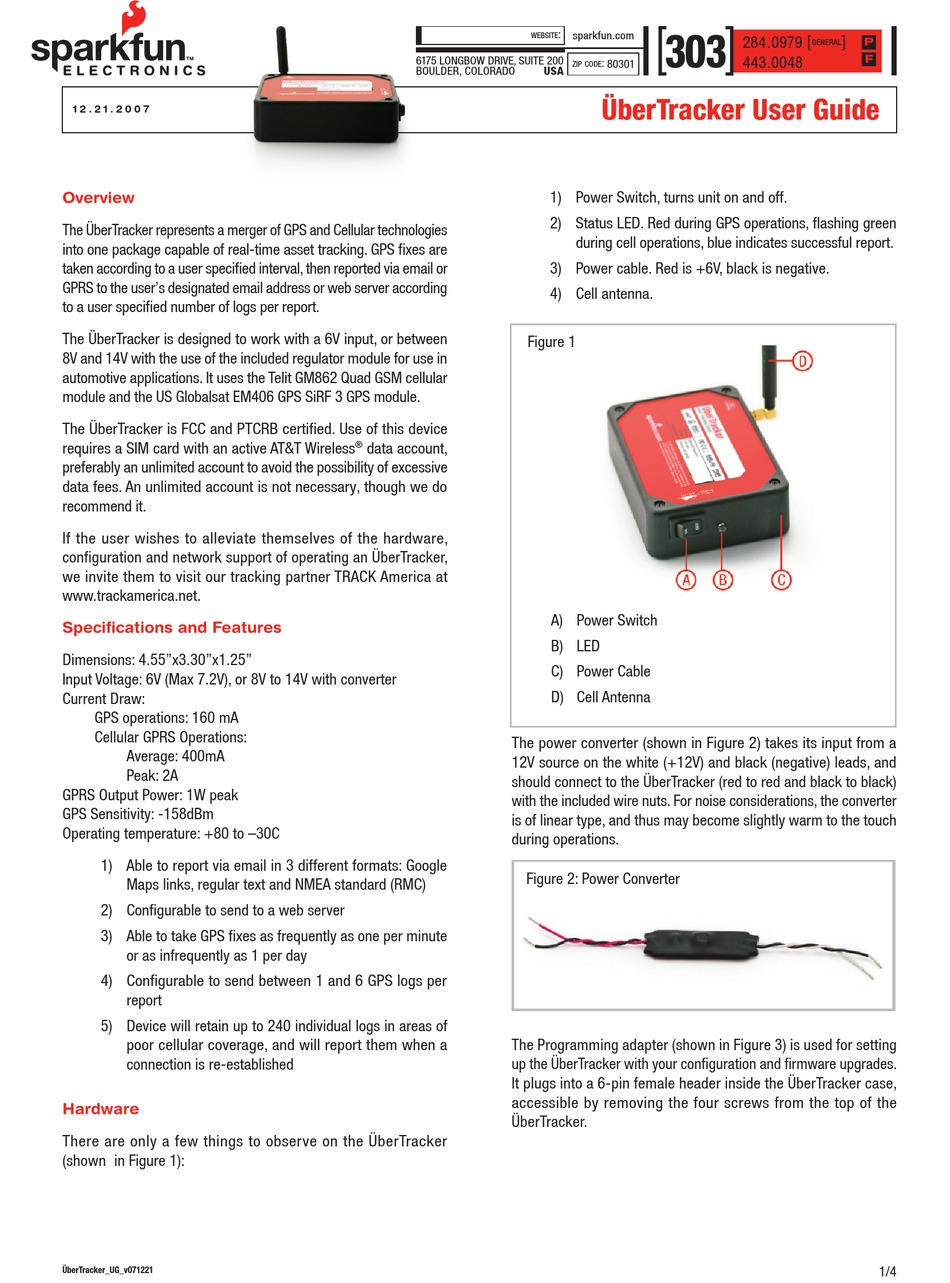

Overview

The ÜberTracker represents a merger of GPS and Cellular technologies
into one package capable of real-time asset tracking. GPS fixes are
taken according to a user specified interval, then reported via email or
GPRS to the user's designated email address or web server according
to a user specified number of logs per report.
The ÜberTracker is designed to work with a 6V input, or between
8V and 14V with the use of the included regulator module for use in
automotive applications. It uses the Telit GM862 Quad GSM cellular
module and the US Globalsat EM406 GPS SiRF 3 GPS module.
The ÜberTracker is FCC and PTCRB certified. Use of this device
requires a SIM card with an active AT&T Wireless
preferably an unlimited account to avoid the possibility of excessive
data fees. An unlimited account is not necessary, though we do
recommend it.
If the user wishes to alleviate themselves of the hardware,
Configuration and network support of operating an ÜberTracker,
we invite them to visit our tracking partner TRACK America at
www.trackamerica.net.

Specifications and Features

Dimensions: 4.55"x3.30"x1.25"
Input Voltage: 6V (Max 7.2V), or 8V to 14V with converter
Current Draw:
GPS operations: 160 mA
Cellular GPRS Operations:
Average: 400mA
Peak: 2A
GPRS Output Power: 1W peak
GPS Sensitivity: -158dBm
Operating temperature: +80 to –30C
1) Able to report via email in 3 different formats: Google
Maps links, regular text and NMEA standard (RMC)
2) Configurable to send to a web server
3) Able to take GPS fixes as frequently as one per minute
or as infrequently as 1 per day
4) Configurable to send between 1 and 6 GPS logs per
report
5) Device will retain up to 240 individual logs in areas of
poor cellular coverage, and will report them when a
connection is re-established

Hardware

There are only a few things to observe on the ÜberTracker
(shown in Figure 1):
ÜberTracker_UG_v071221
website
6175 LONGBOW DRIVE, SUITE 200
BOULDER, COLORADO
Figure 1
data account,
®
The power converter (shown in Figure 2) takes its input from a
12V source on the white (+12V) and black (negative) leads, and
should connect to the ÜberTracker (red to red and black to black)
with the included wire nuts. For noise considerations, the converter
is of linear type, and thus may become slightly warm to the touch
during operations.
Figure 2: Power Converter
The Programming adapter (shown in Figure 3) is used for setting
up the ÜberTracker with your configuration and firmware upgrades.
It plugs into a 6-pin female header inside the ÜberTracker case,
accessible by removing the four screws from the top of the
ÜberTracker.
303
:
sparkfun.com
: 80301
zip code
USA
ÜberTracker User Guide
1) Power Switch, turns unit on and off.
2) Status LED. Red during GPS operations, flashing green
during cell operations, blue indicates successful report.
3) Power cable. Red is +6V, black is negative.
4) Cell antenna.
A) Power Switch
B) LED
C) Power Cable
D) Cell Antenna
