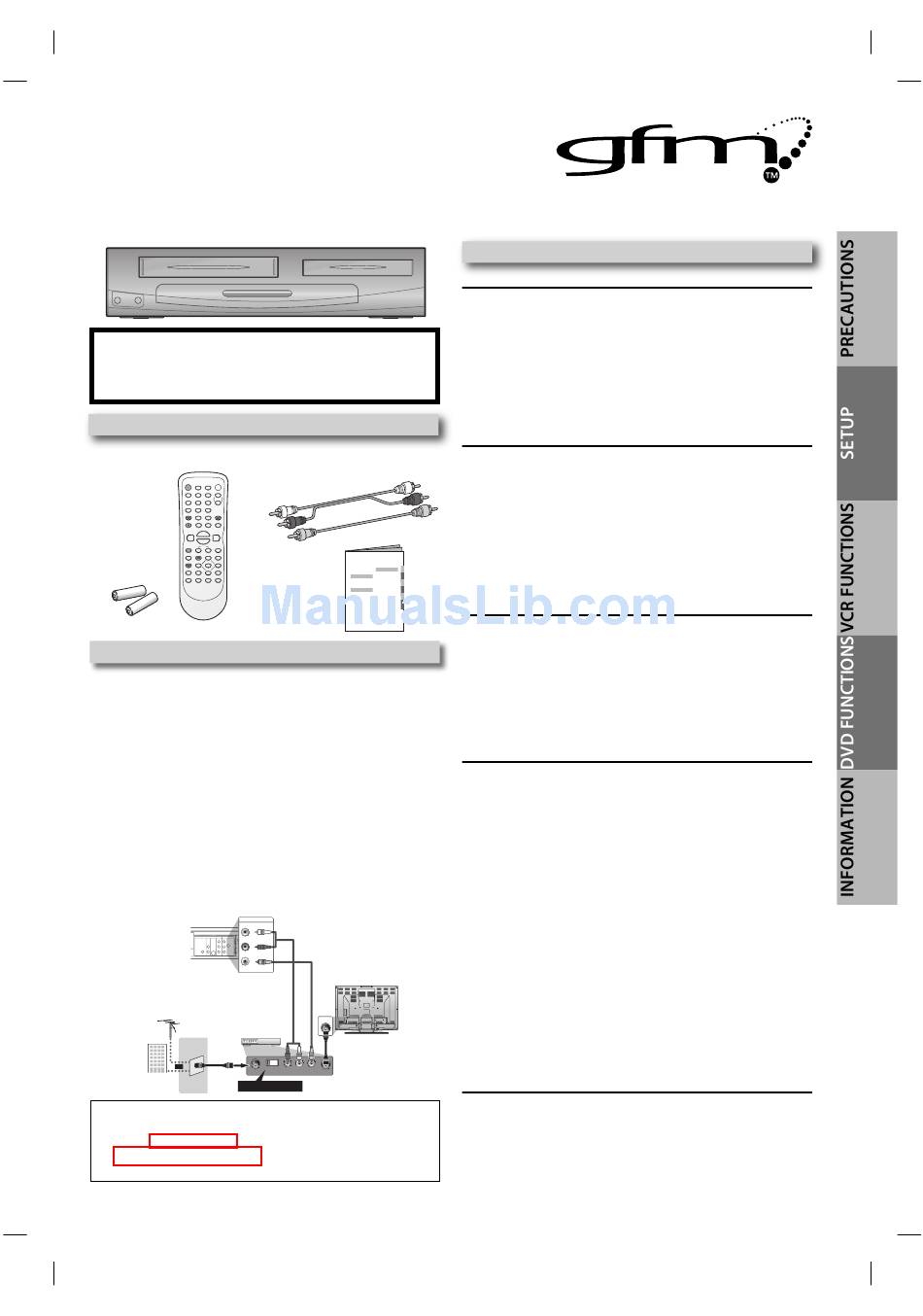

Owner's Manual
Please read before using this unit.
DVD/CD Player with Video Cassette Recorder
V07DVDVCR
If you need additional operating assistance after
reading this owner's manual, please call
TOLL FREE : 1-866-845-9436
Supplied Accessories
remote control
(NB606UD /
NB656UD)
batteries
(AA x 2)
Connecting to RF Modulator (Not Supplied)
If your TV has antenna in jack only, it is still possible to
connect this unit to your TV by using an RF modulator. In
this case, follow the instructions below.
1) Disconnect the power cords of the unit from the AC
outlet.
2) Make the connection as illustrated below.
3) Set your RF modulator's channel 3/4 switch to either
3 or 4, whichever the TV channel is least used in your
area. If your RF modulator has a modulator/antenna
switch, set it according to the manual supplied with the
RF modulator.
4) Plug in the power cords of the unit to the AC outlet.
5) Turn on your TV and choose the same channel as
you set the RF modulator's channel 3/4 switch to. For
more details, follow the manual supplied with the RF
modulator.
rear of this unit
AUDIO OUT
DVD
DVD/VCP
DIGITAL
AUDIO
S-VIDEO
COMPONENT
AUDIO OUT
AUDIO OUT
OUT
OUT
VIDEO OUT
Y
L
DIGITAL
AUDIO OUT
L
C
B
R
COAXIAL
R
VIDEO OUT
C
R
VIDEO OUT
rear of your RF
VHF / UHF
antenna
or
RF coaxial
cable TV
cable
company
Set channel 3 or 4
Note:
• RF modulator is not supplied with this unit. You need to
purchase this separately.
• The picture quality may suffer if this unit is connected to an RF
modulator.
E8E02UD_DV220GF8.indd 1
E8E02UD_DV220GF8.indd 1
RCA audio/video cables
(WPZ0102TM018 /
WPZ0102LTE01)
owner's manual
Owner's Manual
(1VMN23642)
DVD/VCP
L
RCA audio cable
R
RCA video cable
rear of TV
ANT. IN
modulator
RF coaxial cable
3
4
R
L
ANT. IN
CHANNEL
AUDIO IN
VIDEO IN
TO TV
Contents
PRECAUTIONS
Laser Safety ................................................................................................................. 2
Important Safeguards .............................................................................3
Location and Handling ........................................................................................... 4
Avoid the Hazards of Electrical Shock and Fire ............................................. 4
Moisture Condensation Warning ....................................................................... 4
About Copyright ....................................................................................................... 4
Notice for Progressive Scan Outputs ................................................................ 4
Symbols Used in this Manual ............................................................................... 4
Maintenance .............................................................................................................. 4
About Cassette Tapes and Discs .............................................................5
Playable Media .......................................................................................................... 5
Unplayable Discs ...................................................................................................... 5
Connections .............................................................................................6
Connection to a TV .................................................................................................. 6
Connection to a an External Tuner .................................................................... 6
Connection to an Audio System ......................................................................... 7
Preparation for Use .................................................................................7
Turning on Unit for the First Time ..................................................................... 7
Clock Setting .............................................................................................................. 7
Function Overview ..................................................................................8
Front Panel Indicator Lights ................................................................................. 8
Selecting DVD or VCR Operation ........................................................................ 8
Front & Rear Terminals ........................................................................................... 8
Remote Control ......................................................................................................... 9
Installing the Batteries for the Remote Control ............................................ 9
Playback .................................................................................................10
Other Operations ....................................................................................10
Auto Repeat ...............................................................................................................10
Index Search ..............................................................................................................10
Time Search ...............................................................................................................10
Recording ................................................................................................11
Recording & One-touch Timer Recording (OTR)..........................................11
Timer Recording ......................................................................................................11
Satellite Link ..............................................................................................................13
Copying a Cassette Tape ......................................................................................13
Playback .................................................................................................14
MP3 Playback .........................................................................................15
On-Screen Display ..................................................................................15
Search Functions ....................................................................................16
Using Track Search ..................................................................................................16
Using Title / Chapter Search ................................................................................16
Using Time Search ..................................................................................................16
Marker Setting ..........................................................................................................16
Repeat / Random / Programmed Playback ...........................................17
Repeat Playback .......................................................................................................17
Repeat A-B Playback ..............................................................................................17
Random Playback ....................................................................................................17
Programmed Playback ..........................................................................................17
Special Settings ......................................................................................18
Subtitle Language ...................................................................................................18
Audio Language ......................................................................................................18
Camera Angles .........................................................................................................18
Black Level Setting ..................................................................................................18
Stereo Sound Mode ................................................................................................18
Virtual Surround.......................................................................................................18
DVD Setting ............................................................................................19
LANGUAGE Setting .................................................................................................19
DISPLAY Setting .......................................................................................................20
AUDIO Setting ..........................................................................................................20
PARENTAL Setting ...................................................................................................21
OTHERS Setting ........................................................................................................21
Reset to the Default Setting (Except for PARENTAL Setting) ..................22
Troubleshooting Guide ..........................................................................22
Specifications .........................................................................................23
Language Code List ................................................................................23
LIMITED WARRANTY ...............................................................................24
Quick Use Guide......................................................................................27
