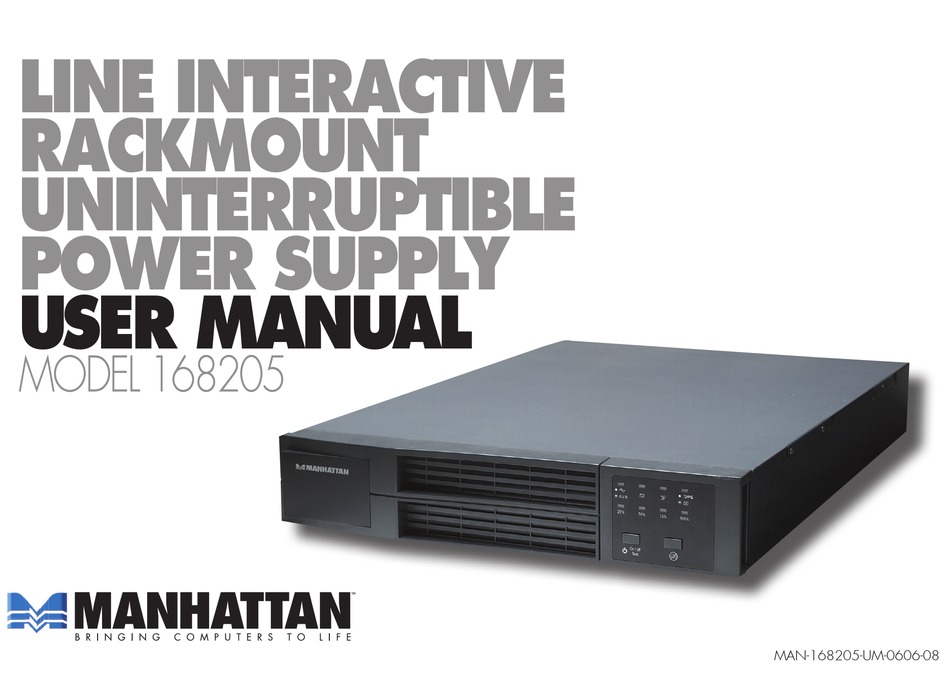

Page 1: Power Supply
MODEL 168205 MAN-168205-UM-0606-08... - Page 2 Line Interactive Rackmount Uninterruptible Power Supply, ® Model 168205. This pure sine wave uninterruptible power supply (UPS) protects your computer hardware from physical damage and will provide emergency battery backup power to prevent data loss in the event of power problems. The main features include: •...
-
Page 3: Safety Instructions
Upon receipt of your MANHATTAN Line Interactive Rackmount UPS, first remove and inspect the product for damage. If any damage is found, notify your dealer. Keep the carton and the packing foam in the event the product must be returned to the factory for service (damage sustained in transit when shipped from the user are not covered under warranty). - Page 4 The UPS is simple to operate and install. Following are the steps to connect equipment to the UPS. Conditions Do not operate the UPS in an environment where the ambient temperature is outside the limits given in the Specifications section of this manual. Connection to the Utility Power Plug the UPS into an electrical outlet.
-
Page 5: Initial Battery Charging
UPS. (See the Overload Instruction chart below: Total power for Model 168205 should be no more than 1320 watts.) Once you have determined that your equipment and the UPS are compatible, plug your equipment into the rear panel output receptacles of the UPS. -
Page 6: Controls And Indicators
Test for Proper Operation Push the On/Off/Test button to turn on your computer equipment. The yellow indicator at the front panel should be illuminated and your equipment should operate normally. To test the operation of the Rackmount UPS, simply unplug its input cord to simulate a utility blackout. During this time, the UPS will emit one beep once every 10 seconds and the yellow LED remains lit to remind you that your equipment is operating from a source of power that is limited in duration. - Page 7 be constantly on. It will be off when the unit is off. When the automatic voltage regulator (AVR) is operating, this LED will blink. 4. On-battery LED: In On-battery operation, this LED will be constantly on and the UPS will sound once every 10 seconds till the unit reaches its low-battery warning level or the unit returns to AC normal.
- Page 8 8. AC Input Power Cord: Plug the AC power cord into your power source. (The 220 V version features an AC input socket.) 9. Input Circuit Breaker: This protects equipment plugged into the outlet against short circuits or system overload. The UPS will trip the breaker when loads 120 V version shown.
- Page 9 12. Battery Backup & Surge Protection Outlets: These provide instantaneous backup power to your equipment for temporary uninterrupted operation during the utility power failure. 13. Site Wiring Fault (120 V version only): The LED will be illuminated if the UPS detects a fault in the wiring of utility power outlets.
-
Page 10: Indicator Table
indicator table The UPS has both visible (LED) and audible (alarm) status indicators. The LED numbers correspond to the Indicator images on page 7 , with the Load Percentage LEDs included at the bottom of the chart. On-line/ Weak Battery Booster &... -
Page 11: Battery Connection
UPS charge for 24 hours without a load. 1. Remove the faceplate by first pulling open the latch on the front-left of the UPS (where the MANHATTAN logo is, as shown at top right), then loosening the two recessed screws that are now visible. -
Page 12: Mounting Procedures
mounting procedures... -
Page 13: Troubleshooting
troubleshooting Symptom Possible Cause Action to Take The UPS will not turn Output short or overload shutdown. Reduce the amount of connected equipment and reset the circuit breaker(s). Computer interface or accessory Disconnect the interface. problem. Weak Battery/Internal Weak batteries. Replace the batteries. -
Page 14: Specifications
specifications Note: Specifications may change without notice. Available in 120 V (NEMA) and 220 V (IEC) models • Outlets: 8 NEMA (120 V), 6 backup + surge only / 2 surge only; 7 IEC (220 V), 6 back-up + surge / 1 Schuko surge only •... -
Page 15: Warranty Information
Coverage For the original purchaser of this MANHATTAN Line Interactive Rackmount Uninterruptible Power Supply residing in the United States or Canada, the device itself features a lifetime warranty covering material and workmanship (with a three- year warranty on the battery). Should the UPS fail, it will either be repaired or replaced (manufacturer’s option). - Page 16 PC Components, ® Peripherals, Cables and Accessories. Ask your local computer dealer for more information or visit us online at www.manhattan-products.com Copyright © MANHATTAN All products mentioned are trademarks or registered trademarks of their respective owners.
