I-O Display Systems i-glasses User Manual

Svga head mounted display
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

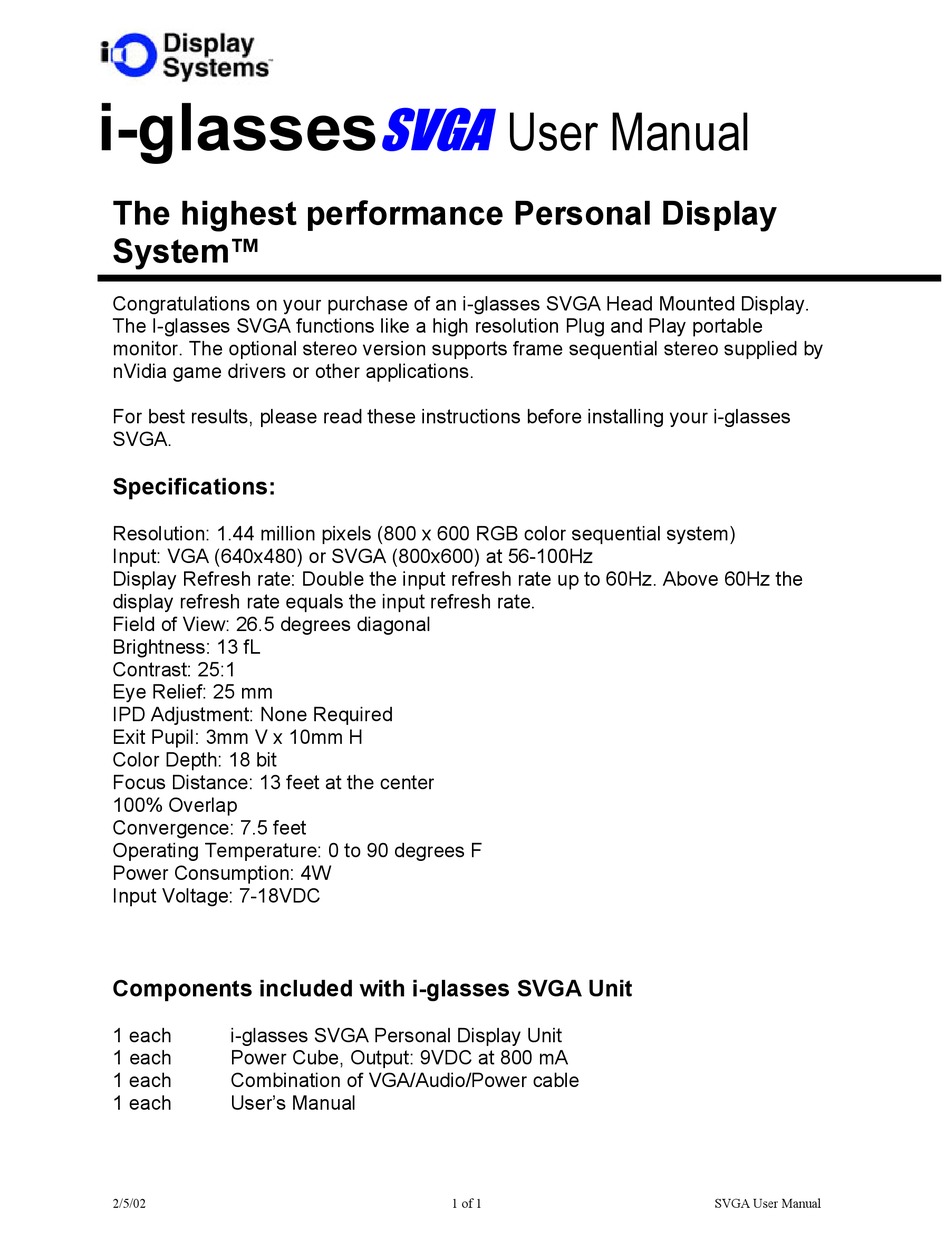

i-glasses
The highest performance Personal Display
System™
Congratulations on your purchase of an i-glasses SVGA Head Mounted Display.
The I-glasses SVGA functions like a high resolution Plug and Play portable
monitor. The optional stereo version supports frame sequential stereo supplied by
nVidia game drivers or other applications.
For best results, please read these instructions before installing your i-glasses
SVGA.

Specifications:

Resolution: 1.44 million pixels (800 x 600 RGB color sequential system)
Input: VGA (640x480) or SVGA (800x600) at 56-100Hz
Display Refresh rate: Double the input refresh rate up to 60Hz. Above 60Hz the
display refresh rate equals the input refresh rate.
Field of View: 26.5 degrees diagonal
Brightness: 13 fL
Contrast: 25:1
Eye Relief: 25 mm
IPD Adjustment: None Required
Exit Pupil: 3mm V x 10mm H
Color Depth: 18 bit
Focus Distance: 13 feet at the center
100% Overlap
Convergence: 7.5 feet
Operating Temperature: 0 to 90 degrees F
Power Consumption: 4W
Input Voltage: 7-18VDC
Components included with i-glasses SVGA Unit
1 each
i-glasses SVGA Personal Display Unit
1 each
Power Cube, Output: 9VDC at 800 mA
1 each
Combination of VGA/Audio/Power cable
1 each
User's Manual
2/5/02
SVGA
User Manual
1 of 1
SVGA User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i-glasses and is the answer not in the manual?

Questions and answers

Summary of Contents for I-O Display Systems i-glasses

  • Page 1: Specifications

    System™ Congratulations on your purchase of an i-glasses SVGA Head Mounted Display. The I-glasses SVGA functions like a high resolution Plug and Play portable monitor. The optional stereo version supports frame sequential stereo supplied by nVidia game drivers or other applications.
  • Page 2 Set up your computer: The SVGA Personal Display system works best when the video source is a VGA (640 x 480) or SVGA (800 x 600) format at 60Hz. To set your PC to these settings, see below: – In Windows, click on the “Start” button, SET MONITOR TO PIXELS on the Windows taskbar, select “Settings,”...
  • Page 3 Screen shot from Win 95/98/ME. Set Screen Area to 800 by 600 and apply. Click “Advanced” button to set Refresh Rate. Screen shot from Win 98/98/ME. Set Refresh Rate to 60 Hz. 2/5/02 3 of 3 SVGA User Manual...
  • Page 4 Connect your HMD to any Desktop, Laptop, or other VGA source – Connect the video source plug into your VGA output CONNECT VGA SOURCE port. – Connect the power supply plug into the power CONNECT POWER SUPPLY source jack. Plug power cube into an AC socket. –...

  • Page 5: Using The Osd (On-Screen-Display)

    Using the OSD (On-Screen-Display) The OSD allows the user to make some changes to the way the SVGA Personal Display works and performs. Changes that can be made through the OSD include: Brightness, Contrast, Audio Balance, Horizontal Centering, Color Settings, set the system to 3D (If your unit includes the 3D option), and Resetting the unit to Original Factory Settings.
  • Page 6 like, you may press the power button to immediately return to your main screen or wait about 2 seconds and the program will return to your main screen automatically. Regardless, your new setting takes places immediately after you make the adjustment.

  • Page 7: Using The 3D Function

    If the images are reverse stereo, switch between 3D1 and 3D2. The i-glasses SVGA will also support line interlace 3D if the line blanking is done by IOD’s Cruiser or MMGamer dongles or other similar hardware. Contact IOD to get more detail on how to do this.
  • Page 8 A: This is probably caused by an incorrect input setting. Also, ensure that you computer’s resolution and refresh rate are set to 800 x 600 @ 60Hz. If the problem persists, change the refresh rate up or down. Q: The text in the image is illegible. A: Set the resolution to 800 x 600 @60Hz.
  • Page 9 Product must accept any interference received, including interference that may cause undesired operation. i-glasses and Personal Display System are trademarks of i-O Display Systems, LLC or Personal Display Systems, Inc. All other trademarks are property of their respective owners. All rights reserved. Numerous US and International patents issued and pending.
