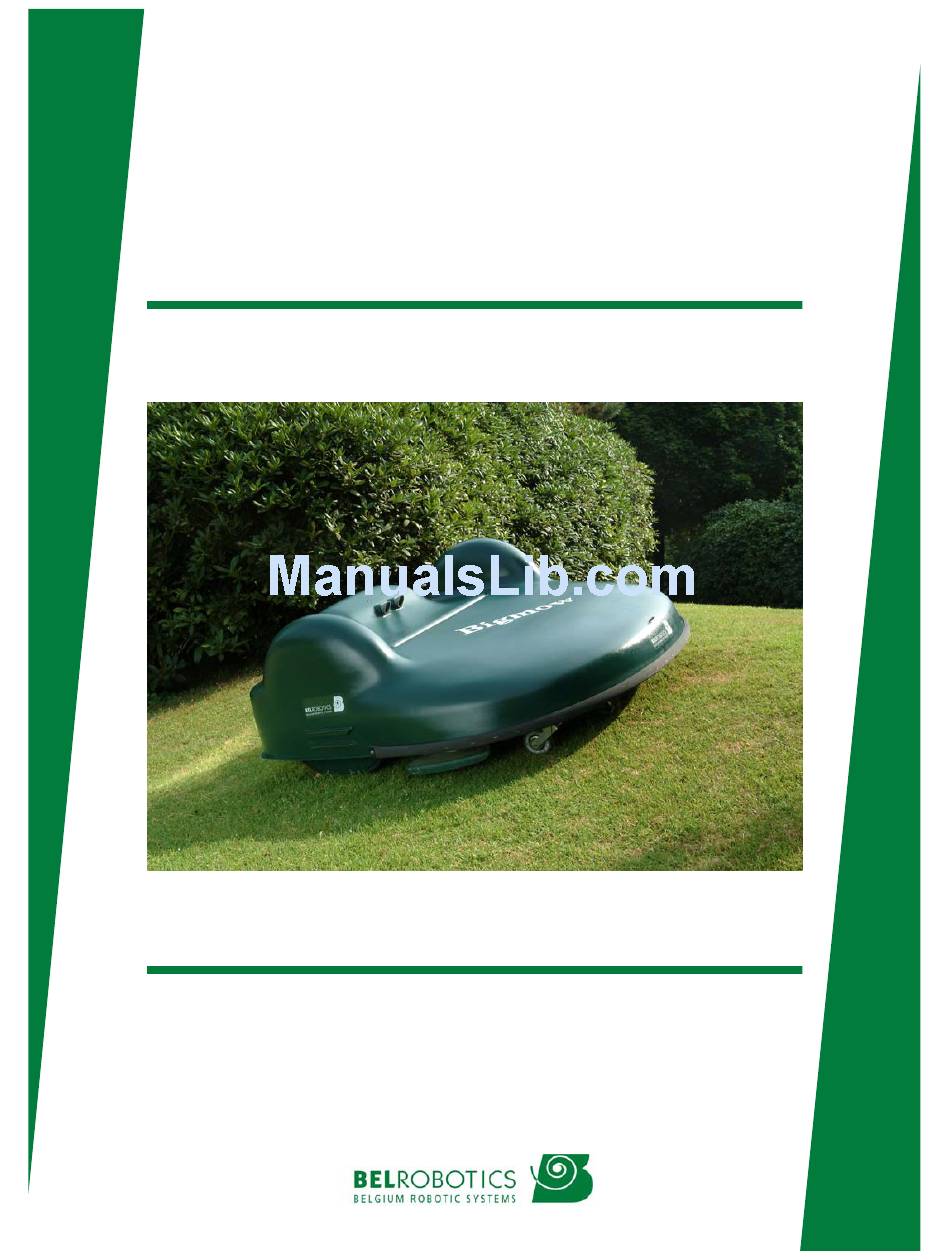

- Page 1 BIGMOW BIGMOW User Manual USA Version Authorized Dealer: Probotics 215-886-4717 Please read this manual carefully to fully understand its content prior to using BIGMOW for the first time...
- Page 2 This page intentionally left blank.
-
Page 3: Introduction
As fantastic as it is, the Bigmow must be put into operation, its areas of work must be defined, its recharging station must be installed and its electrical supply must be controlled. -
Page 4: Safety Instructions And Diagrams
The blades are self-retractable on con- tact with objects, which is one of Bigmow’s main assets. Moreover, its sonar system allows it to detect the presence of a person or object nearby, which makes it slow down instantaneously and, on slight contact, to stop and change direc- tion automatically. -
Page 5: Table Of Contents
BIGMOW: Charging ............16 BIGMOW: Configuring BIGMOW: Keyboard ..........17 BIGMOW: Configuring BIGMOW: Menus ............18 BIGMOW: Using BIGMOW: Miscellaneous ............19 BIGMOW: Using BIGMOW: Reminders on setting parameters ......20 BIGMOW: BIGMOW quick start in 5 steps .............22 BIGMOW Maintenance of BIGMOW..............24 BIGMOW. Troubleshooting................27... -
Page 6: Description Of The Bigmow
BIGMOW BIGMOW BIGMOW The Bigmow is a completely automatic lawnmower for areas up to 5 acres. By moving in an area defined by a low-voltage under- ground sheathed wire, it allows the owner to maintain his lawn consistently and independently. The Bigmow moves mainly at random while adapting to its environment, avoiding any obstacle through sonar and different sensors. -
Page 7: Composition
10.Cutting blades 17.Charging socket on station 3.Bigmow underneath 11.Sonar 18.Tactile flange 4.Case containing computer 12.Front wheels 19.Contact sensor 5.Battery compartment 13.Back wheels 20.Lever for adjusting cutting height 6.Charger socket on Bigmow 14.Bonnet 7.Power switch 15.Command keyboard with dis- play 8.Cutting elements... -
Page 8: Technical Specifications
100w/h General Operation Once installation is complete, you get start your The Bigmow will instantly recharge when his bat- new automatic lawnmower: the Bigmow. Depend- teries fall below the minimum charge level. It ing on its mowing mode (automatic or system-... -
Page 9: Bigmow Mowing Methods
Mowing modes Random Random mode is the most frequently used mode for use of the Bigmow. It consists in choosing the route to be taken at random. Every time it encounters an obstacle or the peripheral wire, the computer instructs Big- mow to move in a different direction. -
Page 10: Options And Spare Parts For The Bigmow
Each option has its own specific use. As regards of the season and then around the month of the different options available for your Bigmow, June. When the cutting blades are used on you will find more information and different de-... -
Page 11: Installing The Peripheral Wire: Land Boundaries
Installing the peripheral wire: land boundaries It is advisable to let the local distributor install your Bigmow. He has the necessary equipment and knowledge of how to install the peripheral wire. However, it is possible for you to install it yourself by following the explanations given in this chapter. -
Page 12: Installing The Peripheral Wire: Boundaries And Incline
Installing the peripheral wire: boundaries and incline Boundaries for a long path or a lane. When the Bigmow has to pass along a long path, a lane or a narrowing in the path/lane, it is imperative that this passage be at least 13... -
Page 13: Installing The Peripheral Wire: Marking Boundaries
12 inches away from When you have large trees or a garden shed these objects. If the BigMow always stops un- in the mowing area, it is not particularly nec- expectedly in the same spot, there may be essary to mark boundaries for these, but de- interference caused by a metal object. -
Page 14: Installing The Recharging Station
(National Electrical Code Approved) safe for underground and outdoor use. The recharging station should be set back from the peripheral wire in such a way that when your Bigmow goes to recharge, a visible connection is made to the top and bottom charging bars. -
Page 15: Bigmow
When using Bigmow for the first time or when it has not been used for a few days, the lawn may be too thick or too long. It is then advisable to increase the cutting height for a few days and then reduce it gradually. -
Page 16: Using Bigmow: Charging
Using The Bigmow is configured in the factory with standard parameters. When the property presents certain characteristics, it is advisable for your local distributor to configure the Bigmow for your property conditions. When the peripheral wire (see “peripheral wire” section) and the recharging station (see “recharging station”... -
Page 17: Configuring Bigmow: Keyboard
After this period, the machine will stop and the code will have to be re- entered. Prior to a long absence, the code must be entered; the Bigmow will thus be activated for 1 month. Without this code, the machine will not function. -
Page 18: Configuring Bigmow: Menus
8. Manual Mode (for traction) The "statistics" menu allows general data to • II.The "Clock" menu * clock 25/02 be displayed on the operation of your Bigmow. allows the time and 28.3 15H40 date to be adjusted. Entering values into... -
Page 19: Using Bigmow: Miscellaneous
A00, which correspond to a particular alarm. In or- Beeps der to put the Bigmow back into operation, please refer to the "Troubleshooting" section. 1 long beep : machine stop To solve any problem with the machine, please refer to the "Troubleshooting"... -
Page 20: Bigmow
B IG MO W PAGE 20 BIGMOW : Summary for setting parameters BIGMOW : Using the « SETTINGS » MENU « OPTIONS » MENU Setting the password BOOST mode (quick recharge) • • « Options » Menu « New code » Menu O000:√... -
Page 21: Bigmow
B IG MO W PAGE 21 Using the BIGMOW : Summary for setting parameters BIGMOW : Demonstration Mode (does not mow) mowing area (in systematic mode) • « Options » Menu « Options » Menu O007:- ; to change : O003:√... -
Page 22: Bigmow Quick Start In 5 Steps
Close the cover and your BIGMOW sets off automatically. BIGMOW *To be done beforehand (during first use of Bigmow), prior to closing the cover: *Select “settings” menu ('F3 F3 #') *Select “clock” menu ('F3 #') *Enter the time in the “_ _:_ _” fields (e.g. for 14:43 enter '1443') *Enter the date in the “_ _/_ _/_ _”... - Page 23 BIGMOW. BIGMOW. Maintenance of the Maintenance of the Bigmow is important. Regular checks can improve the day-to-day quality of mowing. You may wish to refer to the maintenance summary sheet for further help. Cutting blades The blades are the principal elements that give 3.Position hole...
-
Page 24: Maintenance Of Bigmow
At the end of the mowing season, recharge your The batteries have a certain functional capacity. Bigmow and place it in a sheltered, dry place. In automatic mowing mode, your Bigmow returns to the recharging station at the moment when the It is advisable to have the machine serviced dur- batteries reach a set charge. - Page 25 B IGMO W PAGE 25 Problems Situation Solution The machine operates in 1 Bonnet position connectors clogged 1 Clean between the connectors and reverse chassis 2 Protective flange connector in contact 1 Press along full length of flange from top to bottom to disconnect 2 Remove flange connector and test without the connector.
- Page 26 B IGMOW PAGE 26 Notes : FR040824...
- Page 28 Your Distributor SofTee Manufacturing, LLC 3163 Wexford Way Southport, NC 28461 Your Local Dealer Date of Purchase : _ _ / _ _ / 200... Serial number : Bigmow...
