Summary of Contents for Blue Sky International EXO2

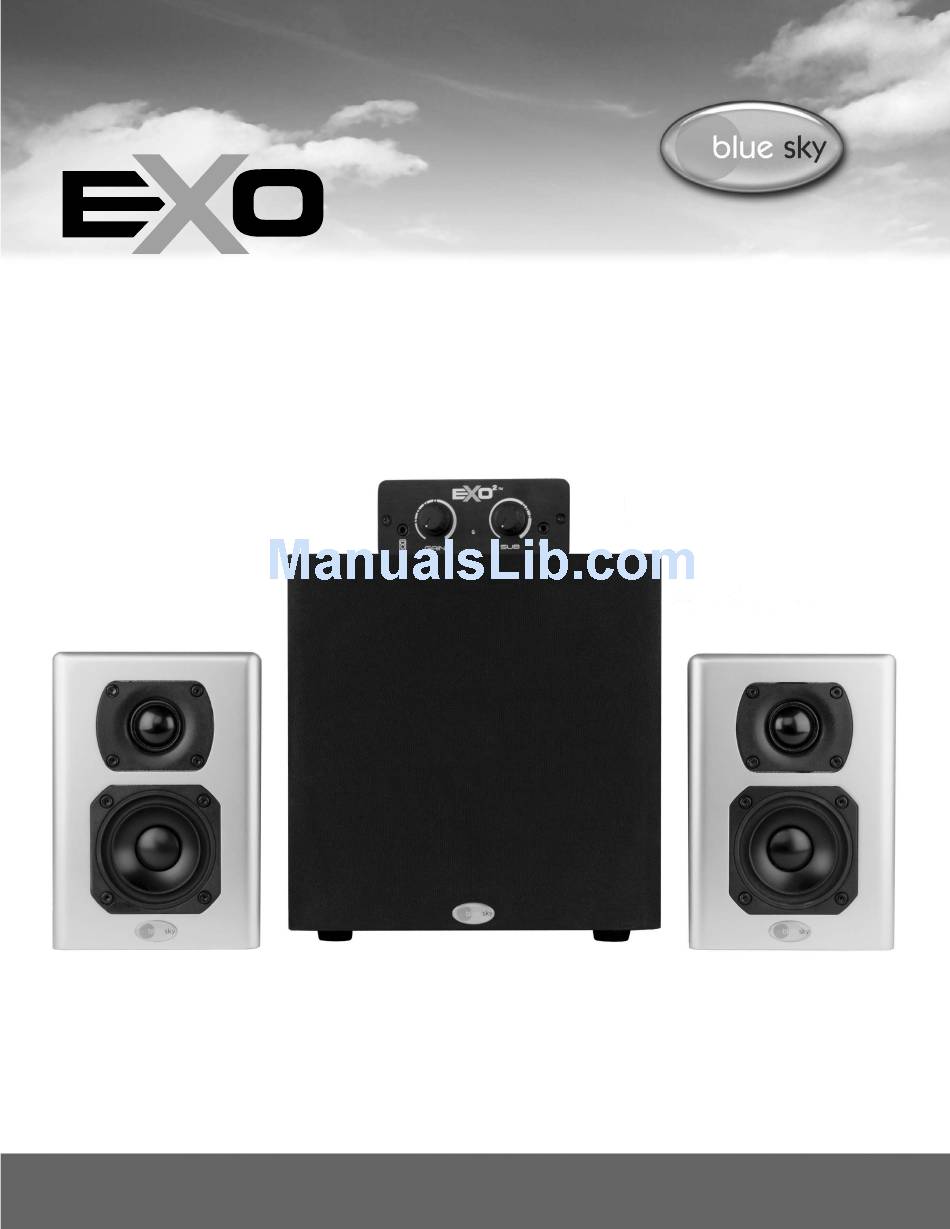

- Page 1 Stereo Monitoring System USER MANUAL Blue Sky International 70 Sea Lane, Farmingdale, New York, 11735 USA • T: +1 516 249 1399 • F +1 516 249 8870 www.abluesky.com...
-
Page 2: Table Of Contents
Stereo Monitoring System USER MANUAL • CONTENTS Important Safety Instructions Page 3 Welcome to Blue Sky Page 4 Welcome to eXo Page 4 Important notes about eXo and this Manual Page 4 Expanded Setup Guide Page 5 System Signal Connections and Level Settings Page 6 A Tour of the eXo Amplifier and Remote... -
Page 3: Safety Instructions
Stereo Monitoring System USER MANUAL • SAFETY INSTRUCTIONS READ INSTRUCTIONS - Read all safety and operating instructions Opening or removing covers, including any over bottom or side speaker before operating this product. drivers, may expose you to dangerous voltage or other hazards. Refer all service to qualified service personnel. -
Page 4: Welcome To Blue Sky
THE OWNERS MANUAL Please read this owner’s manual carefully and contact Blue Sky International if you have any comments or questions. Contact information can be found on page 14 or you can visit: www.abluesky.com... -
Page 5: Expanded Setup Guide
Stereo Monitoring System USER MANUAL • 4 • Expanded Setup Guide If you haven’t already done so, carefully remove all items from the packaging and confirm that everything that is listed on page 4 is included. [Welcome to eXo is compatible with XLR, TRS, RCA and 3.5mm stereo plug input connections and can be used simultaneously. -
Page 6: System Signal Connections And Level Settings
Stereo Monitoring System USER MANUAL • 5 • System Signal Connections and Level Settings Below are some basic outlines of ways someone may interface eXo with their audio system. These may or may not apply to your specific application, but they should be able to show the basic concept for most applications. Please note that all inputs can be used simultaneously. -
Page 7: Tour Of The Exo 2 Amplifier And Remote
Stereo Monitoring System USER MANUAL • 6 • A tour of the eXo amplifier and Remote Please note that all inputs can be used simultaneously. REMOTE / PREAMP CONNECTOR - This connector is used with the included multi pin cable, which connects the remote to the subwoofer. -
Page 8: Exo 2 Mounting And Placement Options
Stereo Monitoring System USER MANUAL • 6 & 7 • A Tour of the eXo Remote (continued) • eXo Mounting and Placement Options 6. Tour of the eXo Remote (continued) 3.5mm STEREO INPUT - This unbalanced input is designed to work with sources such as consumer sound cards, CD players, mp3 players, etc. -
Page 9: Expanded Calibration Guide
Stereo Monitoring System USER MANUAL • 8 • Expanded Calibration Guide Instructions for electroacoustic calibration of a 2.1 audio system Step 5 Assign the 500-2.5kHz pink noise signal to the left channel using a SPL meter and Blue Sky’s test files. or right channel only. -
Page 10: Subwoofer Placement Guide
Stereo Monitoring System USER MANUAL • 9 • Subwoofer Placement Guide The low frequency response and efficiency of a subwoofer are heavily the subwoofer location until the most accurate and best response influenced by the acoustics of the playback environment. More specifically, has been achieved. -
Page 11: Technical Information
Stereo Monitoring System USER MANUAL • 10 • Technical Information This next section outlines the components, specifications and performance data that make this product such a uniquely high value. In order to continually improve all of its products, Blue Sky reserves the right to change these specifications without notice. -
Page 12: Satellite Cabinet & Remote Dimensions
Stereo Monitoring System USER MANUAL • 11 • Satellite Cabinet & Remote Dimensions 5.00 " 127.0 mm 4.75 " 120.7 mm 5.00 " 127.0 mm 4.75 " 120.6 mm 7.00 " 7.12 " 177.8 mm 181.0 mm 2.00 " 50.8 mm 2.50 "... -
Page 13: Subwoofer Cabinet Dimensions
Stereo Monitoring System USER MANUAL • 12 • Subwoofer Cabinet Dimensions 10.13 " 257.3 mm 9.00 " 9.50 " 228.6 mm 241.3 mm 9.35 " 9.00 " 237.5 mm 228.6 mm 6.89 " 175.0 mm 6.50 " 165.1 mm User Manual • Subwoofer Cabinet Dimensions • Page 13... -
Page 14: Factory Service Instructions
Service for the U.S. versions of Blue Sky products is available only from our authorized distributor, Group One Ltd., located in Farmingdale, New York. (Service for Blue Sky products outside the United States can be obtained Blue Sky International through local dealers or distributors.) If your monitor needs service, follow 70 Sea Lane... -
Page 15: Recycling Information
Stereo Monitoring System USER MANUAL • 15 & 16 • Recycling Information • FCC Part 15 Compliance 15. Recycling Information 16. FCC Part 15 Compliance Blue Sky products are designed to last many years. However, if it turns out This device complies with part 15 of the FCC rules. Operation is that your Blue Sky product is damaged beyond repair, please take care that subject to the following two conditions: it is properly recycled in an authorized recycling facility and in accordance... - Page 16 Blue Sky International 70 Sea Lane, Farmingdale, New York, 11735 USA • T: +1 516 249 1399 • F +1 516 249 8870 www.abluesky.com...
