AutoPulse 100 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Resuscitation System Model 100
Battery Charger User Guide
P/N. 10762-001 Rev. 5-24-07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for AutoPulse 100

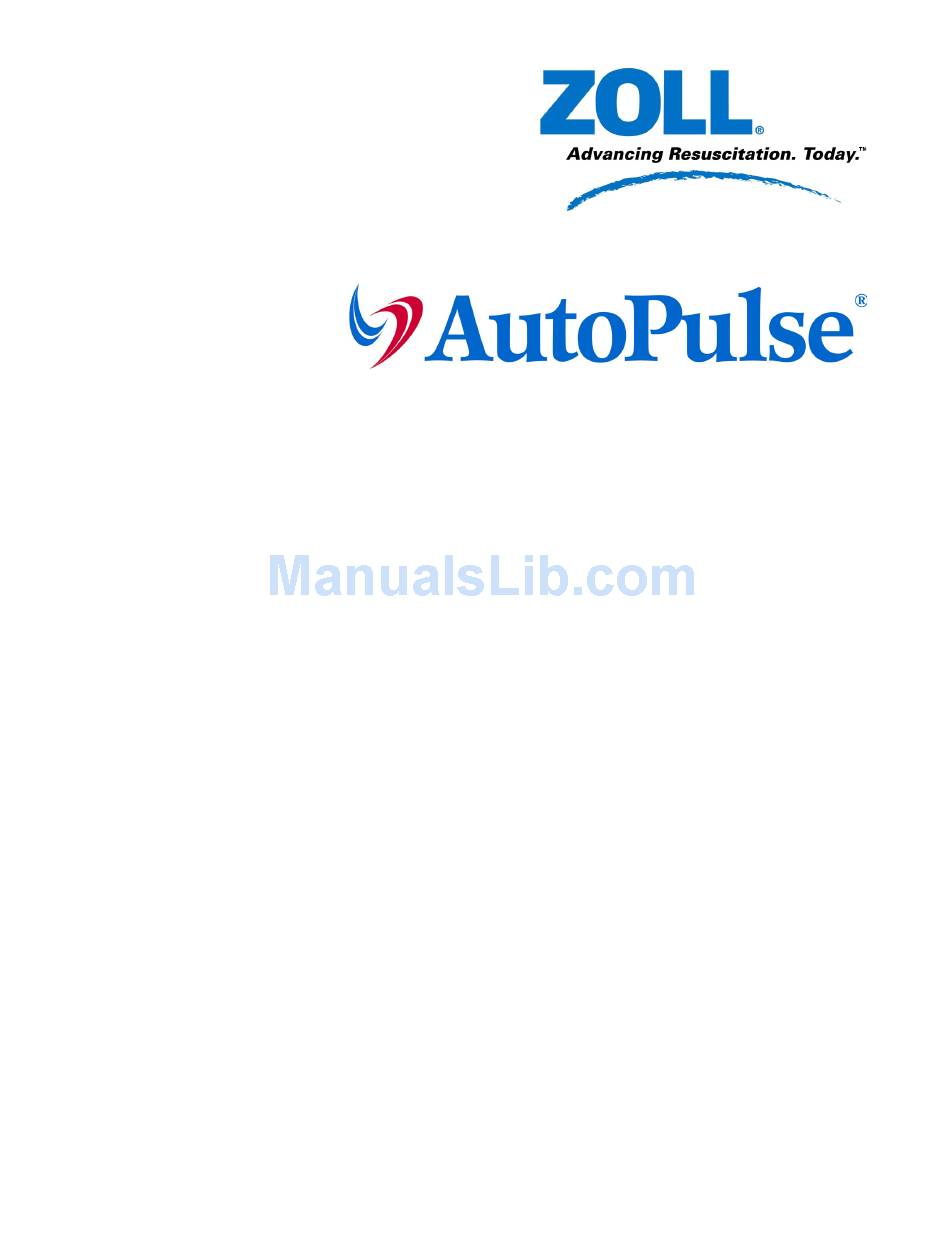

  • Page 1 Resuscitation System Model 100 Battery Charger User Guide P/N. 10762-001 Rev. 5-24-07...

  • Page 2: About This Guide

    The information in this User Guide applies to the ZOLL Circulation AutoPulse Battery Charger designed for the AutoPulse Resuscitation System Model 100. The AutoPulse Power System consists of two main components: the AutoPulse Battery Charger (also known as the Battery Charger) and the AutoPulse Battery (also known as the Battery).

  • Page 3: Table Of Contents

    Who Should Read this Guide ................vii General Warnings and Precautions ..............vii Symbols .........................viii 1 Introduction of the AutoPulse Power System ..........1-1 2 Setting Up the AutoPulse Battery Charger .............2-1 3 Performing a Battery Status Check ..............3-1 4 Operating the Battery Charger ................4-1 5 Managing the AutoPulse Power System ............5-1...

  • Page 4: Figures

    Battery Charger User Guide Figures Page iv P/N. 10762-001 Rev. 5-24-07...

  • Page 5: Tables

    Battery Charger User Guide Tables P/N. 10762-001 Rev. 5-24-07 Page v...
  • Page 6 Battery Charger User Guide [This page left intentionally blank.] Page vi P/N. 10762-001 Rev. 5-24-07...

  • Page 7: Preface

    This document describes the operating steps and maintenance requirements for the AutoPulse Power System for use as part of the AutoPulse Resuscitation System Model 100. The AutoPulse Power System consists of two main components: the AutoPulse Battery Charger (also known as the Battery Charger) and the AutoPulse Battery (also known as the Battery).

  • Page 8: Symbols

    Mishandling of the Battery may lead to physical damage and present a fire or shock hazard. Caution: Do not immerse any portion of the AutoPulse Battery in water or other fluids. Do not allow fluids to enter the Battery or the Battery connector. Fluid immersion or spillage may permanently damage the Battery or present a fire or shock hazard.
  • Page 9 Battery Charger User Guide Date of Manufacture Manufacturer EU Authorized Representative Serial Number Fuse DC Voltage AC Voltage Charging Ready Fail Start Test Power P/N. 10762-001 Rev. 5-24-07 Page ix...
  • Page 10 Battery Charger User Guide [This page left intentionally blank.] Page x P/N. 10762-001 Rev. 5-24-07...

  • Page 11: Introduction Of The Autopulse Power System

    The AutoPulse Power System represents a state-of-the-art breakthrough in battery technology and one of the breakthroughs that make the AutoPulse Resuscitation System possible (see Figure 1-1). The AutoPulse Battery communicates with the AutoPulse Battery Charger or with the AutoPulse Platform when it is plugged into each respectively.
  • Page 12 Battery Charger, includes power cord 1.1.1 Battery The Battery (see Figure 1-3) is a removable component that supplies power for the AutoPulse Platform operation. The Battery is a proprietary, rechargeable, nickel-metal hydride (NiMH) battery that is the exclusive power source for the AutoPulse Platform.
  • Page 13 Status Check button illuminates the Battery’s status light-emitting diodes (LEDs). A single Battery may perform as many as 100 charge/discharge cycles before the Battery reaches the end of its service life. The Battery charge/discharge cycle count increments when the Battery Charger detects that the Battery has been discharged more than 1/3 of its capacity (shallow discharge/recharge cycles will not increment the cycle count).
  • Page 14 4). The Battery Charger has two charging bays; each with its own indicators. The Battery Charger automatically maintains both the state of charge and tests and maintains the Battery to its highest possible capacity. Batteries should always be fully charged and ready for use before deploying the AutoPulse Platform.

  • Page 15: Setting Up The Autopulse Battery Charger

    Setting Up the AutoPulse Battery Charger The AutoPulse Battery Charger must be installed near the wall outlet to which it is connected and that outlet must be easily accessible at all times. Unplug the power cord from the wall outlet to remove power from the Battery Charger.
  • Page 16 Battery Charger User Guide [This page left intentionally blank.] Page 2-2 P/N. 10762-001 Rev. 5-24-07...

  • Page 17: Performing A Battery Status Check

    Battery Charger User Guide Performing a Battery Status Check To determine if an AutoPulse Battery needs to be charged, press the Status Check button on the Battery (see Figure 3-1). Status Check Button Green Amber Figure 3-1 Battery Status Check Button and Status LEDs One of the following Battery status light-emitting diodes (LEDs) will illuminate (refer to Table 3-1).
  • Page 18 Battery Charger User Guide [This page left intentionally blank.] Page 3-2 P/N. 10762-001 Rev. 5-24-07...

  • Page 19: Operating The Battery Charger

    Battery Charger User Guide Operating the Battery Charger Operating Sequence You should place the AutoPulse Battery into an available charging bay: • Following each use. • When the Battery’s amber status light-emitting diode (LED) illuminates or flashes. • To maintain a charge on any spare Battery.
  • Page 20 Battery Charger User Guide Slide the Battery into an available charging bay (see Figure 4-1). Ensure that the Battery locks into place (locking bar engaged).The Battery Charger’s status will be indicated on the Control Panel. Table 4-1 shows the information given by the charging status LEDs for each charging bay when the POWER LED is illuminated.
  • Page 21 Charger LED) ready to use. Charger to ensure that the Battery is fully charged when needed. • Remove and store in the AutoPulse Platform. • Remove and store in a cool location. Fail FAIL (red Battery The Battery Charger is currently...
  • Page 22 Batteries with a high charge holding capability pass the test cycle and remain available for continued use. Batteries that no longer accept a charge will fail the test-cycle and must be replaced as they can no longer be used in the AutoPulse System. Note: To maintain a Battery’s performance and optimize its life, perform a test-cycle on it each...

  • Page 23: Managing The Autopulse Power System

    Managing the AutoPulse Power System Battery Management The AutoPulse System is intended to be deployed on emergency vehicles in a state of high-readiness. Therefore, regular AutoPulse System checks should be integrated into Emergency Medical Service (EMS) rig-check procedures. Regular monitoring of AutoPulse Battery status is vital to ensure adequate run time.

  • Page 24: Battery Maintenance

    Mishandling of the Battery may lead to physical damage and present a fire or shock hazard. Caution: Do not immerse any portion of the AutoPulse Battery in water or other fluids. Do not allow fluids to enter the Battery or the Battery connector. Fluid immersion or spillage may permanently damage the Battery or present a fire or shock hazard.
  • Page 25 Battery Charger User Guide 5.2.3 Disposing of Nickel-Metal Hydride Batteries Do not throw your batteries away or send them to municipal dumps. Call your local waste management officials for proper disposal instructions. Caution: Do not heat, burn, or incinerate a Battery. Exposure to heat above 158ºF (70ºC) may irreversibly damage the Battery.
  • Page 26 Battery Charger User Guide Check both of the fuses. If a fuse must be replaced, follow these steps: Replace both of the original fuses with T2.0A 250V AC fuses. Push in the fuse holder until the locking tab clicks into place. Re-attach the power cord.

  • Page 27: Appendix A Troubleshooting

    Appendix A Troubleshooting This Appendix details symptoms, possible causes, and recommended actions for difficulties you might have with your AutoPulse Power System. Table A-1 provides troubleshooting procedures for the Battery. Table A-2 provides troubleshooting procedures for the Battery Charger. Table A-1 Battery Troubleshooting Procedures...
  • Page 28 Table A-2 Battery Charger Troubleshooting Procedures Symptom Possible Cause Recommended Action Battery Charger’s green Battery Charger’s Refer to Chapter 2, “Setting Up the AutoPulse Battery POWER LED is not alternating current (AC) Charger” for more information. illuminated. power cord is not plugged Battery Charger’s green...

  • Page 29: Appendix B Technical Specifications

    Battery Charger User Guide Appendix B Technical Specifications The specifications provided in this appendix apply to the AutoPulse Power System. Battery Physical Table B-1 Battery Specifications Category Specifications Size (L×W×H) 11.5 in. by 3.2 in. by 2.2 in. (29.2 cm by 8.1 cm by 5.7 cm).
  • Page 30 Size (L×W×H) 15 in. by 9.75 in. by 9.1 in. (38 cm by 25 cm by 23 cm). Weight 10 lbs. (4.5 kg) Operating input voltage 100 to 240V AC Operating input frequency 50/60 Hz Input current 2.0 Amps (maximum)
  • Page 31 (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Limited Warranty for AutoPulse Resuscitation System ZOLL Circulation warrants to the initial Purchaser only that the “Warranted Product” purchased hereunder will be free from defects in workmanship or materials, when given normal, proper, and intended usage, for a specified period (“Warranty Period”) from the date of its initial shipment to...
  • Page 32 ® LifeBand Load-distributing Band. Warranty Period: The AutoPulse Resuscitation System Platform, Battery, and Battery Charger (collectively and individually referred to as “Product”) are sold with a one year warranty period to the end-user. The warranty period begins at delivery. ZOLL Circulation’s sole obligations under this warranty are to repair or replace, at its option, any...
  • Page 33 Battery Charger User Guide INCIDENTAL, SPECIAL OR CONSEQUENTIAL LOSS, DAMAGE OR EXPENSE (INCLUDING WITHOUT LIMITATION LOST PROFITS) DIRECTLY OR INDIRECTLY ARISING FROM THE SALE, INABILITY TO SELL, USE OR LOSS OF USE OF ANY PRODUCT (HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY), EVEN IF ZOLL CIRCULATION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH LOSS.
  • Page 34 Battery Charger User Guide [This page left intentionally blank.] Page B-6 P/N. 10762-001 Rev. 5-24-07...

  • Page 35: Index

    Battery Charger 1-4 replacing a fuse 5-3 cleaning 5-3 operating 4-1 replacing fuse 5-3 service life 5-2 setting up 2-1 setting up AutoPulse Battery Charger 2-1 troubleshooting A-1 status check 3-1 Battery management status LEDs introduction 5-1 charging bay 4-3...
  • Page 36 Battery Charger User Guide warranty B-3 waste management 5-3 Page I-2 P/N. 10762-001 Rev. 5-24-07...
