User Manual

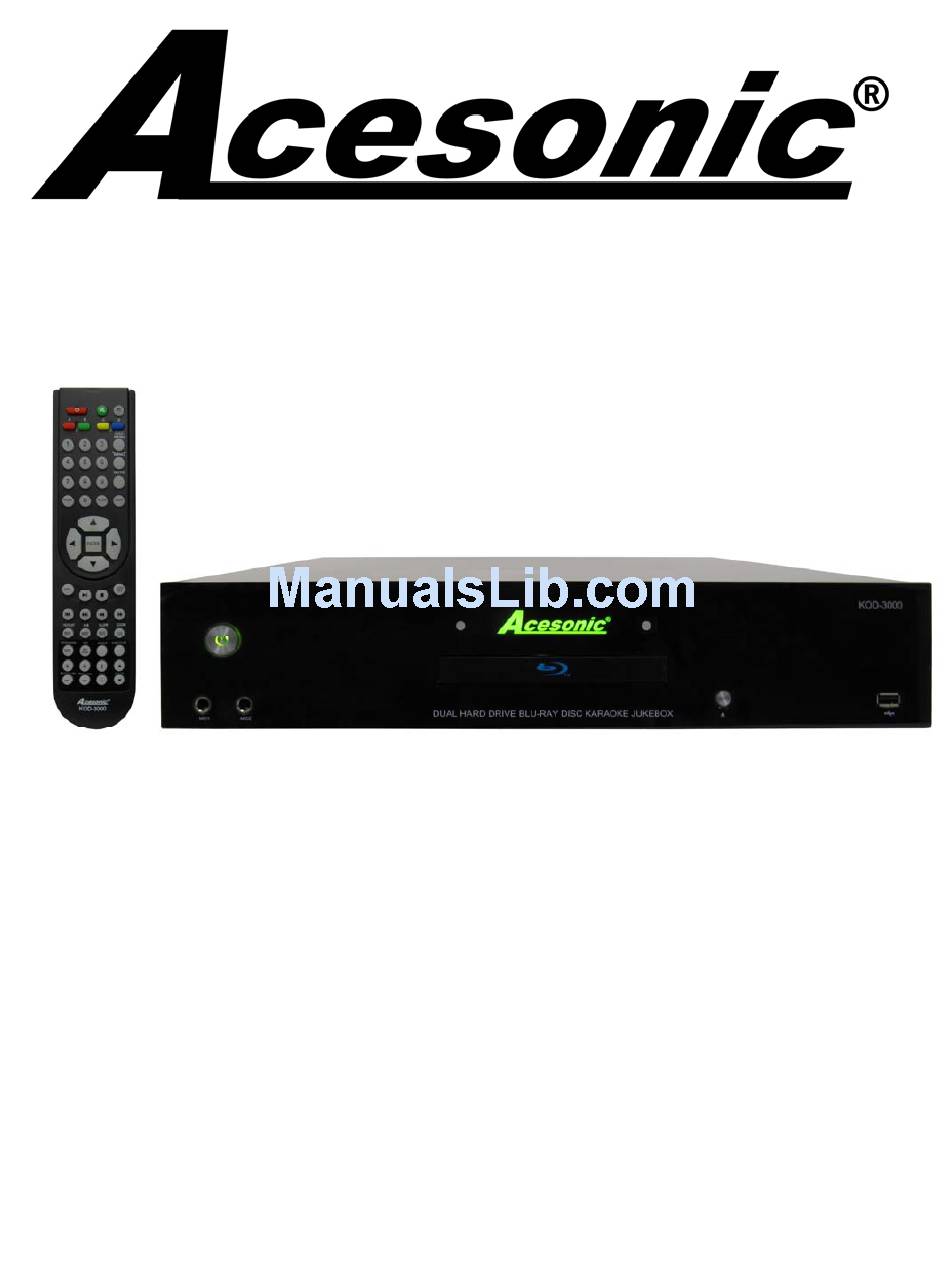

KOD-3000
Karaoke-On-Demand Jukebox
NOTE – Your Acesonic KOD-3000 Karaoke-On-Demand Jukebox arrives with everything you need to
start making music and performing except a microphone, amplifier, and speakers. These can be
obtained from Acesonic, or you can use any standard audio equipment that conforms to contemporary
standards.
Thank you for purchasing Acesonic's KOD-3000 Karaoke-On-Demand Jukebox. Acesonic takes pride
in providing its customers with only the most advanced and highest quality products on the market.
With proper care and use you will get many years of satisfying use from your Acesonic product.
Be sure to keep original packaging in case re-shipping is required for returns or repairs.
Care and cleaning: Use a slightly damp cloth to clean the front panel and other surfaces of the KOD-
3000. Do not use the device in areas that are wet or prone to dampness. Always allow sufficient room
around the device to provide sufficient air flow for cooling.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KOD-3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Acesonic KOD-3000

Summary of Contents for Acesonic KOD-3000

  • Page 1 With proper care and use you will get many years of satisfying use from your Acesonic product. Be sure to keep original packaging in case re-shipping is required for returns or repairs.

  • Page 2: Table Of Contents

    First Things First Before using your KOD-3000, there are a few things you should do and know:  Check to see that your local power outlets supply the correct voltage for the AC adaptor.  Except for the hard drive compartment, do not open the device as there are no user-serviceable parts inside.

  • Page 3: Player Specifications

     Designed in the U.S.A. USB 2.0 Specifications (Compatible Media Formats) Your KOD-3000 is a robust player that can accept a wide variety of media formats (USB flash drives formatted in FAT32, USB hard drives formatted in NTFS and FAT32 up to 2TB) ...

  • Page 4: Video Signal Formats

    The KOD-3000 supports NTSC, a broadcast format generally found in the U.S., Canada, most countries in South America, Japan, South Korea, and the Philippines. The KOD-3000 also supports the PAL format, which is used in many parts of Europe, Asia, and South America.

  • Page 5: Cleaning

    controller for maximum integration  Disc Capturing capability ables you to transfer your favorite CD, CD+G, VCD, or DVD discs directly from the disc tray to the hard drive. *Available in January 2013 Firmware Update  Built-in multiple-key encryption to protect all of your content and separate users can be assigned different keys to avoid unwanted file-sharing.

  • Page 6: Front / Back Panel Functions And Operation

    Front Panel Functions and Operation 1. POWER BUTTON: Press this button to toggle the KOD-3000 from Standby Mode to ON as long as the KOD is connected to a power source and the rear power switch is ON.
  • Page 7 Dolby Digital or DTS sound. 7. HDMI OUTPUT: Connect an HDMI cable to a compatible television or amplifier (HDMI 1.3). 8. LAN (LOCAL AREA NETWORK): Connects the KOD-3000 to a network drive using an Ethernet cable. 9. IR EXTENDER: Connect to an IR extender device for additional IR remote control.

  • Page 8: Remote Control Operation

    Remote Control Functions 1. POWER: Press this toggle the KOD-3000 from Standby Mode to ON as long as the KOD is connected to a power source and the rear power switch is ON. 2. MUTE: Turn the sound ON or OFF.

  • Page 9: Basic Operation

    22. SLOW / DELETE BUTTON: During disc playback, pressing the SLOW button will cycle through the slow motion settings. During HD playback, pressing the DELETE button will remove a song from the playlist. 23. A-B / INSERT BUTTON: During disc playback, pressing the A-B BUTTON allows you to repeat a segment of a track until stopped.
  • Page 10 KOD-3000 into Standby Mode. Turn ON the KOD-3000 using the POWER BUTTON on the front panel or remote. When powering on the unit, please wait for the unit to load. Main Menu Operations: Use the DIRECTION BUTTONS to select an option from the Main Splash Screen. Press the ENTER BUTTON to choose an option.
  • Page 11 Song Search NOTE: Search queries on the KOD-3000 are case sensitive! Playing a song: 1. Press ENTER to go into the Song Search. 2. Use the DIRECTION BUTTONS and press ENTER to add a highlighted song to the playlist. 3. While a song is playing, press MENU to toggle the Song Search Menu.
  • Page 12 2. Search and highlight a song and press ENTER to add a song to end of the playlist. 3. Search and highlight a song and press INSERT to insert a song after the current song. Deleting a song from the playlist 1.
  • Page 13 My Favorite Adding My Favorite songs to the playlist 1. Press ENTER to go into My Favorite to list the 10 Memory Locations for Favorite songs. 2. Use the DIRECTION BUTTONS and ENTER to go into any of the Memory Locations to list the Favorite songs stored in that Memory Location.
  • Page 14 Song Manager - Use the DIRECTION BUTTONS and ENTER to choose an option. Importing songs to the HDD from a disc or USB device 1. Navigate into Song Import. 2. Select the source (Disc or USB device). 3. Make sure the source contains a tab delimited database file – mtvsong_add.txt 4.
  • Page 15 Media Center Accessing media 1. Connected media sources will be displayed in the Media Center Menu. 2. Use the DIRECTION BUTTONS and ENTER to navigate the folders for your connected media. 3. Press the ENTER or PLAY BUTTON to play it. 4.
  • Page 16 11. Press MENU to access the disc pop-up menu and DIRECTION BUTTONS to navigate the menu. Menu options depend on the type of disc being played. Press ENTER to choose a setting. 1. Title select 2. Chapter select 3. Time 1.
  • Page 17 2. Use the ENTER key to confirm it. Software Upgrade 1. Insert a disc or USB device containing appropriate upgrade software. 2. Select BD Loader (disc) or USB (USB device). 3. Do not disconnect the KOD-3000 during the upgrade process!
  • Page 18 Preference – Press the LEFT and RIGHT DIRECTION BUTTONS to navigate the main preference categories. Press the UP and DOWN DIRECTION BUTTONS or ENTER to enter or exit a main preference category. 1. General Setting 1. System - Press the LEFT and RIGHT DIRECTION BUTTONS or ENTER to enter and exit the Sub-Menu.
  • Page 19 1. Press the RIGHT DIRECTION BUTTON or ENTER to select the Sub-Menu. 2. Press the UP and DOWN DIRECTION BUTTONS to select “English,” “Chinese,” or “Trade Chinese.” 3. Press the ENTER BUTTON to confirm it. 2. Menu 1. Press the RIGHT DIRECTION BUTTON or ENTER to select the Sub-Menu. 2.
  • Page 20 password. 4. Press the RETURN BUTTON to cancel. 2. Parental Control 1. Press the RIGHT DIRECTION BUTTON or ENTER to select this option. 2. Use the NUMERIC KEYPAD to enter the current password. 3. If the password is correct you will be taken to a Sub-Menu. 4.
  • Page 21 2. Display Setting 1. TV - Press the LEFT and RIGHT DIRECTION BUTTONS or ENTER to enter and exit the Sub-Menu. Press the UP and DOWN DIRECTION BUTTONS to navigate the Sub- Menu. 1. TV Screen 1. Press the RIGHT DIRECTION BUTTON or ENTER to select the Sub-Menu. 2.
  • Page 22 2. Video Process - Press the LEFT and RIGHT DIRECTION BUTTONS or ENTER to enter and exit the Sub-Menu. Press the UP and DOWN DIRECTION BUTTONS to navigate the Sub-Menu. 1. Video Adjust 1. Press the RIGHT DIRECTION BUTTON or ENTER to select the Sub-Menu. 2.
  • Page 23 3. Audio Setting 1. Audio Output - Press the LEFT and RIGHT DIRECTION BUTTONS or ENTER to enter and exit the Sub-Menu. Press the UP and DOWN DIRECTION BUTTONS to navigate the Sub-Menu. 1. SPDIF – choose settings for the Coaxial and Optical outputs 1.

  • Page 24: Troubleshooting

    Remember to try inspecting other components and electrical appliances in use. If the trouble cannot be rectified even after exercising the steps listed below, contact Acesonic at +1-626-820-0645 to inquire about repairs.
  • Page 25 No sound  Inspect the KOD-3000 to confirm it is connect to audio equipment and that the audio equipment or TV is connected to the player.  Check that the volume levels on the TV and audio equipment are audible.

  • Page 26: Faq (Frequently Asked Questions)

    Remote won't work  Ensure that there is a clear path between the KOD-3000 and the remote control or decrease the angle between the remote control and the sensor.  Replace the batteries.  Move the remote control closer to the sensor.
  • Page 27  If necessary, consulting the dealer or an experienced radio/TV technician for help 2. IMPORTANT: When connecting the KOD-3000 to audio equipment, use only high-quality, shielded cables such as what is supplied with this product. Follow all installation instructions. Do not modify the equipment in any way, as this could void your FCC authorization to use the device in the U.S.A.
  • Page 28 Refer all servicing to qualified service personnel. NOTE: With proper care and maintenance, your KOD-3000 Karaoke-On-Demand Jukebox will give you years of dependable, enjoyable use. Make sure you are using proper power sources and good (unfrayed) cables at all times.

  • Page 29: Technical Specifications

     Secure Media Connectivity  Download Protection for all types of content Song Importing Information Upon purchasing the KOD-3000, please send an email to dz@acekaraoke.com with the following information in order to receive the necessary software and instructions for importing your own songs...
