Summary of Contents for Origen ae M7

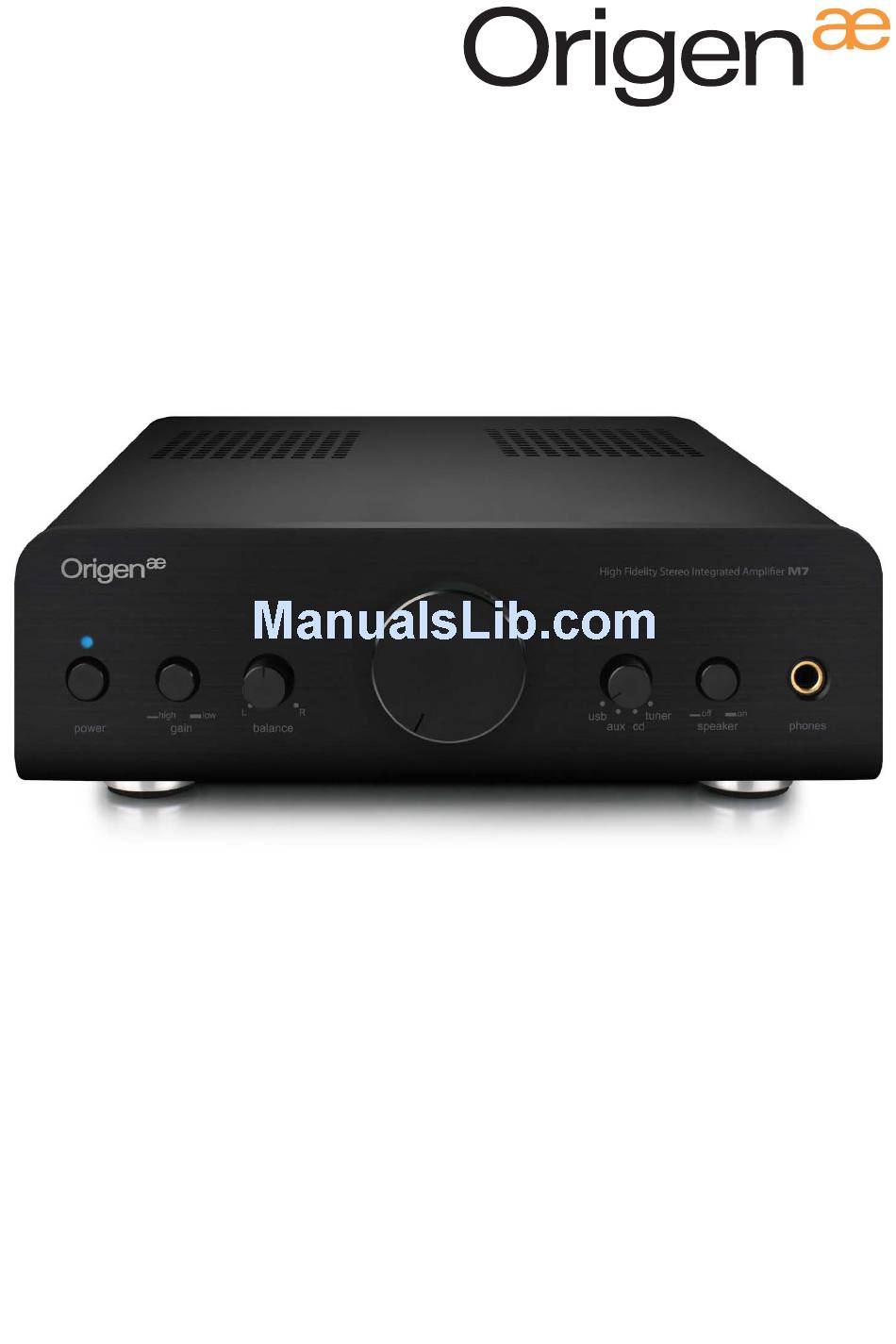

- Page 1 M7 Amplifier with DAC User Guide...
- Page 2 Operating environment REFER TO QUALIFIED AUTHORIZED SERVICE PERSONNEL FOR SERVICING. Connecting and wiring Origen is not responsible for any damages due to external Computer setup causes, including but not limited to, improper use, problems with electrical power, accident, neglect, alternation, unauthorized repair, improper installation or improper testing.
- Page 3 Specifications Dimensions Amplifier Units: [inches] millimeters • 2 channel HiFi stereo integrated amplifier • 50 watt per channel RMS at 4 ohm 240mm[9.45] • 25 watt per channel RMS at 8 ohm • Frequency response : 5Hz ~ 120KHz(-3dB) • S/N Ratio : >...
- Page 4 Front panel layout 4 - Audio balance adjuster The audio balance adjuster can be used to adjust the balance of the audio between the two audio output channels. By turning the adjuster to the right the balance will moved to the left channel and by turning the adjuster to the right the balance will move to the right.
- Page 5 Back panel layout 5 - USB input jack In order to utilize the DAC functionality of the amplifier a computer can be connected through the USB interface to provide digital sound input. 6 - DC Power socket The supplied power adaptor is connected to this socket and to a power outlet in order to provide power to the amplifier.
-
Page 6: Operating Environment
Operating environment Connecting and wiring In order to ensure longetivity of the life of the amplifier, do not locate the device where the following conditions occur: • Direct exposure to sunlight • High dust volume environments • Places where mechanical vibrations may occur •... - Page 7 Step 3 - Click the tab named ‘Audio’. Step 4 - Under the section labelled ‘Sound Playback’ ensure that the item ‘Origen USB DAC is selected’. (Depending on your version of Microsoft Windows this may be detected as ‘USB Audio Device’).
