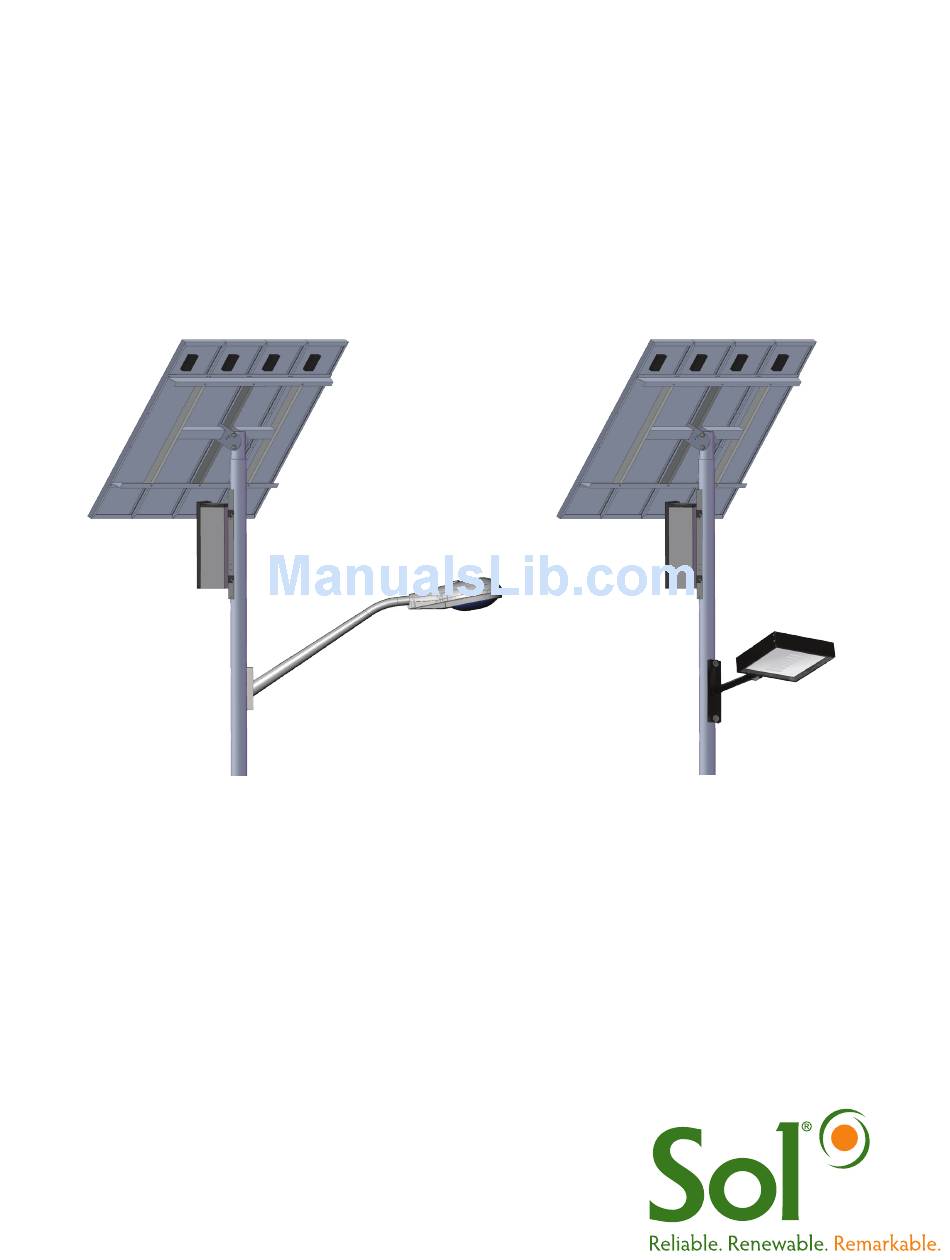

  • Page 1 TP Series Top of Pole Mount Solar LED Lighting System Triple and Quad PV Mounting Installation and Owner’s Manual rev.1011 MKTG-IM-TP-34-002...
  • Page 2: Table Of Contents

    Important Notes and Warnings This installation and instruction manual provides installation, operation, and maintenance instructions for the Sol TP Series solar LED lighting system. The entire contents of this manual should be thoroughly reviewed and understood prior to installing this equipment.
  • Page 3: Introduction

    Installation and Owner’s Manual | TP Series Solar LED Lighting System 1.0 Introduction This manual contains important instructions for the TP Series - 3 or 4 panel systems that shall be followed during installation and maintenance of the charge controller.
  • Page 4: Installation

    2.0 Installation Install the Sol TP Series lighting system in accordance with all applicable building codes. Though designed for ease of installation, it is recommended that the Sol TP Series lighting system be installed by a licensed electrician. The Sol TP Series lighting system is manufactured to comply with Article 690 of the National Electric Code.
  • Page 5: Unpacking And Inspection

    Installation and Owner’s Manual | TP Series Solar LED Lighting System 2.2 Unpacking and Inspection The Sol TP Series lighting system is shipped as a complete kit. Prior to assembly, remove the entire contents of the kit from the packaging and check the contents of the kit against the Packing list you received in the ”OPEN FIRST”...
  • Page 6: Mounting Tp Assembly To Pole

    Installation and Owner’s Manual | TP Series Solar LED Lighting System Place TP assembly over tenon adaptor and ensure PV module is angled at 45° or designated angle for your location. Top bolt determines angle. Secure tenon adaptor to TP mount with 2 x 5/8-11 x 6” screws (Figure 4).
  • Page 7: Drilling Mounting & Access Holes

    Determine desired location of fixture arm and drill mounting holes for fixture arm by using arm bracket as template (Figure 7). Drill access hole to route Luminaire wiring to B.E. Enclosure (Figure 7a). Sol will provide template for concrete pole manufacturing.
  • Page 8: Mounting Battery Enclosure & Channel

    Installation and Owner’s Manual | TP Series Solar LED Lighting System 2.6 Mounting Battery Enclosure (B.E.) and B.E. Channel Secure B.E. channel using 2x 3/4-10 x 12” bolts. Loosely fasten 4x 1/4”–20 x 1/2” hex head bolts to the B.E. Channel.
  • Page 9: Routing Pv & Luminaire Cables

    Installation and Owner’s Manual | TP Series Solar LED Lighting System 2.7 Routing PV & Luminaire Cables Open Battery Enclosure. Your battery enclosure may include a hinged cover and an optional locking key device. Insert the PV cable and Luminaire cables into access hole on the battery enclosure, as shown in Figure 9.
  • Page 10: Attaching The Led Fixture To The Arm

    Installation and Owner’s Manual | TP Series Solar LED Lighting System 2.8 Attaching the LED Fixture to the Arm Two types of LED fixtures are provided with the SH Series lighting system: Cobrahead Shoebox Fixture Fixture Attaching the Ascot Fixture to the Arm Loosen fastener that secures hinged cover to fixture;...
  • Page 11: Led Fixture Precautions

    Installation and Owner’s Manual | TP Series Solar LED Lighting System LED Fixture Precautions The Cobrahead and Shoebox fixtures contain the following warning label: CAUTION: Possible Hazardous LED Radiation Emitted From This Product. Do Not Stare Directly Into Beam. Disconnect Power Before Servicing.
  • Page 12: Connect Components To Controller

    (see below) is factory-set. Determining the Factory-Set LED Luminaire Operating Mode The operating mode for the TP Series lighting system is set at the factory according to requirements specified for your location. The operating mode that was set for your TP Series lighting system is included in the information provided on the product label: HH.LLL.LLL.HH.LLL...
  • Page 13: Connecting Components (Cont)

    Installation and Owner’s Manual | TP Series Solar LED Lighting System Connecting the Components All controllers ship with Clik™ together wiring harnesses. This eliminates field wiring and splicing. Use the wiring diagrams below for connecting your solar light system. Note: includes a field replaceable fuse.
  • Page 14: Connecting Components (Cont)

    Installation and Owner’s Manual | TP Series Solar LED Lighting System Controller Battery Wiring for 24VDC Systems PV Module Black (-) Red (+) LED Luminaire Brown (+) Blue (-) Battery 1 Battery 3 Orange (-) Green - Luminaire Load Cable...
  • Page 15: Testing The System

    One or more additional diagnostic indicators may also be ON. The indicators will remain ON for approximately five seconds after pressing the test button. The diagnostic indicators on the controller indicate the status of the TP Series lighting system: Indicator...
  • Page 16: Operation And Maintenance

    If you believe that your TP Series lighting system is not performing as expected and the above conditions do not apply, please contact Sol Customer Service at 1.772.286.9461.
  • Page 17: Preventive Maintenance And Service

    Repeat Steps 1 and 2, if necessary, until all dirt and grime have been removed. Fuse Replacement If the TP Series lighting system does not operate, replace the fuse. If the fuse needs to be replaced, be sure to also check operation of the controller (see page 15).
  • Page 18: Battery Replacement

    Installation and Owner’s Manual | TP Series Solar LED Lighting System Battery Replacement Remove the battery box cover. Disconnect the solar panel harness connector from the controller, then disconnect the battery connector from the controller. Remove the battery from the battery box.
  • Page 19: Frequently-Asked Questions

    A: While it is possible to have aiSUN™ or EternO® 4 reprogrammed, it is important to consult with Sol Inc about what operating modes are available. Solar lights can sometimes run longer or brighter, however this typically requires a larger solar panel and more battery reserve to provide more light, longer.
  • Page 20 Sol Inc. | 3210 SW 42nd Avenue | Palm City, Florida 34990 www.solarlighting.com E-mail support: support@solarlighting.com Phone: +1.772.286.9461 | Toll: 800.959.1329 (USA & Canada) Fax: +1.772.286.9616 Office Hours: Monday - Friday: 8:30am to 5:00pm (EST) © 2011 Sol Inc. All rights reserved...
