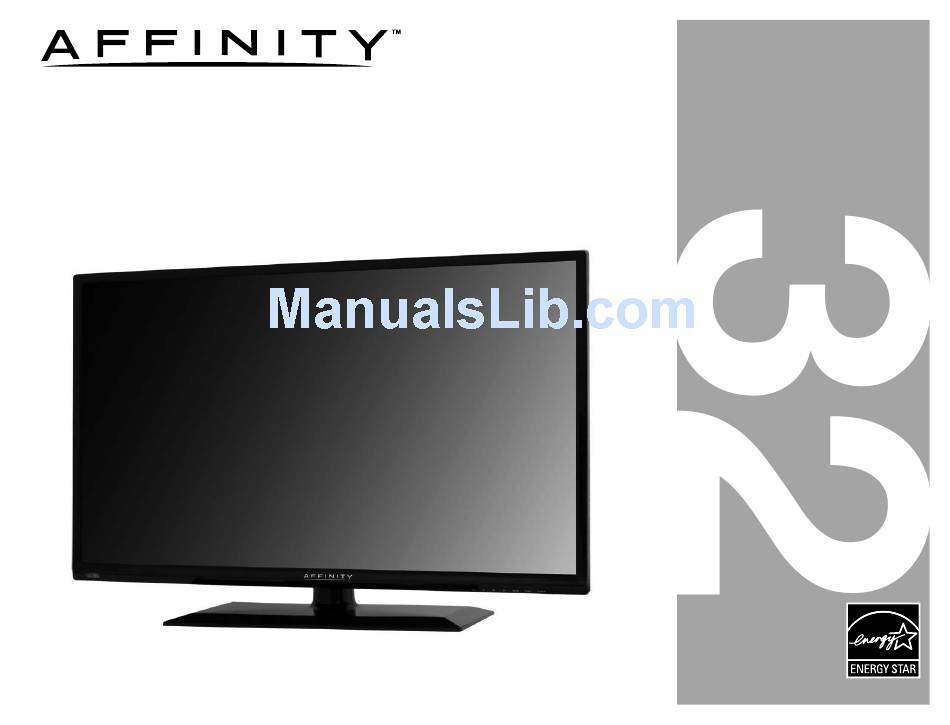

  • Page 1 Meijer.com LE3261 USER’S MANUAL 32” LED HDTV...
  • Page 2 Meijer.com CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Safety: TO REDUCE THE RISK OF ELECTRICAL SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS ARE INSIDE. REFER TO QUALIFIED PERSONNEL ONLY. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 3 Meijer.com...
  • Page 4 Meijer.com KCPI/Affinity...

  • Page 5: Table Of Contents

    Meijer.com Sound Settings Safety Instructions ....................Bass / Treble / Balance ..................Table of Contents ....................Introduction / What’s In the Box ................Surround ....................... Remote Control Audio Language ....................Remote Control Battery Install ................Channel Settings Remote Control Overview ..................TV Overview Favorite .........................
  • Page 6 Pedestal Stand familiarize yourself with the installation and adjustment options available to you, thereby enjoying all the features of the LE3261 for many years to come. For peace of mind and valuable services, please take a moment to register your product at www.kcpi.us...
  • Page 7 Meijer.com Your remote control handset is powered by two (2) AAA type batteries • To insert batteries, turn the remote • Place two (2) AAA batteries into the • Replace the cover. control over and remove the battery compartment with correct polarity. cover.
  • Page 8 Meijer.com Functions Using the Remote Control Handset Power – Turn the television display On/Off. Mute – Press to temporarily turn sound off. Press again to resume. Info – Press to view programming information. Numbers / Dash – Select desired TV channel directly. For example: to select digital channel four, press “4”...

  • Page 9: Side Panel

    Meijer.com Side Panel 1. Source - After connecting your DVD, cable box, etc., select the appropriate input source to view. Press the SOURCE button to display input options. Source Select Component HDMI 2 Stand by - Red light TV on - Blue light HDMI 3 IR Receiver 2.

  • Page 10: Rear Panel

    Meijer.com TV REAR PANEL 100x100mm 1. SPDIF/Coax - Connect an optional coaxial digital cable through a 6. Component YPbPr - Connect to an AV device that features compo- compatible amp/receiver to enjoy superior audio sound. nent (YPbPr) video and audio output jacks. NOTE: There is one set of audio L/R input jacks for use with either your Component YPbPr or AV 2.
  • Page 11 Meijer.com Roof Antenna / Cable Outlet Installation TV REAR PANEL How to connect with an indoor or rooftop antenna • Connect the RF coaxial (75 ohm) cable from your existing roof top Ant./Cable antenna or wall outlet. Finger tighten the F-Connector end to the Wall Outlet RF IN on the rear panel.
  • Page 12 Meijer.com Connecting to an HD Set-Top Box, Game Console or Blu-ray Player Using HDMI TV REAR PANEL Digital set top box, gaming console, or blu-ray w/ HDMI interface HDMI Optional HDMI cable For BEST video performance Connect to external devices that feature HDMI, an uncompressed, all digital video / audio interface found on today’s high definition devices.
  • Page 13 Meijer.com Connecting External Equipment to Component Video IN (YPbPr) on your television TV REAR PANEL For BETTER video performance Optional Component cables Connect to external equipment that features component video output jacks Digital set top for great performance. Use Component YPbPr component video and audio box, gaming con- inputs with a set top box, gaming console or DVD player.
  • Page 14 Meijer.com Connecting External Equipment to AV Composite IN on your television TV SIDE PANEL Optional cables For GOOD video performance Connect to external equipment using optional video and audio cables. Composite Set top box, gaming console, DVD output jacks are available on most set top boxes and DVD players. (Component and HDMI connections are recommended for best performance, if possible).
  • Page 15 Meijer.com Connecting a Personal Computer with VGA to your television TV REAR PANEL Optional cables Recommended computer display resolution:1,920 x 1,080 @ 60 HZ How to Connect a PC • Connect using an optional male to male VGA cable from your PC to the VGA input on the TV’s rear panel.

  • Page 16: Connection To A Home Theater Audio System

    Meijer.com Connection to a Home Theater Audio System TV REAR PANEL TV REAR PANEL Optional digital cable optional cables Dolby Prologic Surround Receiver For BEST audio performance Front Left Front Right Connecting to a Home Theater System Speaker Speaker Digital set top box, gam- Dolby Digital can deliver optimal 2-channel stereo or 5.1 surround Center Channel ing console or DVD...

  • Page 17: Initial Setup Wizard

    Meijer.com Initial Setup Wizard After connecting your TV antenna or cable wire, turn the television ON. The initial setup wiz- ard will display on-screen. Select your preferred Picture setting followed by antenna options if you will view local over-the-air TV broadcasts from an antenna. Theses channels will be stored in the TV tuner memory after performing Auto Channel Search.

  • Page 18: Contrast

    Meijer.com The PICTURE menu offers options to enhance and refine the picture displayed on your TV based on ambient room light and personal prefer- ences. Adjustment options include contrast, brightness, color, sharpness, color temperature and Advanced Picture Settings. How to Navigate: Press the MENU button on the remote control.

  • Page 19: Surround

    Meijer.com The AUDIO menu offers options to make sound enhancements while listening through the built-in speakers or to select digital audio options when connected to a Dolby Digital receiver though a (SPDIF) coaxial digital output. How to Navigate: Press the MENU button on the remote control. Navigate using t u arrow buttons to select SOUND and press the OK button. •...

  • Page 20: Favorite

    Meijer.com The CHANNEL menu enables you to search, view and edit channels. It is available in TV mode only. How to Navigate: Press the MENU button on the remote control. Navigate using t u arrow buttons to select CHANNEL and press the OK button. •...
  • Page 21 Meijer.com In the PARENTAL menu, you may block television and movie programming based on TV ratings and Motion Picture Association guidelines. To gain access and select your preferences within the Parental menu make certain your input is set to TV. How to Navigate: Press the MENU button on the remote control.
  • Page 22 Meijer.com In the PARENTAL menu, you may block television and movie programming based on TV ratings and Motion Picture Association guidelines. To gain access and select your preferences within the Parental menu make certain your input is set to TV. •...
  • Page 23 Meijer.com In the PARENTAL menu, you may block television and movie programming based on TV ratings and Motion Picture Association guidelines. To gain access and select your preferences within the Parental menu make certain your input is set to TV. •...

  • Page 24: Closed Caption

    Meijer.com In the SETUP menu you may adjust the TV preferences. How to Navigate: Press the MENU button on the remote control. Navigate using t u arrow buttons to select SETUP and press the OK button. • Press the qp arrow button to highlight Closed Caption and press the OK button to go to Closed Caption setting sub-menu.

  • Page 25: Blue Background

    Meijer.com In the OTHERS menu you may adjust the TV preferences. How to Navigate: Press the MENU button on the remote control. Navigate using t u arrow buttons to select OTHERS and press the OK button. • Press the qp arrow button to highlight Blue Back and press the OK button to select blue background on or off.
  • Page 26 Meijer.com The ZOOM function offers several viewing display options on the 16:9 screen. Press ZOOM to cycle through the following widescreen settings. 1. NORMAL Located in the Picture Recommended for viewing native widescreen content and Settings Menu undistorted 4:3 images. 2.
  • Page 27 Meijer.com Display Size (inch) 31.6” Diagonal Digital Compatibility 480i / 480p / 720p / 1080i Resolution 1,366 x 768 Brightness (cd/m2) Dynamic Contrast Ratio 1200:1 Vertical Viewing Angle (degrees) 176° Horizontal Viewing Angle (degrees) 176° Maximum Colors (millions) 16.7M Power Consumption <...
  • Page 28 Meijer.com Check for a possible solution to a symptom before contacting a customer service representative. Symptom Possible Solutions Remote codes for • Call your satellite or cable provider for available codes. cable / satellite box users • Check the video installation of your external A/V equipment. No color •...

  • Page 29: Warranty

    For peace of mind and valuable services, please take a moment to register your product at www.kcpi.us Kith Consumer Products, Inc. (KCPI) expresses the following limited warranty on AFFINITY. This warranty extends to a new television purchased from an authorized reseller/retailer within the U.S. by the original purchaser or consumer who received the product as a gift.
  • Page 30 Meijer.com...
  • Page 31 Meijer.com...
  • Page 32 Meijer.com...
