GSM&PSTN FWT-8848 User's Manual
Version 1.1

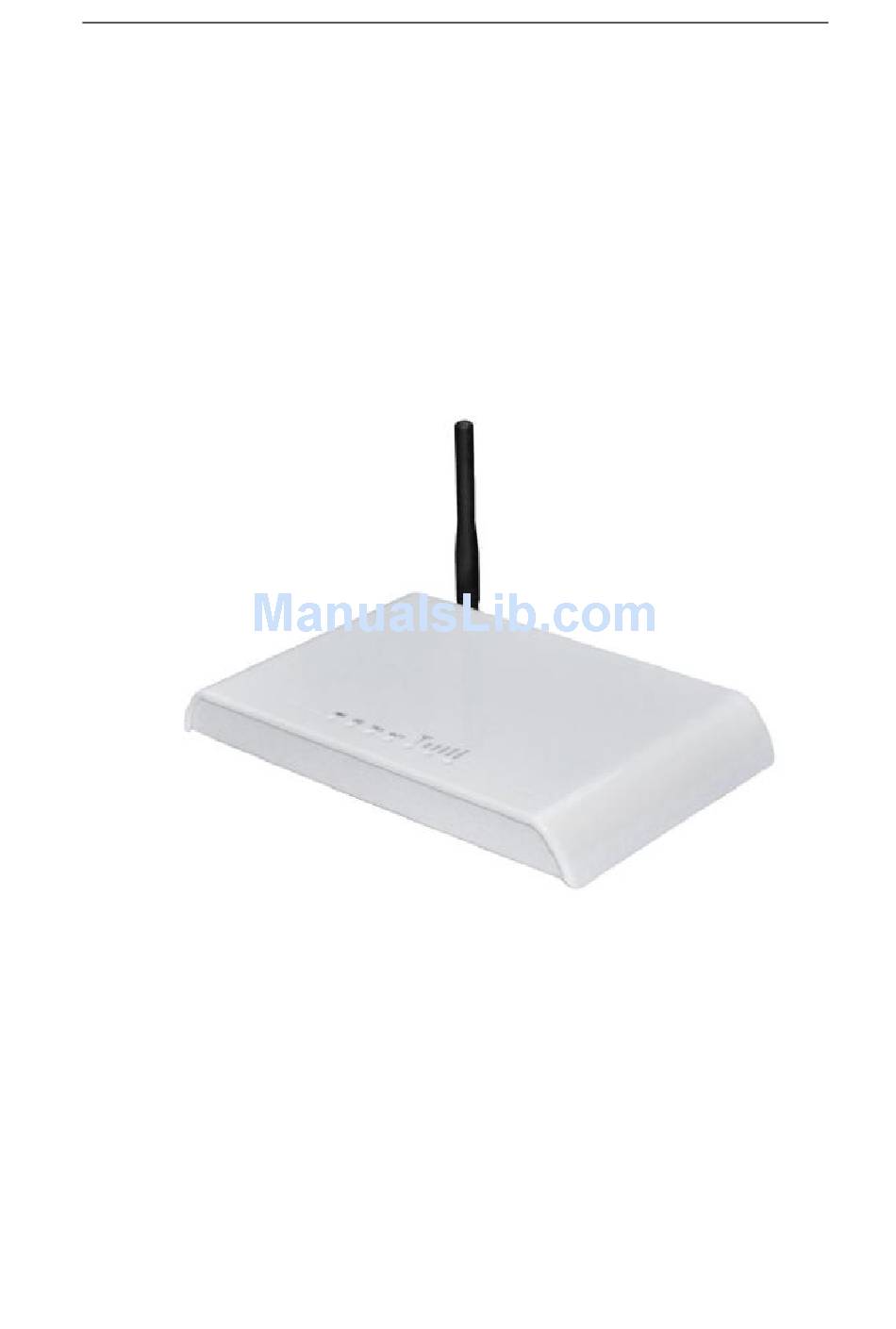

GSM&PSTN FWT-8848 (Gateway)
User's Manual
GSM&PSTN FWT-8848 Version 1.1 -2010
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FWT-8848 and is the answer not in the manual?

Questions and answers

Summary of Contents for Proolin VoIP Tech FWT-8848

  • Page 1 GSM&PSTN FWT-8848 User's Manual Version 1.1 GSM&PSTN FWT-8848 (Gateway) User's Manual GSM&PSTN FWT-8848 Version 1.1 -2010...

  • Page 2: General Description

    GSM&PSTN FWT-8848 User's Manual Version 1.1 1, General Description GSM+PSTN fwt with LCR has the function to choose route automatically. When you dial from GSM+PSTN fwt, it will check the prefix no. you preset into device. Then it will call out through GSM or PSTN according to your presetting rules. And GSM /PSTN both support call in .

  • Page 3: Technical Specifications

    GSM&PSTN FWT-8848 User's Manual Version 1.1 LEDs display for Signal strength, Power, Working Front side Status,Talking and Battery indicator; 1pcs SMA antenna connectors, 2 RJ-11 output, Rear side Power port and switch; 1pcs Sim card holder slots, you can insert Sim Bottom side card into the slot .

  • Page 4: 6, Installation And Connection

    GSM&PSTN FWT-8848 User's Manual Version 1.1 Dialing tone Frequency: 450Hz Antenna interface: Antenna amplifying>2.5db Sensitivity:<-104DBM Transmitting power<3W Color: White /Black (optional) AC-Adapter interface: Input: AC 110~240VAC 50~60Hz Output: 12DC 1A. AC-Adapter type: EU, US, AU, British can be optional 4, Operation Circumstance:...
  • Page 5 GSM&PSTN FWT-8848 User's Manual Version 1.1 2. Install antenna. In order to ensure the quality of voice, antenna must be put beyond 1.5 from the telephone and terminal. 3. On end of the telephone line connects to the “Phone” port of the terminal, the other end connects to telephone.

  • Page 6: Default Setting

    *#01#30# , 01--command，30--time，Max 9.9 seconds，Min 0.5 seconds, default setting is 3 seconds. *If you use GSM&PSTN FWT-8848 for connecting to VoIP gateway, you can set dial interval as 0.5 second, it can make PDD<5 sec (Method: *#01#05#); *If you use GSM&PSTN FWT-8848 for connecting telephone, PBX, billing device, you can set dial interval as 3 seconds or 5 seconds as you like (Method: *#01#30#, set the dial interval as 3 seconds).
  • Page 7 GSM&PSTN FWT-8848 User's Manual Version 1.1 *#04#*0755# 10--command，*0755—area code， Max 5 numbers, use "*" instead if area code is less than 5 digits. 6) Setting IP numbers *#05#17911# 05--command， 17911—IP numbers， Max 5 numbers, use "*" instead if IP number is less than 5 digit.

  • Page 8: Network Lock

    GSM&PSTN FWT-8848 User's Manual Version 1.1 3, Set to change PIN code, open automatic PIN lock function *#09#1234*56785678# 09-command, 1234- the current sim card PIN code, 5678-new PIN code. (5678 can be any other 4 digits number, suppose you can use 2009).

  • Page 9: Warranty Card

    GSM&PSTN FWT-8848 User's Manual Version 1.1 Warranty Card Please fill in the blanks carefully, and keep it properly as the voucher for warranty. Type of Equipment GSM FWT-8848 User’s name Contact with: Contact Tel.no. Address Date of Ex-works Date of Maintenance...
