Sony DR-EX12iP Operating Instructions

Stereo
Headset
DR-EX12iP
©2010 Sony Corporation Printed in Thailand









S
2 lines
M
3 lines
L
4 lines
 Sectional View
Colored parts



4-270-283-44(1)
Operating Instructions
Manual de instrucciones
English
Stereo headset
WARNING
To reduce the risk of fire or electric
shock, do not expose this
apparatus to rain or moisture.
To reduce the risk of electrical
shock, do not open the cabinet.
Refer servicing to qualified
personnel only.
You are cautioned that any changes or
modifications not expressly approved
in this manual could void your
authority to operate this equipment.
Compatible iPod/
iPhone/iPad models
You can use the unit with only the
following models supporting remote
control. Update your iPod, iPhone or
iPad to the latest software before use.
In the Operating Instructions, iPod,
iPhone and iPad are collectively
described as "iPod" except in special
cases.
 iPod touch (5th generation)
 iPod touch (4th generation)
 iPod touch (3rd generation)
 iPod touch (2nd generation)
 iPod nano (7th generation)
 iPod nano (6th generation)
 iPod nano (5th generation)
 iPod nano (4th generation)
 iPod classic 120GB 160GB (2009)
 iPod shuffle (4th generation)
 iPod shuffle (3rd generation)
 iPhone 5
 iPhone 4S
 iPhone 4
 iPhone 3GS
 iPad (4th generation)
 iPad (3rd generation)
 iPad 2
 iPad
 iPad mini
On copyright
® ® ® ®
iPad , iPhone , iPod , iPod classic
® ®
iPod nano , iPod shuffle , and iPod
®
touch are trademarks of Apple Inc.,
registered in the U.S. and other
countries.
"Made for iPod, " "Made for iPhone, "
and "Made for iPad" mean that an
electronic accessory has been designed
to connect specifically to iPod, iPhone
or iPad, respectively, and has been
certified by the developer to meet
Apple performance standards. Apple is
not responsible for the operation of
this device or its compliance with
safety and regulatory standards.
Features
 Easy-to-use remote control (only for
iPod, iPhone and iPad).
 In-line microphone for hands-free
phone calls of iPhone.
 400 kJ/m high power neodymium
3
magnets produce high-resolution
treble and midrange with powerful
bass.
 Hybrid silicone rubber earbuds for
secure fit and long-term wearing
comfort.
How to use

Wearing the headset

(see fig. )
Wear the earpiece marked  in your
right ear and the one marked  in
your left ear.
There is a tactile dot on the unit
marked  to distinguish the left side.
How to use the cord slider
(see fig. -)
Move up and down to change the split
position of the cord.
How to use the remote
and microphone for an
iPod (see fig. -)
You can control a connected iPod
product.

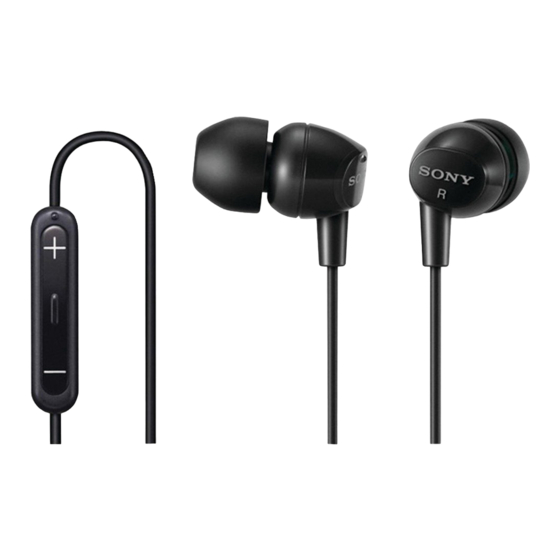

Parts and controls
 Volume +
Increases the volume of the connected
iPod product.
 Center button
Plays/pauses a track of the connected
iPod product with a single press. Skips
to the next track with a double press.
Skips to the previous track with a triple
press. Starts the "VoiceOver*" feature
with a long press (if available).
Press once to answer the call. Press
again to end.
Hold down for about two seconds to
reject an incoming call.
When you let go, two low beeps
confirm the call was rejected.
 Volume –
Decreases the volume of the connected
iPod product.
 Microphone
* Availability of the "VoiceOver" feature
depends on iPod and its software version.
How to install the earbuds
correctly (see fig. )
If the earbuds do not fit your ears
correctly, low-bass sound may not be
heard. To enjoy better sound quality,
change the earbuds to another size, or
adjust the earbuds position to sit on
your ears comfortably and fit your ears
snugly.
If the earbuds do not fit your ears, try
another size. When you change the
earbuds, install them firmly on the
headset to prevent the earbud from
detaching and remaining in your ear.
To check the transparent
earbud sizes
The transparent earbud sizes are
distinguished by a line pattern
(see fig. -).
To check the black earbud sizes
The black earbud sizes are
distinguished by the inside color
(see fig. -).
Black earbud sizes (inside color)
Small

S M
(Orange) (Green)
To detach an earbud
(see fig. -)
While holding the headset, twist and
,
pull the earbud off.
 Tip
If the earbud slips and cannot be detached,
wrap it in a dry soft cloth.
To attach an earbud
(see fig. -)
Push the parts inside of the earbud into
the headset until the projecting part of
the headset is fully covered.
Cleaning the earbuds
Remove the earbuds from the headset,
and wash them with a mild detergent
solution.

Specifications

Receiver
Type: Closed, dynamic
Driver unit:
9 mm, dome type (CCAW)
Power handling capacity:
100 mW (IEC*)
Impedance:
16 Ω at 1 kHz
Sensitivity:
100 dB/mW
Frequency response:
8 – 22,000 Hz
Cord: 1.2 m (47
Plug: Four-conductor gold-plated
stereo mini plug for iPod
with remote function
Mass: Approx. 3 g (0.11 oz)
without cord
Microphone
Open circuit voltage level:
– 42 dB ( 0 dB=1 V/Pa)
Supplied accessories
Earbuds (S × 2, M × 2, L × 2)
Card warranty (1)
Operating Instructions (1)
* IEC = International Electrotechnical
Commission
Design and specifications are subject
to change without notice.
Precautions
 Please keep your headset clean at all
times especially inside the rubber
earbud. (see fig. )
If any dust or ear wax inside the
earbud, you may experience some
listening difficulties.
 Listening with headset at high
volume may affect your hearing. For
traffic safety, do not use while
driving or cycling.
 The earbuds may deteriorate due to
long-term storage or use.
 Install the earbuds firmly onto the
headset. If an earbud accidentally
detaches and is left in your ear, it
may cause injury.
Note on static electricity
In particularly dry air conditions, mild
tingling may be felt on your ears. This
is a result of static electricity
accumulated in the body, and not a
malfunction of the headset.
The effect can be minimized by
wearing clothes made from natural
materials.
Optional replacement earbuds can
be ordered from your nearest Sony
dealer.
Large

L
(Light blue)
/ in), Y-type
1
4
