Summary of Contents for IRISCard Anywhere 4

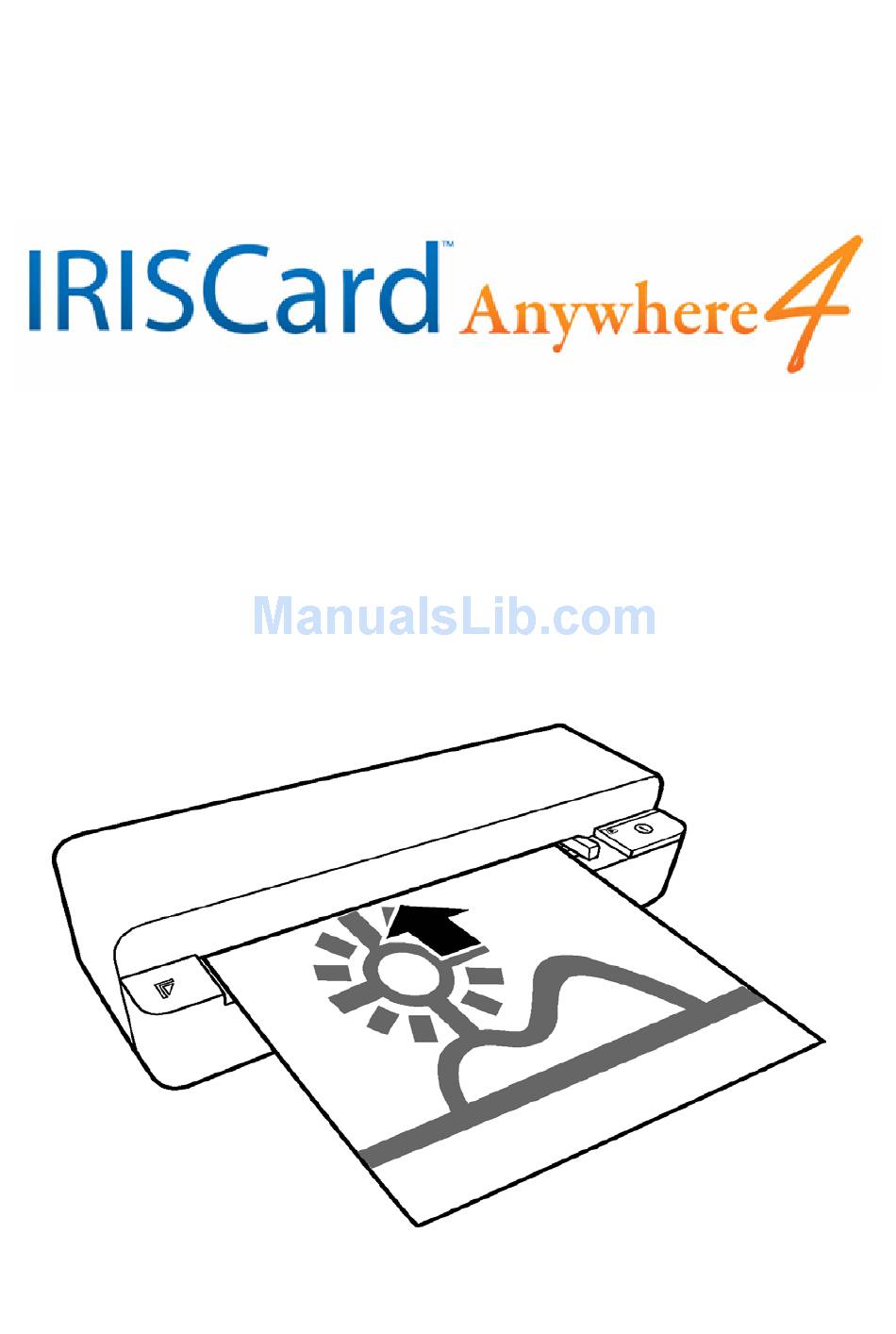

  • Page 1 Scanner User Guide...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents Read this first..........1 Important safety instructions ........1 Disclaimer ............3 Copyright ............3 Notes about copyrighted materials ......3 Disposal of this product..........3 Introduction ........... 5 Scanner accessories ............5 Parts of the scanner and their functions......5 Front view..............
  • Page 3 Table of Contents More information .......... 15 Suitable and unsuitable types of originals ....15 Cropping on scanned images........15 Supported memory card types ........16 File naming and storage rules........16 Care and maintenance ........17 Cleaning the scanner ..........17 Cleaning the outer casing..........17 Cleaning the image sensor ..........

  • Page 4: Read This First

    Read this first Read this first Please read the following important safety instructions carefully before using this scanner. Failure to observe these instructions may result in personal injuries or damages to this scanner. Important safety instructions Do not place this scanner under direct sunlight or near heat sources, such as in a closed car under sunlight or near a stove.
  • Page 5 Read this first This scanner contains a rechargeable built-in Li-Polymer battery. The battery should only be charged via USB connection to a PC. If the battery needs replacement, the operation should only be performed by an authorized and qualified service person. Do not attempt to replace the battery yourself.

  • Page 6: Disclaimer

    Disclaimer Disclaimer I.R.I.S. SA makes no representations or warranties, either expressed or implied, with respect to the contents of this publication. I.R.I.S. SA reserves the right to revise this publication and to make changes from time to time in the contents thereof without obligation to notify any person of such revision or changes.

  • Page 8: Introduction

    Introduction Introduction Scanner accessories Your IRISCard Anywhere 4 scanner is provided with the following accessories. If there are any items missing or damaged, contact your place of purchase immediately. • 1 calibration card • 1 USB cable • 1 sensor cleaning swab...

  • Page 9: Rear View

    Introduction Rear view No. Name Function/description Output slot The scanned original comes out from this slot. SD/xD/ Accepts the following types of memory cards: SD, xD, MMC/MS MMC and MS. See Supported memory card types card slot on page 16 for details. For connecting a USB flash drive.

  • Page 10: Indicators

    Introduction Indicators Please see below for the lighting patterns of the indicators and their meanings. :Blinking green slowly :Steadily on green :Blinking green rapidly :Steadily on yellow :Blinking yellow slowly :Off :Blinking yellow rapidly Power Status Scanning current original. Please wait until the process is complete before scanning another one.

  • Page 11: Using The Scanner

    Using the scanner The battery power is extremely low. Please charge the battery immediately. The battery is being charged when scanner power is off. The battery is being charged when scanner power is Using the scanner Step 1: Preparation Peel off the tape that secures the paper guide. NOTE : This step is only required when you use the scanner for the first time.

  • Page 12: Step 3: Inserting A Memory Card Or Connecting A Usb Flash Drive

    Using the scanner Step 3: Inserting a memory card or connecting a USB flash drive Insert an unlocked (writable) memory card into the memory card slot, or connect a USB flash drive to the USB socket of the scanner. NOTE •...

  • Page 13: Step 5: Making A Scan

    Using the scanner Step 5: Making a scan 1. With the side to be scanned facing upward and in the correct orientation as indicated by the orientation mark, place one edge of the original on the scanner and adjust the paper guide so that the original is aligned with the left side of the feeding slot.

  • Page 14: Step 6: Turning The Scanner Off

    Using the scanner 11 NOTE: • Do not remove the memory card or USB flash drive (if connected) while the indicators are blinking. • A fully charged battery can sustain up to 150 scans of 4” x 6” size photos to the memory card. This is a factory test value for your reference, and actual battery performance may vary.

  • Page 15: Connecting To A Computer

    Connecting to a computer Connecting to a computer By connecting the scanner to a computer, you can access the scanned images on the memory card or use the scanner as a memory card reader, so that you can freely copy, paste or delete files using the computer.

  • Page 16: Inserting A Usb Flash Drive

    Inserting a USB flash drive 13 6. To safely disconnect the scanner from the computer: For Windows users: a. On Windows System Tray, click the hardware removal icon as indicated below. Hardware removal icon b. Click to select the Safely remove USB Mass Storage Device option that appears.
  • Page 17 Inserting a USB flash drive 2. Refer to Step 4: Turning the scanner on on page 9 to turn on the scanner. The USB flash drive will be recognized by the scanner. NOTE: • If the USB flash drive contains multiple partitions, only the first partition will be recognized.

  • Page 18: More Information

    More information 15 More information Suitable and unsuitable types of originals This scanner is designed to obtain the best scanning results for the following types of originals: • 3.5” x 5” and 4” x 6” photos • Business cards Do not use the following types of originals for scanning. Otherwise the scanner will malfunction, the original may become jammed in the slot or the image auto-cropping function will not work properly.

  • Page 19: Supported Memory Card Types

    More information Supported memory card types • MS (MemoryStick) • MS Pro • MS Pro Duo (adapter required) • MS Duo (adapter required) • MMC (MultiMediaCard) • RS-MMC (adapter required) • xD (extreme Digital, H-type and M-type) • SD (SecureDigital) •...

  • Page 20: Care And Maintenance

    Care and maintenance 17 Care and maintenance Cleaning the scanner In order to maintain the best image quality and prevent dust accumulation, clean the outer casing, image sensor and roller inside the scanner regularly (about every 50-100 scans, or whenever unwanted vertical/horizontal lines appear on scanned images).

  • Page 21: Calibrating The Scanner

    Care and maintenance 3. Gently slide the sensor cleaning swab to the other end of the output slot. 4. Repeat step 3 five or six times consecutively. NOTE : Do not apply too much force on the swab. 5. Slide the sensor cleaning swab to the left end of the output slot, and then remove it from the slot.

  • Page 22: Storing The Scanner

    Care and maintenance 19 Storing the scanner If the scanner will not be used for a long time, follow the instructions below to store the scanner for future use. 1. Disconnect the scanner from the computer. 2. Place the scanner and accessories in a box or bag to keep them from accumulating dust.

  • Page 23: Troubleshooting

    Troubleshooting Troubleshooting Problem: There are strange lines on the scanned image, or the image is not clear. Solution: Please ensure the following: • Are there scratches on the original, or is the original clean? Remove any stains or dust from the original before scanning.
  • Page 24 Troubleshooting 21 Problem: The scanner feels warm to the touch. Solution: It is normal for the scanner to emit a small amount of heat (around 30-45 C) after prolonged use. However, if there are strange odors coming out from the scanner or the scanner feels hot to the touch, disconnect the scanner immediately from the power supply or the computer/ digital photo frame.

  • Page 25: Specifications

    Specifications Specifications Optical resolution 300 dpi x 300 dpi (fixed) Color depth 24-bit 157.4 (L) x 43 (H) x 54.5 (D) mm Dimensions (approx. value) (scanner only) Weight (approx. value) 230g (scanner only) See Supported memory card types on Supported memory card types page 16 Supported output image format JPEG (.jpg) USB or compatible with the USB 2.0...
