To view full version of

PHD‐VRX user manual, USB DTV Recording and

Timeshifting Operation Guide, please go to

www.epvision.com/HDTVSTB/phdvrxmain.htm.

PrimeDTV Technologies

DOC# VRX‐sv1.02

Full HD 1080p Dual Tuner Digital

HDTV Recorder, Receiver and

Media Center Box

Quick Start Guide

MODEL : PHD-VRX

Need help?

Do you have a question about the PHD-VRX and is the answer not in the manual?

Questions and answers

Summary of Contents for PrimeDTV Technologies PHD-VRX

Page 1: Quick Start Guide

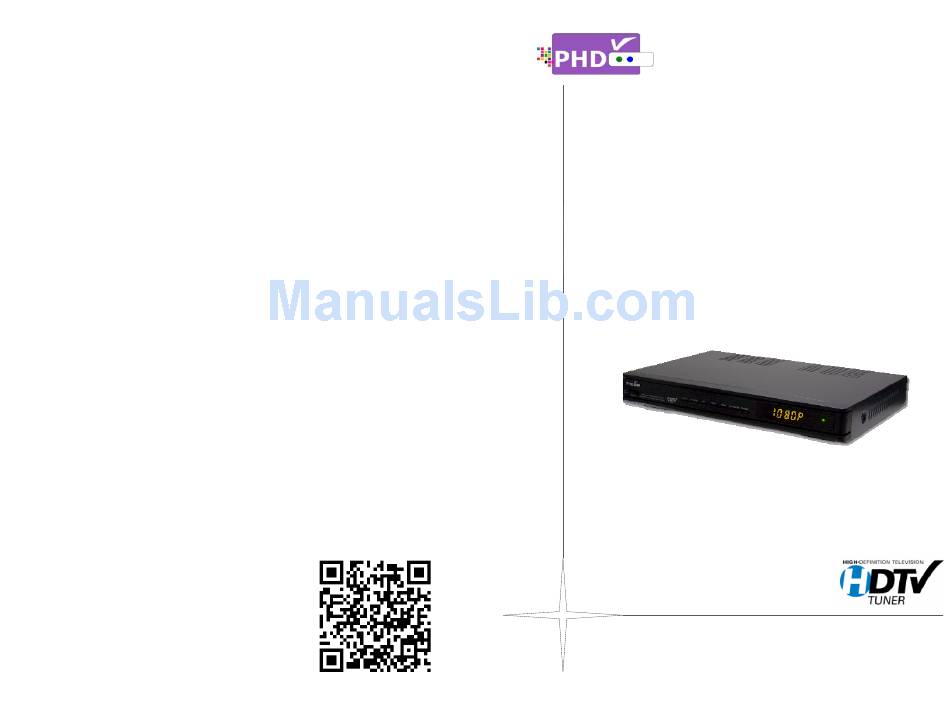

Full HD 1080p Dual Tuner Digital HDTV Recorder, Receiver and Media Center Box Quick Start Guide MODEL : PHD-VRX To view full version of PHD‐VRX user manual, USB DTV Recording and Timeshifting Operation Guide, please go to ©Copyright 2012, PrimeDTV Technologies, Inc. www.epvision.com/HDTVSTB/phdvrxmain.htm. PrimeDTV Technologies DOC# VRX‐sv1.02 ...
Page 2 Back View Front View • RF1 (Tuner 1), an ATSC/QAM/NTSC tuner to Switch unit ON and OFF. POWER Two Tuners receive digital and analog channels. (RF1, RF2) • Move TV channel number up, or CH+/UP • RF2 (Tuner 2), an ATSC/QAM tuner to receive • Move the on‐screen highlight up. only digital channels. • Move TV channel number down, or CH‐/DOWN Note: PHD‐VRX can only record or timeshift on digital • Move the on‐screen highlight down. channels only, not on analog channels. Use any of USB ports to connect external USB Two USB ports ...
Page 3 Contents Back View (cont.) PHD‐VRX Unit Accept composite video (480i) and stereo audio Composite inputs from external devices. Video and Audio inputs Accept component (Y‐Pb‐Pr) video Component (480p/720p/1080i) input from external devices. video input Connecting to external network. 10/100 2x AAA Batteries HDMI Cable • Connect NTP (Network Time Protocol) server Ethernet Port to synchronize the time for accuracy. •...
Page 4 Remote Control Switch unit ON or standby mode. POWER • CC: turn closed caption on or off. FUNCTION • ASPECT: change screen size. KEYS • V.MODE: change video resolution (480p/720p/1080p). • SLEEP: select preset timer for auto shut off. • TV: directly jump to Tuner 1 when unit is in other input. • PIP: (future option) • FREEZE: Pause video • AUDIO: digital/analog audio sound mode change. Press to enter numbers or change channel NUMBERS & numbers. DOT Display On‐Screen (OSD) main menu MENU Directions (Up, Down, Right, Left) and OK keys to NAVIGATION navigate menu. Exit the current menu or operation. EXIT ...
Page 5 Connections & Setup Connecting Antenna/Cable signal source On‐line video streaming access (future option). ON‐LINE KEYS 4‐color keys correspond to different features SHORTCUT 1. Connect an outdoor or indoor antenna directly to either Tuner 1 and quick access. KEYS or Tuner 2 jack with a coaxial cable. This is to receive over‐the‐air In TV mode, press to enable timeshift digital TV signals from TV broadcasters. function, which can pause live TV program as well as instantly rewind, fast forward, slow 2. Connect Cable signal source using a coaxial RF cable to either motion on live TV program. Tuner 1 or Tuner 2 jack. • FAV: Add or delete favorite channels FUNCTION • PICTURE: Select preset video picture settings. KEYS Increase or reduce audio volume. VOL+/VOL‐ Show full screen Electronics Program Guide with GUIDE schedule program recording capability. Display quick access menu. It comes with QUICK ...
Page 6 Connecting VGA/PC Input Connecting Composite Video Input PHD‐VRX has one VGA input port, which can be connected to PC or PHD‐VRX has one Composite video (CVBS) input port with associated external devices with RGB, H/V sync signals and audio. audio (R/L) input, which can be connected to any 480i/ Analog video external devices such like VCR, DVD players. Connecting HDMI Input Connecting Network PHD‐VRX has one HDMI input port. It can be connected to different HDMI devices such like Blu‐Ray player, DVD player, PS3, HD cable or 1. Connect PHD‐VRX Ethernet port to wired network from DSL, satellite boxes. Cable modem or home network router. The network connection will prompt the unit in sync with NTP (Network Time Protocol) for precise timing reference as well as on‐line video streaming and home network video server connection. Connecting Component (YPbPr) Input PHD‐VRX has one Component (Y‐Pb‐Pr) video input and audio (R/L) input, which can be connected to external HD devices with YPbPr 2. Connect to wireless network by using USB WiFi adapter is output. ...
Page 7 Connecting HDMI, Composite Video and Audio Outputs 3. Boot up time is usually taking about 30 seconds and front panel display showing “BOOT”. There will be NO video on TV screen 1. For high quality video viewing, connect HDMI output to your HD during boot up time. After boot up complete, front panel shows TVs or HD Projectors. PHD‐VRX has capacity to scale and enhance “no ch” and green light. all input video/audio signals up to 1080p resolution. Output 4. Follow on‐screen initial set up menus to complete the procedures: resolution can be adjusted among 480p/720p/1080p by using remote key . V.MODE 2. PHD‐VRX composite video and audio outputs are connecting to conventional analog TV for viewing and monitoring. There is no on‐screen menu available in this output and composite video/audio will be simultaneously outputting with HDMI. 3. To receive highest quality audio sound, connect optical digital audio output port to your Home Theater A/V receiver. Powering Up and Initial Setup After connecting PHD‐VRX with proper input/output sources, you need to power up unit and run initial setup including automatically scanning available channels. This initial setup is only required once at the first time turning on the unit. 1. Plug the Power cord from back of the unit into AC outlet. 2. Press Power button on the left side of front panel. Wait until red light/clock time came out. Press either remote key or POWER Standby button to turn on the unit. ...
