Harbor Breeze 80206 Installation Manual

Harbor Breeze 80206 Installation Manual

Bath ventilator with light
Hide thumbs

Advertisement

Table of Contents

I
n
s
t
a
l
l
a
t
i
o
n
G
u
i
d
e
80206
Bath Ventilator with Light
READ and SAVE THESE INSTRUCTIONS
1
42944-01 02/14/2008
42944-01_2-14-08_ARIAL.indd 1
2/14/08 4:02:29 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 80206 and is the answer not in the manual?

Questions and answers

Jean-Paul Betty
February 10, 2025

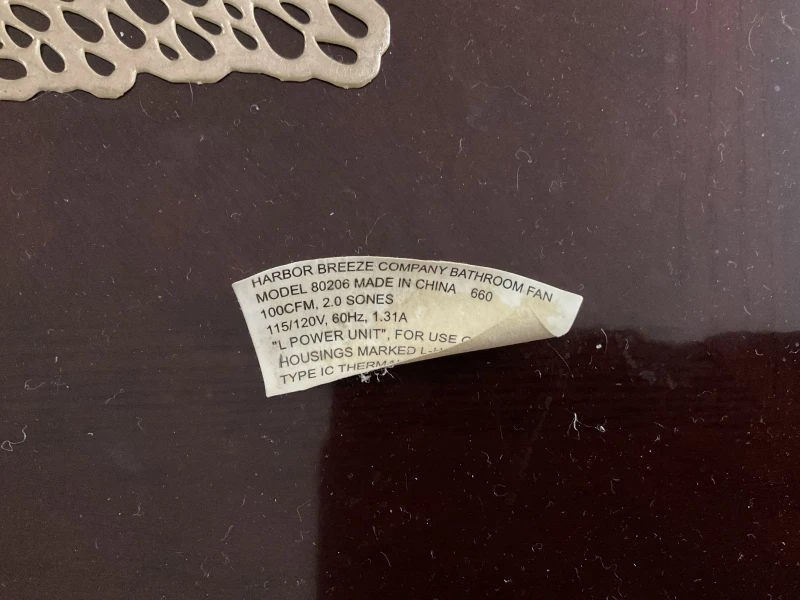

Where can i but a motor replacement for my ceilling **** model 80206 in Miami Fl

User image 67aa76a141178
0

Subscribe to Our Youtube Channel

Summary of Contents for Harbor Breeze 80206

  • Page 1: Read And Save These Instructions

    80206 Bath Ventilator with Light READ and SAVE THESE INSTRUCTIONS 42944-01 02/14/2008 42944-01_2-14-08_ARIAL.indd 1 2/14/08 4:02:29 PM...

  • Page 2: Power Supply

    TO REDUCE THE RISK Of fIRE, ELECTRIC SHOCK, OR INJURY TO pERSONS, OBSERVE THE fOLLOWING: 1. Use this unit only in a manner intended by the manufacturer. American Society for Heating, Refrigeration and Air-Conditioning If you have questions, contact the manufacturer. Engineers (ASHRAE), and the local code authorities.
  • Page 3 Check all the parts. 95044-01-000 Mounting Rails If damaged, call 1-866-405-3814 95022-01-000 for replacements. 75190-01-000 Housing 03242-07-133 Wiring Cover 95492-01-000 Wiring Cover Screw Motor/Blower 74508-03-133 3/8 in. Cable Connector Screws 77520-01 Strain Relief Bracket 65219 Strain Relief Bracket Screw Extra Screws 95510-01-000 Light Fixture NOTE: Strain relief cable...
  • Page 4 Remove the motor/blower from the housing. Remove packing material. Remove the pre-loaded screw tip covers. Back out the pre-loaded screw tips until flush with the side of the housing. Remove the wiring cover screw. Remove the wiring cover. 42944-01 02/14/2008 42944-01_2-14-08_ARIAL.indd 4 2/14/08 4:02:33 PM...
  • Page 5 pop out the first wiring access slug. Use second if needed. Insert the strain relief into the housing and secure with the washer. Choose Installation Option For New Construction - attaching to joist go to step A1, page 5 For New Construction - suspended between joists go to step B1, page 8 For Existing Construction - accessible from above go to step C1, page 11 For Existing Construction - accessible only from below go to step D1, page 15 New Construction –...
  • Page 6 pull wires through the strain relief. Ground Black Green 2 Pin Bare Copper White Black Main Switch 1 (AC In) Fan Motor White White Night Light Night Light 3 Pin Black Light Light Switch 1 (AC In) *Option Black Switch 2 (AC In) *Option Fan &...
  • Page 7 0 A7 Connect 4 in. duct and vent to the outside. Tape joints. Connect wiring from the motor/blower to the If ducting does not fit securely, an adapter may need wiring cover plate. to be purchased. Reinstall the motor/blower by inserting the tabs and pushing Secure the motor/blower by tightening the 2 screws.
  • Page 8 Go to step on page 18 to attach grille. New Construction – suspended between joists Slide the mounting rails into brackets. position the correct depth mark at the bottom edge of the joist based on the thickness of your sheetrock. 1/8 in.
  • Page 9 Insert screws, leaving space between the screw Attach the rails onto the screws. head and the joist. Screws are not provided. pull wires through the strain relief. Tighten screws. Ground Black Green 2 Pin Bare Copper White Black Main Switch 1 (AC In) Fan Motor White White...
  • Page 10 • Install the wiring cover plate. Make sure all Tighten the wiring cover plate screw. wiring connections are inside the box or under the wiring cover plate. Connect 4 in. duct and vent to the outside. Tape joints. Connect wiring from the motor/blower to the If ducting does not fit securely, an adapter may need wiring cover plate.
  • Page 11 O F F Turn on the power source. Test the motor/blower. If the motor/blower does not run, check the plug connection. Go to step on page 18 to attach grille. Existing Construction – accessible from above EXISTING FAN NO EXISTING FAN Remove an existing fan and check to make sure the Use the motor/blower housing as a template opening is large enough to accommodate the new...
  • Page 12 Cut out an opening for the housing. Slide the mounting rails into brackets. position the correct depth mark at the bottom edge of the Mark position of screws by using holes as a template. joist based on the thickness of your sheetrock. 1/8 in.
  • Page 13 Attach the rails onto the screws. Tighten screws. Connect 4 in. duct and vent to the outside. Tape joints. pull wires through the strain relief. If ducting does not fit securely, an adapter may need to be purchased. Tighten the strain relief screws. 42944-01 02/14/2008 42944-01_2-14-08_ARIAL.indd 13 2/14/08 4:02:59 PM...
  • Page 14 Ground Black Green 2 Pin Bare Copper White Black Main Switch 1 (AC In) Fan Motor White White Night Light Night Light 3 Pin Black Light Light Switch 1 (AC In) *Option Black Switch 2 (AC In) *Option Fan & Main Light Together Connect wires as shown.
  • Page 15 Secure the motor/blower by tightening the 2 screws. Turn on the power source. Go to step O F F on page 18 to attach grille. Test the motor/blower. If the motor/blower does not run, check the plug connection. Existing Construction – accessible only from below EXISTING FAN Remove an existing fan and check to make sure the open- Move the housing into position above the ceiling...
  • Page 16 pull wires through strain relief. Attach existing ducting to duct connector. Tape joints. If ducting does not fit securely, an adapter may need to be purchased. Screw pre-loaded screws into joist or framing. Ground Black Green 2 Pin Bare Copper White Black Main Switch 1 (AC In)
  • Page 17 • Install the wiring cover plate. Make sure all Tighten the wiring cover plate screw. wiring connections are inside the box or under the wiring cover plate. Connect wiring from the motor/blower to the Reinstall the motor/blower by inserting the tabs and push- wiring cover plate.
  • Page 18 Go to step O F F on page 18 to attach grille. Test the motor/blower. If the motor/blower does not run, check the plug connection. Attaching the Grille Remove the thumbscrews. Remove glass. Connect wiring harness. DO NOT ALLOW THE fIXTURE TO position the strain relief bracket between the plugs as HANG fROM THE WIRING HARNESS.
  • Page 19 Slide light mount over posts and attach thumbscrews. Install 2 Max 60 Watt A-15 bulbs (Not Included) WARNING: To reduce the risk of electrical shock, all 4 and 1 Max 7 Watt C-7 bulb (Not Included). thumbscrews MUST be properly installed. Align glass and push up.
  • Page 20 LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE LIMITATION OR EXCLUSIONS MAY NOT APPLY TO YOU. THE WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. printed in China © 2008 Hunter Fan Company 42944-01 02/14/2008 42944-01_2-14-08_ARIAL.indd 20 2/14/08 4:03:20 PM...
