SPEAKER PLACEMENT

Inwall LCR Speakers can be used in any position of a home theater
speaker system. A single Inwall LCR Speaker can be used for the
front center channel, or a pair can be used for left and right in the
front or rear of the system.
Using as a Center Channel Speaker
Inwall LCR Speakers have been designed to blend seamlessly
with all Proficient wall and ceiling speakers. Install the Inwall LCR
Speaker horizontally (for center channel applications) into the wall
as close to the screen as possible. This most often means it will
need to be installed just above or below the television. (Diagram 1)
Using as Front Left and Right Speakers
When using Inwall LCR Speakers for front left and right speakers,
position them vertically with the tweeter towards the screen.
(Diagram 1) Aligned with the center of the screen is optimal.

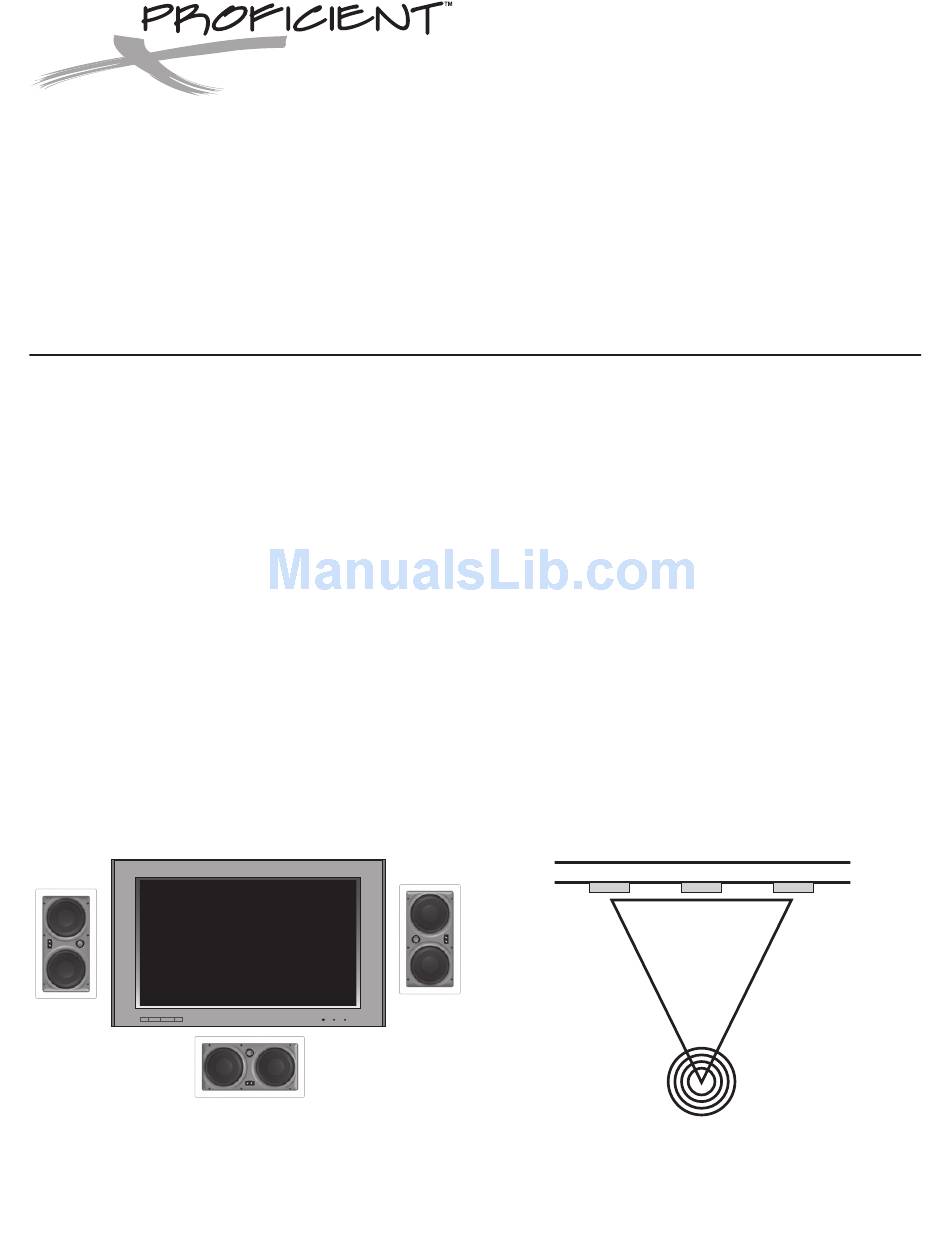

Diagram 1
Audio Systems
OWNER'S MANUAL
IW650 / IW625
Inwall LCR Speakers
The speakers should be placed so that they form an equilateral
triangle. (Diagram 2) If the speakers are positioned far away from
the primary listening area, adjust the pivoting tweeters so they are
pointed toward the primary listening area. Note: To avoid possible
damage to the pivoting tweeters, read the section entitled "SPEAKER
ADJUSTMENTS" in this manual prior to performing the tweeter
adjustment.

INSTALLATION CONSIDERATIONS

Before installing your speakers into the wall, you should consider
the placement carefully, taking into account the location of
electrical, plumbing and other fixtures.
Left Speaker Center Speaker
B
Ideal
Listening
Zone
Diagram 2
TOP VIEW
Right Speaker
A
C
A=B=C
