GSW CU-22A User Manual

Induction range
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

GSW
TM

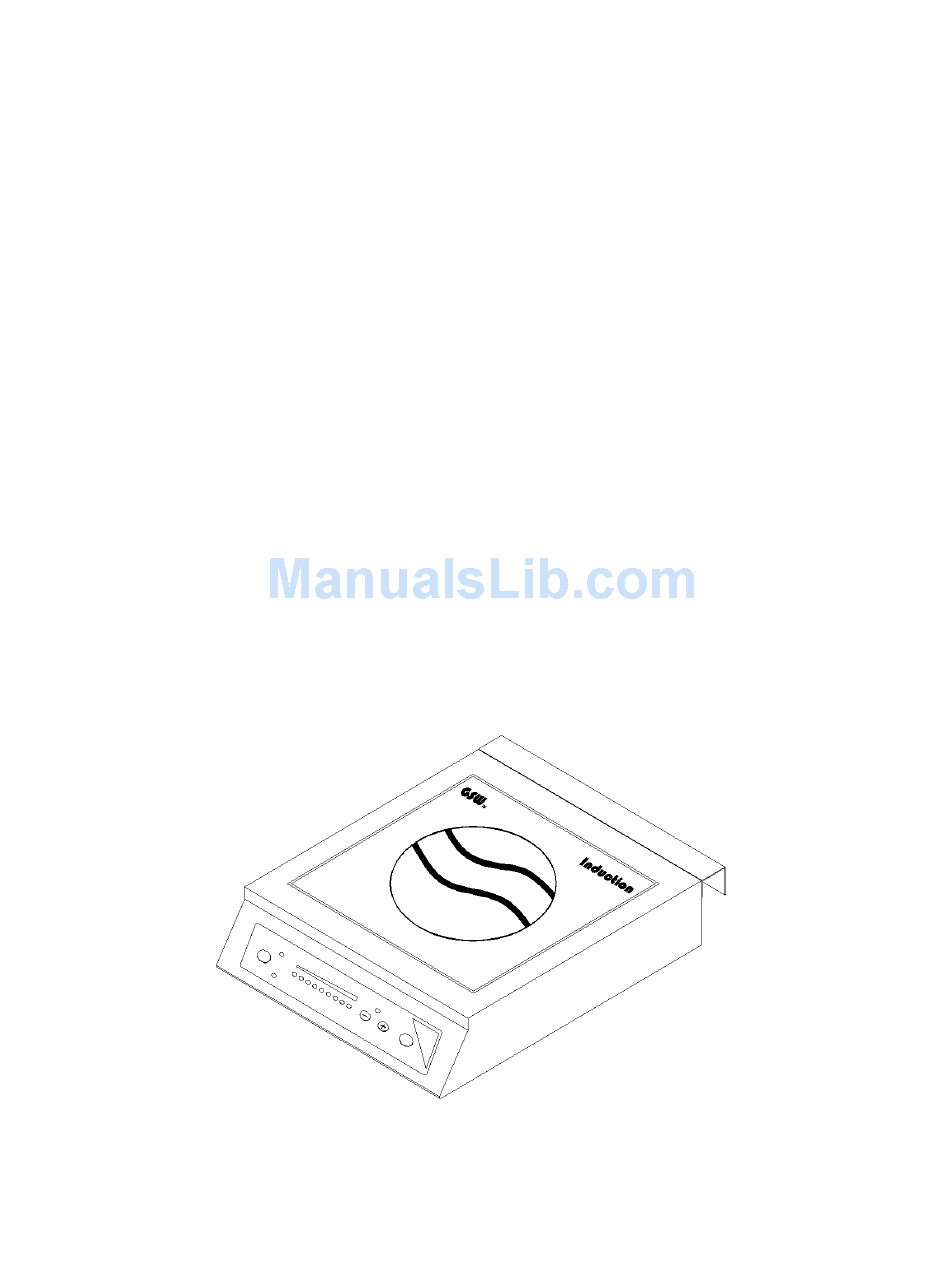

USER'S MANUAL
CU-22A INDUCTION RANGE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CU-22A and is the answer not in the manual?

Questions and answers

Summary of Contents for GSW CU-22A

  • Page 1 USER'S MANUAL CU-22A INDUCTION RANGE...
  • Page 2 USE AND CARE INSTRUCTIONS – IMPORTANT SAFEGUARDS READ ALL INSTRUCTIONS BEFORE OPERATION 1. Use an individual 208VOLT, 15 AMPERE electrical socket. 2. DO NOT block the air-intake panel as blocking may overheat the unit. 3. Use pans 12cm (4.75”) or larger in diameter. We recommend pans be less than 26cm (10.25”) in diameter.

  • Page 3: Safety Device

    SUITABLE COOK UTENSILS- FOR INDUCTION HEATING PLATES, SUITABLE POTS, 1. Iron 2. Cast iron 3. Stainless steel 4. Enamelware All pots and pans must have a magnetic bottom. All pots and pans must have a flat bottom. All pots and pans should have a diameter between 12cm (4.75”) and 26cm (10.25”) UNSUITABLE POTS, 1.
  • Page 4 IC Auto Reset Device Main control microprocessor equipped with watchdog device, the IC will auto reset when the software program goes wrong. HOW DOES YOUR INDUCTION HOB WORK? A high frequency (20-35KHz) induction coil underneath the surface ceramic top plate heats the cooking utensil by magnetic friction.
  • Page 5 “Temp Hold” indicator light will keep steady on. 9. Change temperature holding function to “COOK” function: Push “Select” function key again, and the function will back to “COOK” again. Control Panel: MODEL# CU-22A 1. Power On/ Off Key. 2. “Heating” indicator light. 3. “COOK” function indicator light.

  • Page 6: Features & Description

    FEATURES & DESCRIPTION: MODEL# CU-22A 1. 2,200watt Induction Heating Zone 2. Vitro-Ceramic Glass Top Plate 3. Bottom Chassis 4. Power on/ off key. 5. “COOK” function indicator light. 6. “Warm” function Indicator Light 7. Air-Intake 8. Air-Outlet 9. Foot Stand 10.

  • Page 7: Specification

    SPECIFICATION: Model No. CU-22A Induction Range Voltage 208V ~ 50,60Hz Vitro-Ceramic Plate 273mm X 273 mm (10.75” x 10.75”) Electrical Power Max. 2,200watt Consumption Electrical Power Approx. 250watt ~ 2,200watt Range Safety Device Over Time Protector (2Hrs.) Automatic Safety Shut-Off...

  • Page 8: Troubleshooting

    1. If your induction range seems to be working improperly, it doesn't necessarily mean it is faulty. In all cases, check the preceding points. 2. If you fail to identify the problem, contact your after-sales service center without delay. Contact: GSW Service Center 4151 NE Port Drive Lee’s Summit, MO 64064 800-458-1716...
