Summary of Contents for MICRO-D H.264

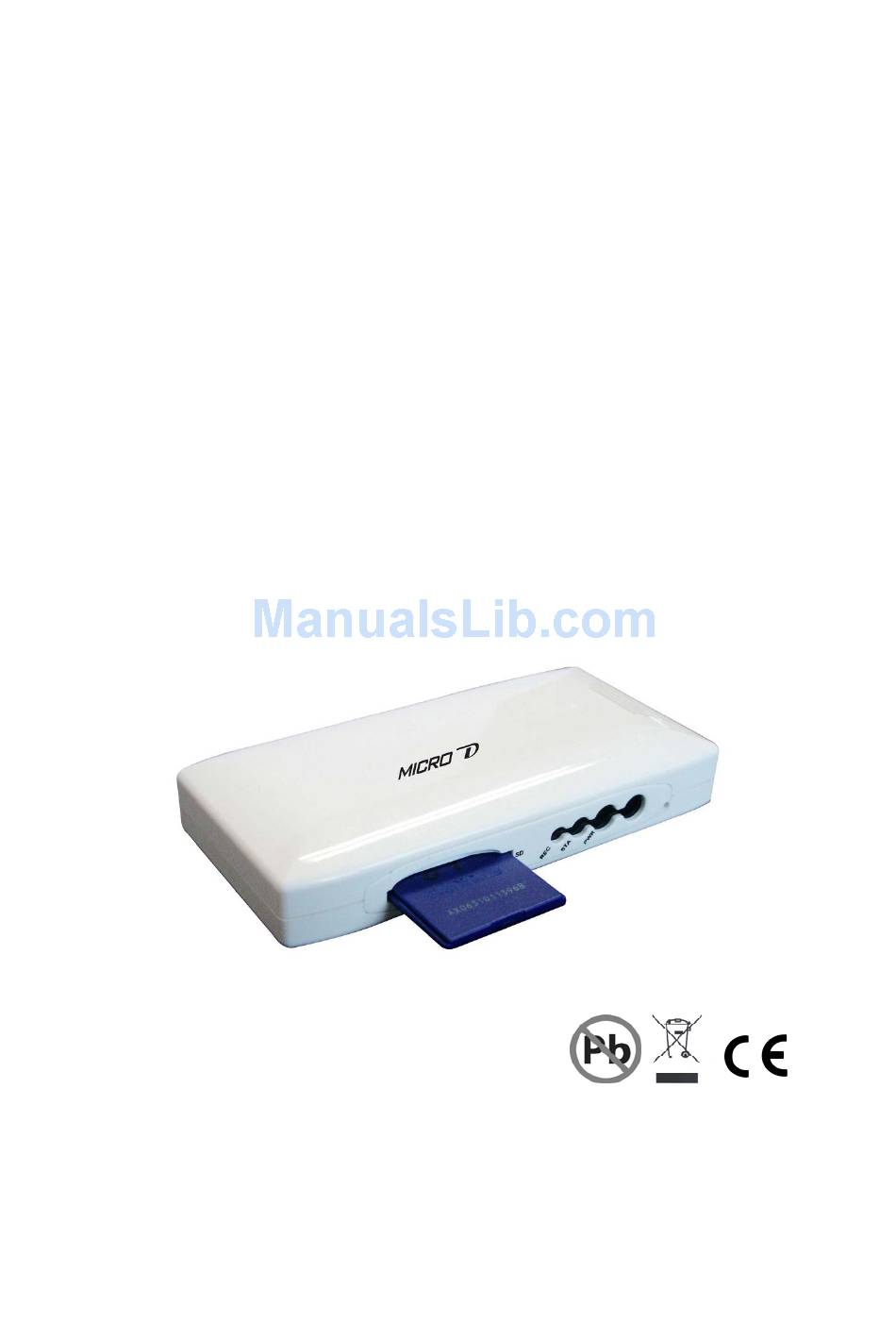

- Page 1 MICRO-D Manual V.1.3 H.264 DVR MICRO- Installation & User’s Manual ※ The contents of the manual can be modified without prior notice to customers...
- Page 2 The MICRO-D is manufactured to meet international safety standards. Read the following safety precautions to avoid injury and prevent damage to the MICRO-D or any products connected to it. 1. Use a correct power source. Do not connect this product to a power source that supplies more than the specified voltage (DC12V), as this will cause damage to the unit.
-
Page 3: Table Of Contents
MICRO-D Manual V.1.3 TABLE OF CONTENTS Chapter 1: Packing Contents CONTENTS IN THE PACKAGE Chapter 2: Getting To Know Your MICRO-D MICRO-D Chapter 3: Remote control REMOTE CONTROL PANEL Chapter 4: Getting Started OVERVIEW OF SET UP PROCEDURES Chapter 5: Hardware Installation... - Page 4 MICRO-D Manual V.1.3 5. EVENT SETUP 5.1 ALARM SETUP 5.1.1 ALARM INPUT 5.1.2 INPUT TYPE 5.1.3 ALARM OUTPUT 5.1.4 ALARM CONTINUE 5.2 MOTION DETECTION 5.2.1 SENSITIVITY 5.3 SCHEDULE SETUP 5.3.1 TIME 5.3.2 TIME AND EVENT 6. SUB MENU 6.1 PASSWORD CHANGE 6.2 FILE INDEX RENEW...
- Page 5 MICRO-D Manual V.1.3 Chapter 1: Packing Contents ▶ Contents in the package MICRO-D Main Unit Remote Controller AV-IN / AV-OUT Connector Terminal Block 12V Power Supply Installation CD Quick Guide Max. 32GB SD card SD Reader (Option) Can be used(Option)
- Page 6 ⑧ ① This chapter briefly describes the functions of each button on MICRO-D. The buttons are used to operate the basic functions of MICRO-D, such as recording, playback, fast-forward, reverse play and etc. For more details on the set-up and operation of MICRO-D, refer to Chapter 6, MICRO-D MENU.
- Page 7 MICRO-D Manual V.1.3 Sensor-in / Alarm-out The sensor-in is installed to connect Sensor Terminal Block on the main body of MICRO-D and alarm activates when event occurs. If you add motion sensor devices to your MICRO-D, the video recording can be triggered by event. The alarm output terminal is used to install a single alarm device.
- Page 8 MICRO-D Manual V.1.3 Chapter 3: Remote control Start EMERGENCY RECORDING or stops recording. Enter & Exit from OSD menu mode. MENU Change values from OSD menu. On SEARCH MODE, find recorded files. DOWN Change values from OSD menu. LEFT/ REW: Fast Rewind(X2-X4-X8-X16)
- Page 9 MICRO-D Manual V.1.3 Enter & Exit SEARCH menu. SEARCH Switch between playback mode and live view mode. MODE Remote Control Key Function on Each Mode(LIVE VIEW / PLAYBACK / MENU) LIVE PLAY BACK Function Stand-by Recording Stand-by Play Menu Remark...
- Page 10 MICRO-D does not record nor play the recorded stream. It just shows the current images from camera connected to MICRO-D. ● The default values of MICRO-D for recording are set up at 30 frames per second with High video quality. If you use 1GB SD Memory, MICRO-D can record approximately for 2 hours in a row.
- Page 11 ① Video Input/Output Connection (For TV / monitor screen display) To display images from the MICRO-D, connect the video output signal to your MONITOR or TELEVISION. Any Television with a VIDEO INPUT terminal is suitable for displaying the images. The diagram above shows the video signal connections.
- Page 12 - SDHC: SanDisk 4GB/ 8GB/ 16GB/ 32GB ※MICRO-D has limitation to generate files to 2000. In case of using high capacity SD card and recording files have short playback time, the total capacity of the SD CARD may not be fully used.
- Page 13 MICRO-D Manual V.1.3 ALARM INSTALLATION The MICRO-D has an internal switch for sounding an alarm. When a sensor is triggered, the alarm is activated as well. There are two steps to install an alarm. 1. Connect the alarm power lines to the alarm switch terminal.
-
Page 14: Main Menu
MICRO-D * * * * Press ‘MENU’ button on remote control to access to MICRO-D OSD menu. Please refer to ‘Chapter 3: Remote control’ about how to use remote control buttons. Password is ‘0000’ as default. The password can be changed on ‘[SUB MENU] [PASSWORD CHANGE]’. -
Page 15: System Setup
3.2.1 DAY LIGHT SAVING: SELECT ‘ON’, when you want to apply day light saving. Set up specific period when day light saving is applied. 3.3 TIME CORRECTION: When there is discrepancy between Micro-D time and actual time, user can correct the discrepant time. -
Page 16: Time Correction
MICRO-D Manual V.1.3 ※ Time correction is not applied on recording mode even when correction time comes. Full Recording (Emergency Recording) mode, recording block generates by 30 minutes. Time correction ‘ ’ is applied when 30 minute recording block closes on Full Recording mode. -
Page 17: Video Setup
MICRO-D Manual V.1.3 4. VIDEO SETUP 4.1 RESOLUTION Select video resolution(4CIF / 2CIF / CIF) LIVE VIEW Resolution - PAL HIGH NORMAL 4CIF 704x576 / 25fps 704x576 / 25fps 704x576 / 25fps 2CIF 704x288 / 25fps 704x288 / 25fps 704x288 / 25fps... -
Page 18: Video Quality
4.7 AUTO RECORDING: Starts recording automatically 30 seconds after power is up. 4.8 DISK OVERWRITE If overwrite is set to ON, the MICRO-D will continue recording while automatically overwriting the oldest recorded files when SD memory storage capacity is full. Set to OFF, the recording will stop when the SD Memory is full. - Page 19 MICRO-D Manual V.1.3 5. EVENT SETUP 5.1 ALARM SETUP: Setup ALARM CONDITION 5.1.1 ALARM INPUT: Setup ALARM INPUT ON/OFF Select 'ON' for ALARM EVENT RECORDING. 5.1.2 INPUT TYPE: Select alarm input type between ‘Normal Open’ and ‘Normal Close’ NC: NORMAL CLOSE NO: NORMAL OPEN 5.1.3 ALARM OUTPUT:...
- Page 20 The index file is automatically generated and stored in the SD card when inserted into MICRO-D. If the index file does not match the files actually stored in the SD card, users can synchronize the index file list and the actual file list.
- Page 21 In LIVE SCREEN MODE, ‘TIME & DATE’ information, screen icons and messages are displayed on the screen. 7.1.1 SCREEN MESSAGE Message Description Displays when the MICRO-D is initializing during booting. INITIALIZING… Displays when PLAYBACK &LIVE MODE are switched or searching WAIT…...
- Page 22 MICRO-D Manual V.1.3 7.1.2 SCREEN ICON Displays during EMERGENCY RECORD MODE. EMERGENCY Displays during MOTION - TRIGERED MODE. MOTION Displays during SENSOR-TRIGERED RECORD MODE ALARM Displays during SCHEDULE RECORD MODE. TIME Displays when empty space remains less than 5% of the total SD Card storage.
- Page 23 MICRO-D Manual V.1.3 7.2 SEARCH MODE When pressing ‘SEARCH’ button, LOGIN window appears. To Enter ‘Search Mode’, enter 4-digit password. 7.2.1 SEARCH LIST After pressing ‘SEARCH’ button on TIME remote control, click ‘LIST’. The search results will be listed. 2007 / 01 / 01...
- Page 24 MICRO-D Manual V.1.3 7.2.2-3 SEARCH FACTOR – BOTH:‘ When you select BOTH, search factors are combined in multiple conditions such as TIME and ALARM / TIME and MOTION /TIME and MOTION and EMERGENCY etc. 7.2.2-4 SEARCH FACTOR – NONE: To search all the recorded files stored in the SD card.
- Page 25 MICRO-D Manual V.1.3 APPENDIX TECHNICAL SPECIFICATION ITEM DESCRIPTION VIDEO Encoding H.264 Input Channel 1 Ch. Input impedance 75 ohm Unbalanced Input Format PAL/NTSC(Auto Detection), Composite, Auto detection function Maximum Input 1.0Vp-p @ 75 Ohm Unbalanced Output Channel 1 Ch. Output impedance...
- Page 26 MICRO-D Manual V.1.3 Alarm Input 1 Ch. TTL(Internal full-up) Output 1 Ch. TTL(Open collector) OPERATING MODE Searching Method Time/Event Operating MODE Live/Playback/Menu VIEWER SOFTWARE Monitoring Environment Client S/W Connection Supporting 1 Client A/Video Input 1Port, Female Stereo Phone Jack(include Jack Conversion Cable)
- Page 27 87hr 4min 148hr ※ Micro-D has limitation to generate files to 2000. In case of using high capacity SD card and recording files have short playback time, the total capacity of the SD CARD may not be fully used. ※Recording time can differ according to SD card kinds.
