AW-D900
User's Manual
Thank you for your purchase of the AW-D900 Wireless Ethernet Dome.

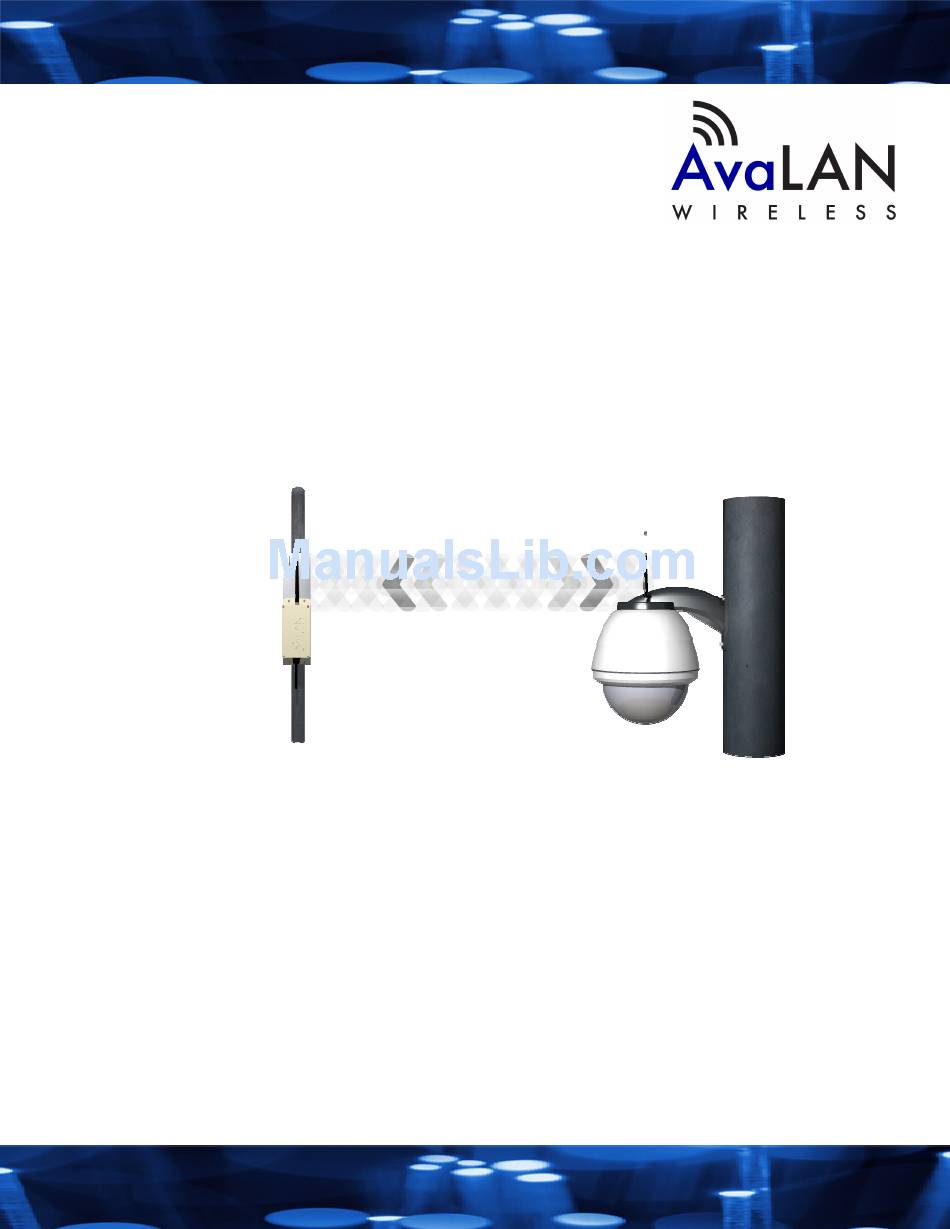

The AvaLAN wireless radio functions in place of an Ethernet cable and provides a
transparent wireless point to point Ethernet cable replacement.
AvaLAN radios automatically sense the type of network client device and cross-over
cables are never necessary.
The AW-D900 Kit Contains:
(1) Videolarm (FDW75C2N) outdoor dome housing with heater/blower
(2) 120VAC to 24VAC/40Va transformers
(1) AW-900x Mating radio transceiver
(2) AW2 2.5dBi omni antennae
(1) 120VAC to 9VDC power supply
(1) 30ft outdoor grade CAT5 cable
(1) POE (Power over Ethernet) injector
(1) Antenna/radio wall mounting kits
Advertisement
Table of Contents
Related Manuals for AvaLAN AW-D900
Summary of Contents for AvaLAN AW-D900
- Page 1 User’s Manual Thank you for your purchase of the AW-D900 Wireless Ethernet Dome. The AvaLAN wireless radio functions in place of an Ethernet cable and provides a transparent wireless point to point Ethernet cable replacement. AvaLAN radios automatically sense the type of network client device and cross-over cables are never necessary.
-
Page 2: Initial Setup
3. To optimize the camera for use over a wireless link please see camera performance FAQ at www.avalanwireless.com/support. Dome: 1. Install the Videolarm FDW75C2N/AW-D900 dome housing using the supplied 120VAC to 24VAC transformers. Please contact Videolarm for installation support on the dome housing. -
Page 3: Troubleshooting
LED display: The AW-900x Mate has a 16 LED display to display the status of the device. These LEDs can be viewed by removing the cover. Name Function Color Power Unit has power and has successfully booted. RF Link The radio has successfully synchronized with it Green partner. -
Page 4: Advanced Settings
Advanced Settings: Automatic frequency selection mode (DIP switches – all OFF for automatic mode The AW-900x is designed to automatically select and continuously optimize the performance of its radio channel. The radio channel is monitored to ensure it is providing low error rates necessary for successful radio transmission. In the event that the error rate rises, the AW-900x will autonomously change to a new channel. - Page 5 This product is warranted to the original purchaser for normal use for a period of 180 days from the date of purchase. If a defect covered under this warranty occurs Avalan will repair or replace the defective part, at its option, at no cost. This warranty does not cover defects resulting from misuse or modification of the product.
- Page 6 Appendix A - Antenna Alignment Guide V4 August 9, 2006...
