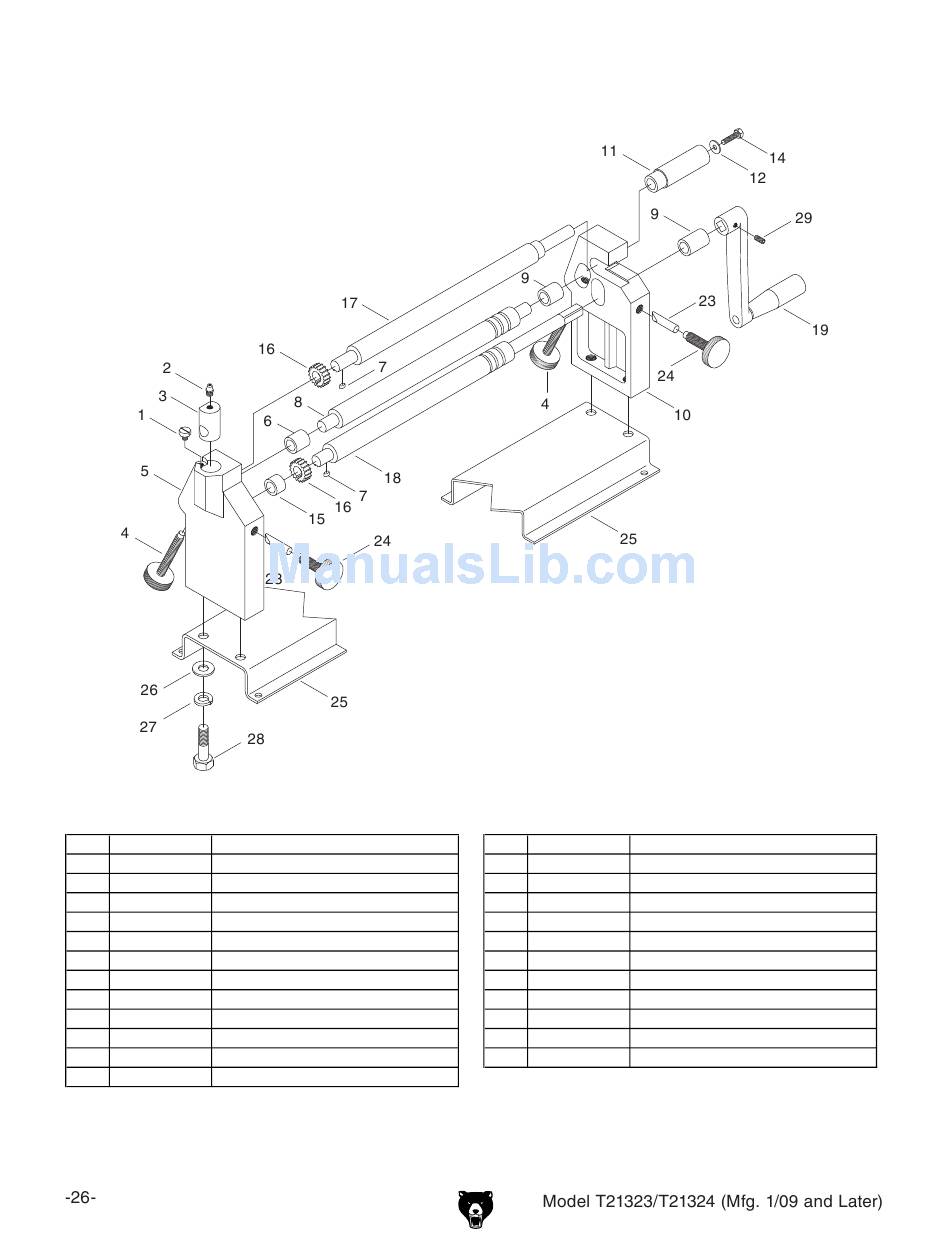

T21323 Parts Breakdown and List
REF PART #
DESCRIPTION
1
PT21323001
ADJUSTMENT SCREW
2
PT21323002
GREASE CUP
3
PT21323003
ROTATING SUPPORT
4
PT21323004
ADJUSTMENT KNOB
5
PT21323005
LEFT STAND
6
PT21323006
BUSHING
7
PK29M
KEY 4 X 4 X 8
8
PT21323008
REAR MOVABLE SHAFT
9
PT21323009
HANDLE SHAFT
10
PT21323010
RIGHT STAND
11
PT21323011
RELEASE ROD
12
PW03M
FLAT WASHER 6MM
14
PSB01M
CAP SCREW M6-1 X 16
REF PART #
DESCRIPTION
15
PT21323015
BUSHING
16
PT21323016
GEAR
17
PT21323017
FIXED SHAFT
18
PT21323018
FRONT MOVABLE SHAFT
19
PT21323019
HANDLE ASSEMBLY
23
PT21323023
PIN
24
PT21323024
ADJUSTMENT KNOB
25
PT21323025
BASE
26
PW04M
FLAT WASHER 10MM
27
PLW06M
LOCK WASHER 10MM
28
PB48M
HEX BOLT M10-1.25 X 20
29
PSS02M
SET SCREW M6-1 X 6
