Summary of Contents for Audiophile APS PurePower 500

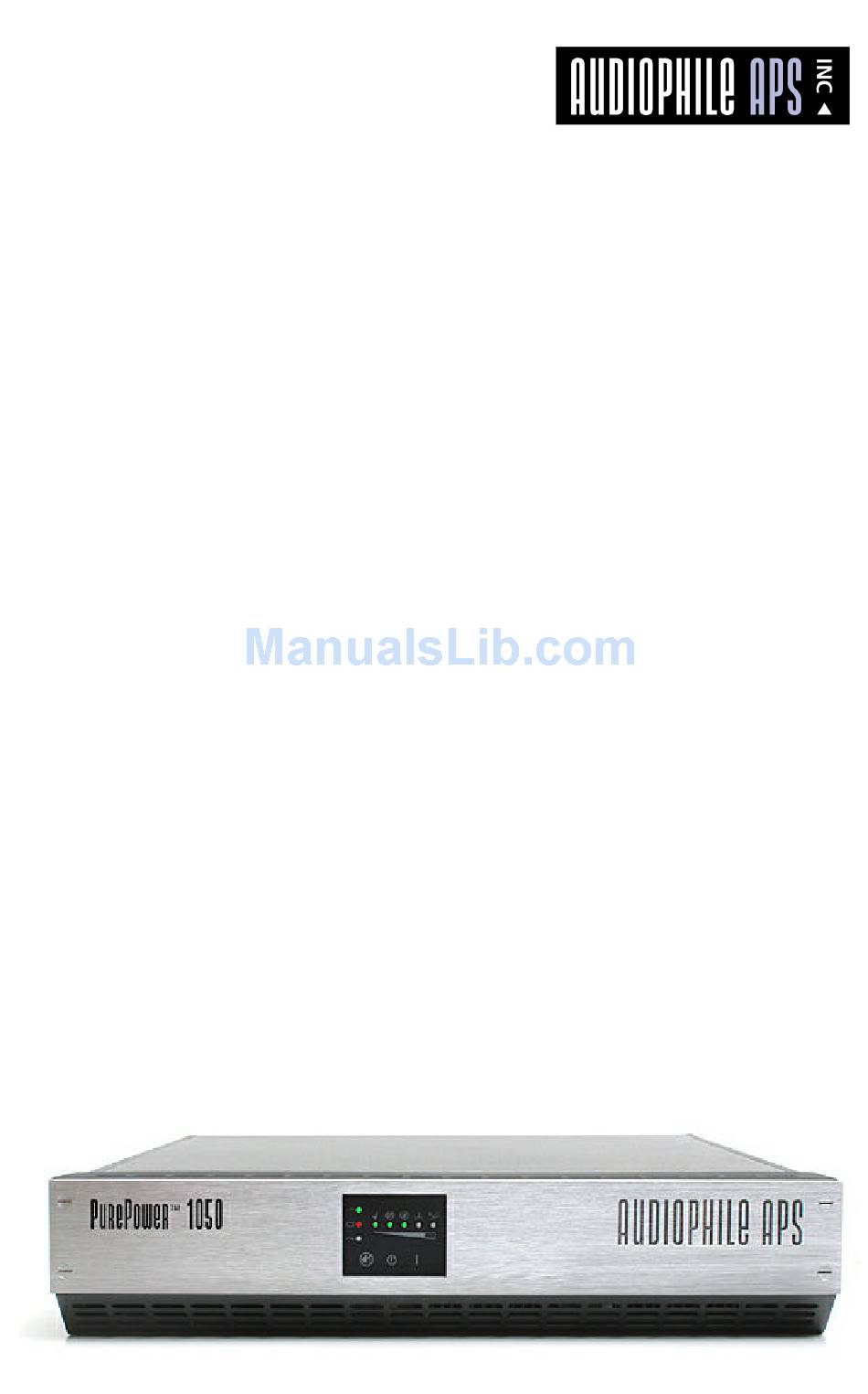

- Page 1 User’s Guide and Warranty Information PurePower 120 Volt models...
-
Page 2: Table Of Contents
Contents Table of Contents About the PurePower APS Safety Warnings Installation Inspecting the Equipment PurePower Preparation Activating Up Your PurePower Operation PurePower Maintenance Specifications Troubleshooting Service and Support | 01 Audiophile Power Supply • www.audiophileaps.com... -
Page 3: About The Purepower Aps
With the APS you can safely eliminate the effects of power disturbances and guard the integrity of your equipment. In addition to pure power, the Audiophile APS provides you with something unique in audio power regenerators - protection against power outage. The Audiophile APS maintains full wattage output even when the power fails completely. -
Page 4: Safety Warnings
Safety Warnings Safety Warnings Read the following precautions before you install the APS. IMPORTANT SAFTEY INSTRUCTIONS - SAVE THESE INSTRUCTIONS. This manual contains important instructions that you should follow during installation and main- tenance of the APS and batteries. Please read all instructions before operating the equipment and save this manual for future reference. -
Page 5: Installation
To file a claim for shipping damage or concealed damage: 1) File with the carrier within 15 days of receipt of the equipment 2) Send a copy of the damage claim within 15 days to your Audiophile APS dealer. 04 |... -
Page 6: Purepower Preparation
Installation APS Preparation The APS is designed for flexible configurations and can be rack mounted or placed on a shelf or as a standalone cabinet. If you are installing the APS in a rack, follow the instruction in “Rack-Mount Setup”. Standalone / shelf component When you position the APS horizontally on a shelf or in a non-rack style AV equipment stand or enclosure, ensure there is sufficient clearance for airflow through the grilles at front and rear of... - Page 7 Installation 06 | Pure Power in > Pure Sound out...
- Page 8 The APS can be installed in 19 or 23-inch racks and needs only 2U of rack space. Mounting rails or a rack shelf are required for your Audiophile APS. If rails are not already installed in your rack or included with your APS, contact your PurePower dealer.
-
Page 9: Activating Up Your Purepower
Installation Activating your PurePower APS The following steps explain how to install and start the APS. Activating the APS · Plug the components to be supplied into the APS output receptacles. The PurePower APS design allows any outlet to supply digital, analog or power amplifier components. ·... - Page 10 Installation Installing optional Power Packs Modules must be installed before powering the APS. CAUTION: A small amount of arcing may occur when connecting a PowerPack Module to the APS. This is normal and will not harm you. Insert the connection cable into the APS battery con- nector quickly and firmly.
-
Page 11: Normal Mode
Operation Operation The PurePower Front panel indicates the APS status through the LED indicators. Figure below shows the APS front panel indicators and controls. Figure 15. APS Front Panel Normal Mode During Normal mode, the ~ indicator illuminates and the front panel displays the percentage of APS load capacity being used by your system. -
Page 12: Battery Mode
Operation Battery Mode When the APS is operating during a power outage, the battery indicator illuminates. The front panel displays the approximate percentage of battery capacity remaining (see figure 17). When the utility power returns, the APS switches back to Normal mode operation and the batteries recharge. -
Page 13: Operation
Operation Turning the PurePower On After the APS is connected to a power outlet, it conducts a self-test and enters Standby mode. To turn on the APSoutput power, press the On | button on the front panel. The ~ indicator illumi- nates and the bar graph indicators display the percentage of available power being supplied by the APS. -
Page 14: Purepower Maintenance
APS Maintenance PurePower Maintenance PurePower APS and Battery Care For the best preventive maintenance, keep the area around the APS clean and dust-free. If the atmosphere is very dusty, clean the outside of the system with a vacuum cleaner. For full battery life, keep the APS at an ambient temperature of 21°... -
Page 15: Specifications
Specifications Specifications This section provides the following specifications for the PurePower APS · Electrical input and output · Weights and dimensions · Environmental and safety · Battery Model List Watts Weight Lb. (kg) Dimensions (HxWxD) PurePower APS Model 500 34 (15) 3.5 x 17 x 19.5”... - Page 16 Specifications Environmental and Safety Operating Temperature 0°C to 32°C (32°F to 90°F) Optimal battery performance: 21°C (72°F) Storage Temperature 0°C to 25°C (32°F to 77°F) Transit Temperature -25°C to 55°C (-13°F to 131°F) Relative Humidity 5-90% noncondensing Operating Altitude Up to 3,000 meters above sea level Transit Altitude Up to 10,000 meters above sea level Audible Noise...
-
Page 17: Troubleshooting
A higher wattage APS model may be required. * The Audiophile APS is capable of supporting up to 110% of its rated capacity for 2 minutes and up to 150% of its rated capacity for 30 seconds. 16 |... -
Page 18: Service And Support
For setup and support for your PurePower APS, please contact your authorized PurePower Dealer. For warranty service, please contact your authorized dealer or Audiophile APS. All PurePower APS models have a two year swap out warranty for original registered owners. If we are unable to solve a problem with your APS over the phone, we’ll send you a replacement unit. - Page 19 Pure Power in > Pure Sound out • www.audiophileaps.com...
