Summary of Contents for ElmoTech 1TRACK

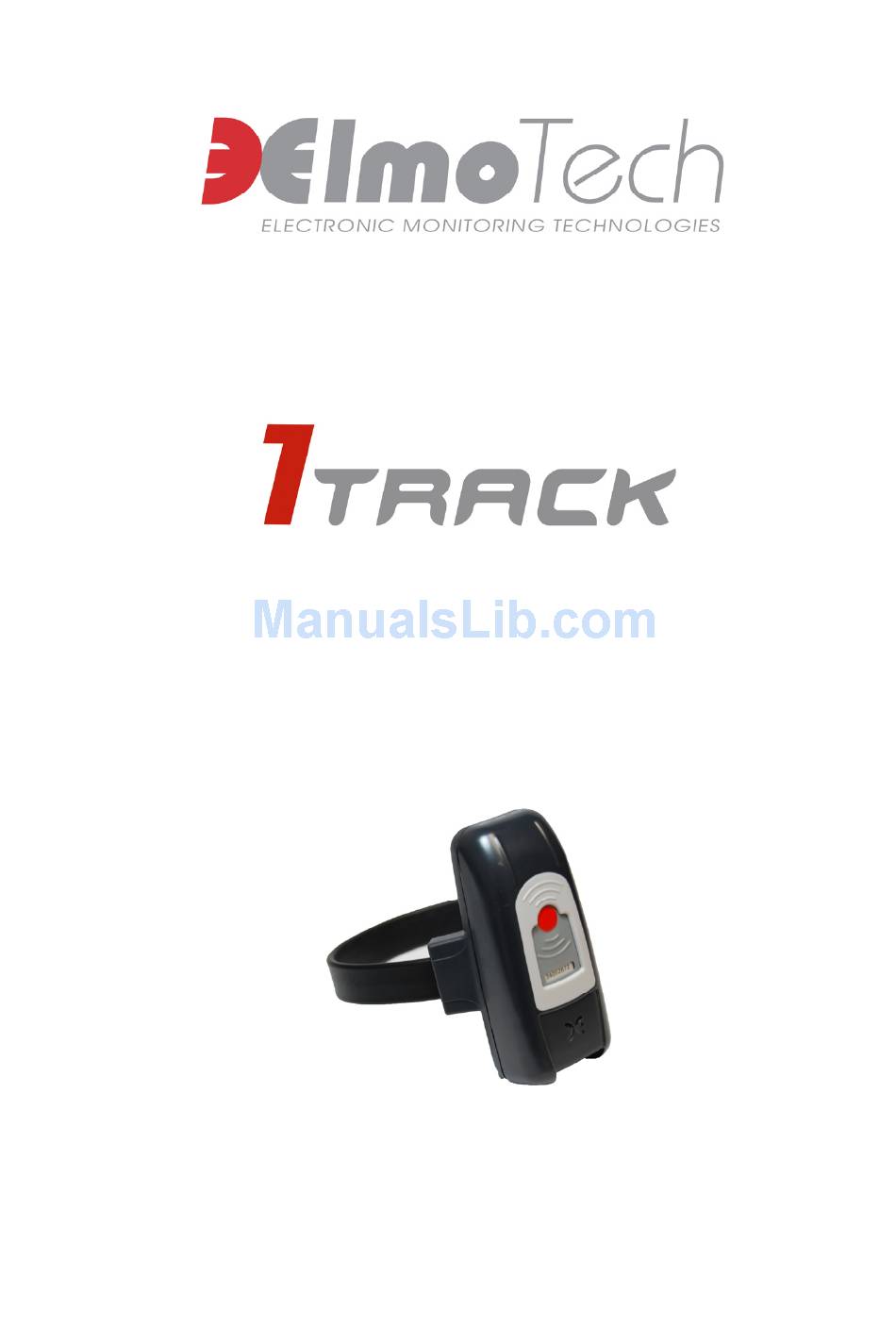

- Page 1 Installation and Operation Guide...
- Page 2 Elmo-Tech product. Contact Us Corporate Headquarters Elmo-Tech Ltd. 2 Ha-Barzel St., P.O. Box 13236, 61132 Tel Aviv, Israel Tel: 972-3-7671800 Fax: 972-3-7671801 U.S.A Customers, call 1-800-313-1483 E-mail: contact@elmotech.com Visit us at: www.elmotech.com...
-
Page 3: Table Of Contents
Table of Contents Introduction..............1 Components..............2 LED Indicators ..............2 Installing the 1TRACK Unit ..........5 Installation Equipment ............5 Installation Tools .............. 6 Verifying Offender Information in the E3-MWS ...... 6 Activating the 1TRACK Unit ..........6 Status Alerts ..............11 Low Battery ..............11... - Page 4 1TRACK Installation and Operation Guide List of Figures Figure 1 1TRACK Components ..........2 Figure 2 1TRACK LED Indicators ..........3...
-
Page 5: Introduction
1TRACK unit provides a trustworthy and reliable tracking system. The 1TRACK unit operates on the E3 software platform and benefits from over a decade of field experience. The 1TRACK unit tracks Offenders outdoors utilizing GPS technology and communicates the data to the monitoring center via GPRS. -
Page 6: Components
Figure 1 1TRACK Components LED Indicators The 1TRACK unit features three LED indicators on its top. Each LED can flash green or red to inform the Offender of the unit’s status. If vibration notification is enabled, the 1TRACK unit also prompts the Offender to look at the LEDs by vibrating. - Page 7 1TRACK LED Indicators The PWR LED indicates the condition of the 1TRACK unit battery. Flashing Green – The 1TRACK unit is activated or is in the process of being activated, and the battery does not need to be charged. Flashing Red – The 1TRACK unit is activated and the battery needs to be charged.
- Page 8 1TRACK Installation and Operation Guide Solid Red – The 1TRACK unit is connected to the charger and is not yet fully charged. The 1TRACK unit should not be disconnected from the charger. Off – While the 1TRACK unit is on and active, a turned-off PWR LED indicates that the unit has entered power save mode.
-
Page 9: Installing The 1Track Unit
Power adapter 1 strap 2 tamper plugs 2 pin trays Warning: The 1TRACK unit’s battery must be fully charged. Press and hold the Activation button (Figure 1) for one second to check the battery’s status. If the PWR LED flashes green, the battery is fully charged. -
Page 10: Installation Tools
Offender’s name and address Offender’s program type – 1TRACK Equipment serial number – This must match the serial number on the 1Track unit you are planning to activate SIM card details For more information about working with the E3-MWS system, refer to the E3-MWS Monitor Operator’s Manual. - Page 11 2 Installing the 1TRACK Unit 2. Into each bracket on the back of the 1TRACK unit, insert a tamper plug: a. Loosely place the tamper plug into the hole in the bracket. b. Place your finger over the right side of the...
- Page 12 1TRACK Installation and Operation Guide 5. Place the 1TRACK unit on the Offender’s leg, just above the ankle bone. 6. Wrap the strap around the Offender’s leg and determine the point on the strap that lines up with the corresponding bracket while leaving approximately ¼...
- Page 13 12. Call the monitoring center and request that they download the Offender’s program to the unit. 13. Take the 1TRACK unit outside to enable it to acquire a GPS signal. Once GPS has been acquired, the 1TRACK unit vibrates once and the GPS and Zone LEDs stop flashing.
-
Page 15: Status Alerts
Status Alerts The following sections provide a reference to the various status alerts that can be generated by the 1TRACK unit, and their indications. Low Battery The 1TRACK unit’s battery is running low and needs to be charged. This status is indicated by the following: The device initially vibrates three times. -
Page 16: Motion No Gps
The device vibrates once every ten minutes until the device is connected to the charger. Strap Tamper The strap has been damaged or cut. By default, the 1TRACK unit does not indicate that this status has occurred. If vibration notification is enabled, the unit vibrates to indicate this status. -
Page 17: Geographic Zone Alerts
3 Status Alerts Geographic Zone Alerts The Offender has violated one or more zone restrictions: Inclusion Zone – Geographic areas like home or work in which the Offender is required to be during prescheduled intervals. Being outside of a required Inclusion zone registers as a violation. -
Page 19: Dismantling The 1Track Unit
In addition, make sure to bring the original carrying case for the 1TRACK unit. Performing an End of Service In some cases, the 1TRACK unit must be removed before the Offender’s defined confinement period is complete. In this case, you must perform a manual end of service procedure before deactivating the 1TRACK unit. -
Page 20: Removing The 1Track Unit
1TRACK Installation and Operation Guide Removing the 1TRACK Unit To remove the 1TRACK unit: 1. Cut the strap using the strap cutter and remove the 1TRACK unit from the Offender’s leg. 2. Using the flathead screwdriver, push on the tamper plugs and break them. - Page 21 6. Repeat steps 4 and 5 for the other side of the strap. 7. Collect the tamper plugs, the pin trays, and the strap pieces. Do not leave any disposable items. 8. Pack the 1TRACK unit and its power adapter into their original carrying case.
-
Page 23: Cleaning The 1Track Unit
Cleaning the 1TRACK Unit Cleaning the 1TRACK unit is recommended to keep the unit functional and in good working order. To clean the 1TRACK unit: 1. Spray the unit with 3M Citrus Base cleaner, or an alcohol based equivalent. Using a damp cloth or towel, clean the unit with soapy water.
