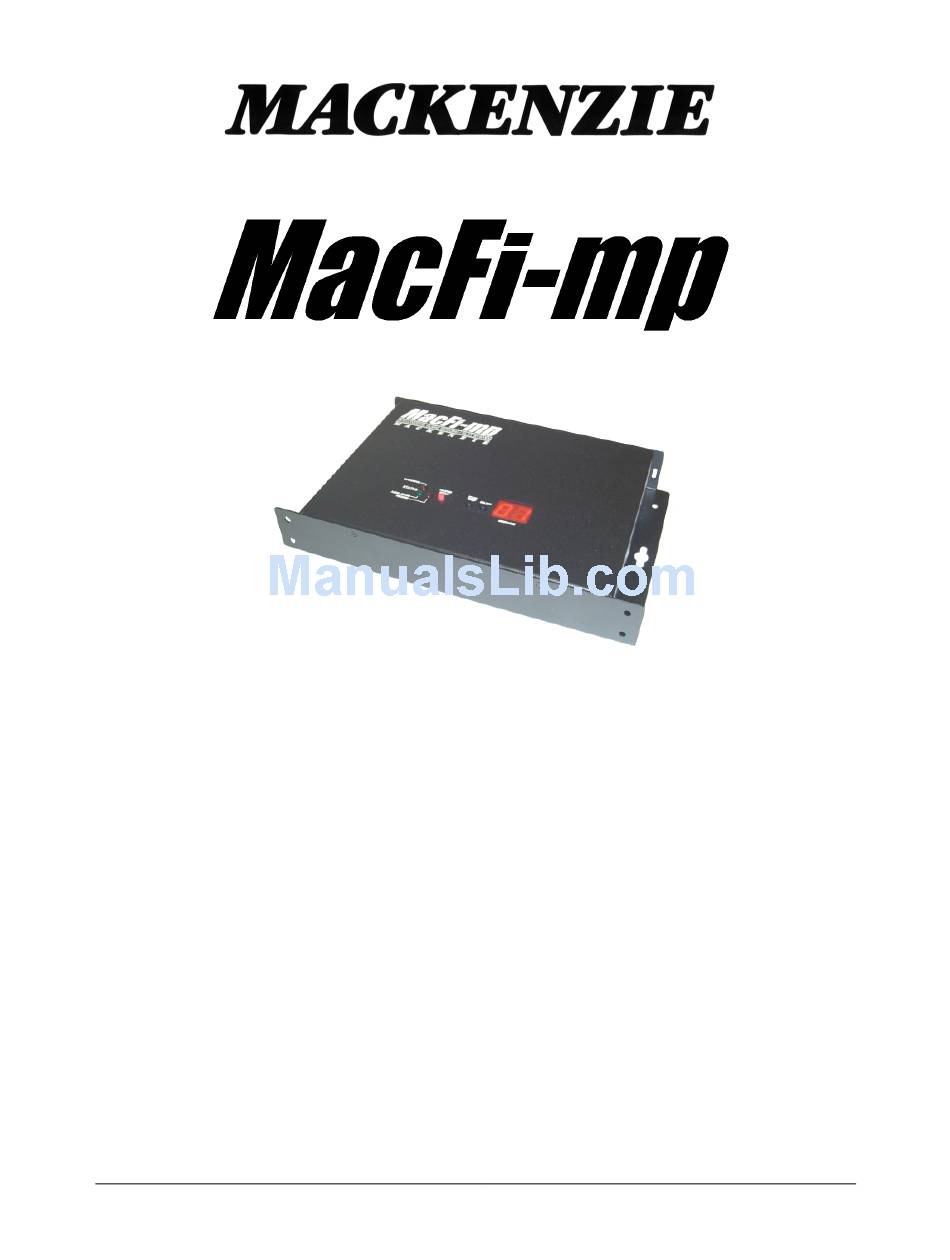

- Page 1 MP3 DIGITAL AUDIO RECORD/PLAY SYSTEM User's Manual Version 1.0 Revised 05/14/2003 Doc 99-20-043 - $25.00 MACKENZIE LABORATORIES, INC. Tel: (909) 394-9007 Fax: (909) 394-9411 1163 Nicole Court Email: info@macklabs.com Glendora, CA 91740 USA Web: www.macklabs.com...
- Page 2 General Safety Instructions Always follow these basic safety precautions when using the system: 1. Read carefully and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. DO NOT block or cover ventilation slots and openings. 4.
-
Page 3: Table Of Contents
Table of Contents OVERVIEW.................. 5 Features and Capabilities............5 1.1.1. MacFi-mpe - Enhanced Features ........6 General Specifications ..............6 INSTALLATION & CONFIGURATION.......... 8 Installation Steps..............8 Hardware Configuration ............8 2.2.1. Power................8 2.2.2. Configuration Switches............9 2.2.3. Connector 1 ..............12 2.2.4. - Page 4 Shipping Container Contents The following items should be found in the container of MacFi-mp, MP3 Digital Audio Record/Play System: ▪ MacFi-mp System ▪ Installation and User Guide ▪ Set of four rubber feet Hardware Configurations ▪ MacFi-mp 40; 99 messages, 40 minutes ▪...
-
Page 5: Overview
Record and Stop inputs and a Play relay output are also accessible via terminals. The MacFi-mp offers up to 99 messages and 40 minutes of MP3 audio. MP3 supports up to 15kHz bandwidth and 80 dB of dynamic range. All 99 messages are accessible from the user interface on the MacFi-mp with 8 remote start inputs accessible via the remote activation pluggable terminal. -
Page 6: Macfi-Mpe - Enhanced Features
1.1.1. MacFi-mpe - Enhanced Features The MacFi-mpe version adds the following features to the standard unit: -RS-232 (Serial) control of recording and playback -RS-232 (Serial) download of MPEG layer 1, 2 or 3 (MP3) files. -Synchronization Relay -Front mounted controls General Specifications Audio Coding: Recording:... - Page 7 Remote Activation I/O: Control Inputs: Record, Stop, 8 individual message Start contacts. ICM-25(Option): Add to the MacFi-mpe for 25 more start inputs per module. Status Outputs: Playing, Sync(MacFi-mpe version only) Output Type: Dry relay contact, 1A @24VDC non- inductive load Connection: Pluggable terminal Mechanical:...
-
Page 8: Installation & Configuration
2. INSTALLATION & CONFIGURATION This section provides complete instructions for mounting the MacFi-mp, MP3 Digital Audio Record / Play System on a wall or table. It also illustrates all interface requirements to auxiliary equipment, including inputs and outputs. Configuration switch settings are provided. -
Page 9: Configuration Switches
DOWN ( ) position is ON. This user adjustable dip switch is provided to allow the user to tailor the operation of the MacFi-mp to meet their demands. NOTE: Dip switch settings are only established at system power up. To change settings, disconnect power, change the dip switch settings, then re-apply power. - Page 10 Play one sequence per closure: If an activation input is maintained, the system will only play the message sequence one time. The MacFi-mp will wait for the input to go inactive for 100ms before it will recognize that input for subsequent message activations.
- Page 11 message may be queued more than once. Any activation issued once the queue is filled will be ignored. A stop command will stop the message which is currently playing, and when released, the next message in queue will begin playing. If multiple inputs are held active and maintained, the system will play each message sequence once then stop.
-
Page 12: Connector 1
Play Next Enabling Play Next allows Start 8 input Disable (Connector 1, Pos. 9) to initiate playback of the Enable next valid message sequence. The first start activation after power on will play message 1. All operation modes are supported and other start inputs (1 - 7) are disabled. -
Page 13: Connector 2
2.2.4. Connector 2 3 position terminal connection. Used for remote activation of recording. 1 Record Input, connect to common on Connector 1 to enter record setup mode. 2 Future Use 3 Future Use For remote recording procedure, reference section 3.2. 2.2.5. -
Page 16: Audio Out Line
Always connect the speaker directly across the supplied terminal connections. 2.3 Pushbutton & LED Configuration Pushbuttons and LED’s are located on the top of the MacFi-mp allowing easy and convenient message recording and playback. The following describes use of the Status and Message Sections. -
Page 17: Audio Sense Indicator
This push button configures the MacFi-mp for record mode. Pressing this button will cause the record LED to blink, verifying the MacFi-mp is in record setup mode. Depressing this button while still in record setup mode will exit this mode and turn off the record LED. -
Page 18: Select Button
2.3.7. Message Number and Status Display These two seven segment LED’s indicate which message is selected and provide a variety of status indications for the MacFi-mp. See the table below for an explanation of the different modes of the display. - Page 19 Display Reads Cause Cycles through all No messages to select for playback. segments 1 - 99 Message number playing or recording Both Decimals Blink Message location is occupied Right Decimal Solid Delay, Pause or Repeat configuration has been modified on MacFi-mpe Bad Block Memory Test* MacFi-mpe serial port set for 115200** MacFi-mpe serial port set for 9600**...
-
Page 20: Operation
3. OPERATION 3.1 Recording - Local Local recording is achieved through the LED’s and buttons located on the top of the MacFi-mp unit. Please reference the Manual Button & LED Configuration section of this manual for additional information on functions. -
Page 21: Playing-Local
Step 6 – Release recording input to exit record mode. 3.3 Playing-Local Local playback is achieved through the LED’s and buttons located on the top of the MacFi-mp unit. Please reference the Manual Button & LED Configuration section of this manual for additional information on functions. -
Page 22: Memory Clear/Test
- or - allow message to play to end at which point, system will return to idle mode. MacFi-mp will ignore an input which corresponds to an empty or corrupt message location. Play relay contact will be maintained for the duration of play sequence. -
Page 23: Macfi-Mpe Enhanced Features
4. MacFi-mpe ENHANCED FEATURES The purpose of this section is to document and explain the added features of the MacFi-mpe. In brief, these features include RS-232 (Serial) control and Synchronization Relay. These features also change some physical attributes of the original MacFi unit. -
Page 24: Warranty, Service & Returns
5. WARRANTY, SERVICE & RETURNS The industrial grade housing and quality construction of the Mackenzie MacFi-mp virtually eliminates the need for service or maintenance. There are no user-serviceable components within the Mackenzie MacFi-mp. Refer all servicing to the factory. 5.1 Warranty Coverage:... -
Page 25: What We Ask You To Do
After repairing or replacing your MacFi-mp system, we will ship it to your return address at no cost to you within the USA. Repair or replacement of your MacFi-mp system at our factory is your exclusive remedy. - Page 26 NOTES: _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ _________________________________________________________ ____________________________________...
- Page 27 Phone: _________________ Fax: ___________ Email:____________ Purchased From: ___________________________ Date:__________ Address:_________________________________________________ City:__________________________ State:_________ Zip:_________ Phone: _________________ Fax: ___________ Email:____________ Return warranty card to Mackenzie Laboratories Inc., 1163 Nicole Court, Glendora, CA 91740 USA - or - Email information to registration@macklabs.com ----------------------------------------------------------------------------------------------...
- Page 28 Glendora, CA 91740 USA OTHER MACKENZIE PRODUCT LINES Message On Hold & Storecasting - Mackenzie's full line of digital Message-On- Hold systems, turn your telephone into a powerful marketing tool. The DYNAVOX series offers maintenance free digital playback with tape, modem or satellite download.
