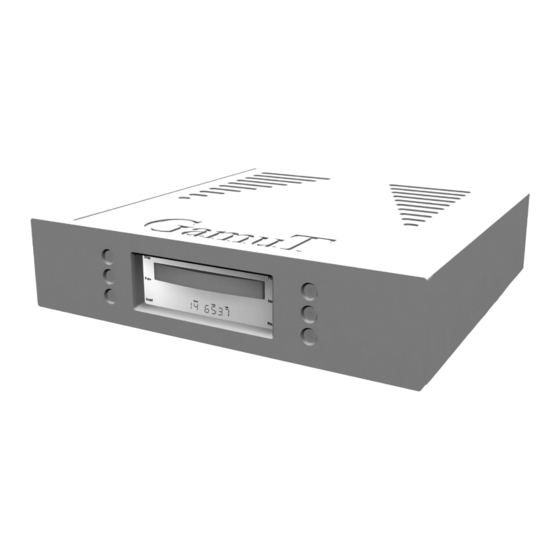

Summary of Contents for Gamut CD 3

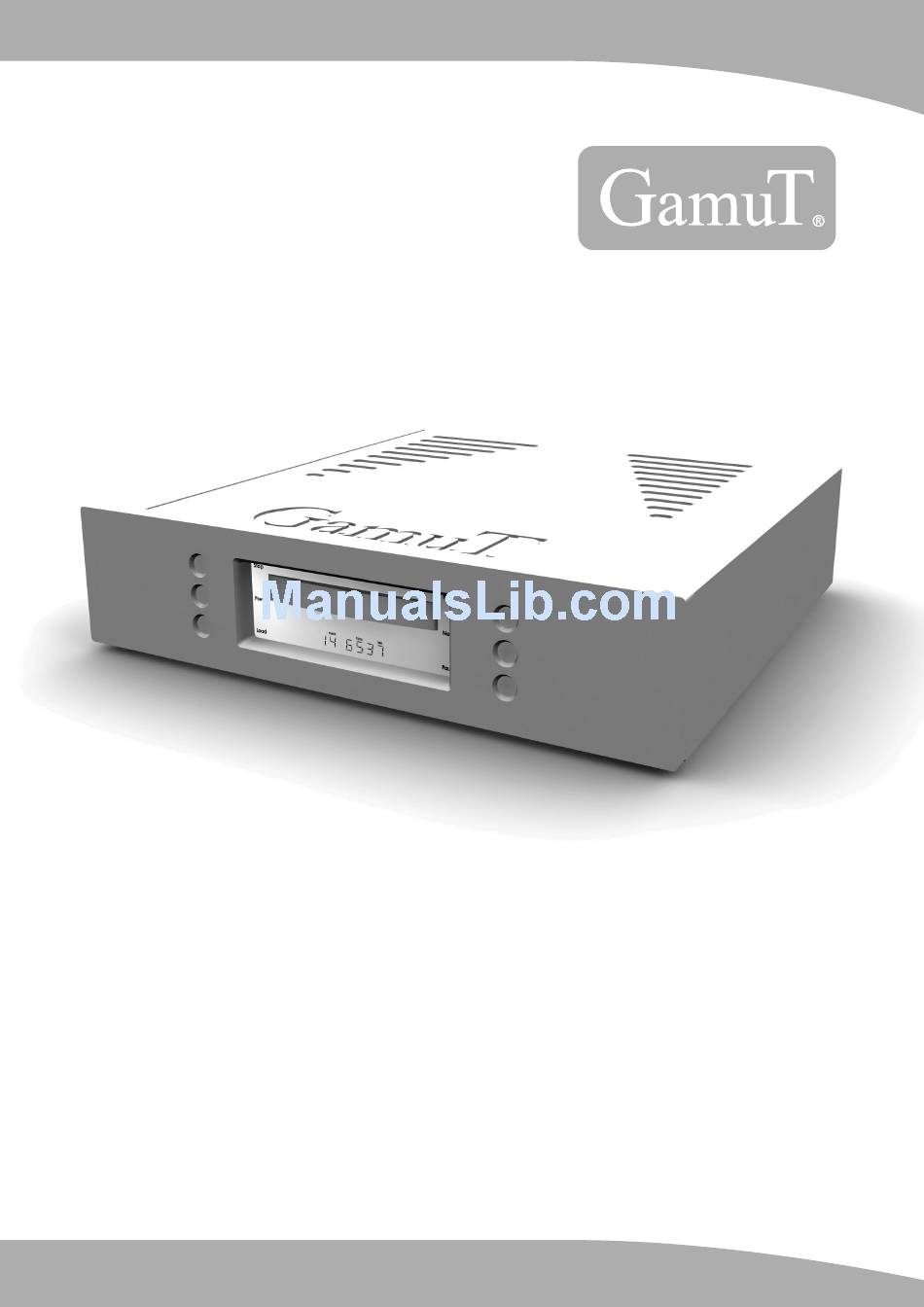

- Page 1 CD 3 High Performance CD Player User guide...
-
Page 2: Table Of Contents
CD 3 Contents Contents Contents of the CD 3 box Safety instructions Warning: Never: Always: About the GamuT CD 3 Design considerations Electrical circuitry considerations Unpacking Placement Connecting to the mains Connecting to other equipment Outputs XLR pin connection of the balanced in- and outputs... -
Page 3: Contents Of The Cd 3 Box
Contents of the CD 3 box • One GamuT CD 3 CD player • One mains cord with plug for either 115VAC or 230VAC • One GamuT RC1 Amp/CD-player remote control unit • Two AAA batteries Siggaardsvej 2 DK-6818 Årre... -
Page 4: Safety Instructions
• Check that the GamuT CD 3 mains fuse rating is set correctly for your local mains voltage. Please see the label at the rear next to the mains inlet. -
Page 5: About The Gamut Cd 3
This does not only contribute to the touch and feel factor, but is essential for a long lasting life even in a tough environment. A GamuT product is build to be used daily and we expect our product to be in the “fi eld” for many years to come. -
Page 6: Placement
CD 3 Placement The CD 3 will get hot during use. It is important that it has free space all around the player, especial- ly sides and the top. Please make sure that there is at least 10 cm (4 inches) of free space all around the CD player. -
Page 7: Connecting To Other Equipment
Some other brands have Pin # 2 and 3 reversed. They will work together with your CD 3, but the absolute phase will be reversed. You can solve this by reversing the wires in the male plug of your balanced interconnects. -
Page 8: How To Operate
CD 3 How to operate Turning on the power is done using the main switch; at right hand lower corner just behind the front panel. The player will always start up by searching for and reading the TOC (table of contents) of the disc, display will show “-- ----“... -
Page 9: The Remote Control
The remote control Overview CD player functions: Open/close A-B repeat Repeat one/all Program (CD 1 only) Display dim Remain (CD 1 only) Direct track selection 1-10 / 10+ Play Pause Stop Next track Previous track Fast forward Fast backwards Amplifi er functions: Volume up Volume Down Next source toggle... -
Page 10: Functions
CD 3 Functions Loading a disc Pres Open button or the of the remote. The drawer will momentarily open and enable you to load a CD. Push the open button or of the remote, to close the drawer. Please allow the CD player to read the Table of content before pushing any buttons on the face plate or on the remote control. -
Page 11: Repeat Functions
Just press the “stop” button or the on the remote. The track will stop and the display will go show the TOC like when the record was loaded. Repeat functions The CD 3 offers three kinds of repeat functions; A-B repeat Repeat Repeat 1 1. -
Page 12: Burn-In And Warm Up
Should you ever require service, you can either contact your dealer or national distributor, who can solve any problems locally. You are also very welcome to contact GamuT International A/S directly if you need any information or help. Our contact information is listed on the last page of this user guide. -
Page 14: Technical Information
CD 3 Technical information Output Level: 4,35Vrms Balanced 2,15Vrms Unbalanced Signal to noise ratio: 124dB Balanced 112dB Unbalanced Noise level: <5uV Balanced <10uV Unbalanced THD+N: <0.0009% D/A converter: 24-Bit, 192kHz upsampling Output impedances: Balanced output 150ohm Unbalanced output 75ohm Digital output 75 ohm XLR pin information: 1.Ground... -
Page 15: Every Musical Note
It is Gamut´s mission to give to you these unique musical feelings. - Page 16 Siggaardsvej 2 DK-6818 Årre Denmark Tel: +45 70 20 22 68 www.gamutaudio.com info@gamutaudio.com...
