Summary of Contents for ENIGMAcoustics Sopranino

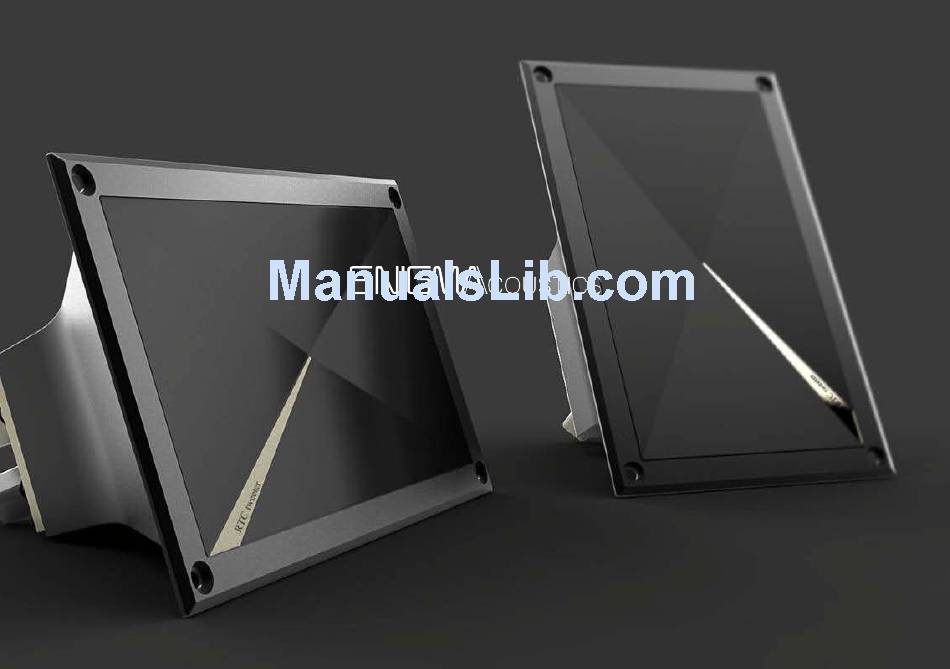

- Page 1 Owner’s Manual Sopranino Electrostatic SuperTweeter...
-
Page 2: Important Safety Instructions
Service IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. Do not dismantle the unit. There are no user-serviceable 2. Heed all warnings. parts inside. 3. Do not use this apparatus near water, high humid All service must be performed by qualified personnel environment. -
Page 3: Table Of Contents
Technical Specifications ..........10 Contents Warranty Card …………………………………………..……11 IMPORTANT SAFETY INSTRUCTIONS....……..1 Service.................. 1 Introduction................. 3 Content of Package............3 Overview ................4 Back panel ..............……4 Front..................5 Positioning................6 Connecting................7 Adjustment and tuning............8 Crossing over with main loudspeakers ......... 8 Matching the main loudspeakers .......... -
Page 4: Introduction
2 x Handling gloves resolution music source. Your main loudspeakers still provide the core of the music, but are supplemented by the Sopranino SuperTweeter at extremely high frequencies. Musical information contains transient information, beyond... -
Page 5: Overview
Overview Back panel 1. Crossover Frequency: LOW: Cut off input frequency at lower crossover point MID: Cut off input frequency at middle crossover point HIGH: Cut off input frequency at higher crossover point 2. Speaker terminals: +: Parallel connection to main speakers’ positive (+) terminal --:Parallel connection to main speakers’... -
Page 6: Front
Front View Left Channel Right Channel The left and right channels of Sopranino are fully symmetric design for aesthetic and user friendly considerations. -
Page 7: Positioning
Positioning To achieve optimal performance: 1. Place speakers on a firm and steady surface. 2. Aim speakers a little toe-in toward the listener by rotating horizontally 3. A wider angle could have better solid image; while narrower angle tends to have bigger sound stage Toe-in angle Listener... -
Page 8: Connecting
Connecting NOTICE: Always turn off the amplifiers and other equipment when installing or uninstalling the units. The SuperTweeter should be connected across your main speakers, positive (red) to positive and negative (black) to negative. Typical wiring: A. Typical single-wired installation. The SuperTweeter is simply connected across your speaker terminals. -
Page 9: Adjustment And Tuning
Matching the main loudspeakers Adjustment and tuning Crossing over with main loudspeakers The Sopranino is designed with a nominal sensitivity at The Sopranino is designed for reproducing very high 86dB/1m/1W. It is a little bit lower than big floor standing frequency information of music. -
Page 10: Troubleshooting
Troubleshooting Care and Maintenance Components of the highest quality are used in Sopranino. Problem Possible Action This assures years of trouble free operation. However, cause precautions should be taken under any circumstances. Power on but no No signal from Check your... -
Page 11: Warranty
8 kHz – 40 kHz moistened cloth only. Sensitivity (1m/1W on axis) 86 dB The stand of Sopranino is made of highest grade white or Recommended power 50 W gray glass, though tempered, it needs extra care when Crossover Frequency 8/10/12 kHz handling and placement. -
Page 12: Warranty Card
Serial No: ENIGMAcoustics Model: Warranty Card Name: Sales: Address: Store Address: Date of Purchase: ENIGMAcoustics Inc. - Page 13 Sopranino Electrostatic SuperTweeter ENIGMAcoustics Inc.
