Summary of Contents for Lindy 42770

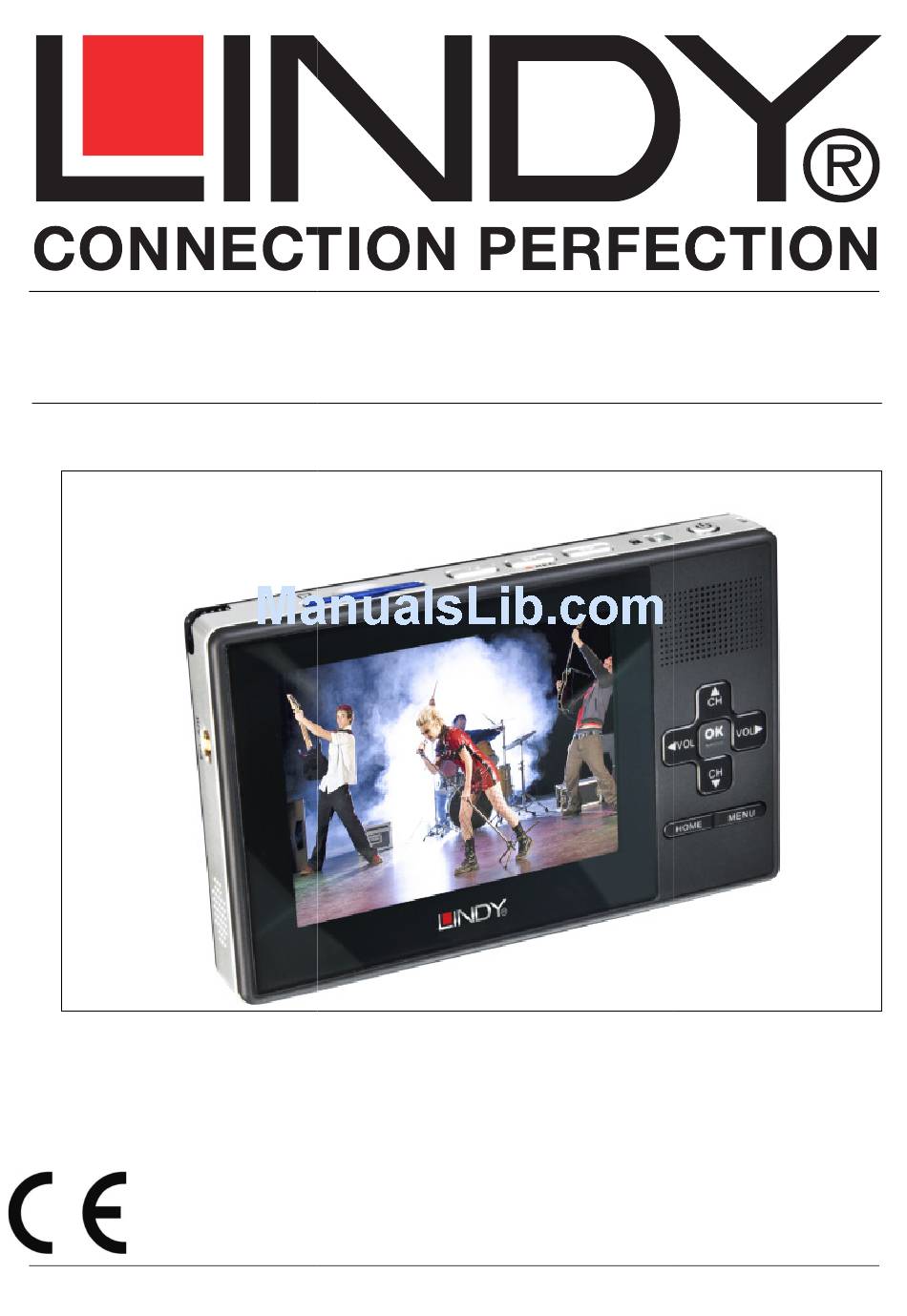

- Page 1 Product Name Product Name User Manual English LINDY No. 42770 www.LINDY.com www.LINDY.com © LINDY ELECTRONICS LIMITED © LINDY ELECTRONICS LIMITED & & LINDY LINDY-ELEKTRONIK GMBH FIRST EDITION (Oktober 2009)
- Page 2 English Manual The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk at electric shock to persons. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK –...
- Page 3 English Manual 12. Grounding or Polarization: This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug.
- Page 4 English Manual Precaution Preface On Safety Do not use wet hands to pull out the plug. It may cause electrical shock. If the player does not work, please pull out the plug for safety. Contact us for further technical support. Before moving the player, please make sure the power adapter is disconnected from the wall outlet.
-
Page 5: Table Of Contents
English Manual Table of Contents Preface……………………………………………………………………………………...5 Get Started ................... 6 I.1. Accessories ................... 6 I.2. System Configuration ..............6 I.3. Use of Operation Panel ..............7 II. Using the Menu ................9 Home Menu ................9 II.1. III. Quick Guide for First-time User ............ 10 III.1. -
Page 6: Preface
English Manual Preface Warning Unauthorized duplication of copyrighted material may infringe upon the right of third parties and may be contrary to copyright laws. Safety Notes Do not bend, drop, crush, puncture, incinerate, or open this device. Keep this device within acceptable temperatures. Do not submit it to extreme temperatures. Do not use this device in rain, or near washbasins or other wet locations. -
Page 7: Get Started
English Manual I. Get Started Accessories I.1. Basic ○ Power Adaptor ○ Portable Antenna ○ AV Cord Optional ○ Cigarette Lighter Adaptor ○ MCX-to-IEC connector ○ Earphone ○ Car Holder Kit I.2. System Configuration... -
Page 8: Use Of Operation Panel
English Manual I.3. Use of Operation Panel Power button: Power on/off. Hold Switch: Enable/Disable the keypad and the hot-keys. Hot-Keys: allow to fast rewind, fast forward and play/pause/record media files. USB Host Port: only for reading USB memory stick. - Page 9 English Manual Key Functions Channel Up/Down Keys Press [CH+]/[CH-] buttons to scroll up or down channels. Option/Service Selection Press this button to select the service or the option. Volume Adjustment Press [VOL+]/[VOL-] buttons to adjust the volume. Menu Press this button to enter the service menu when using DVB- Home T services or go back to home...
-
Page 10: Using The Menu
English Manual II. Using the Menu Home Menu II.1. This is the home menu screen. You can highlight the video playback mode, the music playback mode, the picture viewing mode, the DVB-T TV mode, the DVB-T Radio mode, the display settings and Game. Use [VOL+] and [VOL-] buttons to highlight the desired item and press [OK] button to select it. -
Page 11: Quick Guide For First-Time User
English Manual III. Quick Guide for First-time User III.1. DVB-T TV Watching Step 1: Charging the device 1. Connect power adaptor to the main unit. 2. When battery charge starts, the charging LED indicator will be turned on as RED. 3. -
Page 12: Iii.2. Dvb-T Radio Listening
English Manual Step 4: Press [OK] button to enter the scan setup. Step 5: Select your own OSD Language, your located region, whether it’s summer time at present. 1. Use [CH+]/[CH-] buttons highlight the item. 2. Use [VOL+] button to set the highlight item. -
Page 13: Iii.3. Record Function
English Manual III.3. Record Function NOTE: The Mobile Media Player supports DVB-T TV and DVB-T Radio recording. 1. During TV/Radio mode press to start recording TV/Radio programs. When unit is recording, icon will appear on the upper left screen. NOTE: please ensure that you connect unit to USB device/ SD Card. -
Page 14: Iii.4. Movie Watching
English Manual III.4. Watching Movies The Mobile Media Player supports mpg, dat, vob, and avi (MPEG4ASP, XVid, Div 4.0/5.0) format video files. The section below will explain you how to quickly play a video file stored on SD/MMC Card or USB device. After selecting movie playback mode on the home screen, file browser screen will appear. - Page 15 English Manual 2. The available audio files will appear on screen. Use [CH+] and [CH-] buttons to scroll up and down the files, then select the desired file by pressing the [OK] button. NOTE: users can only choose music files under this mode.
-
Page 16: Iii.6. Photo Viewing
English Manual III.6. Photo Viewing The Mobile Media Player supports jpeg, bmp, and gif picture files. The section below will explain you how to view a picture file stored on the SD/MMC Card or USB device. 1. After selecting photo viewing mode on the home screen, file browser screen will appear. -
Page 17: Technical Settings
English Manual Technical Settings III.7. System Settings This is the system settings menu screen. Users can adjust the country/language setting, the sound setup, display, time, and proceed to a software upgrade. Use [VOL+] and [VOL-] buttons to highlight the desired item and press [OK] button to select one. -
Page 18: Iv.2. Dvb-T Tv/Radio Menu
English Manual IV.1.3. Sound Setup To select a sound effect and set up the equalizer. 1. Press [CH+]/[CH-] buttons to highlight the item you want to adjust. 2. Press [VOL+] button and use [CH+]/[CH-] to scroll up and down the options. 3. - Page 19 English Manual IV.2.2. Channel Management To rearrange and to edit the TV channel listing using skip, move, lock, and delete functions. 1. Select “Channel Management” in the TV Menu press [OK] button. management screen will appear as on the picture on the right. 2.
- Page 20 English Manual IV.2.3. Automatic Channel Search To search the available channels automatically. 1. Browse the TV menu screen using [CH+]/[CH- ]/[VOL+][VOL-] buttons highlight automatic search option. 2. Press [OK] button to start the channel search. IV.2.4. DVB-T Audio Settings To select either master or secondary language as well as the audio channel of current service.
- Page 21 English Manual IV.2.7. Subtitle To activate or deactivate the subtitle function. IV.2.8. Teletext To enter the teletext menu. IV.2.9. Parental Lock To set the password of the parental lock. 1. Browse the TV menu screen use [CH+]/[CH- ]/[VOL+]/[VOL-] buttons highlight parental lock option.
-
Page 22: Trouble Shooting Q&A
English Manual IV. Trouble Shooting Q&A Most of the troubleshooting issues can be easily solved. The common cases and their respective solutions are listed in the table below. If the problem persists, please contact the after sales service. Problem Possible Reason Solution Connect the unit to an external power The battery is totally discharged. -
Page 23: Specification
English Manual V. Specification Display 3.5” Colour TFT-LCD Resolution 320RGB(W)x240(H) pixels Brightness 250 nits Contrast Ratio 400:1 (Horizontal)/105 (Vertical) View Angle UHF and VHF band reception Antenna Built-in whip antenna Support external antenna input Speaker Built-in 0.5 W/8 SD(HC)/MMC Card up to 32GB Media Support Mini USB (USB 2.0 supported) 7 buttons: [CH+], [CH-], [VOL+], [VOL-], [OK], [MENU], [HOME]... - Page 24 Kabeln verwendet werden. LINDY Herstellergarantie LINDY gewährt für dieses Produkt über die gesetzliche Regelung hinaus eine zweijährige LINDY gewährt für dieses Produkt über die gesetzliche Regelung hinaus eine zweijährige LINDY gewährt für dieses Produkt über die gesetzliche Regelung hinaus eine zweijährige Herstellergarantie ab Kaufdatum.
