Anedio D1 DAC Operating Manual

Dac (digital-to-analog converter) with volume control

Advertisement

Quick Links

D1 DAC (Digital-to-Analog
Converter) with Volume Control
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D1 DAC and is the answer not in the manual?

Questions and answers

Summary of Contents for Anedio D1 DAC

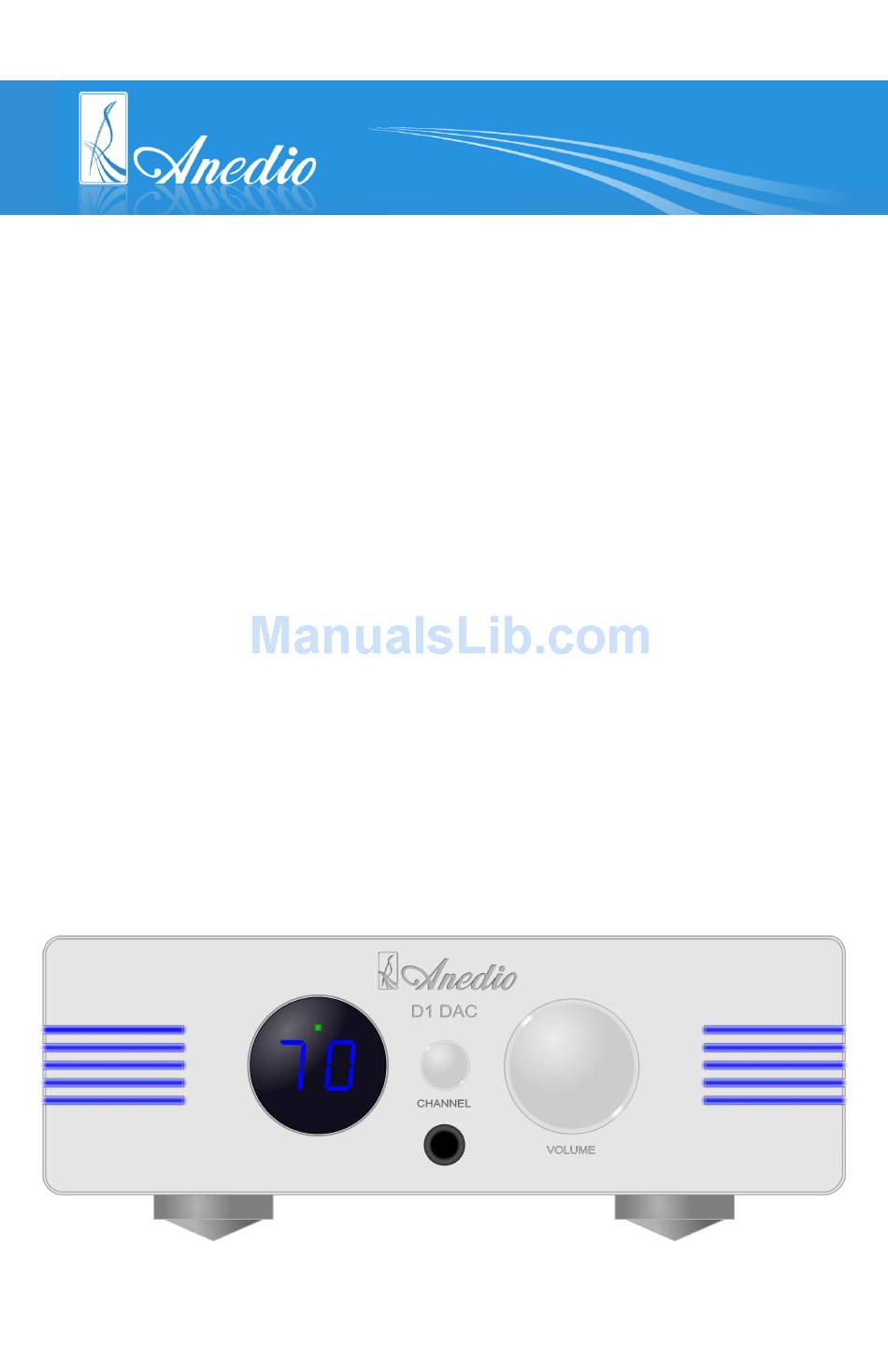

  • Page 1 D1 DAC (Digital-to-Analog Converter) with Volume Control Operating Manual...
  • Page 2 The result, we believe, is a unique combination of sonic excellence and superb value. At the center of the Anedio D1 is the ES9018 Sabre Reference 32-bit DAC from ESS Technologies. Its oversampling modulator, optimized for accurate reproduction of music, excels at maintaining superb linearity at all levels, tracking fast transients, and resolving lowermost signals.
  • Page 3: Important Safety Instructions

    Anedio D1 DAC Important Safety Instructions The lightening symbol within an equilateral triangle is intended to alert the user to the presence of un-insulated dangerous voltage within the product’s enclosure that may constitute a risk of electric shock. The exclamation mark within an equilateral triangle is intended to alert the user to important operating and maintenance instructions.
  • Page 4 Anedio D1 DAC 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
  • Page 5: Package Contents

    Anedio D1 DAC Setting Up Package Contents Model D1 DAC • AC Power Cord • IR Remote Control • Extra Fuses • User Manual • Measurements of Each Unit • Front Panel Rear Panel...
  • Page 6 Anedio D1 DAC Placement of the D1 DAC If you are using the D1 DAC primarily to listen to music through loudspeakers (instead of headphones), place the DAC and the amplifier between the two loudspeakers, instead of setting it off to one side.
  • Page 7 Plug-and-Play USB Interface The D1 DAC is a plug-and-play USB device. There is no need to install a USB driver. Simply plug the USB input of the DAC into the USB port of a computer, and you can enjoy listening to music immediately.
  • Page 8 Anedio D1 DAC the “1” position to turn power on. To turn power off, toggle the switch to the “0” position. When turning on and off your music system with a power amplifier, the power amplifier should be the last component to be turned on and the first component to be turned off.
  • Page 9: Remote Control

    Anedio D1 DAC Using the D1 DAC Remote Control The D1 DAC works with the Sony RM-EZ4 Universal Remote, which was chosen for its ergonomic design. Its large buttons, easily visible and intelligently placed, make it particularly suitable for controlling the volume level.
  • Page 10 As with most people, we do not like to pile up remote controls in our living rooms. In case you want to use another universal remote to control the D1 DAC, we’ve made it easy to do so by using a common IR protocol that is readily recognized by most universal remote controls.
  • Page 11: Specifications

    124 dB, 20Hz-20KHz BW, 2 Vrms Signal-to-Noise Ratio: 126 dB, A-weighted, 2 Vrms DAC Master Clock Jitter: 0.5 ps rms Total Jitter at DAC Refer to “Measuring Jitter” on Anedio web site Output: Frequency Response: 20 Hz - 20 KHz (-0.15dB) Phase:...
  • Page 12: Fcc Compliance

    Anedio D1 DAC Headphone Amp Current 250 mA peak Output: Headphone Amp Output 0.25 ohm, 20-20KHz Impedance: Headphone Amp THD+N: 0.0004%, 2Vrms into 60 ohms Headphone Jack: 1/4” TRS Power Consumption: Dimensions (W x H x D): 9.0 x 3.4 x 13.0 inches (229 x 86 x 330 mm) Weight: 8 lbs (3.6 Kg)
  • Page 13: Troubleshooting

    Ensure that the loudspeaker phase is not • imaging inverted. If the problem persists, please contact Anedio via the Contact page at www.anedio.com. WARNING: Repairs are to be performed by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions.
  • Page 14: Warranty And Repair

    The warranty is transferable from the original owner to a subsequent owner as long as a copy of the bill-of-sale from Anedio accompanies the re-sale. Repair In the event of a defect or malfunction, contact Anedio for return authorization (via the Contact page at www.anedio.com).

This manual is also suitable for:

D1
