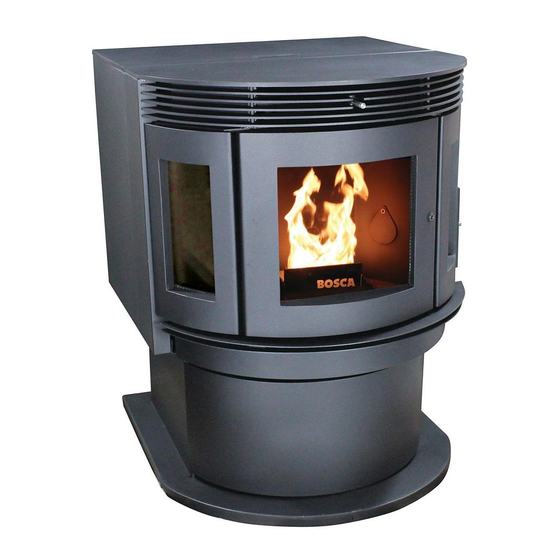

Bosca SOUL 700 Owner's Manual

Pellet stove and insert
Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner´s Manual
SOUL 700 Pellet Stove and Insert
Installation and Operating Instructions
Save These Instructions
Please read this entire manual before you install and use your BOSCA SOUL 700 Pellet Stove.
Failure to follow instructions may result in property damage, bodily injury, or even death.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOUL 700 and is the answer not in the manual?

Questions and answers

Related Manuals for Bosca SOUL 700

Summary of Contents for Bosca SOUL 700

  • Page 1 SOUL 700 Pellet Stove and Insert Installation and Operating Instructions Save These Instructions Please read this entire manual before you install and use your BOSCA SOUL 700 Pellet Stove. Failure to follow instructions may result in property damage, bodily injury, or even death.
  • Page 2 OWNER´S MANUAL OWNER’S MANUAL WARNING: If your appliance is not properly installed a house fire may result. For your safety, follow the installation directions. Contact local building or fire officials about restrictions and installation inspection requirements in your area. PLEASE read this entire manual before installation and use of this pellet fuel- burning room heater.

  • Page 3: Table Of Contents

    OWNER´S MANUAL TABLE OF CONTENTS INTRODUCTION SAFETY PRECAUTIONS INSTALLATION Specifications (Soul 700 Free Standing) Preparation (Soul 700 Free Standing) Free Standing Kit Assembly Instructions (Soul 700 Free Standing) Clearances (Soul 700 Free Standing) Combustion Air Supply (Soul 700 Free Standing)

  • Page 4: Introduction

    OWNER´S MANUAL INTRODUCTION Thank you for purchasing the BOSCA SOUL 700 Pellet Stove. You are now prepared to burn wood pellets in the most efficient, convenient way possible. To achieve the safest, most efficient and most enjoyable performance from your stove, you must do three things: 1) Install it properly;...

  • Page 5: Safety Precautions

    (per H.U.D. requirements). Check with local building officials. § THIS STOVE MUST NOT BE INSTALLED IN A BEDROOM OR SLEEPING ROOM. § BOSCA grants no warranty, implied or stated, for the installation or maintenance of your stove, and assumes no responsibility for any consequential damages.

  • Page 6: Installation

    OWNER´S MANUAL INSTALLATION SPECIFICATIONS Soul 700 Pellet Free Standing Freestanding 26.8 in. W i d t h : 34.6 in Height: 30.2 in Depth: Weight: 419 lbs. FRONT VIEW TOP VIEW (683 mm.) (683 mm.) 26.8 in. 26.8 in. fig. Nº1 3"...

  • Page 7: Preparation (Soul 700 Free Standing)

    Factory packaging must be removed, and some minor assembly work is required prior to installation. Access to the rear of the stove is necessary. FREE STANDING KIT ASSEMBLY INSTRUCTIONS Soul 700 Pellet Free Standing 1.- PEDESTAL ASSEMBLY (fig. Nº2) a.- Unpack the stove.
  • Page 8 OWNER´S MANUAL 3.- PEDESTAL ASSEMBLY (fig. Nº4) a.- Unpack pedestal assembly. b.- Lay pedestal assembly on it's back. c.- Line up four (1/4" hex head) bolts to stove bottom. d.- Start all four holes but do not tighten untill all four are aligned. e.- Once all four holes are aligned, securely tighten the four bolts.
  • Page 9 OWNER´S MANUAL 5. SIDE PANEL ASSEMBLY (fig. Nº6) a.- Unpack side panels. b.- Left side panel has hopper switch located at top front. SIDE PANELS c.- Connect hopper switch wires by sliding female wire connection over male spade connectors on hopper switch.
  • Page 10 OWNER´S MANUAL 7.- HOPPER DOOR ASSEMBLY (fig. Nº8) a.- Unpack hopper door assembly. b.- Place hopper top over hopper. c.- Align top squarely and make sure hopper switch aligns with contact on hopper door. d..- Align five (3/8" Oval Head Phillips) screws on back of hopper top back to hopper door hinge and tighten.

  • Page 11: Clearances (Soul 700 Free Standing)

    OWNER´S MANUAL CLEARANCES Soul 700 Pellet Free Standing The BOSCA SOUL 700 Pellet Stove has been tested and listed for installation in residential, mobile home and alcove applications. FLOOR PROTECTION Freestanding installations, minimum 33" wide by 36" deep. The stove must be placed on a continuous (grouted joints) noncombustible material such as ceramic tile, cement board, brick, 3/8”...
  • Page 12 OWNER´S MANUAL WALL CLEARANCES Back wall (76 mm.) 3 in. 3 in. (76 mm.) 7 in. (178 mm.) fig. Nº11 DO NOT USE MAKESHIFT MATERIALS OR COMPROMISES IN THE INSTALLATION OF THIS UNIT. INSTALL VENT WITH CLEARANCES SPECIFIED BY THE VENT MANUFACTURER. ALCOVE CLEARANCES FRONT VIEW TOP VIEW...

  • Page 13: Combustion Air Supply (Soul 700 Free Standing)

    - A hole in the wall behind the stove. WHEN OUTSIDE AIR IS NOT USED Soul 700 Pellet Free Standing If outside air is not used, it is important that combustion air is easily available to the air inlet. A closeable outside air register can be used in tightly insulated homes.

  • Page 14: Venting (Soul 700 Free Standing)

    VENTING Soul 700 Pellet Free Standing The BOSCA SOUL 700 Pellet Stove is certified for use with listed TYPE L-Vent, 3” or 4” diameter in size. The stove was tested with Simpson Duravent brand. Class “A” chimney is not required. Refer to the instructions provided by the vent manufacturer, especially when passing through a wall, ceiling or roof.

  • Page 15: Installations (Soul 700 Free Standing)

    OWNER´S MANUAL FREESTANDING INSTALLATIONS Soul 700 Pellet Free Standing HORIZONTALLY THROUGH WALL HORIZONTALL TERMINATION (Fig. Nº14) Fig 14. Locate terminations: WALL THIMBLE a) not less than 3 feet above any forced air inlet OPTIONAL located with 10 feet; HOUSE SHIELD...
  • Page 16 OWNER´S MANUAL VERTICALLY WITH NEW CHIMNEY SYSTEM ( Refer to Figures 16a-16b) 24" MIN ATTIC 24" MIN INSULATION SHIELD FIRESTOP CEILING SUPPORT/ 4 FT. FIRESTOP PIPE SPACER ADAPTER TEE WITH CLEAN-OUT ADAPTER fig. Nº16a fig. Nº16b NOTE: Follow L-Vent chimney manufacturer’s instructions. OPTION: Install L-Vent elbow in place of clean-out tee.
  • Page 17 OWNER´S MANUAL VERTICALLY INTO EXISTING CHIMNEY SYSTEM ( Refer to Figures 17a-17b) Adapters are available to adapt from 3” L-Vent to 6” or 8” Class-A chimney. (Figure 17a) As an alternative, 3” or 4” L-Vent can be run inside existing chimney to termination. (Figure 17b). This is the preferred method.
  • Page 18 OWNER´S MANUAL VERTICALLY INTO EXISTING MASONRY FIREPLACE ( Fig. Nº18) NOTE: Follow L-Vent chimney manufacturer’s instructions. • Have the masonry chimney inspected by a qualified chimney sweep or installer to determine its structural condition. • You will need a pipe length equal to the chimney height from the hearth. If outside combustion air is to be used, you will need a pipe length equal to the chimney height plus 18 inches.
  • Page 19 OWNER´S MANUAL INSTALLATION THROUGH SIDE OF MASONRY CHIMNEY (Fig. Nº 19) NOTE: Follow L-Vent chimney manufacturer’s instructions. • Position the stove, adhering to the clearances in figure Nº 11. Mark the center of the hole where the pipe is to pierce the masonry chimney.

  • Page 20: Specifications (Soul 700 Insert)

    OWNER´S MANUAL SPECIFICATIONS Soul 700 Pellet Insert (Fig. Nº20) Insert 40 in. (standard) - 45 in. (oversize) Width: 30.5 in. (standard) - 34 in. (oversize) Height: 27.4 in Total Depth: 309 lbs. Weight: FRONT VIEW TOP VIEW 45 in. (1143 mm.) (oversize with) 26.8 in.

  • Page 21: Installations (Soul 700 Insert)

    MASONRY AND FACTORY-BUILT FIREPLACES The BOSCA SOUL 700 Pellet Insert is approved for installation into a solid fuel burning fireplace, either a masonry fireplace (built to UBC37 or ULC S628 standards) or an approved factory-built zero clearance fireplace (built to UL 127 or ULC S610 standards).
  • Page 22 COMBUSTIBLE SUBFLOORING. PART # When installing your Bosca into a framed wall make sure to follow our required clearances and floor protection kit requirements: If there is any type of combustible sub flooring (NOT CEMENT SLAB ON GRADE FLOORING) the Bosca zero clearance floor protector part # ------ is REQUIRED// NO EXCEPTONS ALLOWED.
  • Page 23 Recommend that power source of outlet have in line switch or shut off if located behind panel. HEARTH / FLOOR PROTECTION – BOSCA SOUL 700 Pellet Insert In the US and Canada, the area below and directly in front of this appliance must be an approved fireplace hearth or protected by a non-combustible hearth / floor protector with a minimum thickness of 3/8”...

  • Page 24: Venting System (Soul 700 Insert)

    OWNER´S MANUAL VENTING SYSTEM Soul 700 Pellet Insert Direct Connect With Outside Air (Fig. Nº25) OUTSIDE AIR THROUGH REAR WALL fig. Nº25 NOTE: Use metal plate around exhaust vent pipe and seal all edges with non-flammable insulation such as fiberglass, mineral wool or ceramic material.

  • Page 25: Installing Surround Panel (Soul 700 Insert)

    MASONRY CHIMNEY OUTSIDE AIR THROUGH fig. Nº26 REAR WALL INSTALLING SURROUND PANEL Soul 700 Pellet Insert 1.- SORROUND PANEL ASSEMBLY (Fig. Nº27) a.- Install four (3/8" hex head) leveling bolts to bottom if needed depending on fireplace floor and hearth material.

  • Page 26: Specifications (Soul 700 Insert)

    NOTE: Hopper and chutes are supplied to fit most fireplaces. fig. Nº29 SPECIFICATIONS Soul 700 Pellet Insert Flue Size 3” or 4” Floor Protection Requirement 6” From Front of Firebox opening behind door Hopper Capacity min 45 lbs.

  • Page 27: Installation Check List (Soul 700 Insert)

    120V, 60hz electrical outlet. Voltage variations can lead to serious performance problems. The BOSCA SOUL 700 Pellet is designed for 120V AC with no more than 5% variation.

  • Page 28: Operation

    OWNER´S MANUAL OPERATION PANEL CONTROLS The blowers and automatic fuel supply are controlled from a panel on the top right- hand side of the stove. The control panel functions are as follows: ON/OFF SWITCH When pushed, the stove will automatically ignite. No other firestarter is necessary. The igniter will stay on for at least 10 and up to 15 minutes, depending on when Proof of Fire is reached.

  • Page 29: Proper Fuel

    You will have to empty the burnpot and vacuum the entire system more often. Poor quality pellets could damage the auger. BOSCA cannot accept responsibility for damage due to poor quality pellets. Your dealer can recommend a good quality pellet brand in your area.

  • Page 30: Damper Control

    OWNER´S MANUAL NOTE: To speed up the time it takes to prime the auger system, you may press and hold the hopper switch, and press and hold the auger button on the control board after you have turned the stove on by pressing the power button. This allows the auger to turn continuously.

  • Page 31: Shutdown Procedures

    SHUTDOWN PROCEDURE Turning your BOSCA SOUL 700 Pellet Stove off is a matter of pressing the “Power button on the control panel. The red light will go out. The blowers will continue to operate until internal firebox temperatures have fallen to the preset level.

  • Page 32: Operating Safety Precautions

    Pellets should be stored in a dry place. The pellets must not be stored within 12” of the stove. DO NOT STORE OR USE FLAMMABLE LIQUIDS, ESPECIALLY GASOLINE, IN THE VICINITY OF YOUR BOSCA SOUL 700 PELLET STOVE. NEVER USE A GAS OR PROPANE TORCH, GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER FLUID OR SIMILAR FLUIDS TO START OR “FRESHEN UP”...

  • Page 33: Maintenance

    AS INDICATED CAN RESULT IN POOR PERFORMANCE AND SAFETY HAZARDS. NEVER CLEAN WHEN HOT. NOTE: Inspect burnpot periodically to see that no holes have become plugged. If so, clean thoroughly. BOSCA MAINTENANCE TOOL A special tool has been provided to help with the following functions: §...
  • Page 34 OWNER´S MANUAL fig. Nº333a fig. Nº33 b fig. Nº33 c -33-...

  • Page 35: Ash Disposal

    VACUUM USE CAUTION: DO NOT VACUUM HOT EMBERS OR ASH If a vacuum is used to clean your unit, we suggest using a vacuum designed for ashes. BOSCA recommends LoveLess Ash Vac (1-800-568-3949, ext #27). Some regular vacuums and shop-type vacuums leak ash into the room. Your vacuum or shop-type vacuum may have a special filter or bag available to eliminate this leakage.

  • Page 36: Blowers

    OWNER´S MANUAL BLOWERS DANGER RISK OF ELECTRIC SHOCK. DISCONNECT POWER BEFORE SERVICING UNIT. CLEANING: Over time, ashes or dust may collect on the blades of both the combustion and convection blowers. The blowers should be vacuumed clean periodically as this debris can impede performance. Creosote can also accumulate in the combustion blower, which is accessed by the left side panel.

  • Page 37: Removal And Replacement Of Broken Door Glass

    OWNER´S MANUAL REMOVAL AND REPLACEMENT OF BROKEN DOOR GLASS While wearing leather gloves (or any other gloves suitable for handling broken glass), carefully remove any loose pieces of glass from the doorframe. Dispose of all broken glass properly. Return the damaged door to your Dealer for repair or replacement. NOTE: Neither the appliance owner nor any other unauthorized person(s) should replace the door glass.
  • Page 38 OWNER´S MANUAL STOVE SHUTS OFF AND THE #3 LIGHT FLASHES Possibles remedies (Unplug stove first when possible) Possibles Causes 1.The hopper is out of pellets or bridged Refill the hopper. pellets. Lid must be closed for pellets to feed. 2.-Hopper lid left open. Make sure that the air intake collar on the burnpot is touching the 3.-The air damper is too far open for a low feed setting.
  • Page 39 OWNER´S MANUAL STOVE FEEDS PELLETS, BUT WILL NOT IGNITE Possibles Remedies: ( Unplug stove first when Possibles Causes possible) 1.-Air damper open too far for ignition. Pull the air damper out for startup. In some situations it may be necessary to have the damper completely closed for ignition to take place.
  • Page 40 OWNER´S MANUAL STOVE WILL NOT FEED PELLETS, BUT FUEL FEED LIGHT COMES ON AS DESIGNED Possibles Causes Possibles remedies (Unplug stove first when possible) 1. Fuse on control board blew. Remove the control board. If the fuse appears to be bad, replace it with a 5 Amp 250 Volt Fuse.
  • Page 41 If there are signs of corn being used, find out what mixed was being used and what setting. No other types of fuel have been approved for Bosca pellet stoves. If there are signs of other types of fuel being used, advise the consumer to stop using them immediately.

  • Page 42: Electrical Diagram

    SMOKE SMELL OR SOOT BUILD-UP Because it is a wood-burning device, your BOSCA SOUL 700 Pellet stove may emit a faint wood-burning odor. If this increases beyond normal, or if you notice any soot build-up on walls or furniture, check your exhaust system carefully for leaks. All joints should be properly sealed.

  • Page 43: Replacement Parts

    OWNER´S MANUAL REPLACEMENT PARTS Contact an Authorized Bosca Stove Dealer to obtain any of these parts. Never use substitute materials. Use of non-approved parts can result in poor performance and safety hazards. UNIT FREE STANDING NUMBER C O D E...
  • Page 44 OWNER´S MANUAL REPLACEMENT PARTS -43-...
  • Page 45 OWNER´S MANUAL REPLACEMENT PARTS -44-...

  • Page 46: Lifetime Limited Warranty

    This Warranty is non-transferable and is made to the original retail purchaser only, provided that the purchase was made through an authorized BOSCA Stove Dealer. It must be installed and operated at all times in accordance with the Installation and Operating Instructions furnished with the product, as well as any local and national building codes.
  • Page 47 BOSCA may, at its discretion, fully discharge all obligations with respect to this Warranty by either repairing or replacing the unit, or refunding the wholesale price of the defective part(s).
  • Page 48 BOSCA CHILE S.A. Av. Américo Vespucio 2077 Huechuraba Santiago - Chile Telephone : (56) 2 3288500 Fax: (56) 2 624 1891 www.boscastoves.com Made in Chile...
