User's Manual
BPE48V75ART2U
Battery Pack
K01-0000127-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BPE48V75ART2U and is the answer not in the manual?

Questions and answers

Summary of Contents for CyberPower BPE48V75ART2U

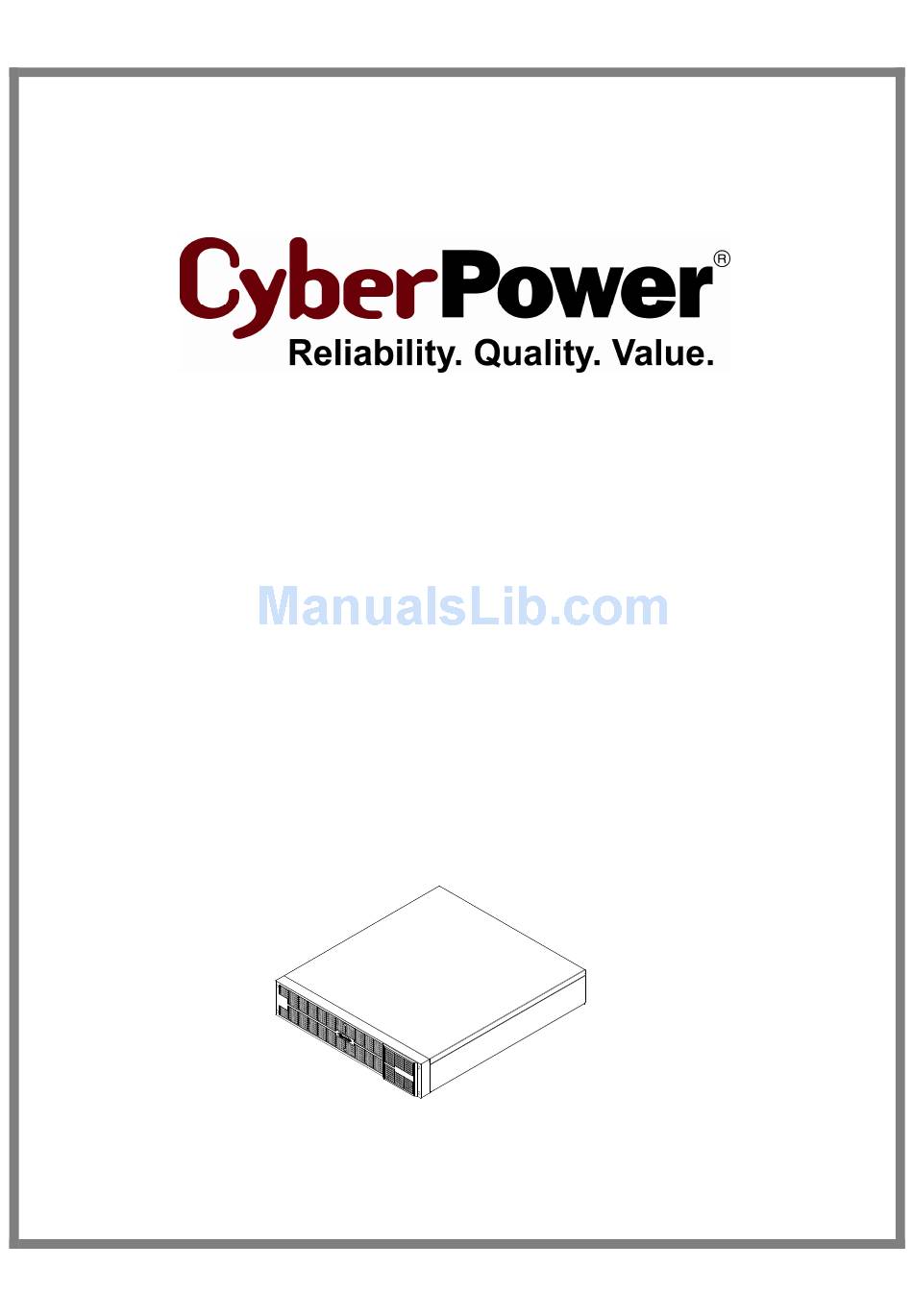

  • Page 1 User’s Manual BPE48V75ART2U Battery Pack K01-0000127-01...
  • Page 2: Table Of Contents

    Table of Contents OVERVIEW PRODUCT FEATURES TECHNICAL SPECIFICATIONS INSTALLATION INSTRUCTIONS Package Contents HARDWARE INSTALLATION GUIDE Safety Precautions Rackmount Installation Vertical/Standing Installation ELECTRICAL INSTALLATION GUIDE BATTERY PACK CONFIGURATION TROUBLE SHOOTING NEED ADDITIONAL HELP Copyright © 2009 CyberPower Systems, Inc.
  • Page 3: Overview

    PR1000ELCDRTXL2U, PR1500ELCDRTXL2U, PR2200ELCDRTXL2U and PR3000ELCDRT2U. The 2U BPE48V75ART2U Battery Pack matches the esthetics of these UPSs, and can be used in either rack or tower installations. The heavy gauge power cord has a plug-n-play DC connector for easy installation. The all metal enclosure safely houses eight 12V 9Ah batteries (The specified type of battery: HR9-12 FR (BB)).
  • Page 4: Technical Specifications

    Physical Dimensions (cm) 2U Rack, 43.3 x 8.8 x 48 Weight (kg) Environmental Temperature – Operating 32° F – 104° F Humidity – Operating 0% to 95% Non-condensing Safety Approvals Certifications RoHS RoHS Compliant Copyright © 2009 CyberPower Systems, Inc.
  • Page 5: Installation Instructions

    Rack-mount Handles (2) Base Stand Extensions (2) Right sides) Screw Hole Dust Covers (5) Rackmount Rail Screws (6) Rack-mount Handle Screws (5) Screw Hole Dust Cover Screws (5) Auxiliary AC Power Cord User’s Manual Copyright © 2009 CyberPower Systems, Inc.
  • Page 6: Hardware Installation Guide

    Step 2: Rackmount Rail Installation Each Rackmount Rail (Left and Right) consists of two pieces that must be assembled together before installing into the rack. Attach the two Rackmount Ears to Battery Pack using the provided screws. Copyright © 2009 CyberPower Systems, Inc.
  • Page 7 Rackmount Rails. Slide the UPS on top of the newly installed Rackmount Rails, and secure the UPS to your existing rack system [via the Rackmount Ears] using fasteners that are designed for your rack system. Copyright © 2009 CyberPower Systems, Inc.
  • Page 8: Vertical/Standing Installation

    Step 2: Install Battery Pack Insert Dust Covers into the Rackmount Ear screw holes that are not being used. The UPS and Battery Pack should now fit easily in the newly expanded Base Stands. Copyright © 2009 CyberPower Systems, Inc.
  • Page 9: Electrical Installation Guide

    Do not add more Battery Packs to AC OUTPUT AC INPUT (Change Only) the UPS than is specified in the OUTPUT: INPUT: Push To RESET BATTERY PACK Technical Specifications section of AC OUTPUT AC INPUT (Change Only) the User’s Manual. Copyright © 2009 CyberPower Systems, Inc.
  • Page 10: Battery Pack Configuration

    Press the Select button once to activate the Multi-function LCD Readout. Then, press and hold the Select button for 10 seconds to access the Utility menu. Note: the UPS will start beeping during this process. Copyright © 2009 CyberPower Systems, Inc.
  • Page 11 Example: If you have three Battery Packs attached, set the number to 3. To save the changes, press and hold the Select button for four seconds. This will return you to the main menu on the UPS. Copyright © 2009 CyberPower Systems, Inc.
  • Page 12: Trouble Shooting

    4241 12th Avenue East, Suite 400, Shakopee, MN 55379, U.S.A. Tel: +1 952 4039500, Fax: +1 952 4030009, E-MAIL: sales@cyberpowersystems.com Entire contents copyright © 2009 CyberPower Systems, Inc. All rights reserved. Reproduction in whole or in part without permission is prohibited.
