Quick Start USER GUIDE
ECOROX
Features & Operation
Models: GDI-EGRX600--610
ECOROX Control Buttons
LED Status Indicators:
POWER, BATTERY, Bluetooth
Diagram 2
Diagram 1
Contol Buttons & LED's
PLAY PAUSE
BATTERY
Bluetooth
ON/OFF
SPEAKER VOLUME
TRACK SELECTION
ANSWER
INDICATOR
Advertisement
Summary of Contents for EcoxGear GDI-EGRX600
- Page 1 Quick Start USER GUIDE ECOROX Features & Operation Models: GDI-EGRX600--610 ECOROX Control Buttons LED Status Indicators: POWER, BATTERY, Bluetooth Diagram 2 Diagram 1 Contol Buttons & LED’s PLAY PAUSE BATTERY Bluetooth ON/OFF SPEAKER VOLUME TRACK SELECTION ANSWER INDICATOR...
- Page 2 NOTE: 1 short beep SMARTPHONE. STEP 3. Find approximately 30 tone will sound when Listen to the caller “ECOXGEAR” on your minutes of play max vol. setting is over ECOROX Smartphone as a pairing time remains reached on the speakers &...
- Page 3 Quick Start USER GUIDE USB & AUX-IN CONNECTIONS RUBBER CAP, USB POWER & AUX-IN CONNECTIONS • Pull tab on the rubber cap to open the back panel compartment for access to AUX-IN & USB CHARGING connections • AUX-IN can be used as an optional connection to play an audio device using a 3.5mm audio cable connection.
- Page 4 Quick Start USER GUIDE BACK PANEL & RUBBER CAP IMPORTANT: IF the rubber cap is not securely closed the unit is NOT watertight. To ensure the unit is watertight the back panel rubber cap MUST be closed securely. ALWAYS CLOSE RUBBER CAP PROPERLY to ensure unit is watertight &...
-

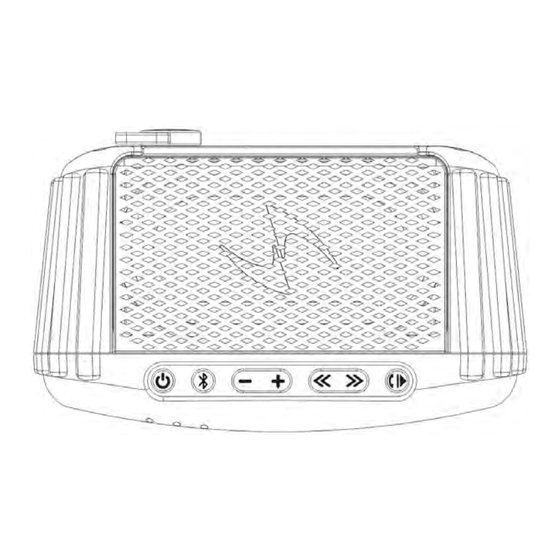

Page 5: Front Panel
Quick Start USER GUIDE FRONT PANEL SIDE PANEL BOTTOM PANEL & MOUNT SPECIFICATIONS Output Power: RMS 6W (3 Watt x2 speakers /4 ohms) S/N Ratio: 88db +/- 3dB Frequency Range: 125Hz-18,000Hz Unit Size: 3.0” x 5.3” x 2.5“ Power Source: Lithium Ion 3.7V 1400mAh Battery Unit Weight: 11 ounces... - Page 6 Quick Start USER GUIDE FCC Compliance Statement & Warning: This device has been tested & found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 7: Limited Manufacturer's Warranty
ECOROX by ECOXGEAR, a division of Grace Digital Inc., San Diego, California. Visit us on Facebook ECOROX by ECOXGEAR, a division of Grace Digital Inc. Designed in California, Assembled in China. All rights reserved. The Trademark BlackBerry® is owned by Research In Motion Limited and is registered in the United States and may be pending or registered in other countries.
