VG400 and VG600 FM 4/6 Channel Systems
SECTION I
Safety First for Yourself and Others.
SECTION II
Federal Licensing Requirements
and Special Operating Standards for
Model Airplanes
SECTION III
System Features
SECTION IV
Unpacking and setting up your
AIRTRONICS VG400 or VG600
Radio Control System
SECTION V
Operation Adjustments
NOTE: FOR BATTERY CHARGING
INFORMATION AND INSTRUCTIONS ON
LEARING TO USE YOUR AIRTRONICS RADIO
SYSTEM, PLEASE SEE THE AIRTRONICS
RADIO OPERATION AND INSTALLATION
INSERT.
THANK YOU FOR SELECTING AIRTRONICS
We appreciate your purchase of this new AIRTRONICS
VG400 or VG600 Radio System.
These instructions are intended to acquaint you with the
many unique features of this modern, state-of-the-art
equipment. Please read them c arefully so that you may
obtain maximum success and enjoyment from its
operation
(1)
(2)
LOW
MID
FULL
O N
P O W E R
(12)
(18)
(17)
(17)
(12)

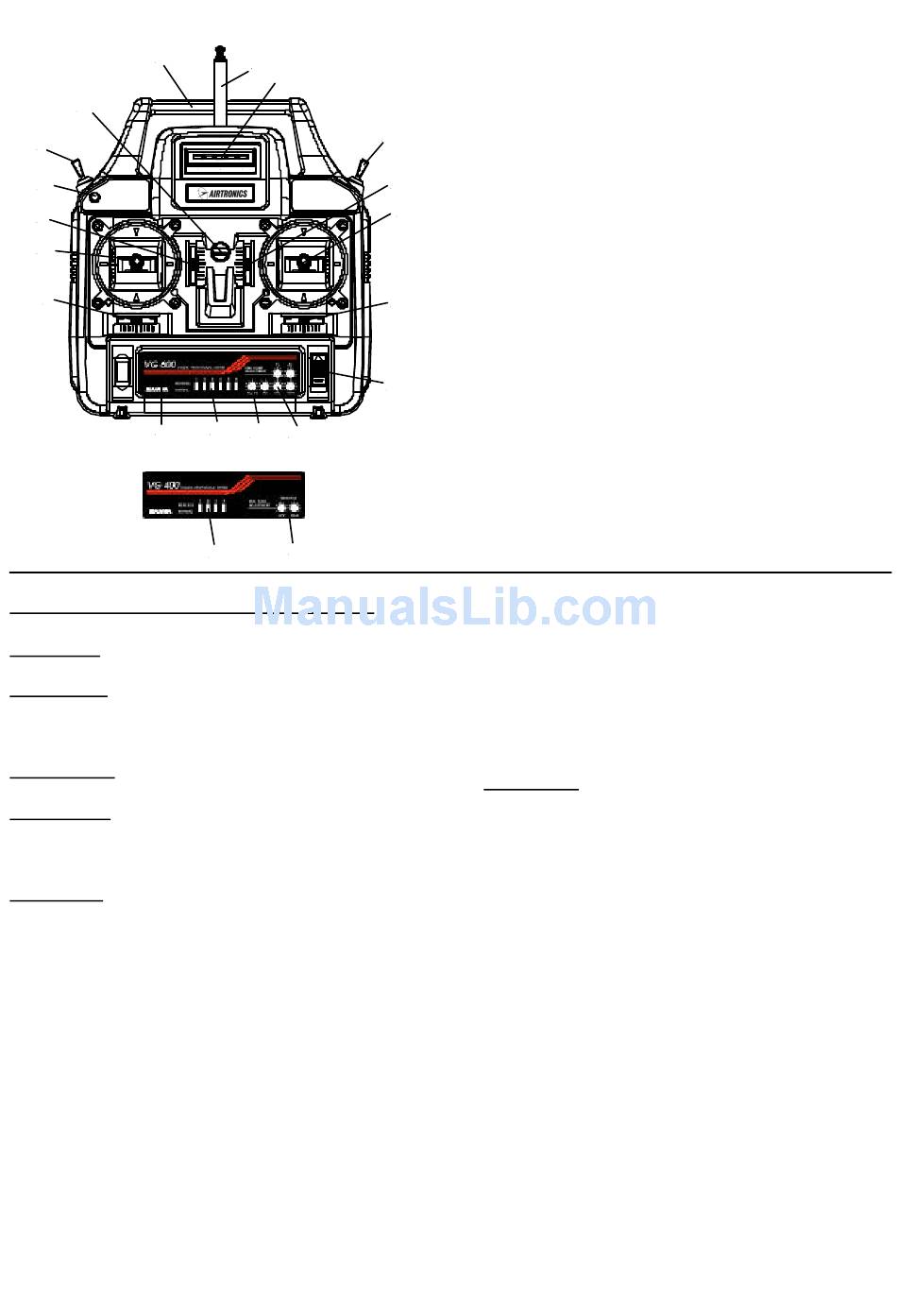

TRANSMITTER FEATURES AND FUNTIONS
The AIRTRONICS VG400/VG600 Radio Control Systems are
primarily intended for the flying of fixed wing model aircraft.
(16)
1.
Retractable antenna
2.
LED Scale Voltage Display
(4)
3.
Control stick, horizontal-ailerons, vertical-elevator
(mode 2) Vertical-throttle (Mode 1)
(3)
4.
Trim lever, elevator (Mode 2); throttle (Mode1)
5.
Trim lever ailerons
6.
Name Plate
7.
Power Switch
8.
Trim lever throttle (Mode 2); elevator (Mode 1)
(5)
9.
T rim lever rudder
10.
Control stick, horizontal-rudder, vertical-throttle
(Mode 2) Vertical-elevator (Mode 1)
11.
Neck strap connecting hook
(7)
12.
Servo reverse switches
13.
Retract aux Channel (VG600 Only)
14.
Trainer button
15.
Carrying handle
16.
3 position aux channel flap switch (VG600 Only)
17.
Throttle High and Low End point adjustments
18.
Ail, Elev, Rud, Flap Servo Travel Adjusters
(VG600 Only)
We ask that you pay particular attention to the design of
the transmitter. Notice that it has been engineered for
the most natural and precise control of your choice of
flying models.
Be certain to read all of the material in this manual, as
well as the Operation and Installation insert.
SECTION I
SAFETY FIRST FOR YOURSELF, FOR OTHERS
AND FOR YOUR EQUIPMENT.
"Safety First" is more than just a slogan when operating
radio control models. Thus, we urge, especially with
respect to radio controlled aircraft that:
FOR YOUR SAFETY:
Recognize that radio controlled models are not harmless
toys and can be dangerous missiles if carelessly or
improperly flown. You are responsible because the
reliability and safe operation of the radio equipment is
largely dependent upon its proper installation and
utilization.
THEREFORE, INSTALL YOUR RADIO CONTROL
SYSTEM CORRECTLY AND BE CERTAIN YOU
CAN FLY WELL ENOUGH TO CONTROL YOUR
AIRCRAFT UNDER ALL CONDITIONS.
1
